Mitsubishi Montero (2004+). Manual - part 337





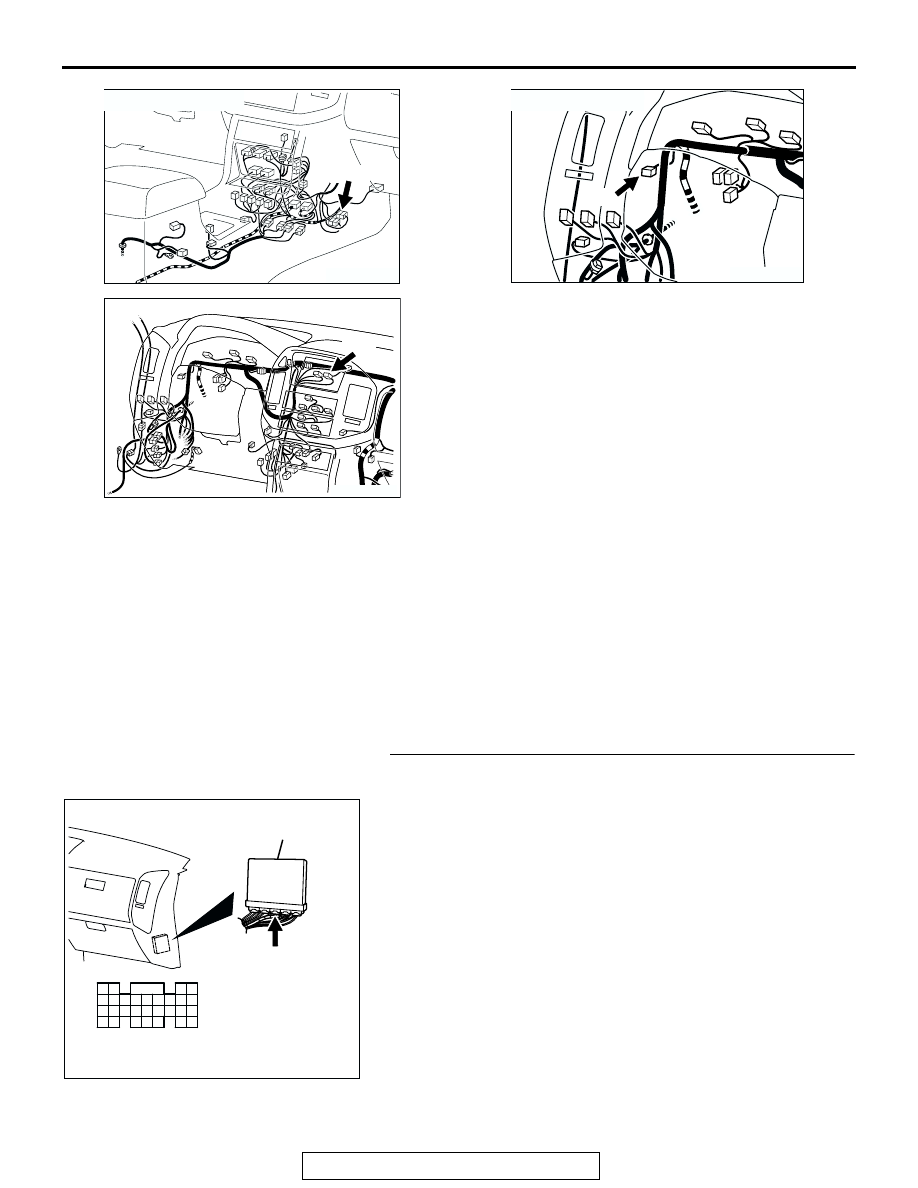

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-835

.

CIRCUIT OPERATION

• A diagnostic output is made from the PCM (termi-

nal No. 74) to the diagnostic output terminal (ter-
minal No. 7) of the data link connector.

.

COMMENT

• No power supply to PCM.

• Defective ground circuit of PCM.

• Defective PCM.

• Improper communication line between PCM and

scan tool.

.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

• Malfunction of PCM power supply circuit.

• Malfunction of the PCM.

• Open or shorted circuit between PCM and data

link connector.

DIAGNOSIS

STEP 1. Check harness connector D-134 at PCM for
damage.
Q: Is the harness connector in good condition?

YES :  Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

AK201043

E-111

AB

CONNECTOR: E-111

AK304351

D-08

CONNECTOR: D-08

AD

AK201044

D-29

AB

CONNECTOR: D-29

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-836

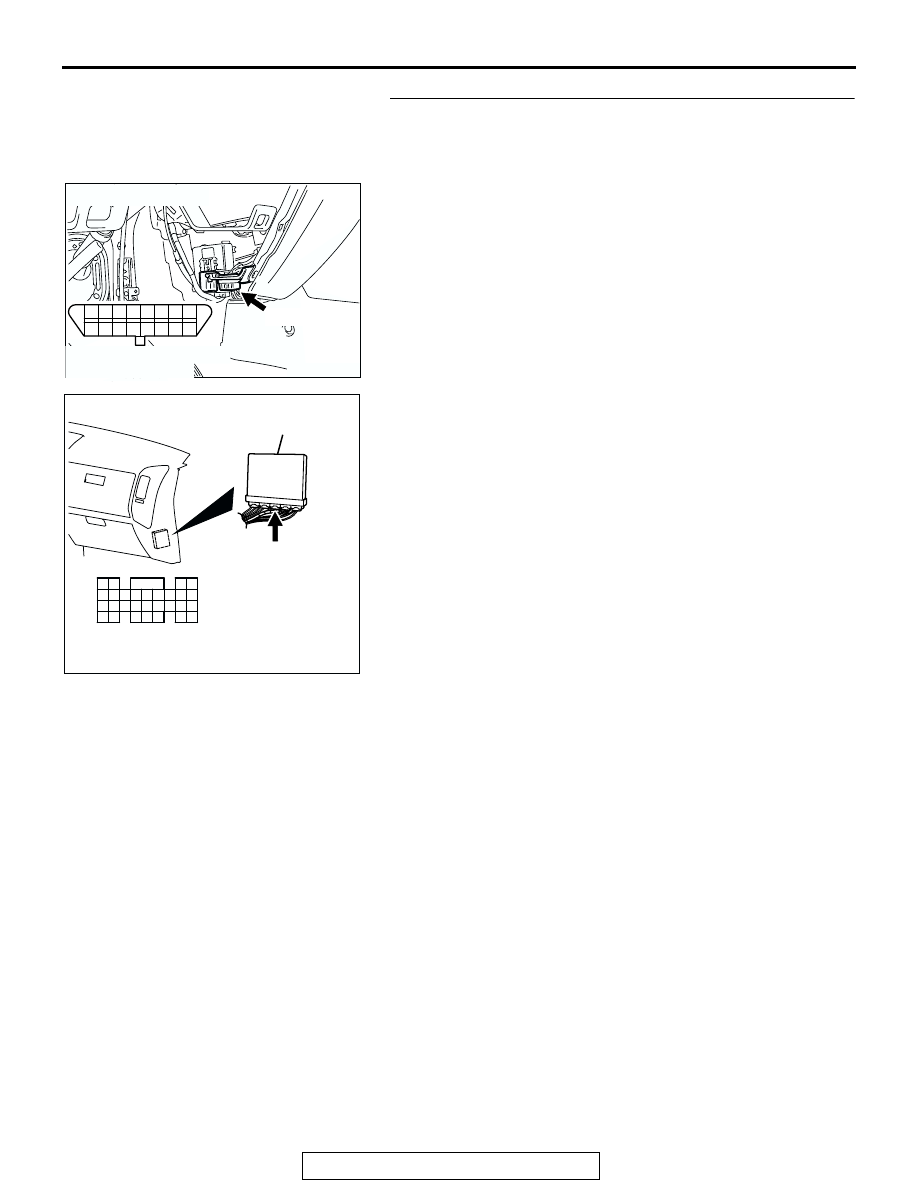

STEP 2. Check for open circuit, short circuit to ground and
harness damage between data link connector D-118
(terminal No. 7) and PCM connector D-134 (terminal No.
74).

NOTE: Check harness after checking intermediate connectors
D-29, D-08 and E-111. If intermediate connector D-29, D-08
and E-111 are damaged, repair or replace them. Refer to
GROUP 00E, Harness Connector Inspection

P.00E-2

. Then

check that the malfunction is eliminated.
Q: Is the harness wire in good condition?

YES :  Refer to INSPECTION PROCEDURE 28

− Power

Supply System and Ignition Switch-IG System

P.13A-908

.

NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

AK201285

1 2 3 4 5 6

12

11

10

1516

14

13

9

7 8

AB

D-118(B)

CONNECTOR: D-118

HARNESS CONNECTOR:
COMPONENT SIDE

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-837

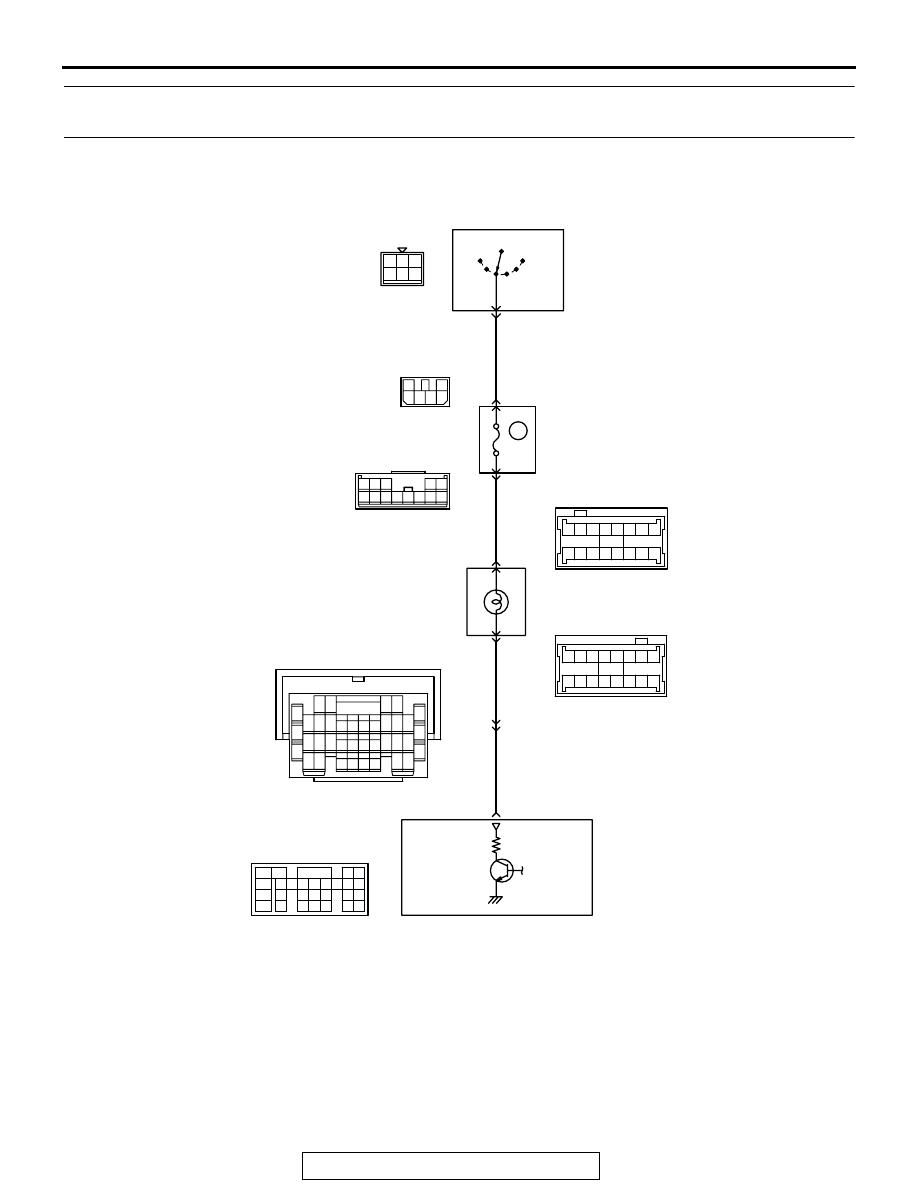

INSPECTION PROCEDURE 3: The Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check
Engine Lamp) Does Not Illuminate Right after the Ignition Switch Is Turned to the "ON" Position.

AK201154

RED-

WHITE

RED-

WHITE

BLA

CK-

WHITE

BLUE-

BLA

C

K

14

7

38

37 38

39

40

43

41 42

44

47

45 46

32

31

33 34 35 36

D-04

62

1

2

2

R

IG2

ST

LOCK

ACC

IG1

IGNITION
SWITCH

MALFUNCTION INDICATOR LAMP

SERVICE ENGINE SOON
OR CHECK ENGINE LAMP

POWERTRAIN
CONTROL
MODULE (PCM)

3

4 5 6

1 2

D-204

5 6

1
3

2

4

D-208

MU801331

9

6

10

17

18

29

2

3 4

7 8

19 20

30 31

12

11

24

33 34 35

21

32

27

26

36 37

28

38

25

13

15

14

16

23

22

1

5

E-111

53 54 55 56 57 58

59

60

63

61 62

64

67

65 66

52

51

D-03

13

3

5

7

12

9

1

6

8

11

10

2

4

D-210

(MU801860)

Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) Circuit

(

)

1

2

3

5

6 7 8 9

4

20

21 22

232425

2627

10111213

14 15

16 1718

19

D-132

(MU803802)

6

10A

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-838

.

CIRCUIT OPERATION

• The malfunction indicator lamp (service engine

soon or check engine lamp) power is supplied
from the ignition switch.

• The PCM controls the ground of the malfunction

indicator lamp (service engine soon or check
engine lamp) by turning the power transistor in
the PCM ON and OFF.

.

COMMENT

• The PCM causes the malfunction indicator lamp

(service engine soon or check engine lamp) to
illuminate for 20 seconds immediately after the
ignition switch is turned to the "ON" position
occurred.

.

TROUBLESHOOTING HINTS (The most likely
causes for this case: )

• Burnt-out bulb.

AK304351

D-03(GR)

CONNECTOR: D-03

AB

AK201038

CONNECTOR: D-132

AB

PCM

D-132(GR)

AK201045

D-204

AB

CONNECTOR: D-204

AK201041AC

CONNECTOR: D-210

D-210

AK304351

D-04(GR)

CONNECTOR: D-04

AC

AK201041AD

CONNECTOR: D-208

D-208

AK201043

E-111

AB

CONNECTOR: E-111
