MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-807

STEP 7. Check for open circuit and harness damage
between barometric pressure sensor connector B-48
(terminal No. 5) and PCM connector D-134 (terminal No.
88).
Q: Is the harness wire in good condition?

YES : Go to Step 8.
NO : Repair it. Then go to Step 9.

STEP 8. Replace the barometric pressure sensor.
(1) Replace the barometric pressure sensor.
(2) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

(3) Check the diagnostic trouble code (DTC).
Q: Is DTC P2227 set?

YES : Replace the PCM. Then go to Step 9.
NO : The inspection is complete.

STEP 9. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P2227 set?

YES : Retry the troubleshooting.
NO : The inspection is complete.

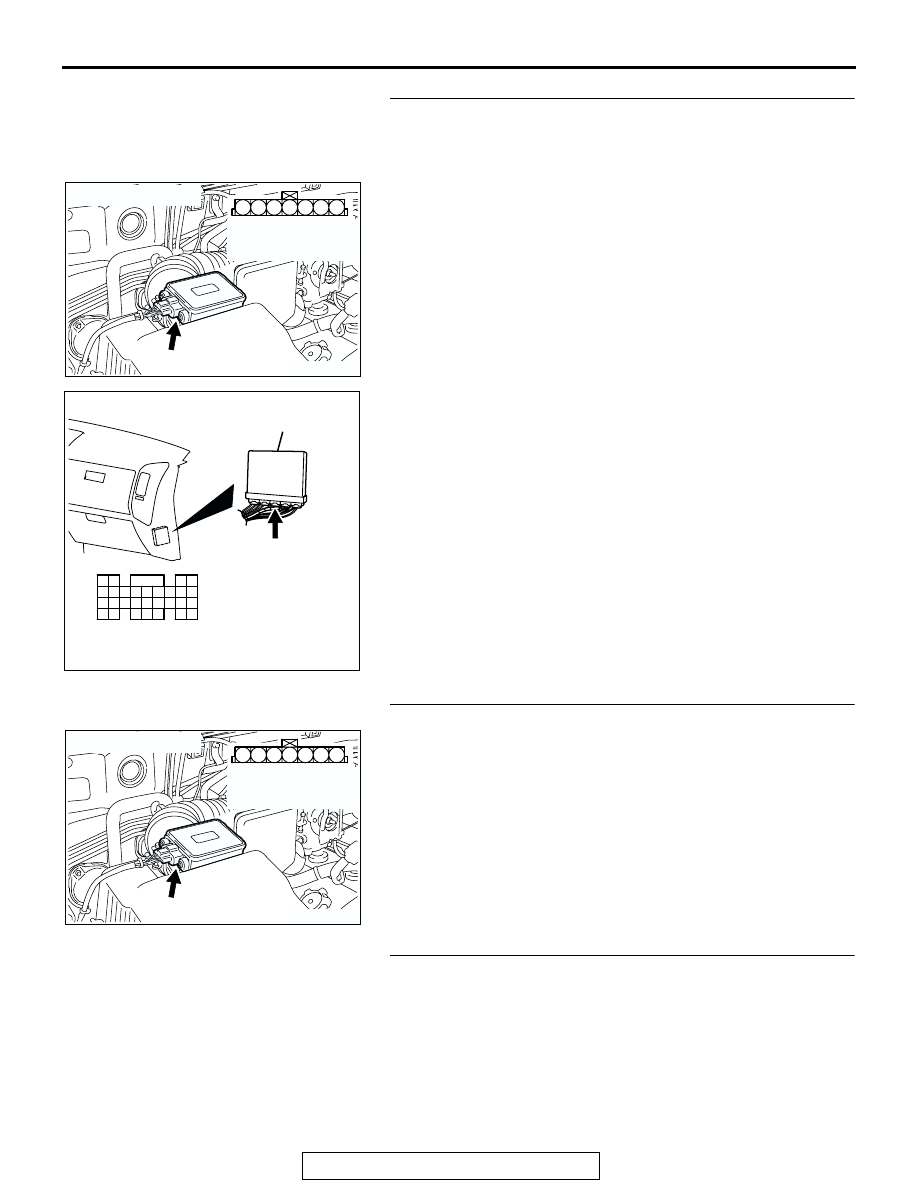

AK200937

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-48

B-48(B)

AK201166

CONNECTOR: D-134

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK200937

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-48

B-48(B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-808

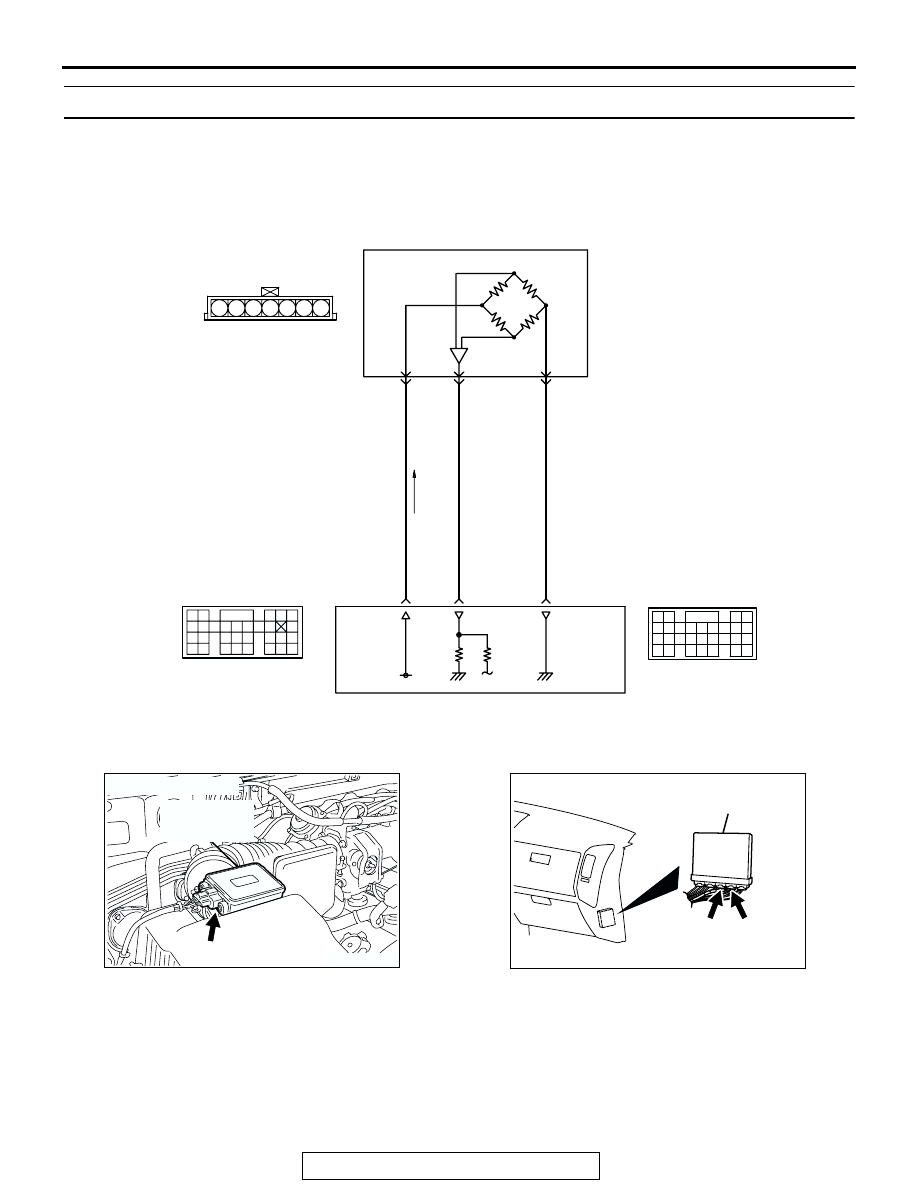

DTC P2228: Barometric Pressure Circuit Low Input

CIRCUIT OPERATION

• A 5-volt voltage is supplied to the barometric

pressure sensor power terminal (terminal No. 1)
from the PCM (terminal No. 97). The ground ter-
minal (terminal No. 5) is grounded with PCM (ter-
minal No. 88).

• A voltage that is proportional to the atmospheric

pressure is sent to the PCM (terminal No. 100)
from the barometric pressure sensor output ter-
minal (terminal No. 2).

AK201127

GREEN-YELLO

GREEN-WHITE

SKY B

BAROMETRIC PRESSURE SENSOR
(INCORPORATED IN VOLUME AIRFLOW
SENSOR)

5 V

100

POWERTRAIN CONTROL MODULE (PCM)

1 2 3 4 5 6 7

B-48

Barometric Pressure Sensor Circuit

9192

939495

96979899

100

105

113114

115116117

118119120

106

107108109

110111112

101102103

104

D-135

(MU803805)

61
656667686970 717273
74757677787980 8182
8384

858687

8889

6364

D-134

(MU803804)

AK200940

BAROMETRIC
PRESSURE
SENSOR

CONNECTOR: B-48

B-48(B)

AK201038AK

CONNECTORS: D-134, D-135

PCM

D-134(GR) D-135(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-809

TECHNICAL DESCRIPTION

• The barometric pressure sensor outputs a volt-

age which corresponds to the barometric pres-
sure.

• The PCM checks whether this voltage is within a

specified range.

DESCRIPTIONS OF MONITOR METHODS
Barometric pressure sensor output voltage is out of

reasonable barometric pressure range.

MONITOR EXECUTION
Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

DTC SET CONDITIONS

Logic Flow Chart

Check Conditions

• 2 seconds or more have passed since the start-

ing sequence was completed.

• Battery positive voltage is higher than 8 volts.

Judgement Criteria

• Barometric pressure sensor output signal has

continued to be approximately 49.5 kPa (14.6
in.Hg) or lower (approximately 15,000 ft above
sea level) for 10 seconds.

START

END

YES

MALFUNCTION

GOOD

YES

AK302969

MONITORING

CONDITIONS

BAROMETRIC PRESSURE

< 49.5kPa (14.6in.Hg)

BAROMETRIC PRESSURE

> 112.8kPa (33.3in.Hg)

CONTINUOUS

FAILURE FOR 10secs

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-810

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

− Other Monitor

P.13A-4

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Barometric pressure sensor failed.

• Shorted barometric pressure sensor circuit, har-

ness damage, or connector damage.

• PCM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

STEP 1. Using scan tool MB991958, check data list item 25:
Barometric Pressure Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

25, Barometric Pressure Sensor.

• When altitude is 0 m (0 foot), 101 kPa (29.8 in.Hg.).

• When altitude is 600 m (1,969 feet), 95 kPa (28.1

in.Hg.).

• When altitude is 1,200 m (3,937 feet), 88 kPa (26.0

in.Hg.).

• When altitude is 1,800 m (5,906 feet), 81 kPa (23.9

in.Hg.).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

NO : Go to Step 2.

AK302970

MB991911

MB991824

MB991827
