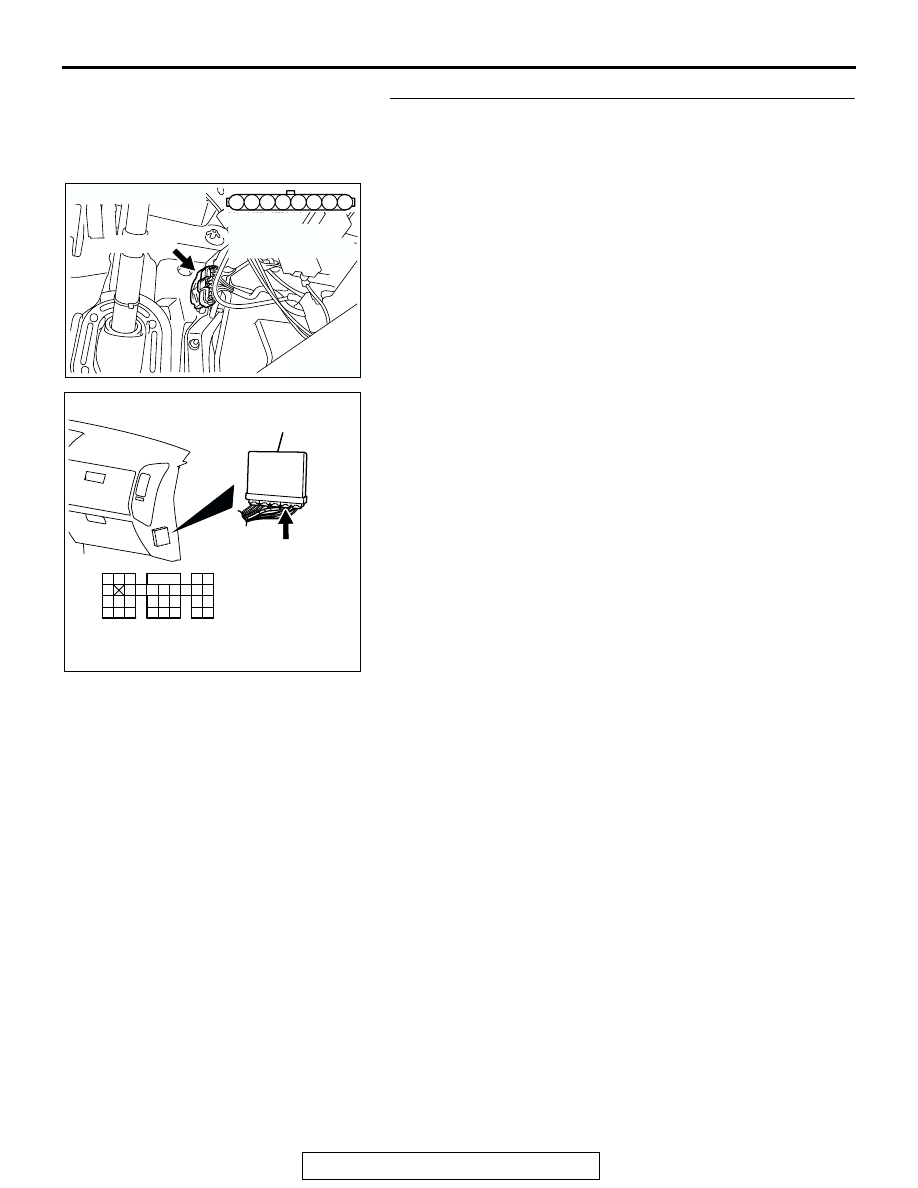

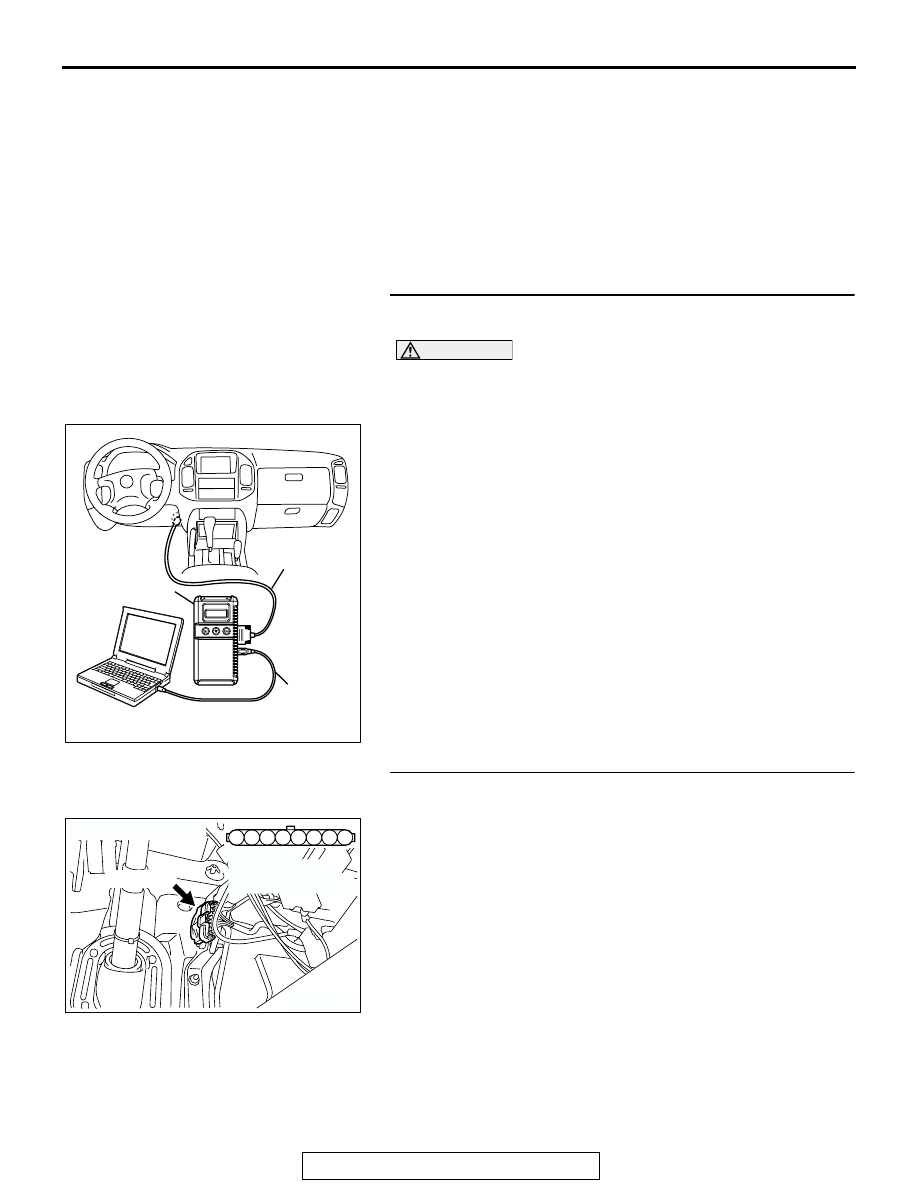

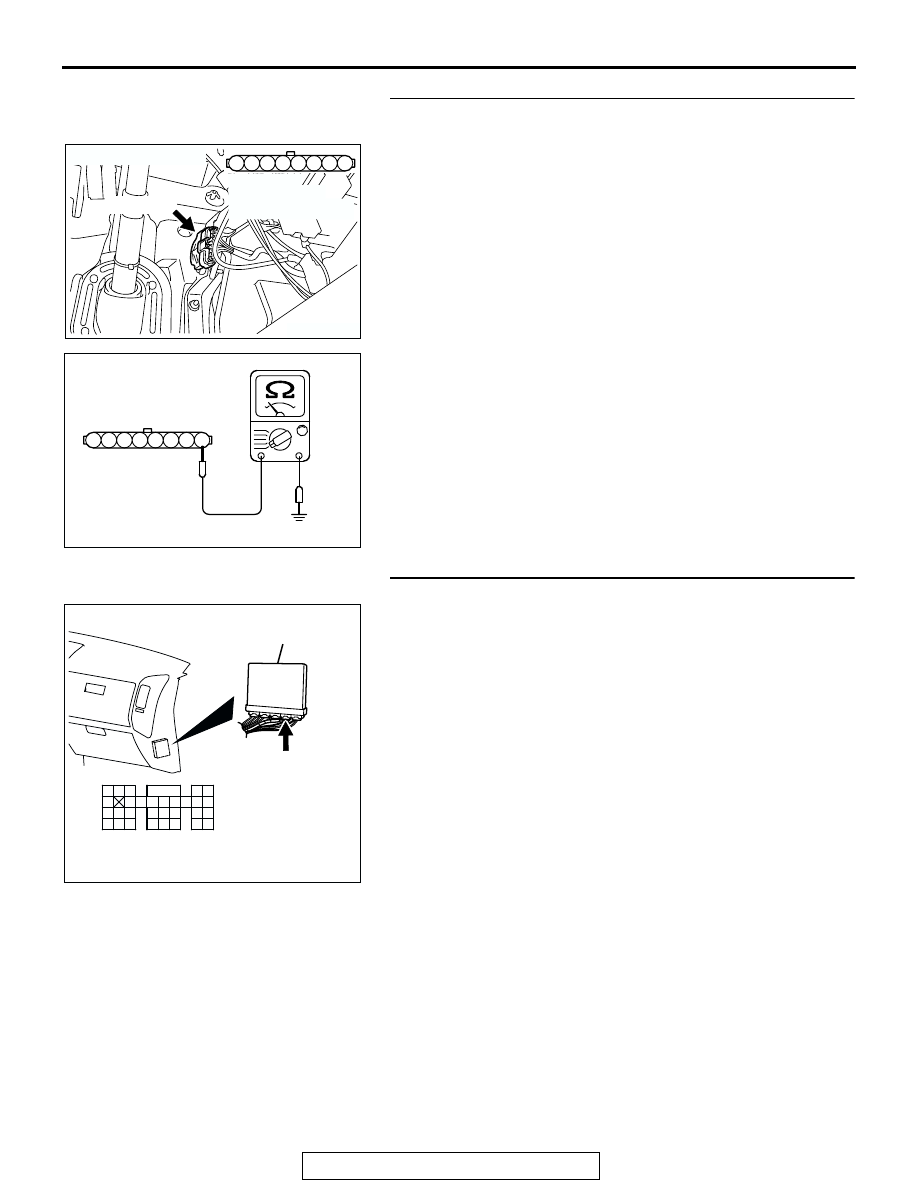

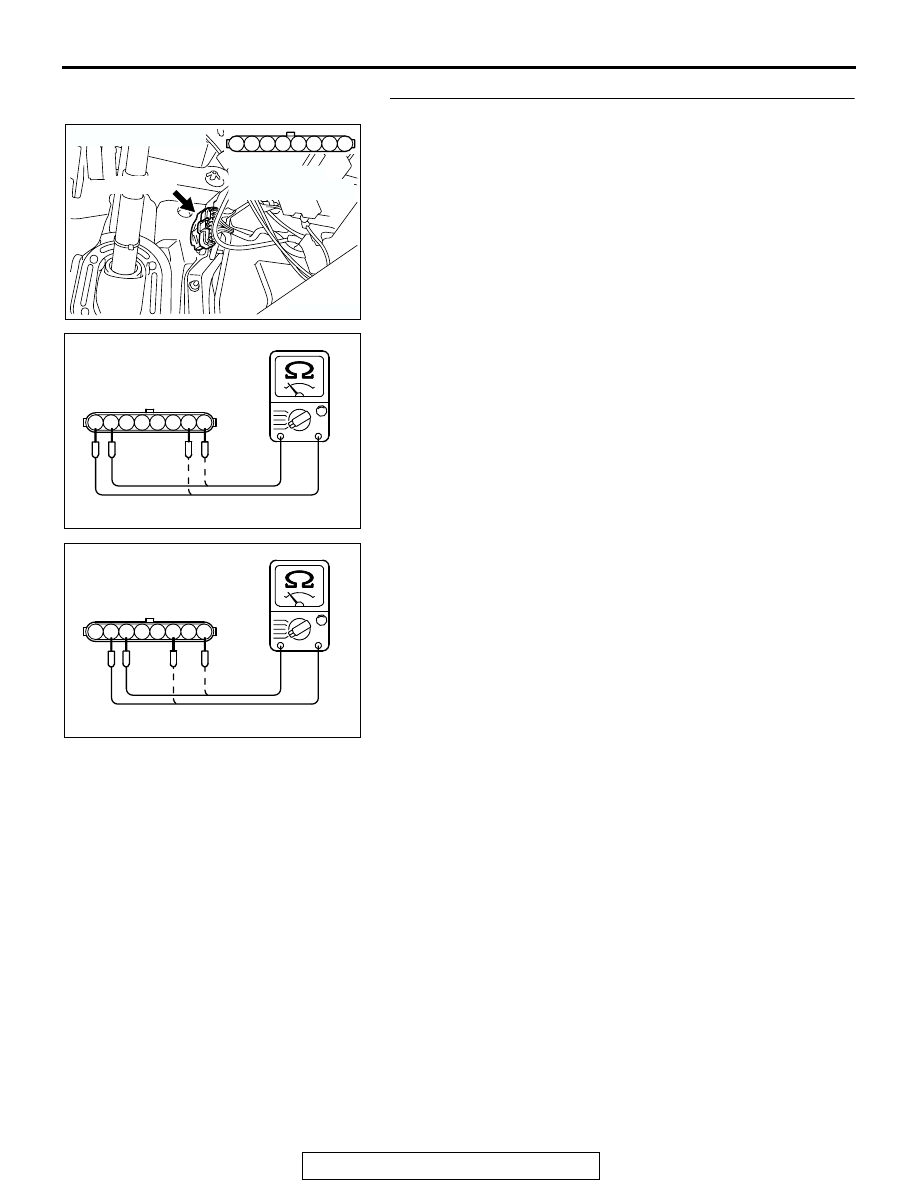

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) 13A-755 TROUBLESHOOTING HINTS (The most likely • APS failed. • Open APS (main) circuit, harness damage, or connector damage. • PCM failed. DIAGNOSIS Required Special Tools: • MB991958: Scan Tool (MUT-III Sub Assembly) • MB991824: V.C.I. • MB991827: USB Cable • MB991911: Main Harness B STEP 1. Using scan tool MB991958, check data list item 78: CAUTION To prevent damage to scan tool MB991958, always turn the 78, Accelerator Pedal Position Sensor (main). • Output voltage is between 0.905 and 1.165 volts when foot is released from accelerator pedal. • Output voltage is 4.035 volts or higher when accelerator pedal is fully depressed. (4) Turn the ignition switch to the "LOCK"(OFF) position. YES : It can be assumed that this malfunction is intermittent. Refer to GROUP 00, How to Use . NO : Go to Step 2. STEP 2. Check connector D-138 at accelerator pedal YES : Go to Step 3. Connector Inspection . Then go to Step 8. AK302970 AB MB991911 MB991824 MB991827 AK200945 3 4 5 1 2 8 6 7 AB CONNECTOR: D-138 HARNESS D-138(GR) |
