MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-647

DTC SET CONDITIONS

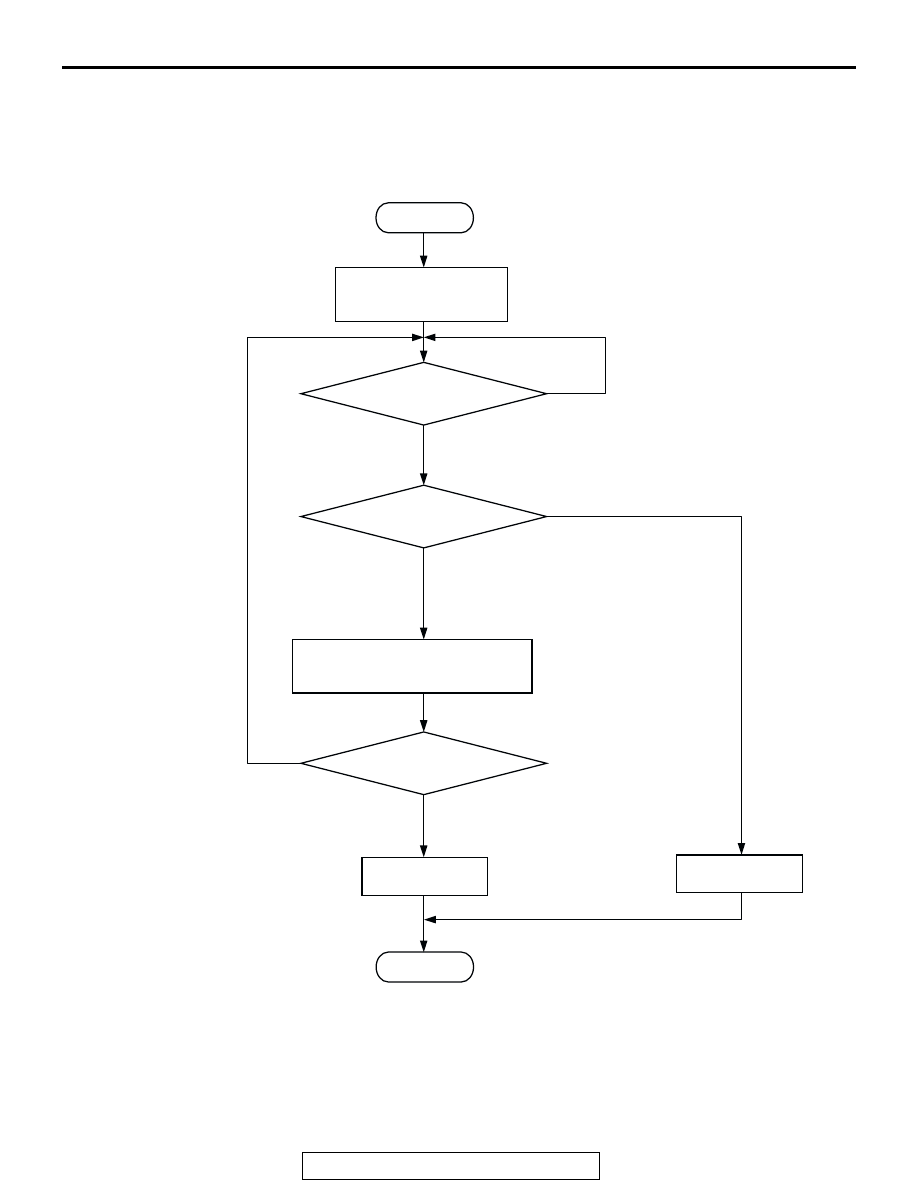

Logic Flow Chart

.

INDICATED FUEL LEVEL

CHANGE < 2L

ACCUMULATE FUEL CONSUMPTION

THROUGH FUEL INJECTORS.

ACCUMULATED FUEL
CONSUMPTION WILL NOT
RESET WHEN KEY-OFF/ON.

ACCUMULATED FUEL

CONSUMPTION > =40L

START

END

NO

NO

NO

YES

YES

YES

MALFUNCTION

GOOD

MONITORING

CONDITIONS

RESET ACCUMULATE

FUEL CONSUMPTION.

AK302955

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-648

Check Conditions, Judgement Criteria

• When the fuel consumption calculated from the

operation time of the injector amounts to 20 liters
(5.3 gal), the diversity of the amount of fuel in
tank calculated from the fuel level sensor is 2
liters (0.5 gal) or less.

.

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

− Other Monitor

P.13A-4

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Fuel level sensor failed.

• Open or shorted fuel level sensor circuit, harness

damage, or connector damage.

• PCM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

DIAGNOSIS

STEP 1. Check fuel gauge.
Q: Is the fuel gauge functioning?

YES : Go to Step 3.
NO :  Go to Step 2.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-649

STEP 2. Check for short circuit to ground between fuel
level sensor connector G-03 (terminal No. 1) and PCM
connector D-134 (terminal No. 72).

NOTE: Check harness after checking intermediate connectors
E-113, D-111 and F-07. If intermediate connectors are dam-
aged, repair or replace them. Refer to GROUP 00E, Harness
Connector Inspection

P.00E-2

. Then go to Step 6.

Q: Is the harness wire in good condition?

YES : Refer to GROUP 54A, Chassis Electrical

−

Combination Meters Assembly and Vehicle Speed
Sensor

− Equipment Diagnosis − Symptom Chart

P.54A-41

.

NO :  Repair it. Then go to Step 6.

AK200959

1

2

3

AB

CONNECTOR: G-03

G-03(B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-650

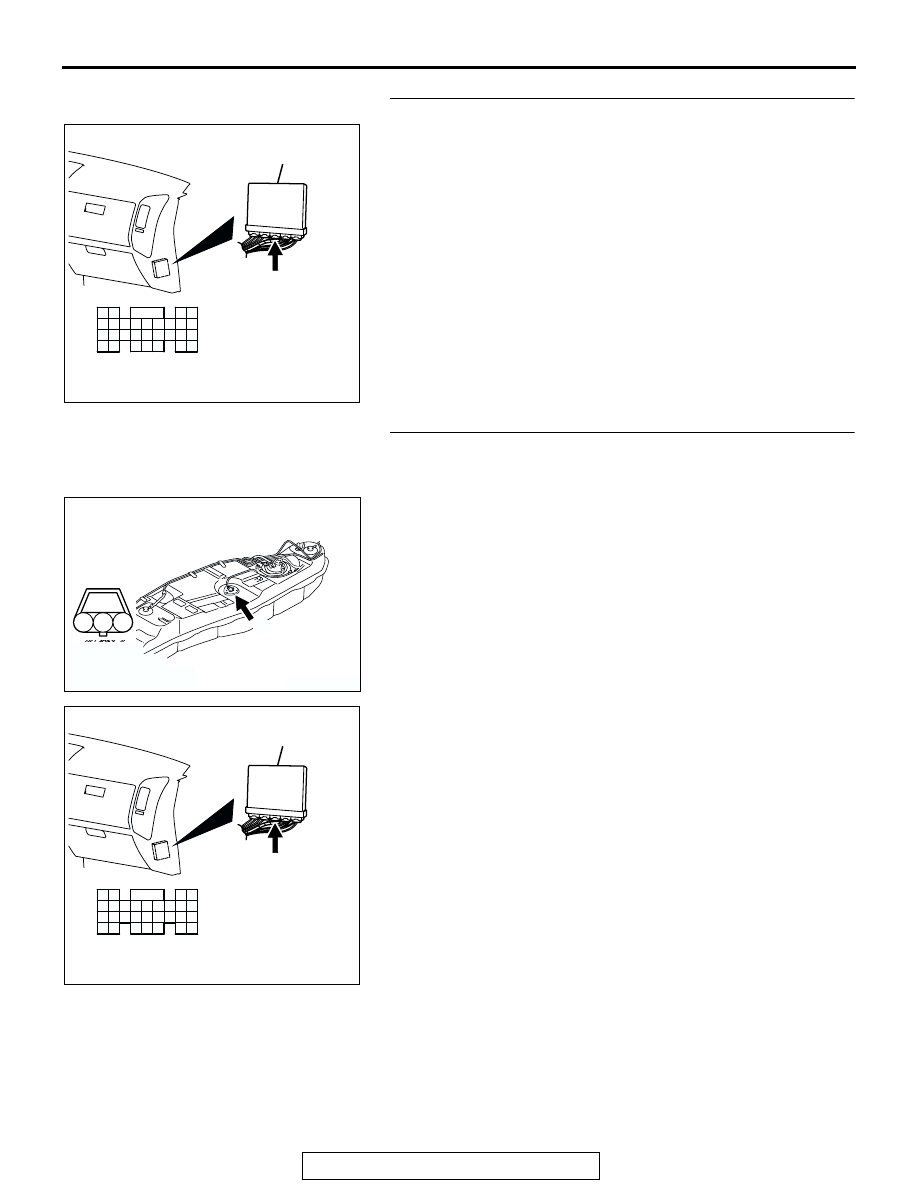

STEP 3. Check connector D-134 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 6.

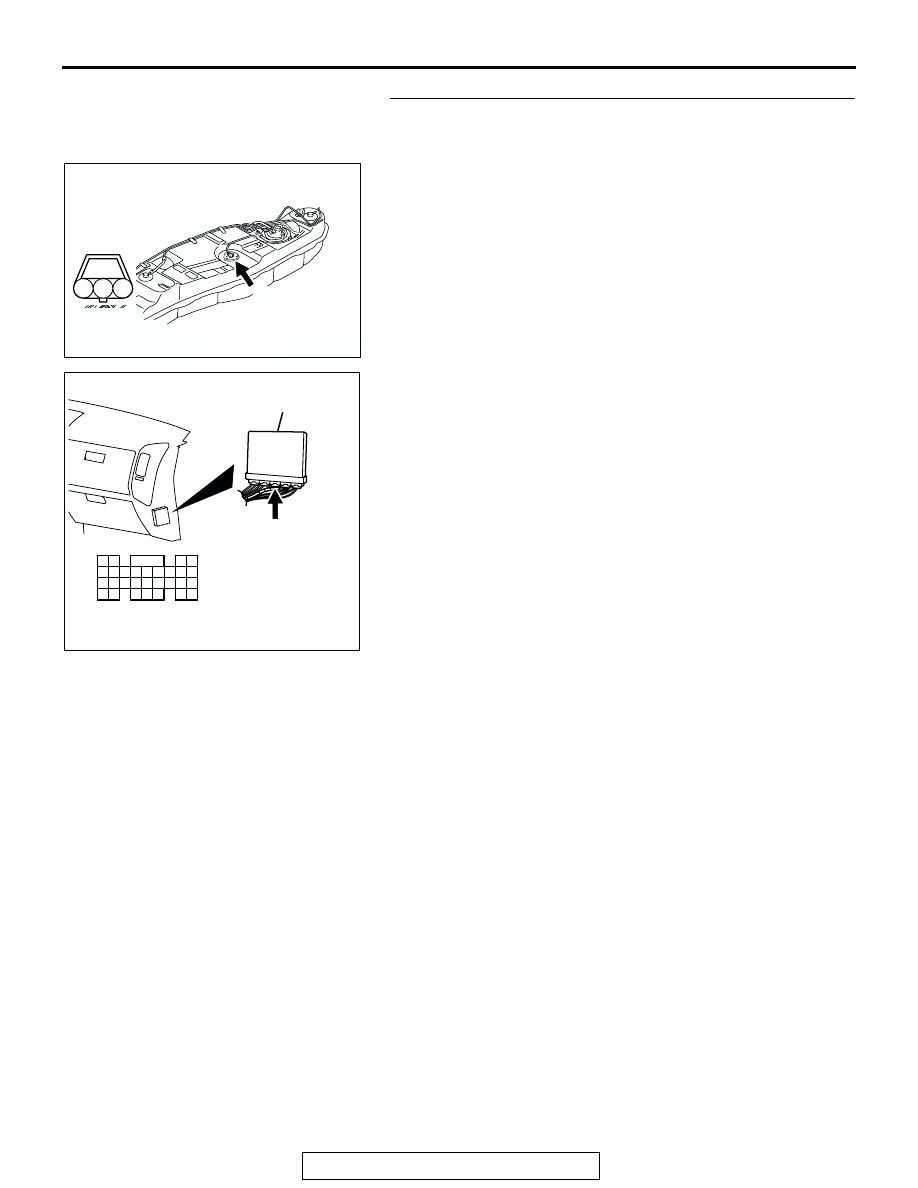

STEP 4. Check for open circuit or harness damage
between fuel level sensor connector G-03 (terminal No. 1)
and PCM connector D-134 (terminal No. 72).

AK201166

61

62

63

64

65

66

67

68

69

70

71

76

77

78

79

85

86

87

80

72

73

74

75

81

82

83

84

88

89

CONNECTOR: D-134

AB

PCM

D-134(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK200959

1

2

3

AB

CONNECTOR: G-03

G-03(B)

HARNESS
CONNECTOR:
COMPONENT SIDE
