Mitsubishi Montero (2004+). Manual - part 277





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-595

.

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Test Conditions: For Test to Run

• Intake air temperature is between 5°C (41°F) and

45

°C (113°F) or greater.

• Engine speed is 1,600 r/min or greater.

• Volumetric efficiency is between 20 to 70 percent.

Judgment Criteria

• When the evaporative emission purge solenoid

valve is fully operational (100 percent ratio), the
fuel differential pressure sensor output voltage
remains at 4.0 volts or greater for ten seconds.

.

OBD-ll DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-ll Drive Cycle −

Procedure 1

− Evaporative Emission System Leak

Monitor

P.13A-4

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Malfunction of the fuel tank differential pressure

sensor.

• Open or shorted fuel tank differential pressure

sensor circuit.

• Malfunction of the PCM.

.

OVERVIEW OF TROUBLESHOOTING

• DTC P0453 can be set by a faulty fuel tank differ-

ential pressure sensor or related circuit, or PCM
failure.

NO

YES

CONTINUOUS

FAILURE FOR 10 SECS

START

END

NO

NO

NO

YES

YES

YES

MALFUNCTION



GOOD

MONITORING



CONDITIONS



OUTPUT VOLTAGE



< 1.0V

OUTPUT VOLTAGE



> 4.0V

AC210306

RANGE CHECK - MIN/MAX

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-596

• To check for system blockage, do a performance

test which uses a mechanical vacuum gauge and
scan tool MB991958 set on the fuel tank differen-
tial pressure sensor (TANK PRS SNSR 73). The
mechanical gauge reading is used to verify scan
tool reading. A comparison of the mechanical
gauge with the reading on scan tool MB991958
will locate a problem in the system.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: MUT-III USB cable

• MB991911: MUT-III main harness B

• MB991658: Test Harness Set

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-597

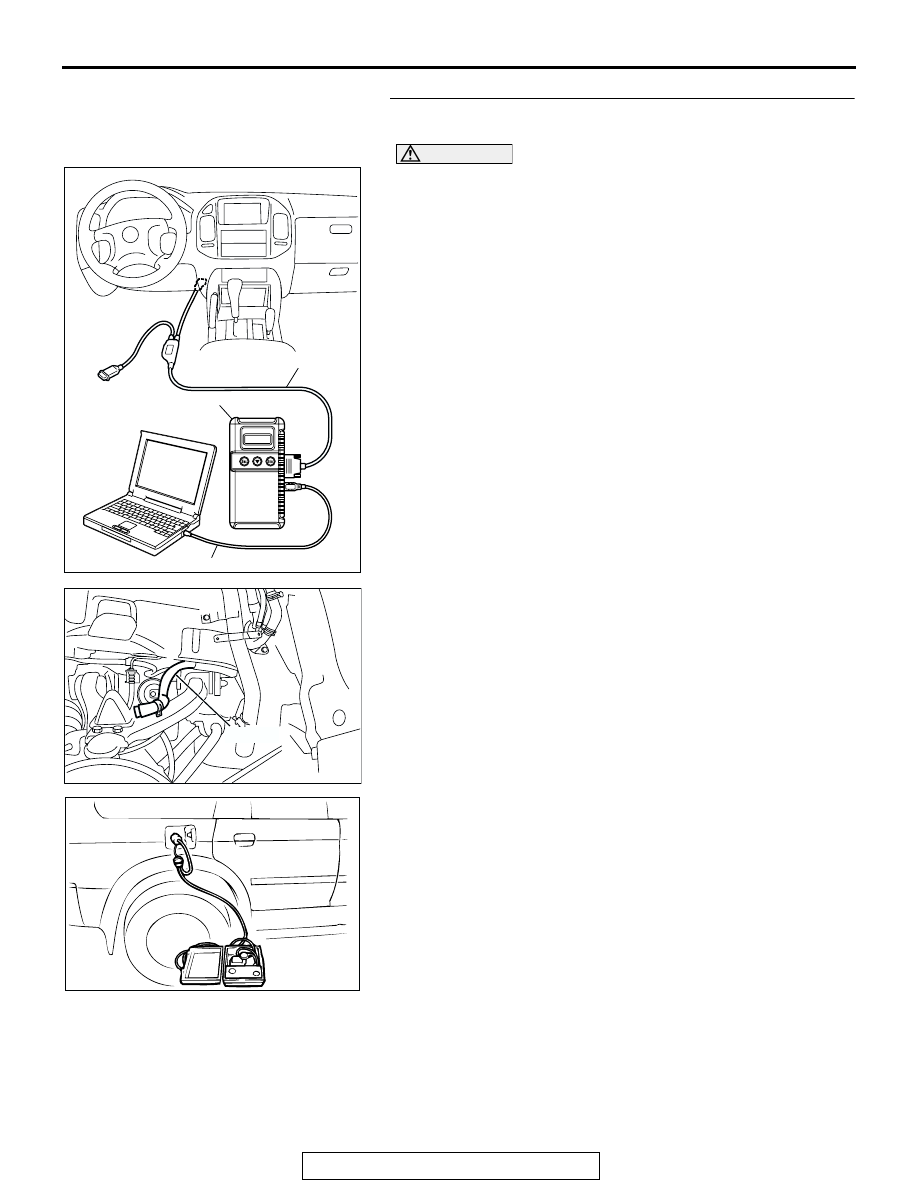

STEP 1. Using scan tool MB991958, check data list item 73:
Fuel Tank Differential Pressure Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.

(2) Disconnect hose F from the evaporative emission canister

side, and plug the hose.

(3) Turn the ignition switch to the "ON" position.
(4) Remove the fuel cap.
(5) Set scan tool MB991958 to the data reading mode.

Item 73, Fuel Tank Differential Pressure Sensor.

• The fuel tank pressures reading on the scan tool

should be

−1.5 to 1.5 kPa (−0.443 to 0.443 inHg).

(6) Connect an evaporative emission system pressure pump to

the fuel tank filler tube and pressurize the fuel tank.

• The fuel tank pressure reading should increase.

(7) Disconnect an evaporative emission system pressure pump

and connect hose F.

(8) Turn the ignition switch to the "LOCK" (OFF) position and

disconnect scan tool MB991958.

Q: Is the fuel tank pressure between

1.5 and 1.5 kPa

(

0.443 and 0.443 inHg)?

YES : It can be assumed that this malfunction is intermittent.

(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

). Go to

Step 15.

NO :  Go to Step 2.

AC306409AF

MB991911

MB991824

MB991827

AC102602 AC

HOSE F

ACX01358

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-598

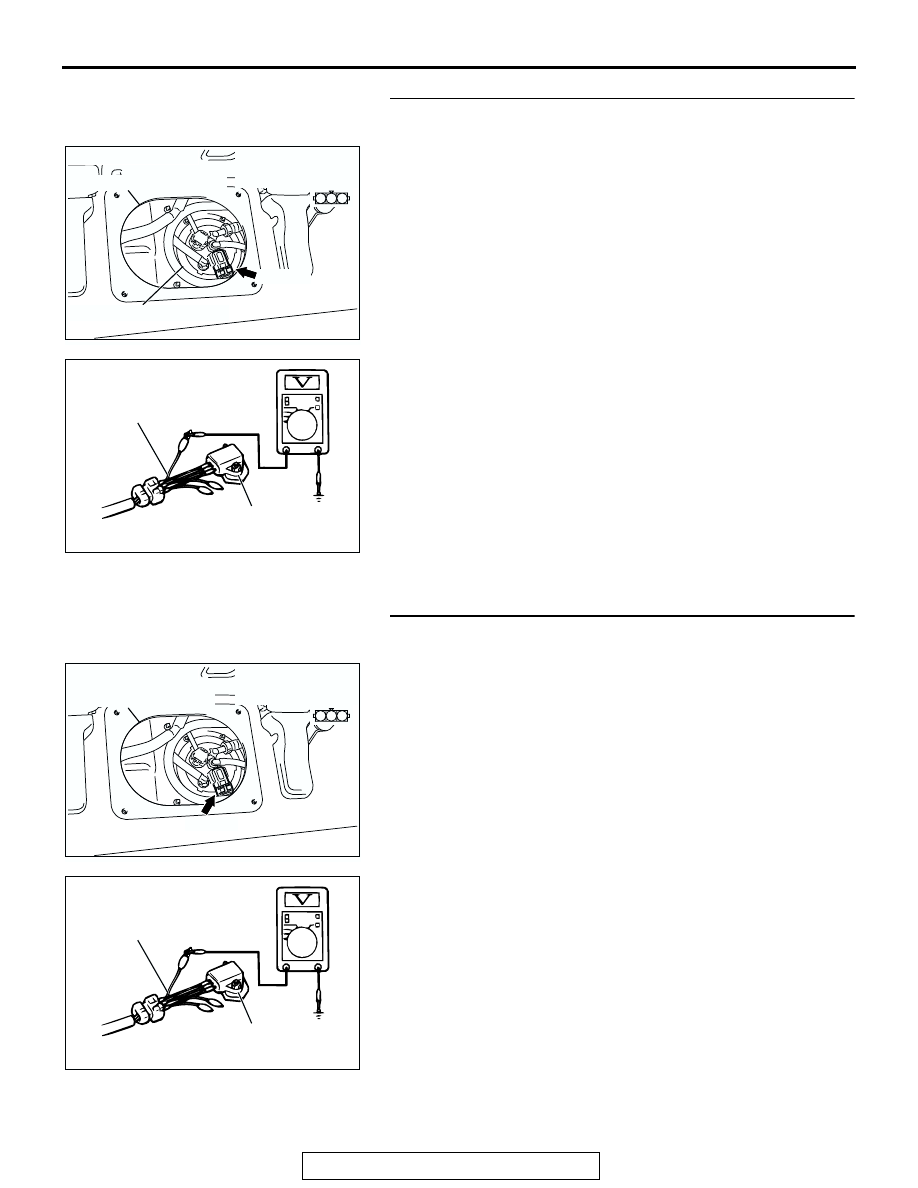

STEP 2. Measure the signal voltage at fuel tank differential
pressure sensor connector G-05.
(1) Tumble the second seat.
(2) Remove the service hole cover (upper) and packing.
(3) Remove the service hole cover (lower) and packing.
(4) Disconnect fuel tank differential pressure sensor connector

G-05.

(5) Connect special tool MB991658 between fuel tank

differential pressure sensor connector G-05 terminals 1, 2
and 3.

(6) Turn the ignition switch to the "ON" position.
(7) Remove the fuel cap.
(8) Measure the voltage between fuel tank differential pressure

sensor connector G-05 terminal 1 and ground.

• The voltage should measure between 2.0 and 3.0 volts.

(9) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 2.0 and 3.0 volts?

YES : Go to Step 10.
NO :  Go to Step 3.

STEP 3. Measure the 5-volt reference signal at fuel tank
differential pressure sensor connector G-05.
(1) Disconnect fuel tank differential pressure sensor connector

G-05.

(2) Connect special tool MB991658 between fuel tank

differential pressure sensor connector G-05 terminals 1, 2
and 3.

(3) Turn the ignition switch to the "ON" position.
(4) Measure the voltage between fuel tank differential pressure

sensor connector G-05 terminal 3 and ground.

• The voltage should measure between 4.9 and 5.1 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.9 and 5.1 volts?

YES : Go to Step 8.
NO :  Go to Step 4.

ACX00218

CONNECTOR : G-05

AS

G-05 (B)

SERVICE HOLE (UPPER)

G-05 HARNESS
CONNECTOR:
COMPONENT SIDE

1

2

3

SERVICE HOLE (LOWER)

AC002081AB

MB991658

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

ACX00218

CONNECTOR : G-05

AR

G-05 (B)

SECOND SEAT UNDER
SERVICE HOLE

G-05 HARNESS
CONNECTOR:
COMPONENT SIDE

1

2

3

AC002081AB

MB991658

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR
