Mitsubishi Montero (2004+). Manual - part 236





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-431

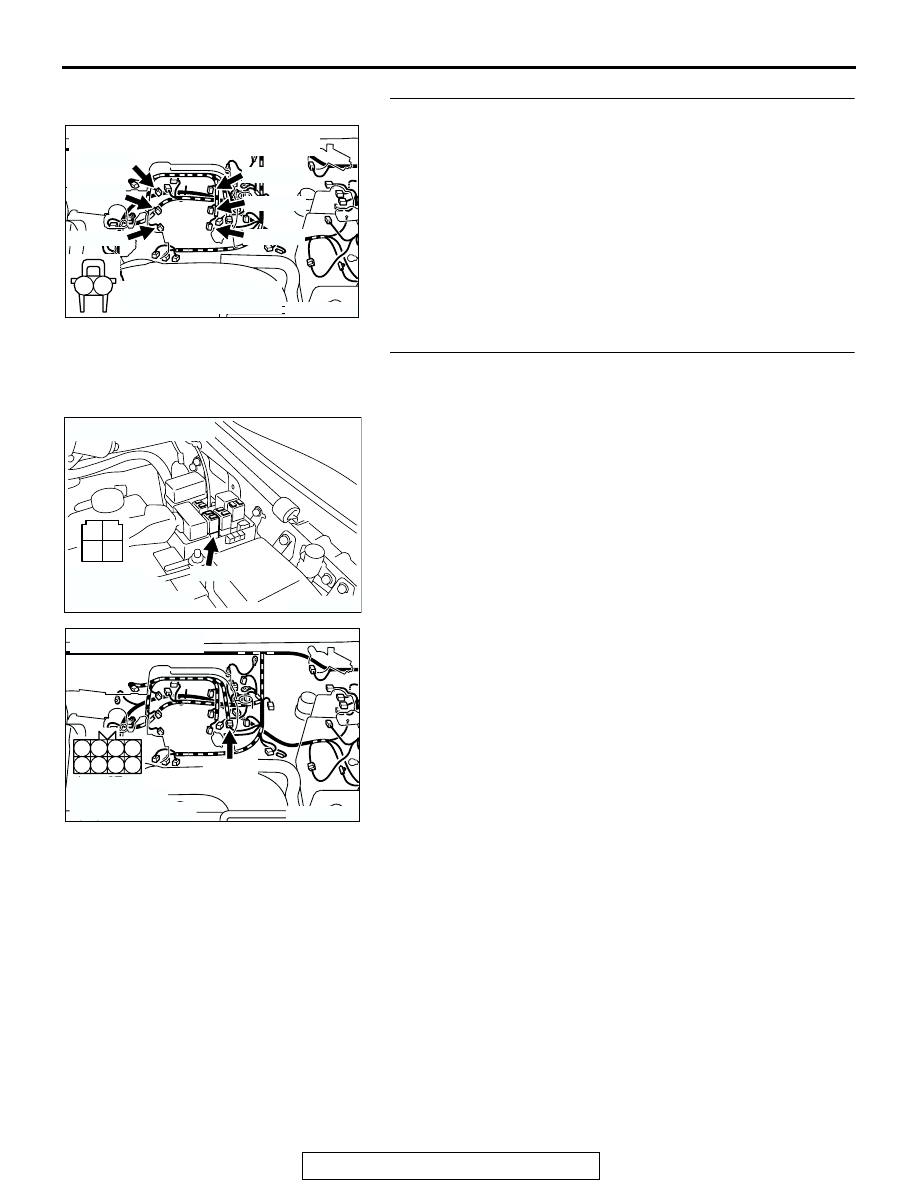

STEP 13. Check the injector connector for damage.

a. Check harness connector B-01 at No. 1 cylinder injector.
b. Check harness connector B-33 at No. 2 cylinder injector.

c. Check harness connector B-02 at No. 3 cylinder injector.

d. Check harness connector B-35 at No. 4 cylinder injector.
e. Check harness connector B-03 at No. 5 cylinder injector.

f. Check harness connector B-11 at No. 6 cylinder injector.

Q: Is the harness connector in good condition?

YES : Go to Step 14.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 17.

STEP 14. Check for harness damage between MFI relay
connector B-22X (terminal No. 1) and injector intermediate
connector B-44 (terminal No. 8).
Q: Is the harness wire in good condition?

YES : Go to Step 15.
NO :  Repair it. Then go to Step 17.

AK200960

1

2

B-03(GR)

B-11(GR)

B-35(GR)

B-33(GR)

B-02(GR)

B-01(GR)

CONNECTORS: B-01, B-02, B-03, B-11,

B-33, B-35

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

AK200949

3

4

7

8

1

2

5

6

B-44(B)

CONNECTOR: B-44

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-432

STEP 15. Check for harness damage between injector
intermediate connector and injector connector.

a. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 8) and injector connector B-01
(terminal No. 1) at No. 1 cylinder injector.

b. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 8) and injector connector B-33
(terminal No. 1) at No. 2 cylinder injector.

c. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 8) and injector connector B-02
(terminal No. 1) at No. 3 cylinder injector.

d. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 8) and injector connector B-35
(terminal No. 1) at No. 4 cylinder injector.

e. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 8) and injector connector B-03
(terminal No. 1) at No. 5 cylinder injector.

f. Check the harness wire between injector intermediate con-

nector B-44 (terminal No. 8) and injector connector B-11
(terminal No. 1) at No. 6 cylinder injector.

Q: Is the harness wire in good condition?

YES : Go to Step 16.
NO :  Repair it. Then go to Step 17.

STEP 16. Replace the injector.
(1) Replace the injector.
(2) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

.

(3) Read in the diagnostic trouble code (DTC).
Q: Is DTC P0201, P0202, P0203, P0204, P0205 and P0206

set?
YES :
Replace the PCM. Then go to Step 17.
NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

STEP 17. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0201, P0202, P0203, P0204, P0205 and P0206

set?
YES :
Retry the troubleshooting.
NO :  The inspection is complete.

AK200949

3

4

7

8

1

2

5

6

B-44(B)

CONNECTOR: B-44

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

AK200960

1

2

B-03(GR)

B-11(GR)

B-35(GR)

B-33(GR)

B-02(GR)

B-01(GR)

CONNECTORS: B-01, B-02, B-03, B-11,

B-33, B-35

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AK200960

1

2

B-03(GR)

B-11(GR)

B-35(GR)

B-33(GR)

B-02(GR)

B-01(GR)

CONNECTORS: B-01, B-02, B-03, B-11,

B-33, B-35

AB

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-433

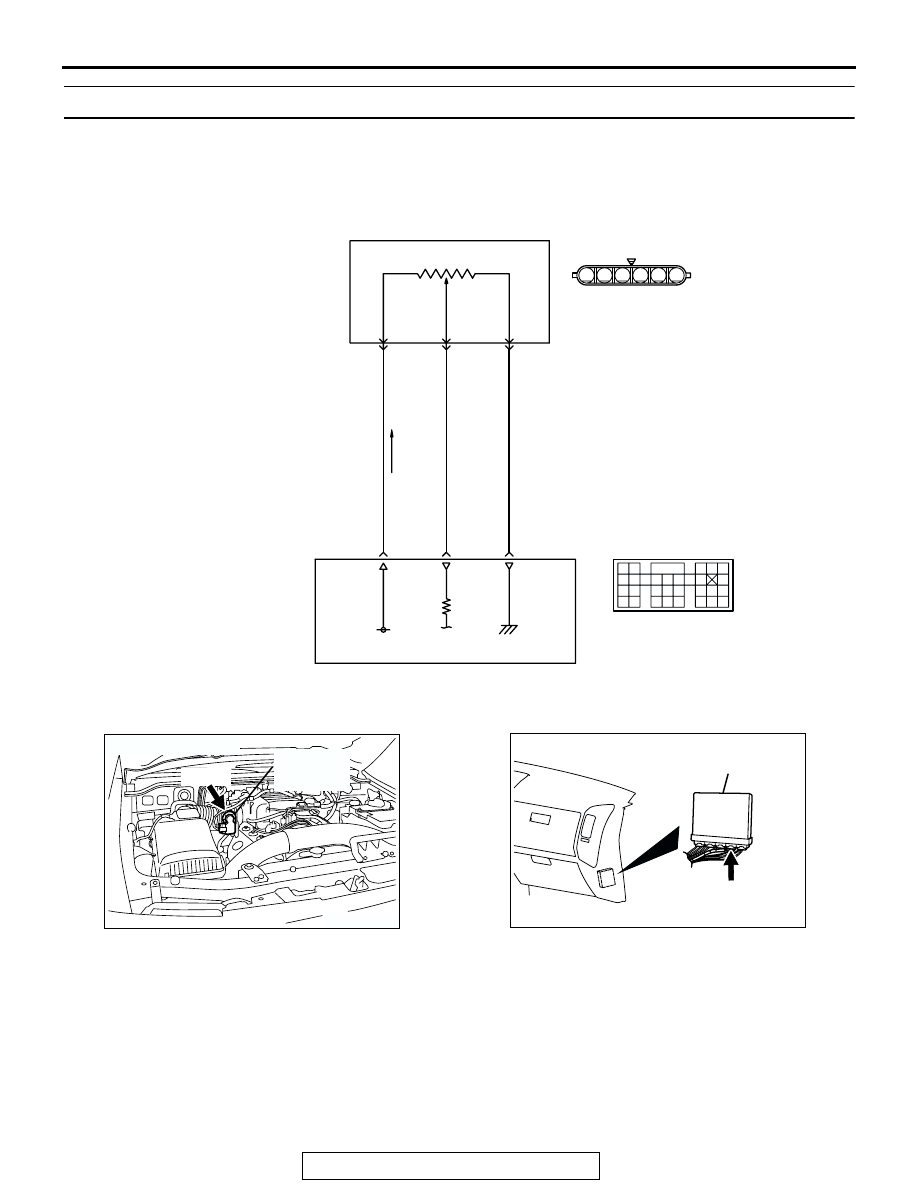

DTC P0222: Throttle Position Sensor (Sub) Circuit Low Input

.

CIRCUIT OPERATION

• A 5-volt power supply is applied on the throttle

position sensor (sub) power terminal (terminal
No. 2) from the PCM (terminal No. 106).
The ground terminal (terminal No. 4) is grounded
with PCM (terminal No. 105).

• When the throttle valve shaft is turned from the

idle position to the fully opened position, the
resistance between the throttle position sensor
(sub) output terminal (terminal No. 3) and ground
terminal (terminal No. 4) will increase according
to the rotation.

.

AK201162

RED

GREEN

BLA

C

K

B-05

5 V

106

2

THROTTLE
POSITION
SENSOR
(SUB)

POWERTRAIN CONTROL MODULE (PCM)

113

105

3

4

Throttle Position Sensor (Sub) Circuit

6

1 2 3 4 5

9192

939495

96979899

100

105

113114

115116117

118119120

106

107108109

110111112

101102103

104

D-135

(MU803805)

AK201173

THROTTLE
POSITION
SENSOR

AB

B-05(B)

CONNECTOR: B-05

AK201038AF

CONNECTOR: D-135

PCM

D-135(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-434

TECHNICAL DESCRIPTION

• The throttle position sensor (sub) outputs voltage

which corresponds to the throttle valve opening
angle.

• The PCM checks whether the voltage is within a

specified range.

.

DESCRIPTIONS OF MONITOR METHODS
Throttle position sensor (sub) output voltage is out of

specified range.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Volume airflow sensor

.

DTC SET CONDITIONS

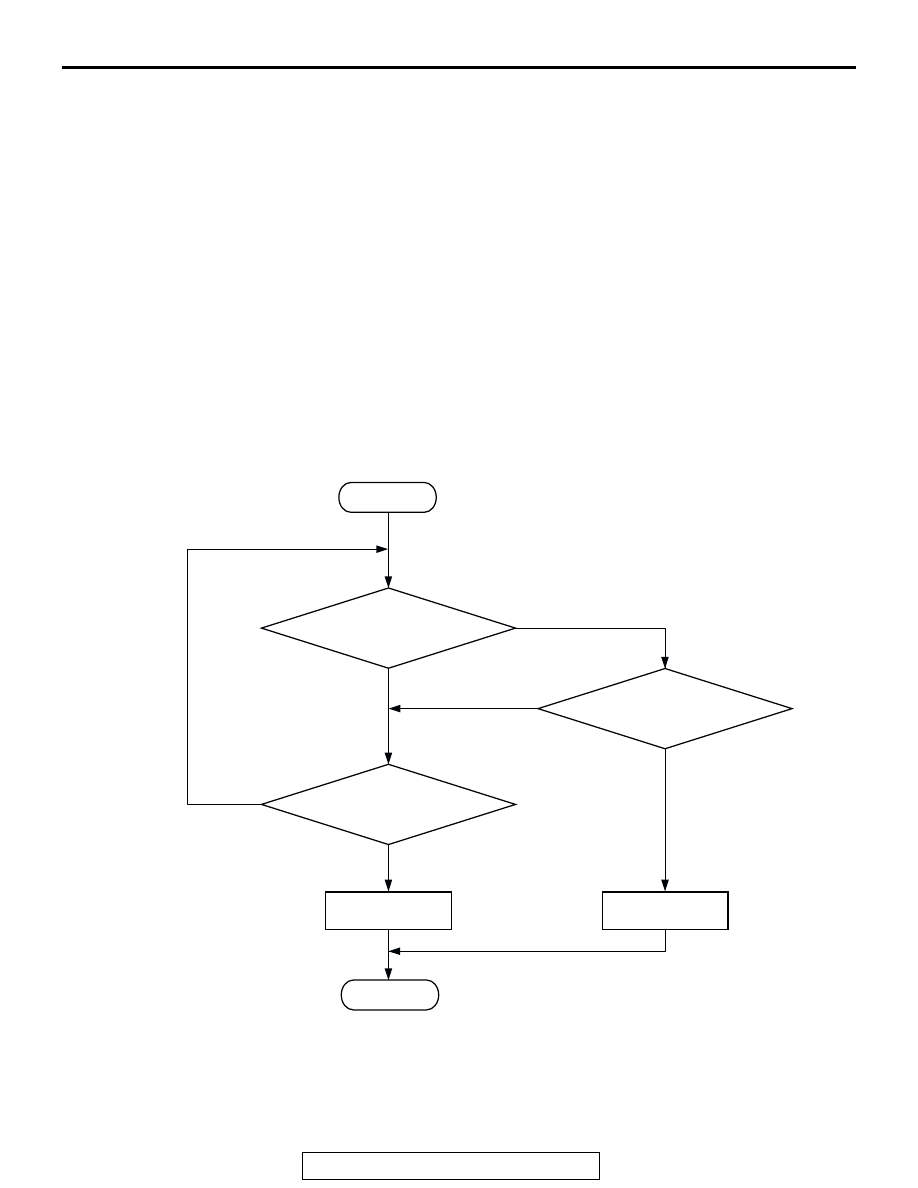

Logic Flow Chart

.

Check Conditions

• Ignition switch "ON" position.

Judgement Criteria

• Throttle position sensor (sub) output voltage

should be 2.25 volts or less for 0.5 second.

START

YES

YES

YES

NO

NO

NO

CONTINUOUS

FAILURE FOR 0.5sec

MALFUNCTION

END

GOOD

OUTPUT VOLTAGE

< =2.25V

OUTPUT VOLTAGE > =4.8V

AK302942
