Mitsubishi Montero (2004+). Manual - part 218

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-359

DIAGNOSIS

Required Special Tool:

• MD998464: Test Harness Set

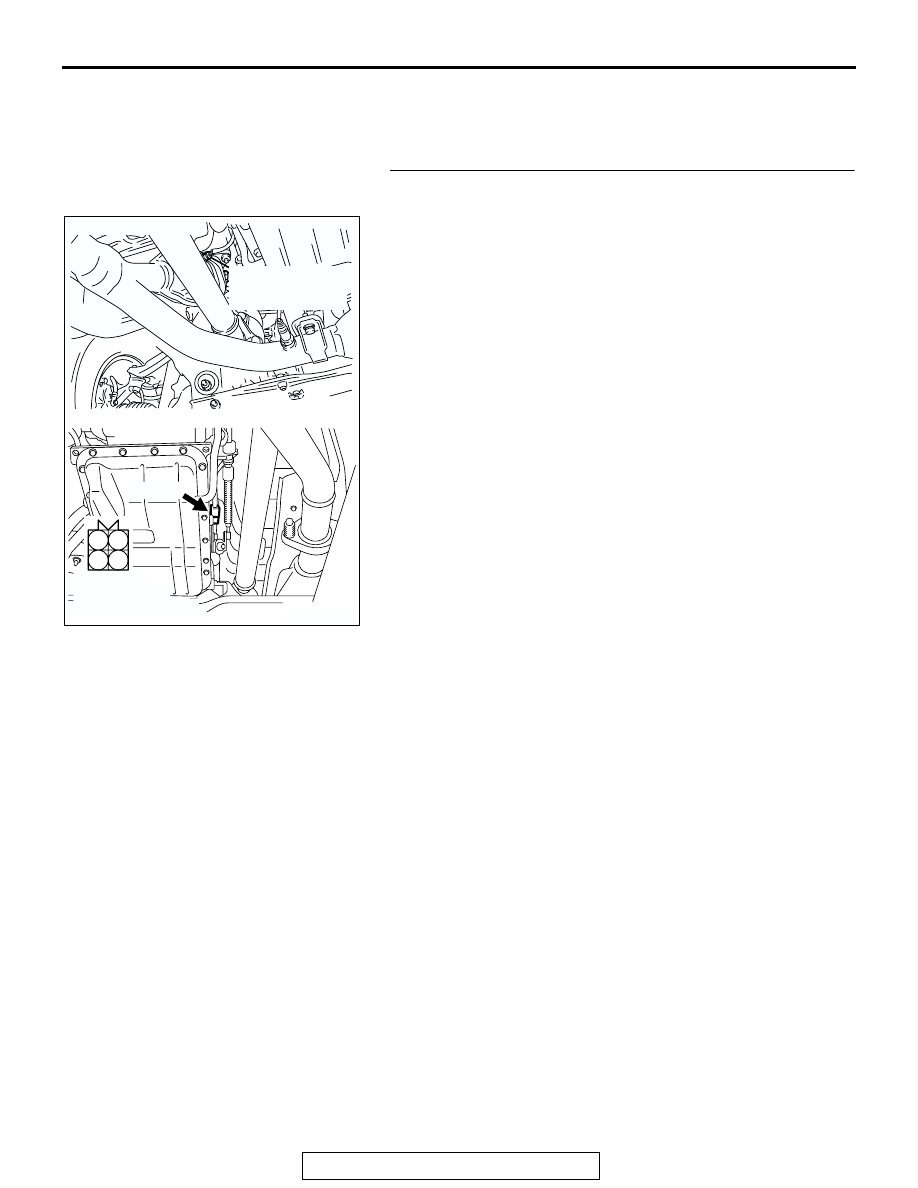

STEP 1. Check harness connector C-15 at the left bank
heated oxygen sensor (rear) for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK201280

1

2

3

4

CONNECTOR: C-15

C-15(B)

AC

HARNESS
CONNECTOR:
COMPONENT SIDE

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-360

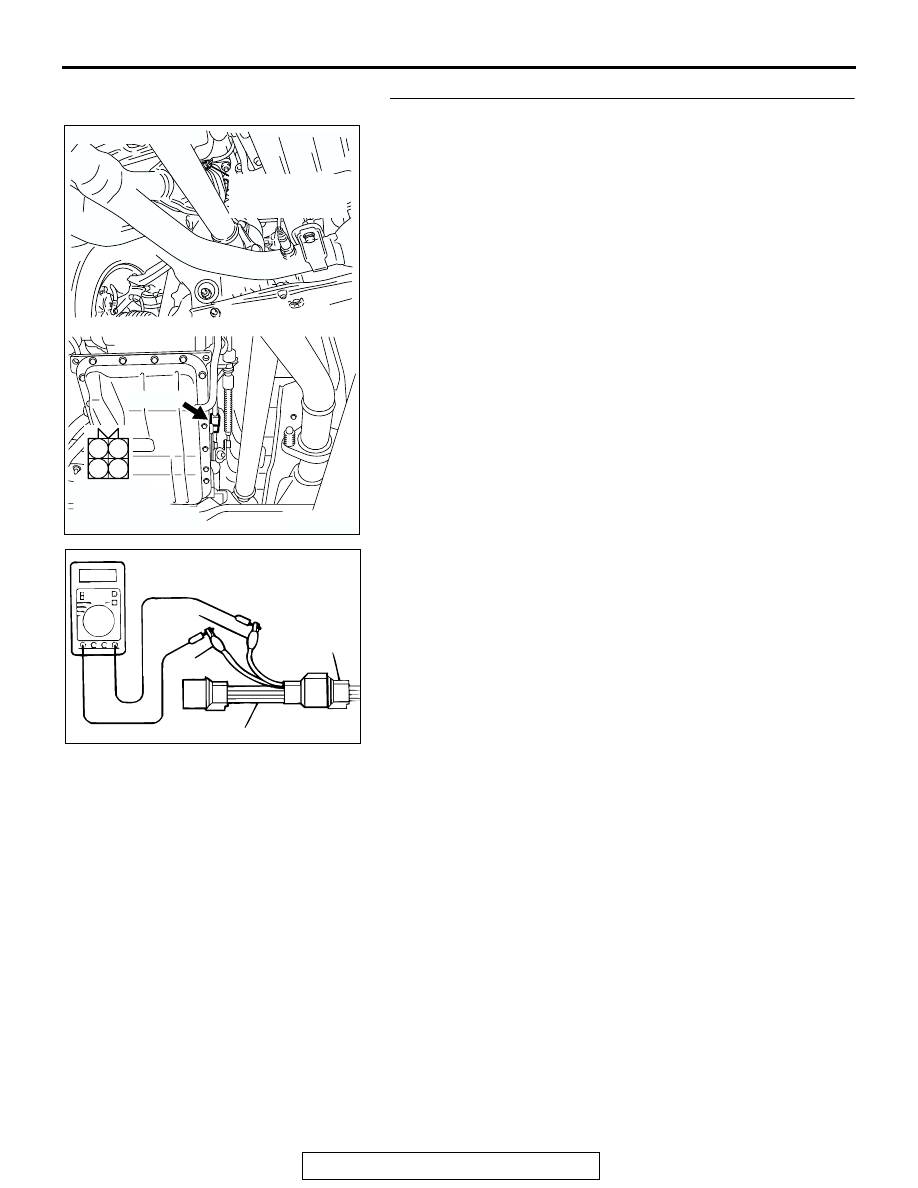

STEP 2. Check the left bank heated oxygen sensor (rear).

(1) Disconnect left bank heated oxygen sensor (rear) connector

C-15 and connect test harness special tool, MD998464, to
the connector on the left bank heated oxygen (rear) sensor
side.

(2) Measure the resistance between heated oxygen sensor

connector terminal No. 1 (red clip) and terminal No. 3 (blue
clip).

Standard value: 11

− 18 ohms [at 20°C (68°F)]

Q: Is the measured resistance between 11 and 18 ohms [at

20

°C (68°F)]?

YES : Go to Step 3.
NO :  Replace the left bank heated oxygen sensor (rear).

Then go to Step 12.

AK201280

1

2

3

4

CONNECTOR: C-15

C-15(B)

AC

HARNESS
CONNECTOR:
COMPONENT SIDE

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)

AKX01624

HEATED
OXYGEN
SENSOR
EQUIPMENT
SIDE
CONNECTOR

MD998464

BLUE

RED

AC

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-361

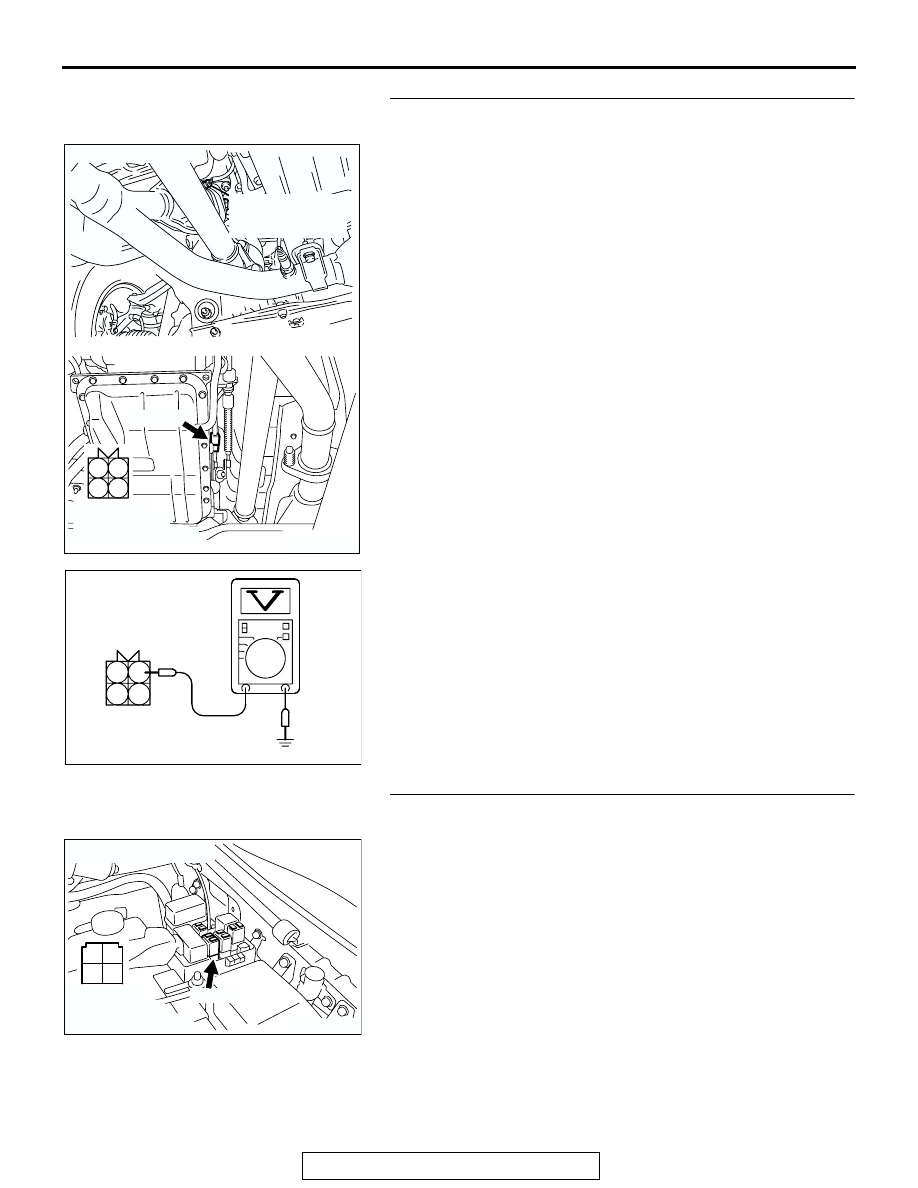

STEP 3. Measure the power supply voltage at left bank
heated oxygen sensor (rear) harness side connector C-15.

(1) Disconnect the connector C-15 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 1 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 5.
NO :  Go to Step 4.

STEP 4. Check harness connector B-22X at the MFI relay
for damage.

Q: Is the harness connector in good condition?

YES : Check harness connectors E-114 and D-116 at

intermediate connector for damage, and repair or
replace as required. Refer to GROUP 00E, Harness
Connector Inspection. If intermediate connectors
E-114 and D-116 are in good condition, repair
harness wire between MFI relay connector B-22X
(terminal No. 1) and left bank heated oxygen sensor
(rear) connector C-15 (terminal No. 1) because of
open circuit or short circuit to ground. Then go to Step
12.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK201280

1

2

3

4

CONNECTOR: C-15

C-15(B)

AC

HARNESS
CONNECTOR:
COMPONENT SIDE

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)

AKX01498

C-15 HARNESS
CONNECTOR:
COMPONENT SIDE

1

2

3

4

AZ

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-362

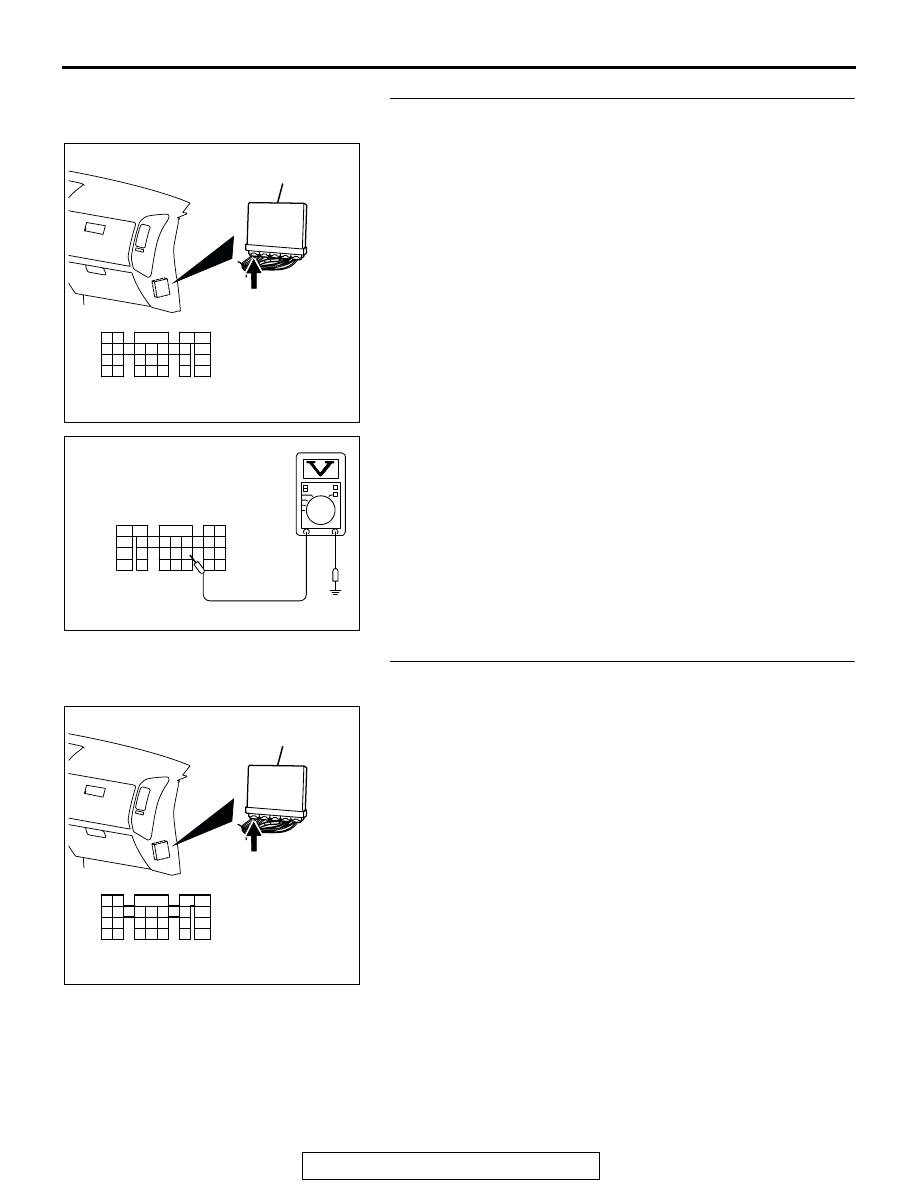

STEP 5. Measure the power supply voltage at PCM
connector D-132 by backprobing.

(1) Do not disconnect the connector D-132.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 18 and ground

by backprobing.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 8.
NO :  Go to Step 6.

STEP 6. Check harness connector D-132 at PCM for
damage.

Q: Is the harness connector in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)

1

2

3

5

6 7 8 9

4

20

21 22

232425

2627

10111213

14 15

16 1718

19

AK201413

D-132 HARNESS
CONNECTOR:
HARNESS SIDE

AB

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)
