MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-347

DTC SET CONDITIONS

Logic Flow Chart

Check Conditions

• 2 seconds or more have passed since the engine

starting sequence was completed.

Judgment Criteria

• Left bank heated oxygen sensor (rear) output

voltage has continued to be 1.2 volts or higher for
2 seconds.

.

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

− Other Monitor

P.13A-4

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Short circuit in left bank heated oxygen sensor

(rear) output line.

• Connector damage.

• PCM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991911: Main Harness B

START

END

NO

NO

YES

YES

MALFUNCTION

GOOD

2secs HAVE PASSED?

OUTPUT VOLTAGE > 1.2V

NO

YES

MONITORING

CONDITIONS

AK302931

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-348

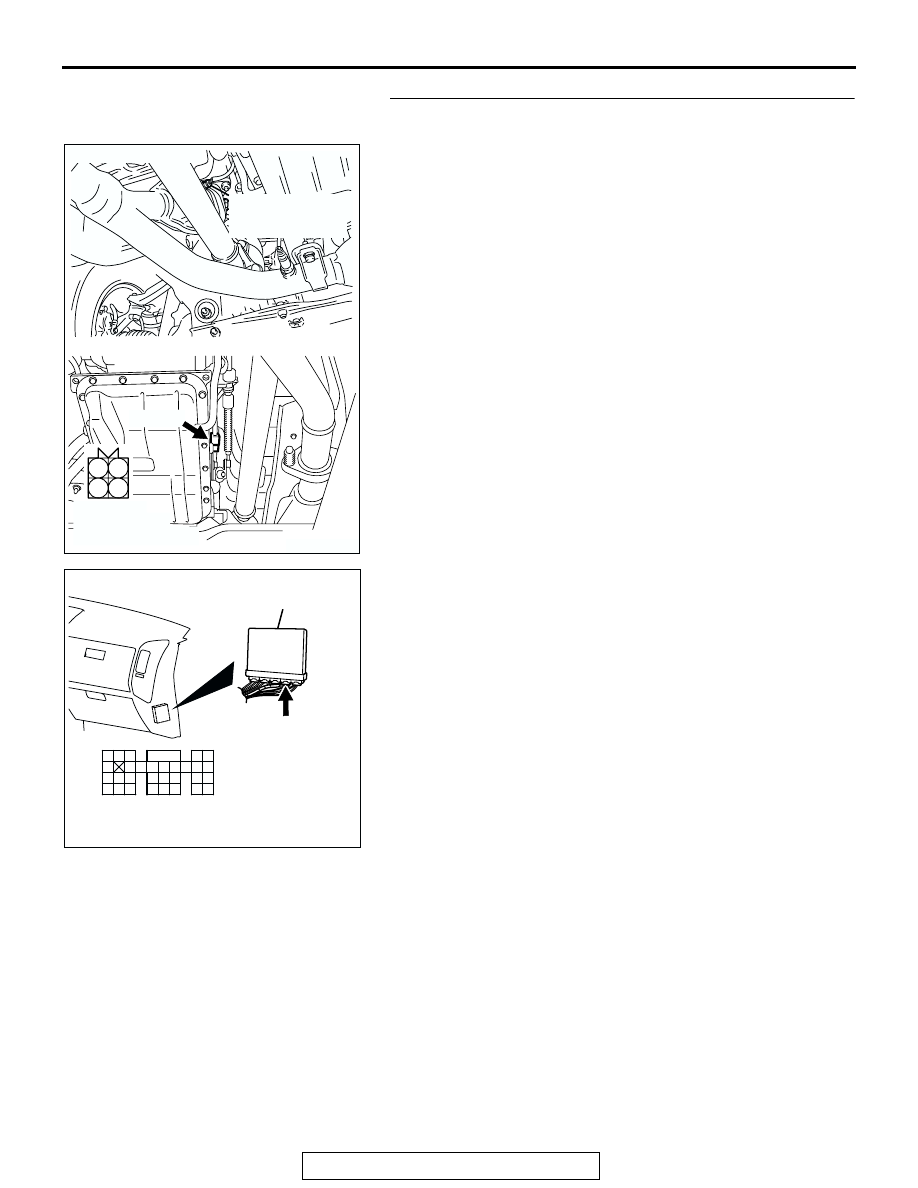

STEP 1. Check connector C-15 at left bank heated oxygen
sensor (rear) and connector D-135 at PCM for damage.

Q: Is the connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 3.

AK201280

1

2

3

4

CONNECTOR: C-15

C-15(B)

AC

HARNESS
CONNECTOR:
COMPONENT SIDE

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-349

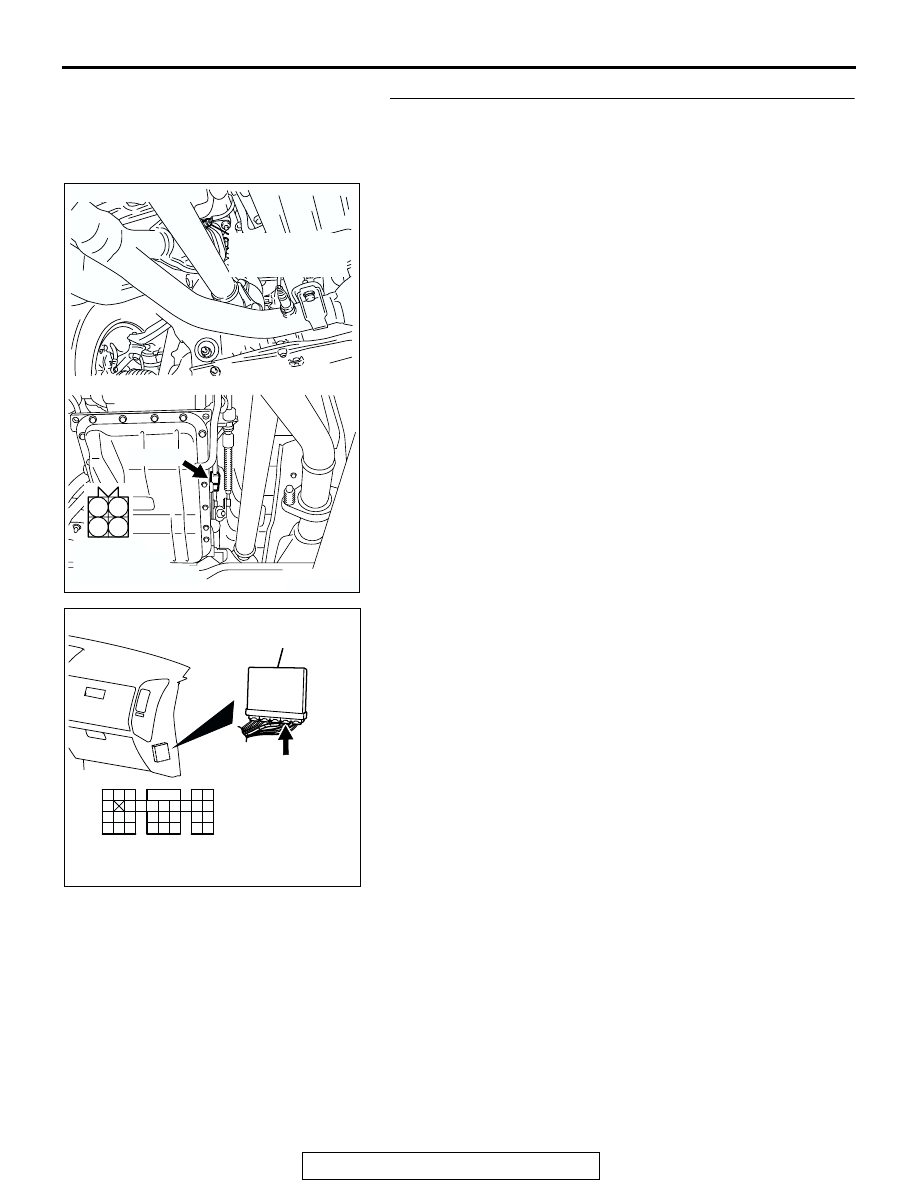

STEP 2. Check for short circuit to power supply between
left bank heated oxygen sensor (rear) connector C-15
(terminal No. 4) and PCM connector D-135 (terminal No.
116).

NOTE: Check harness after checking intermediate connector
E-112. If intermediate connector E-112 is damaged, repair or
replace it. Refer to GROUP 00E, Harness Connector Inspec-
tion

P.00E-2

. Then go to Step 3.

Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 3.
NO :  Repair it. Then go to Step 3.

AK201280

1

2

3

4

CONNECTOR: C-15

C-15(B)

AC

HARNESS
CONNECTOR:
COMPONENT SIDE

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI)

13A-350

STEP 3. Perform the OBD-II drive cycle.

(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-4

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0158 set?

YES : Repeat the troubleshooting.
NO :  The procedure is complete.

DTC P0159: Heated Oxygen Sensor Circuit Slow Response (bank 2, sensor 2)
