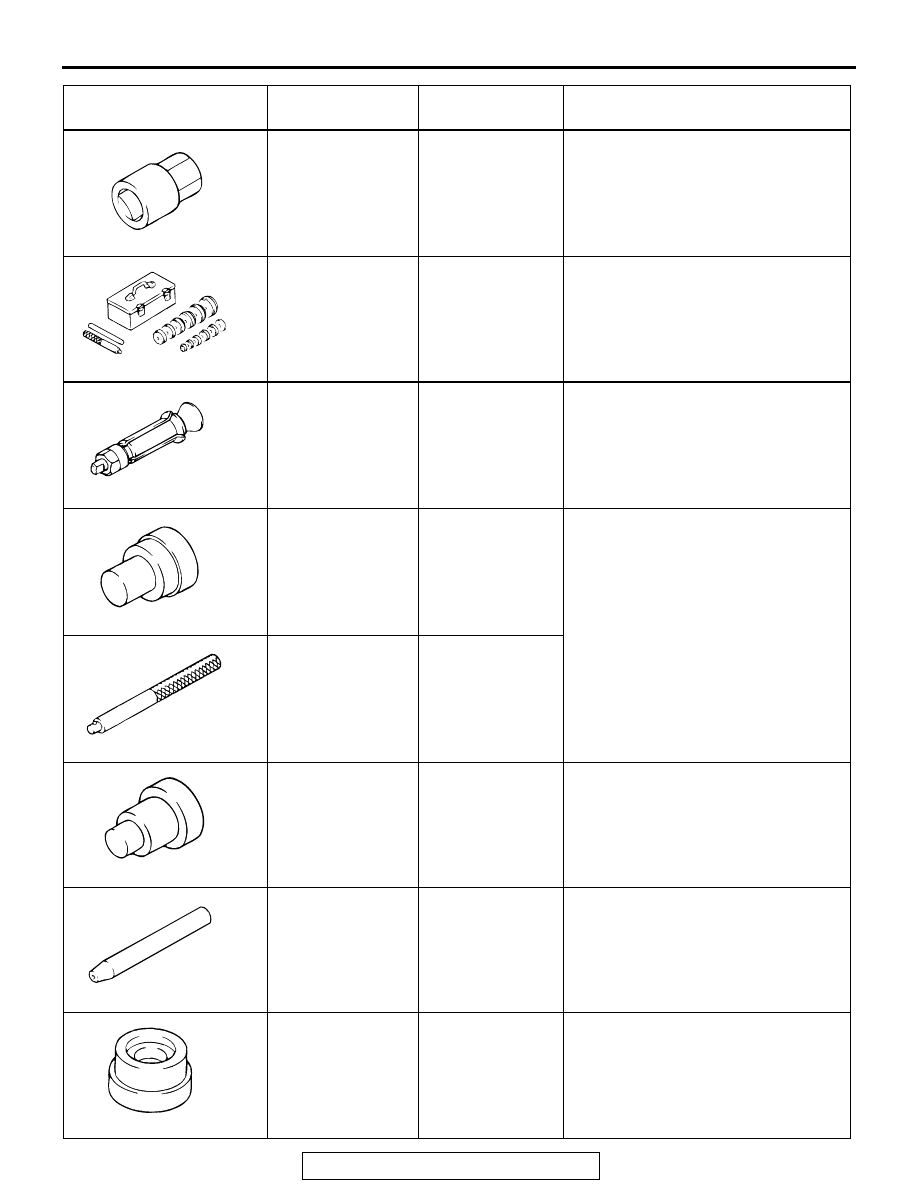

SPECIAL TOOLS

TSB Revision

POWER STEERING

37A-13

MB991204
Torque wrench
socket

General service
tool

• Rack support adjustment

• Rack support cover removal

MB990925
Bearing and oil
seal installer set

MB990925-01 or
general service
tool

• Oil seal and bearing installation

• MB990926, MB990927,

MB990938, MB990939 (For
details, refer to GROUP 26,
Special Tools

P.26-9

.)

MB991120
Needle bearing
puller

Tool not available Needle roller bearing removal

MB991199
Oil seal installer

General service
tool

Oil seal installation

MB991197
Bar (long type)

General service
tool

MB991202
Oil seal and
bearing installer

General service
tool

Needle roller bearing installation

MB991213
Rack installer

General service
tool

Rack installation

MB991203
Oil seal and
bearing installer

Tool not available Oil seal and bearing installation

TOOL

TOOL NUMBER
AND NAME

SUPERSESSION APPLICATION

MB991204

MB990925

MB991120

MB991199

MB991197

MB991202

MB991212

MB991203

ON-VEHICLE SERVICE

TSB Revision

POWER STEERING

37A-14

ON-VEHICLE SERVICE

STEERING WHEEL FREE PLAY CHECK

M1372001000236

1. With the engine running (hydraulic operation), set the front

wheels straight ahead.

2. Measure the play on the steering wheel circumference

before the wheels start to move when slightly moving the
steering wheel in both directions.

Limit: 30 mm (1.2 inches)

3. When the play exceeds the limit, check for the play on the

steering shaft and steering linkage connection. Correct or
replace.

4. If the free play still exceeds the limit value, set the steering

wheel straight ahead with the engine stopped. Load 5 N (1.1
pound) towards the steering wheel circumference and check
the play.

Standard value (steering wheel play with the engine
stopped): 10 mm (0.4 inch) or less

5. If the play exceeds the standard value, check the steering

gear box and check total pinion torque (Refer to

P.37A-30

.).

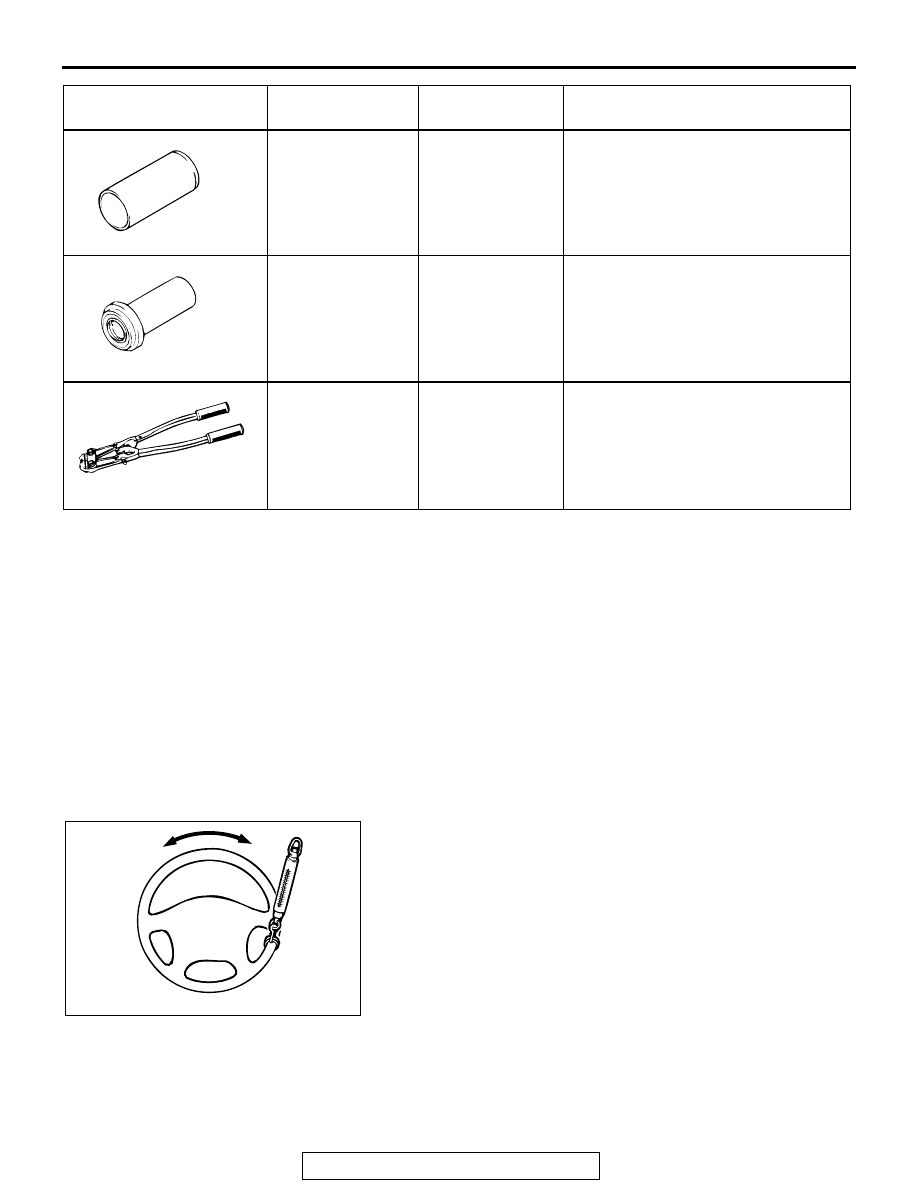

MB991317
Seal ring installer

Tool not available Seal ring installation

MB990941
Torque tube
bearing installer

General service
tool

Oil seal installation

MB991561
Boot band crimping
tool

−

Bellows band installation

TOOL

TOOL NUMBER
AND NAME

SUPERSESSION APPLICATION

MB991317

MB990941

MB991561

ACX01122 AB

ON-VEHICLE SERVICE

TSB Revision

POWER STEERING

37A-15

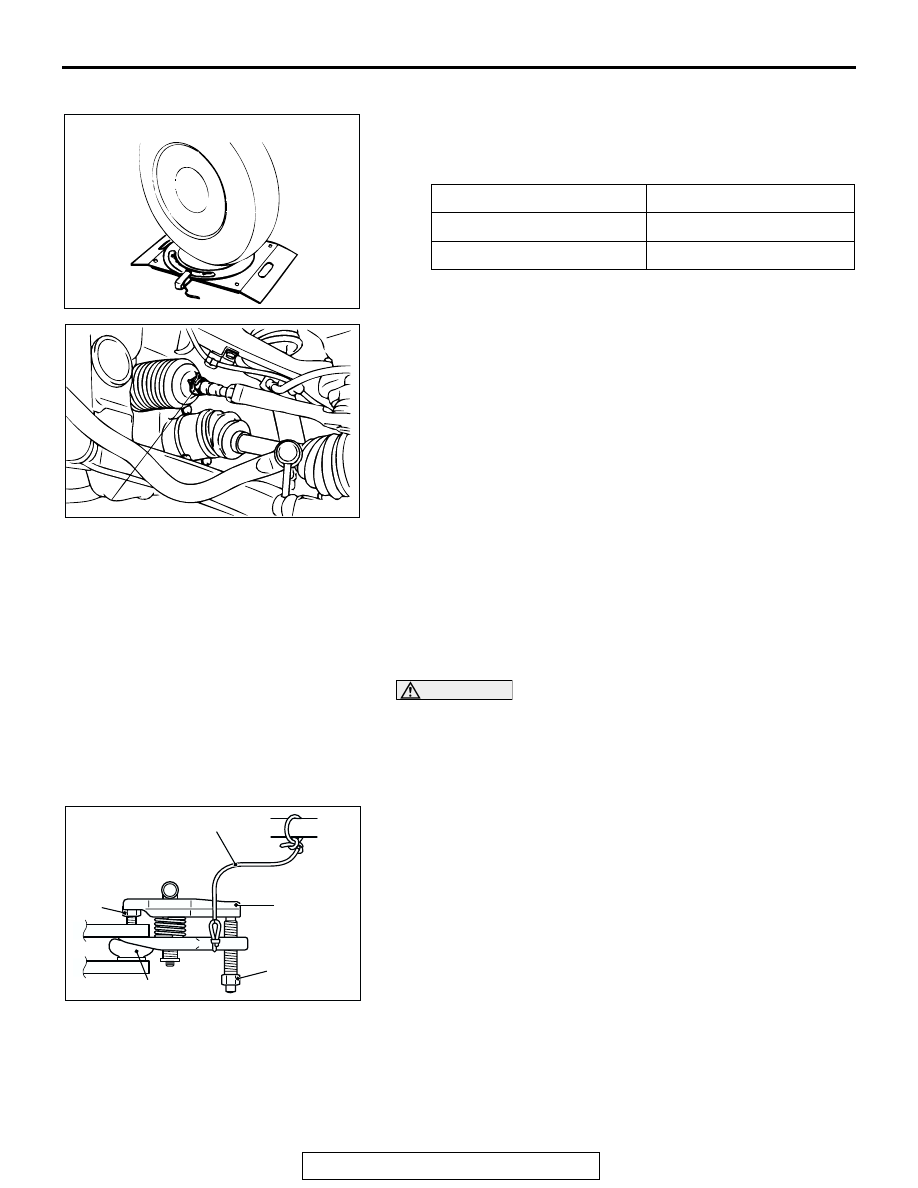

STEERING ANGLE CHECK

M1372001100266

1. Place the front wheel on a turning radius gauge and

measure the steering angle.

Standard value:

2. If the steering angle is not within the standard value, adjust

the toe-in by undoing the clip and turning the left and right tie
rod turnbuckles by the same amount (in opposite directions).

Standard value: 2.5

± 2.5 mm (0.1± 0.1 inch)

TIE ROD END BALL JOINT BREAKAWAY
TORQUE CHECK

M1372001500361

Required Special Tools:

• MB990326: Preload Socket

• MB991897: Ball Joint Remover

CAUTION

• Do not remove the nut from ball joint. Loosen it and use

the special tool MB991897 to avoid possible damage to
the ball joint threads.

• Hang special tool MB991897 with cord to prevent it

from falling.

1. Install special tool MB991897 as shown in the figure.

ITEM

SPECIFICATION

Inside wheel

36

°30' ± 1°30'

Outside wheel (reference)

31

°40'

AC000756

ACX00711AB

BELLOWS CLIP

AC208247AC

CORD

BOLT

MB991897

NUT

BALL JOINT

ON-VEHICLE SERVICE

TSB Revision

POWER STEERING

37A-16

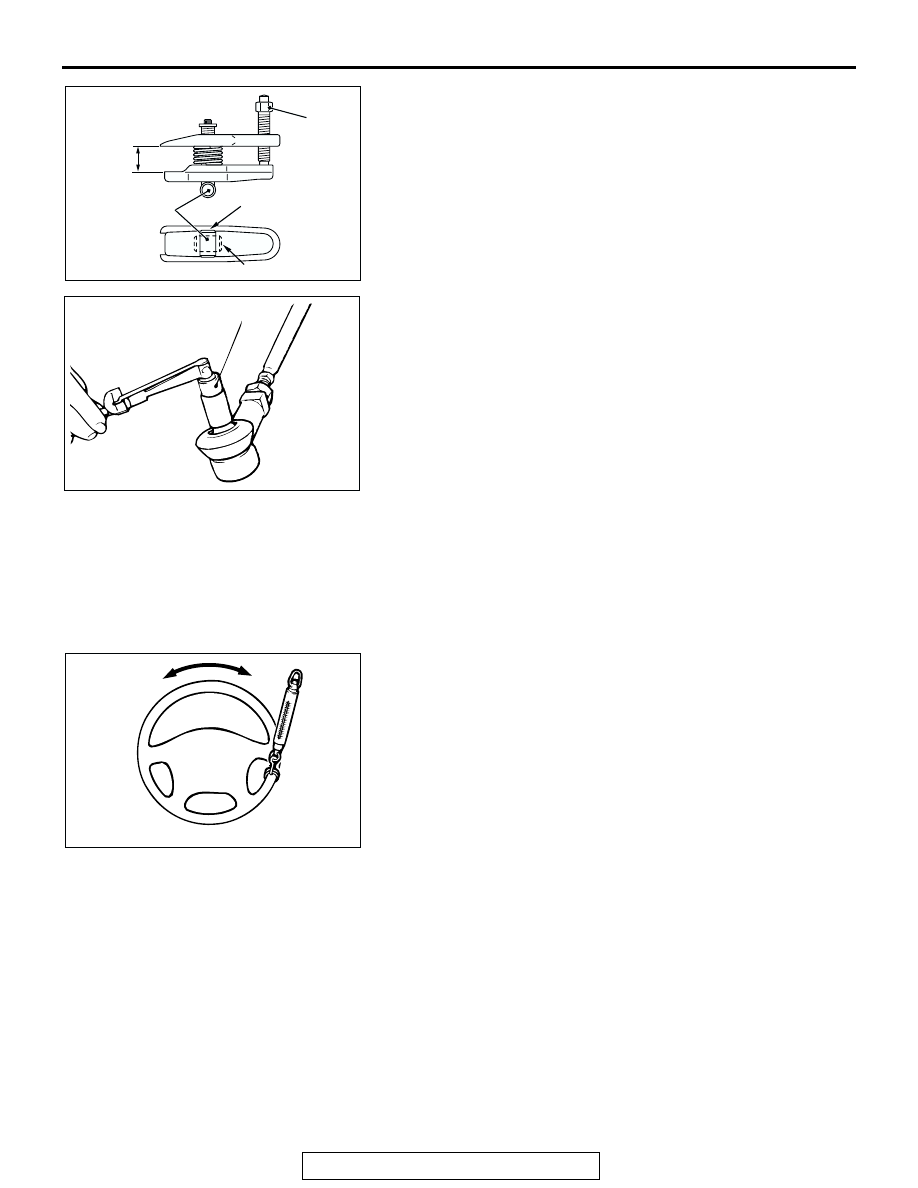

2. Turn the bolt and knob as necessary to make the jaws of

special tool MB991897 parallel, tighten the bolt by hand and
confirm that the jaws are still parallel.
NOTE: When adjusting the jaws in parallel, make sure the
knob is in the position shown in the figure.

3. Tighten the bolt with a wrench to disconnect the tie rod end.

4. Move the ball joint stud several times and install the nut on

the stud. Measure the ball joint breakaway torque with
special tool MB990326.

Standard value: 0.49

− 2.45 N⋅m (4.3 − 21.7 in-lb)

5. If the breakaway torque exceeds the standard value, replace

the tie rod end (Refer to

P.37A-27

).

STATIONARY STEERING EFFORT CHECK

M1372001700246

1. With the vehicle stopped on a flat and paved surface, turn

the steering wheel to the straight ahead position.

2. Start the engine and check the engine idle speed.

Standard value:1,000

± 100 r/min

3. Attach a spring scale to the outer circumference of the

steering wheel and measure the steering force required to
turn the steering wheel from the straight ahead position to
the left and right (within a range of 1.5 turns). Also check to
be sure that there is no significant change in the required
steering effort.

Standard value:

• Steering effort: 39.2 N (8.8 pound) or less

• Fluctuation allowance: 5.9 N (1.33 pound) or less

4. If the measured value did not conform to the standard value,

refer to POWER STEERING DIAGNOSIS

P.37A-2

 to check

and adjust the steering force.

STEERING WHEEL RETURN TO CENTER CHECK

M1372001800243

Conduct a road test:
1. Make both gradual and sudden turns and check the steering

wheel return.

AC106821

KNOB

PARALLEL

BOLT

CORRECT

WRONG

AC

ACX01129 AB
