LOWER ARM

TSB Revision

FRONT SUSPENSION

33A-17

CAUTION

Be careful not to damage the ball joint stud.
2. Use a flat-tipped screwdriver to remove the retainer.

3. Apply multi-purpose grease to the new retainer, and

assemble it to the new dust cover.

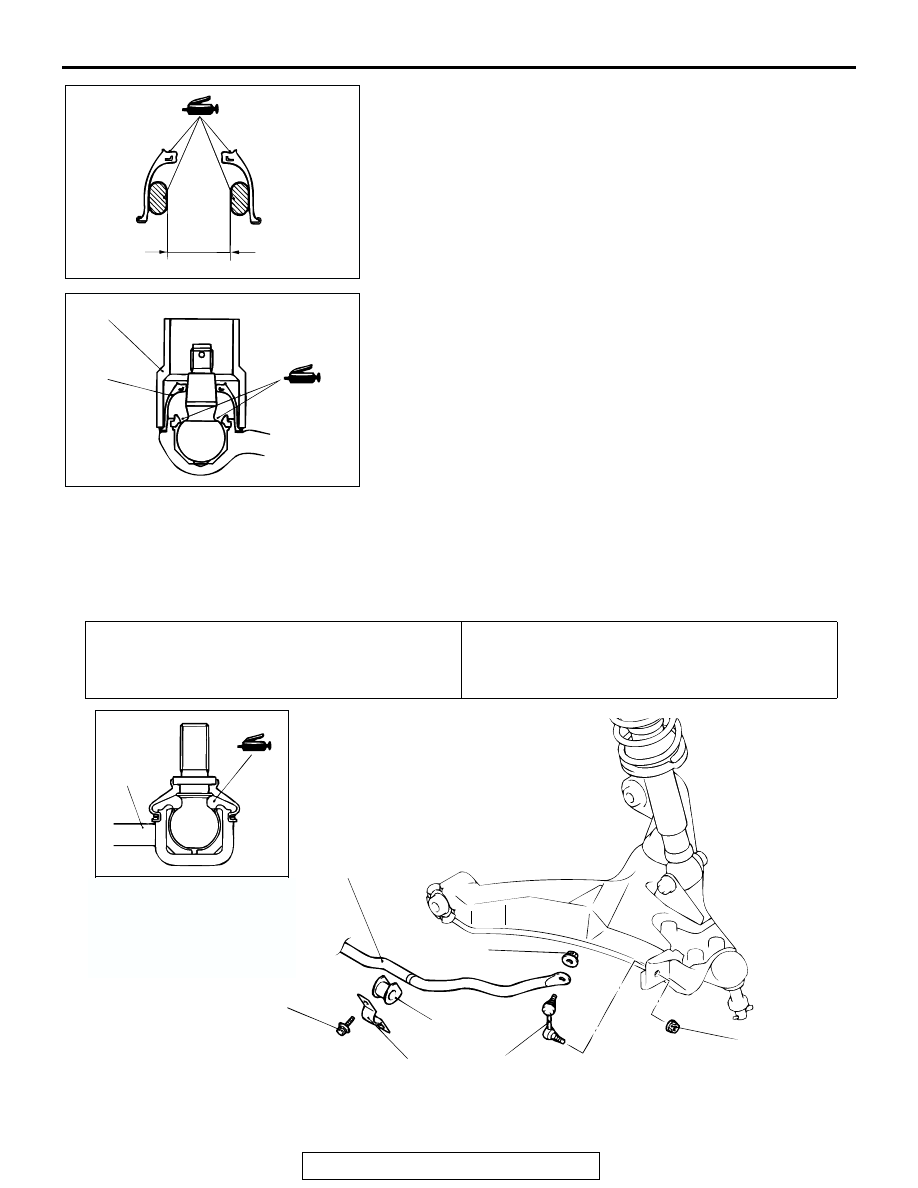

4. Fill multi-purpose grease inside the dust cover as shown.

Standard value: 12

± 1 g (0.4 ± 0.04 oz)

5. Apply multi-purpose grease to the dust cover lip.
6. Tape the stud threads to avoid damage.

CAUTION

Ensure grease does not come into contact with the ball
joint threads and tapers. Wipe off the grease if contami-
nated.

7. Install the ball joint to the dust cover.
8. Secure the dust cover with the clip ring.
9. Engage the upper arm ball joint with the knuckle.

NOTE: The retainer is secured in a predetermined position
by tightening the ball joint nut to the specified torque.

INSPECTION

M1332002900056

• Check the bushing for wear and deterioration.

• Check the lower arm for bend or breakage.

• Check the lower arm for deterioration or damage.

• Check all bolts for condition and straightness.

.

AC306265AC

RETAINER

STUD

AC306266

RETAINER

DUST COVER

AC

AC306267

28 mm
(1.1 in)
OR MORE

AC

AC306268

DUST COVER

AC

CLIP RING

LOWER ARM

TSB Revision

FRONT SUSPENSION

33A-18

LOWER ARM BALL JOINT TURNING TORQUE CHECK

Required Special Tool:

• MB990326: Preload Socket

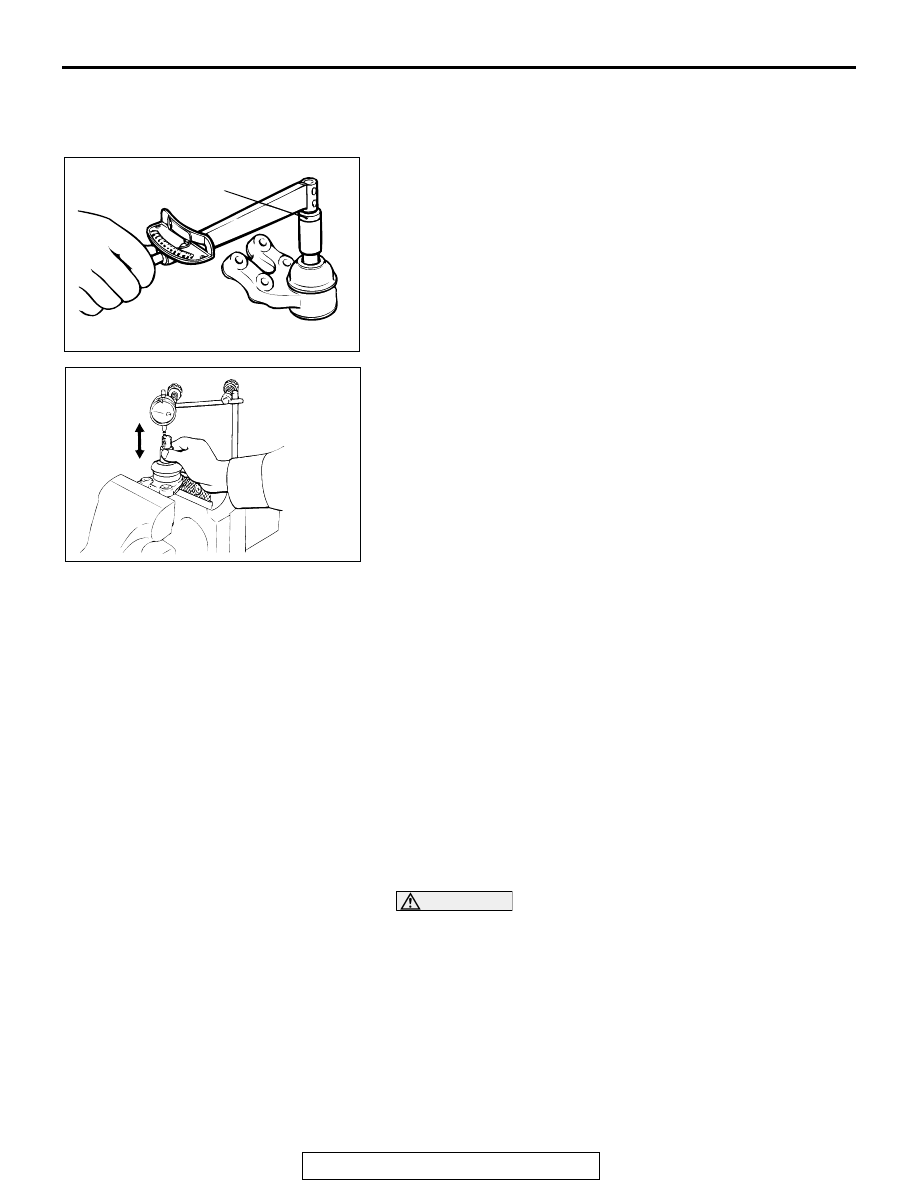

1. After shaking the ball joint stud several times, use special

tool MB990326 to measure the turning torque of the lower
ball joint.

Standard value: 1.0

− 6.9 N⋅m (9 − 61 in-lb)

2. If the measured value exceeds the standard value, replace

the lower arm ball joint.

3. If the measured value is lower than the standard value,

measure the lower arm ball joint end play with a dial
indicator.

4. If the end play exceeds a minimum scale of the dial indicator

[0.01 mm (0.0004 inch)], replace the lower arm ball joint.

.

LOWER ARM BALL JOINT DUST COVER CHECK
1. Press the dust cover with your finger to check that there are

no cracks or damage in the dust cover.

2. If the dust cover is cracked or damaged, replace the lower

arm ball joint assembly.
NOTE: If the dust cover is cracked or damaged, it is possible
that there may also be damage to the ball joint. If it is dam-
aged during service work, replace the dust cover.

LOWER ARM BALL JOINT DUST COVER
REPLACEMENT

M1332007800043

Required Special Tool:

• MB990799: Ball Joint Remover and Installer

CAUTION

Do not apply grease to the place (tapered section) where
the threaded section of the ball joint connects with the
knuckle. Wipe the grease off if it is applied in this area. To
prevent the grease from being applied to the ball joint con-
nection (taper) with knuckle, do not compress the dust
cover before installation.
If the dust cover is damaged accidentally during service work,
replace the dust cover as follows:
1. Remove the clip ring, and then remove the dust cover.

AC200959 AB

MB990326

AC005012

STABILIZER BAR

TSB Revision

FRONT SUSPENSION

33A-19

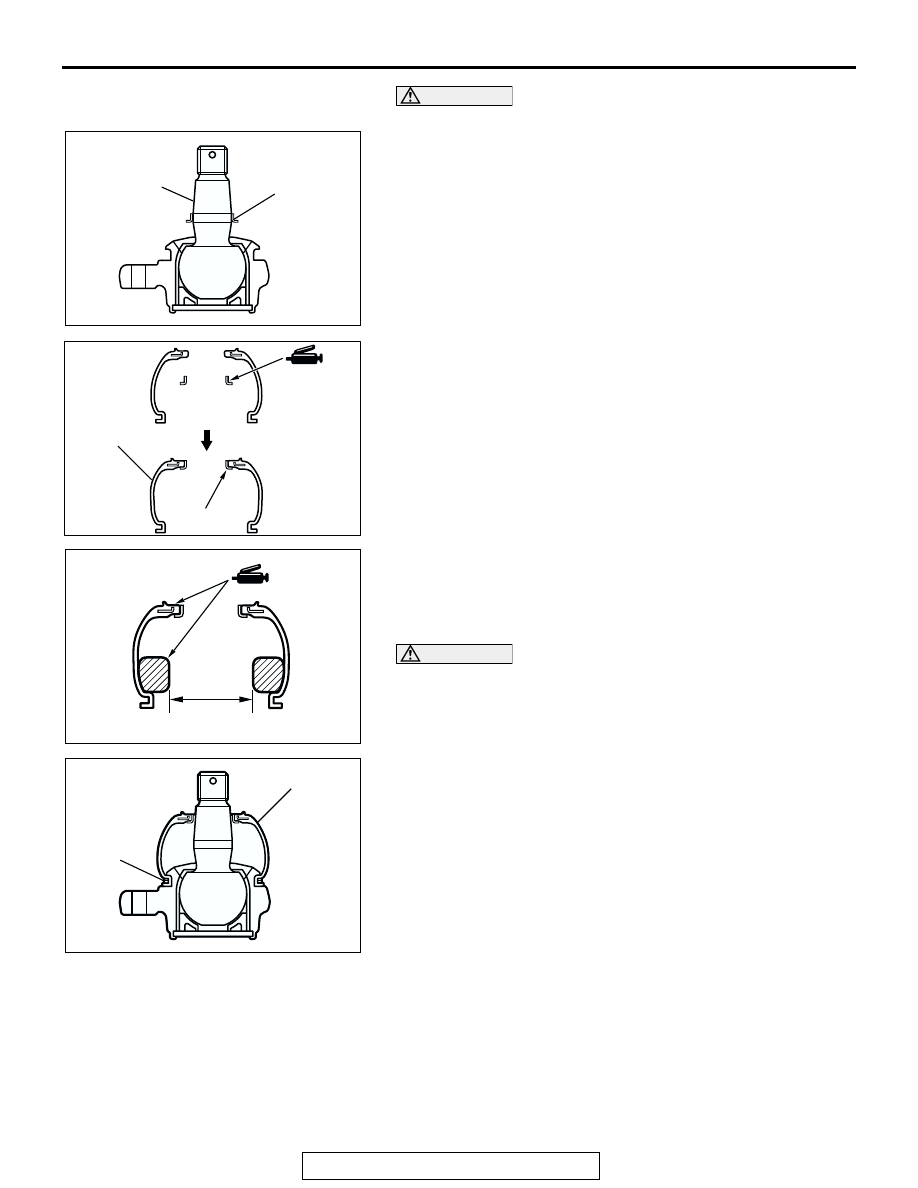

2. Apply multipurpose grease to the inside of the dust cover as

shown.

3. Apply multipurpose grease to the shown parts inside the

dust cover and the ball joint stud.

4. Wrap plastic tape around the lower arm ball joint stud, and

then install the dust cover to the lower arm ball joint.

5. Using special tool MB990799, drive the dust cover into the

position shown in the illustration.

6. Press the dust cover with your finger to check that there are

no cracks or damage in the dust cover.

STABILIZER BAR

REMOVAL AND INSTALLATION

M1332004000178

ACX00726 AB

30 mm
(1.18 in)
OR MORE

ACX00727 AB

MB990799

DUST
COVER

Pre-removal Operations
• Under Cover Removal

Pre-installation Operation
• Press the dust cover with your finger to check that there

are no cracks or damage in the dust cover.

• Under Cover Installation

ACX00728 AB

44

± 10 N

·

m

33

± 7 ft-lb

4

2

3

1

1

108

± 10 N

·

m

80

± 7 ft-lb

108

± 10 N

·

m

80

± 7 ft-lb

STABILIZER BAR

TSB Revision

FRONT SUSPENSION

33A-20

INSTALLATION SERVICE POINTS

.

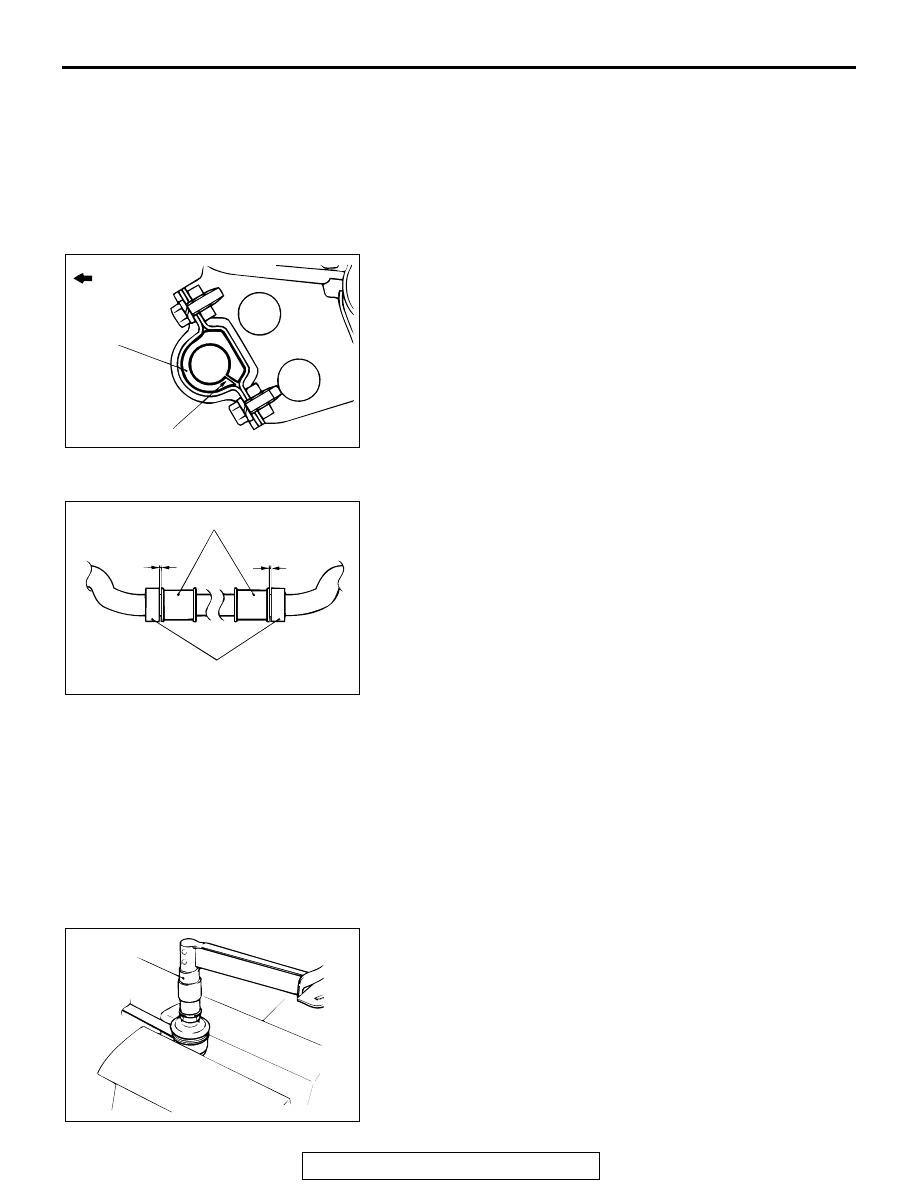

>>A<< STABILIZER BAR BUSHING INSTALLATION
Position the bush slit as shown in the illustration.

.

>>B<< STABILIZER CLAMP INSTALLATION
Position the stabilizer clamp as shown in the illustration and
then tighten the stabilizer clamp mounting bolt.

INSPECTION

M1332002000194

• Check the bushing for wear and deterioration.

• Check the stabilizer bar for deterioration or damage.

• Check all bolts for condition and straightness.

STABILIZER LINK BALL JOINT TURNING
TORQUE CHECK

Required Special Tool:

• MB990326: Preload Socket

1. After shaking the ball joint stud several times, install the nut

to the stud and use special tool MB990326 to measure the
turning torque of the ball joint.

Standard value: 0.5

− 2.0 N⋅m (4 − 17 in-lb)

2. If the measured value exceeds the standard value, replace

the stabilizer link.

3. If the measured value is lower than the standard value,

check that the ball joint turns smoothly without excessive
play. If so, it is possible to use that ball joint.

REMOVAL STEPS

1. STABILIZER LINK

>>B<<

2. STABILIZER CLAMP

>>A<<

3. STABILIZER BUSHING
4. STABILIZER BAR

REMOVAL STEPS (Continued)

ACX00729 AB

FRONT

BUSHING

SLIT

ACX00730

BUSHING

1 mm
(0.04 in)

AB

RUNOUT PREVENTION
RUBBER

1 mm
(0.04 in)

ACX00731

AB

MB990326
