M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-3

System Check Sound

When starting the engine, a thudding sound can
sometimes be heard coming from the engine com-
partment. This is a normal sound during the Active
skid control system self-check.

Active Skid Control System Operation
Sounds and Sensations

During normal operation, the Active skid control sys-
tem makes several sounds that may seem unusual
at first:

• A whining sound is caused by the ABS hydraulic

unit motor.

• When pressure is applied to the brake pedal, the

pulsation of the pedal causes a scraping sound.

M-ASTC DIAGNOSIS

INTRODUCTION TO MITUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM
DIAGNOSIS

M1353002700024

The M-ASTC system controls the vehicle by braking
force and engine output. If any maladjustment or
trouble related to these elements is present, its per-
formance may be deteriorated.

TROUBLESHOOTING STRATEGY

M1353000800025

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find an
M-ASTC fault.
1. Gather information about the problem from the

customer.

2. Verify that the condition described by the

customer exists.

3. Check the vehicle for any M-ASTC DTC.
4. If you cannot verify the condition and there are no

M-ASTC DTCs, the malfunction is intermittent.
Refer to GROUP 00, How to use
Troubleshooting/Inspection Service Points

− How

to Cope with Intermittent Malfunctions

P.00-6

.

5. If you can verify the condition but there are no

M-ASTC DTCs, or the system cannot
communicate with the scan tool, check that the
basic brake system is operating properly.

• If the basic brake system is not operating prop-

erly, refer to the GROUP 35A, Basic Brake Sys-
tem Diagnosis

P.35A-6

.

• If the basic brake system is operating properly,

refer to

P.35B-85

.

6. If there is an M-ASTC DTC, record the number of

the DTC, then erase the DTC from the memory
using the scan tool.

7. Duplicate the M-ASTC DTC set conditions to see

if the same M-ASTC DTC will set again.

1.

ABS SENSOR

2.

STOPLIGHT SWITCH

3.

G AND YAW RATE SENSOR

4.

STEERING WHEEL SENSOR

5.

ACTIVE SKID CONTROL OFF
SWITCH

6.

2WD/4WD DETECTION SWITCH

7.

4LLc DETECTION SWITCH

8.

CENTER DIFFERENTIAL LOCK
DETECTION SWITCH

9.

2WD DETECTION SWITCH

10. 4H DETECTION SWITCH
11. MASTER CYLINDER PRESSURE

SENSOR

12. HYDRAULIC UNIT IN HYDRAULIC

BRAKE BOOSTER (HBB)

13. VALVE RELAY

14. HBB BUZZER
15. ACTIVE SKID CONTROL SYSTEM

OPERATION INDICATOR
LIGHT/ACTIVE TRACTION
CONTROL SYSTEM OPERATION
INDICATOR LIGHT

16. ACTIVE SKID CONTROL SYSTEM

OFF INDICATOR LIGHT

17. 4WD INDICATOR LIGHT
18. DATA LINK CONNECTOR
19. POWER CONTROL MODULE

(PCM)

20. MITUBISHI ACTIVE SKID AND

ACTIVE TRACTION CONTROL
UNIT(M-ASTC-ECU)

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-4

• If the same M-ASTC DTC sets again, perform the

diagnostic procedures for the DTC. Refer to

P.35B-8

.

• If you cannot get the same M-ASTC DTC to set

again, the malfunction is intermittent. Refer to
GROUP 00, How to use Troubleshooting/Inspec-
tion Service Points

− How to Cope with Intermit-

tent Malfunctions

P.00-6

.

TROUBLE CODE DIAGNOSIS

M1353000900033

Retrieving M-ASTC Diagnostic Trouble Codes

.

Required Special Tools:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991911 to special tool MB991824.
5. Connect special tool MB991911 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the MUT-III system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

Erasing M-ASTC Diagnostic Trouble Codes

.

Required Special Tools:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

NOTE: If the battery voltage is low, diagnostic trouble codes
will not be set. Check the battery if scan tool MB991958
does not display.

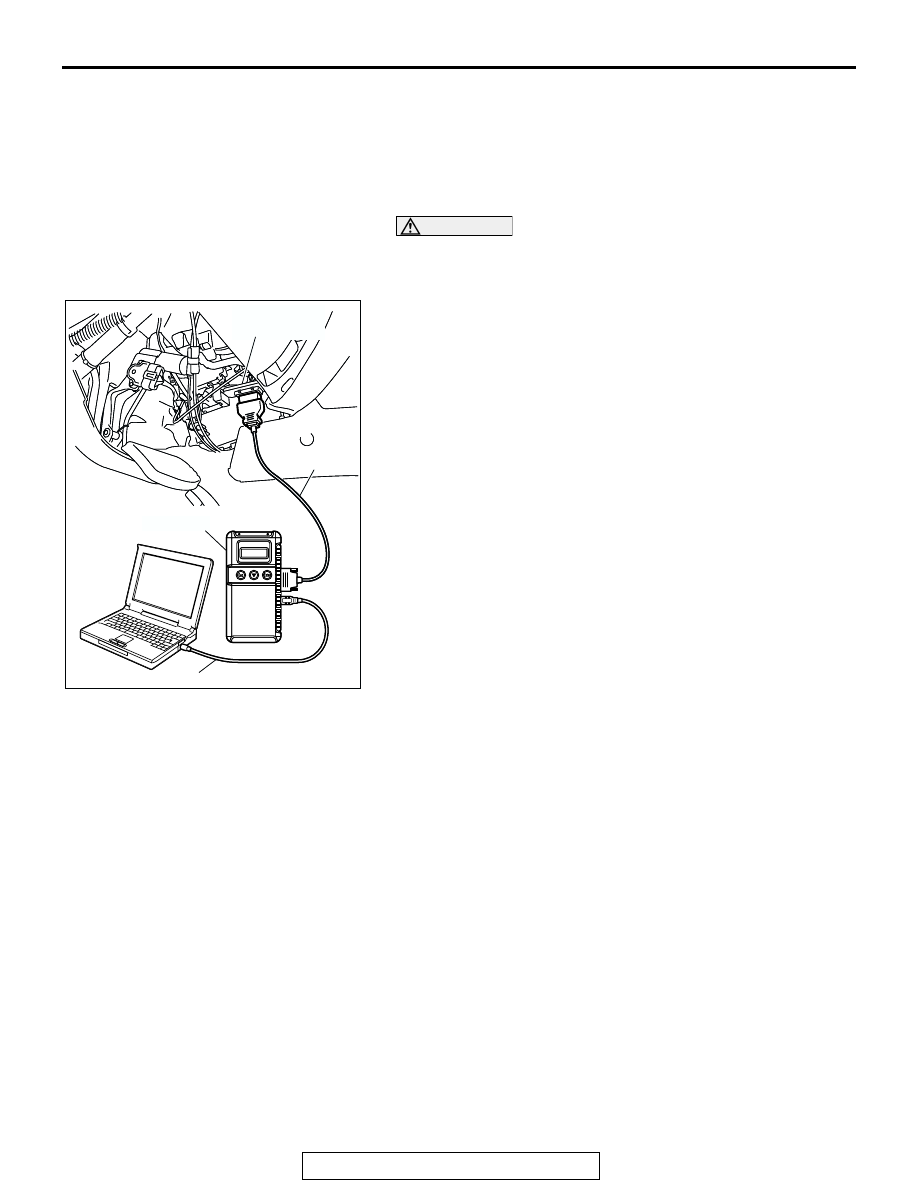

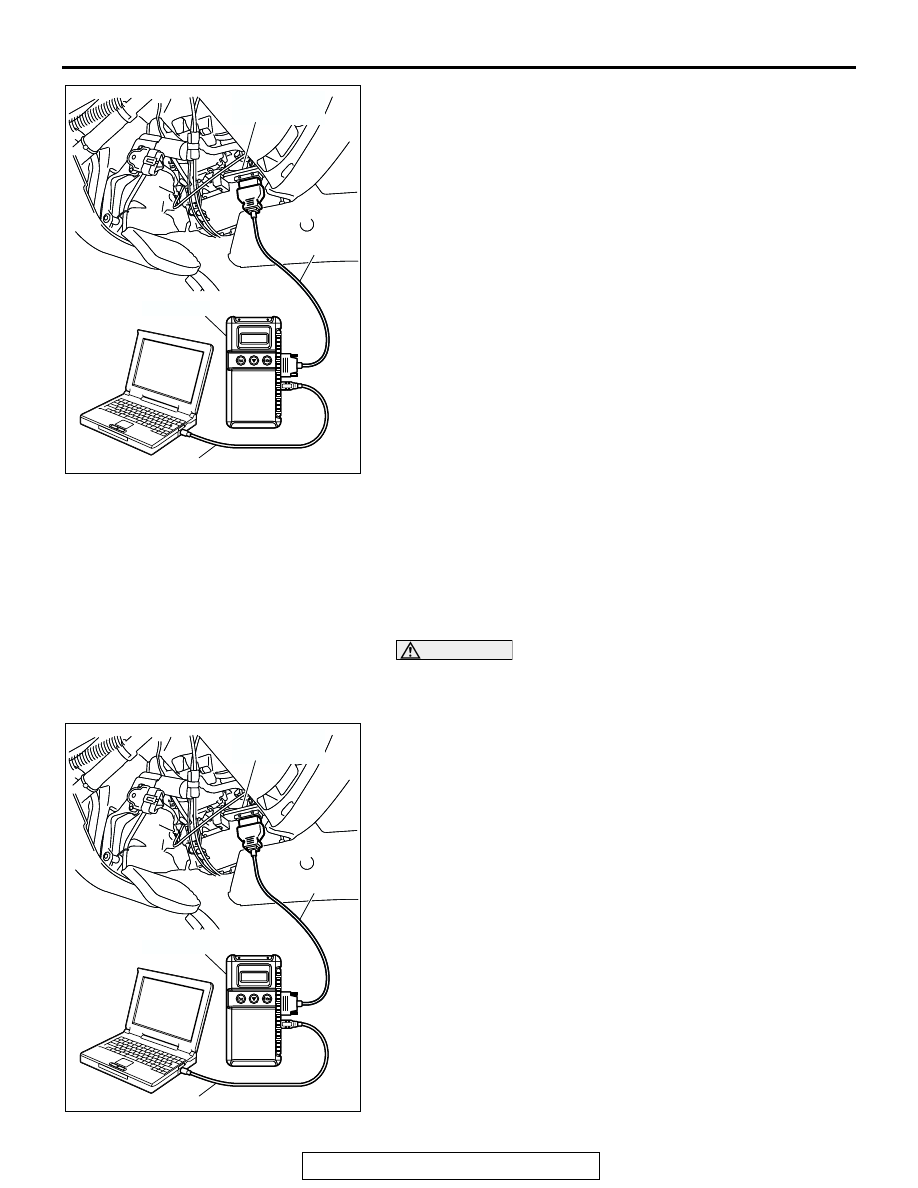

AC307591 AC

MB991911

MB991824

MB991827

AC307591

DATA LINK

CONNECTOR

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-5

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System select."
5. Choose "ABS/ASC/ASTC" from the "CHASSIS" tab.
6. Select "MITSUBISHI."
7. Select "Diagnostic Trouble Code."
8. If a DTC is set, it is shown.
9. Choose "Erase DTCs" to erase the DTC.

HOW TO READ DATA LIST

Required Special Tools:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System select."
5. Choose "ABS/ASC/ASTC" from the "CHASSIS" tab.
6. Select "MITSUBISHI."
7. Select "Data List."
8. Choose an appropriate item and select the "OK" button.

AC307591 AC

MB991911

MB991824

MB991827

AC307591

DATA LINK

CONNECTOR

AC307591 AC

MB991911

MB991824

MB991827

AC307591

DATA LINK

CONNECTOR

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-6

HOW TO PERFORM ACTUATOR TEST

Required Special Tools:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness B

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System select."
5. Choose "ABS/ASC/ASTC" from the "CHASSIS" tab.
6. Select "MITSUBISHI."
7. Select "Actuator Test."
8. Choose an appropriate item and select the "OK" button.

AC307591 AC

MB991911

MB991824

MB991827

AC307591

DATA LINK

CONNECTOR
