ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-59

• M-ASTC-ECU connector E-119 terminal 1 and HBB con-

nector B-14 terminal 16

• M-ASTC-ECU connector E-119 terminal 2 and HBB con-

nector B-14 terminal 15

When DTC 44 is set:

AC203901

AC204627AC

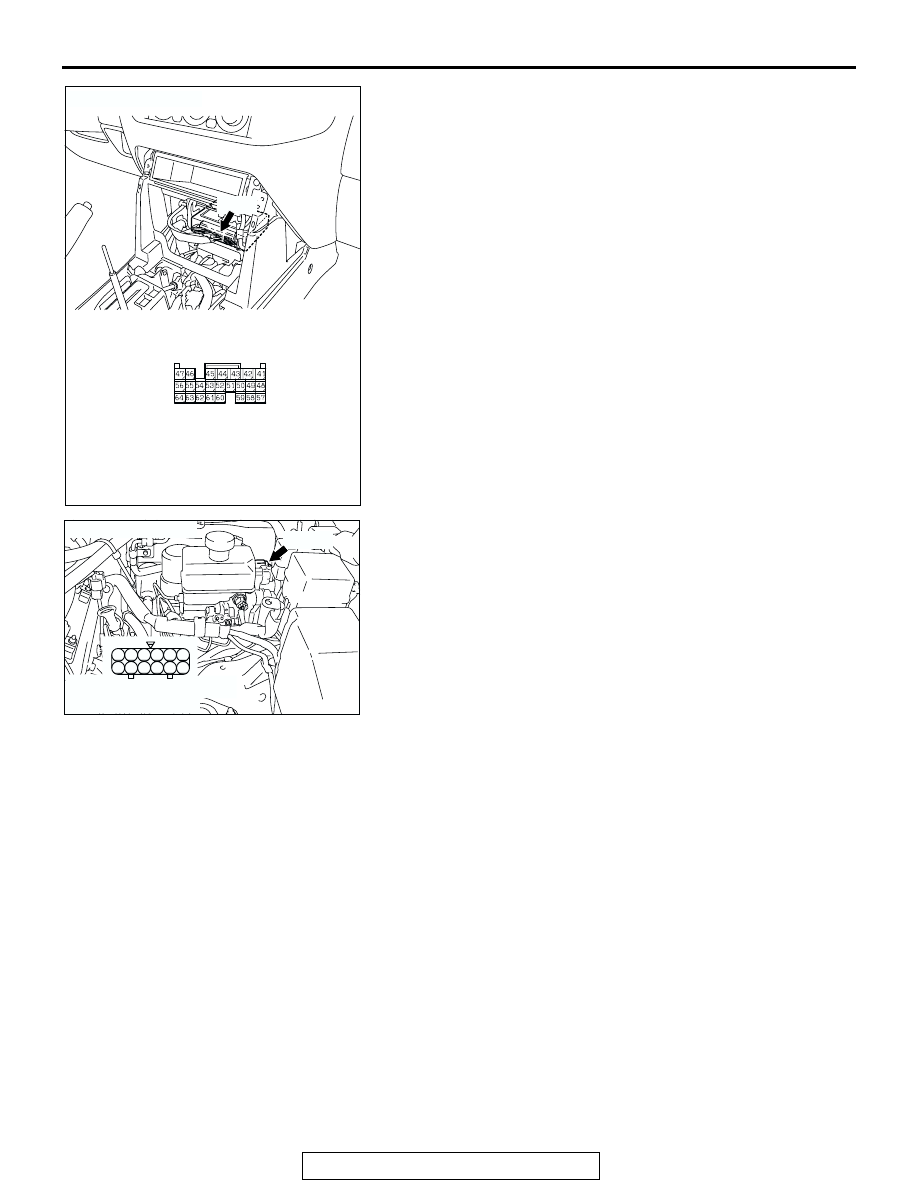

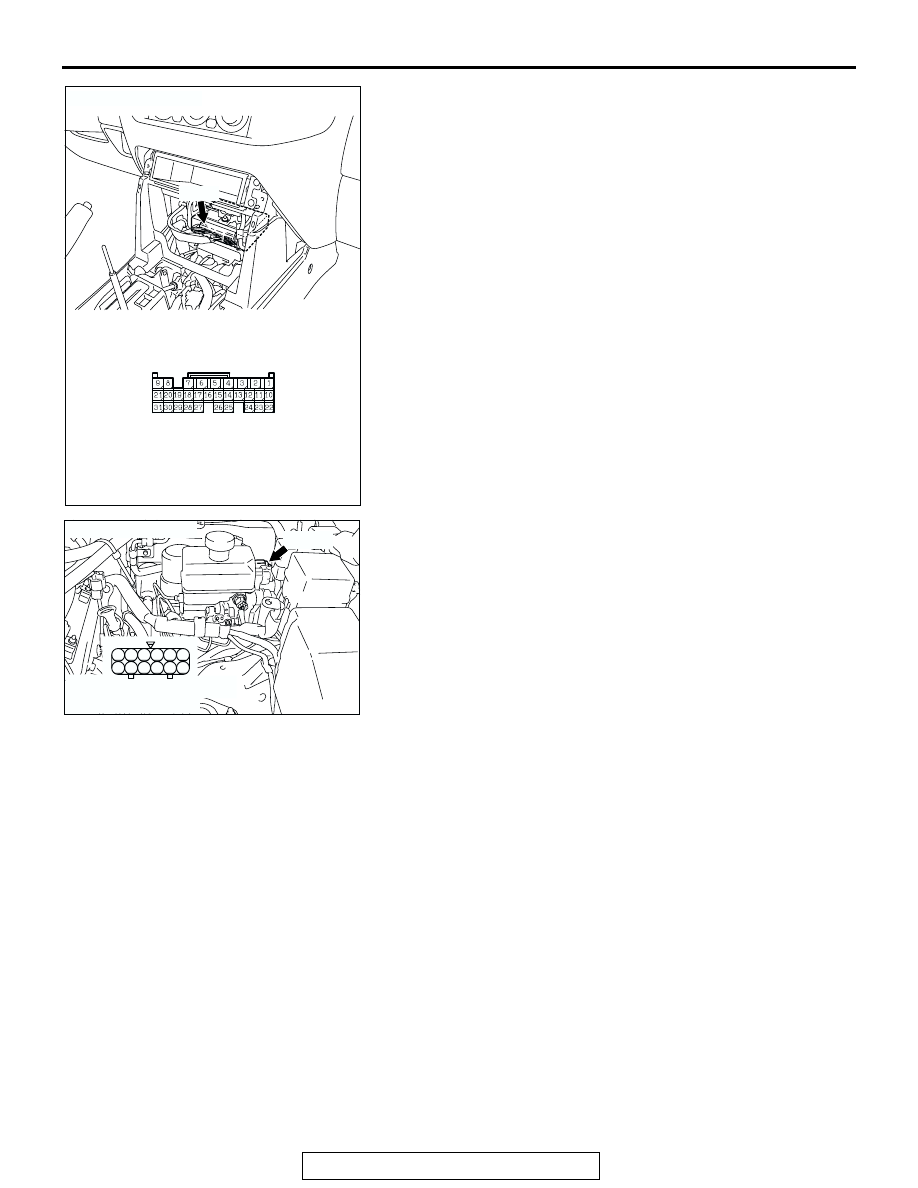

CONNECTOR: E-119

E-119

HARNESS CONNECTOR:
COMPONENT SIDE

E-119

AC204703AB

CONNECTOR: B-14

B-14(B)

13
19

16

22

15

21

14

20

12

18 17

11

HARNESS CONNECTOR:
COMPONENT SIDE

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-60

• M-ASTC-ECU connector E-120 terminal 45 and HBB con-

nector B-14 terminal 14

• M-ASTC-ECU connector E-120 terminal 44 and HBB con-

nector B-14 terminal 13

When DTC 45 is set:

AC203901

AC204627AG

CONNECTOR: E-120

E-120

HARNESS CONNECTOR:
COMPONENT SIDE

E-120

AC204703AB

CONNECTOR: B-14

B-14(B)

13
19

16

22

15

21

14

20

12

18 17

11

HARNESS CONNECTOR:
COMPONENT SIDE

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-61

• M-ASTC-ECU connector E-119 terminal 7 and HBB con-

nector B-14 terminal 18

When DTC 46 is set:

AC203901

AC204627AC

CONNECTOR: E-119

E-119

HARNESS CONNECTOR:
COMPONENT SIDE

E-119

AC204703AB

CONNECTOR: B-14

B-14(B)

13
19

16

22

15

21

14

20

12

18 17

11

HARNESS CONNECTOR:
COMPONENT SIDE

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-62

• M-ASTC-ECU connector E-120 terminal 8 and HBB con-

nector B-14 terminal 17

Q: Is the harness wire between HBB connector B-14 and

M-ASTC-ECU connector E-119, or HBB connector B-14
and M-ASTC-ECU connector E-120 damaged?
YES : Repair it and then go to Step 5.
NO :  Go to Step 4.

AC203901

AC204627AG

CONNECTOR: E-120

E-120

HARNESS CONNECTOR:
COMPONENT SIDE

E-120

AC204703AB

CONNECTOR: B-14

B-14(B)

13
19

16

22

15

21

14

20

12

18 17

11

HARNESS CONNECTOR:
COMPONENT SIDE
