ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-31

Q: Is the harness wire between M-ASTC-ECU connector

E-119 terminal 27 and ABS sensor <front: RH>
connector A-37 terminal 1 or M-ASTC-ECU connector
E-119 terminal 28 and ABS sensor <front: RH>
connector A-37 terminal 2 damaged?
YES : Repair it and then go to Step 11.
NO :  Go to Step 11.

AC204387

AC204666

CONNECTOR: A-37

A-37(B)

AB

1

2

A-37 HARNESS CONNECTOR:
COMPONENT SIDE

AC204389

CONNECTOR: A-03

A-03(B)

AC

1

6 7

2

8

3

10

5

9

4

A-03

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-32

STEP 7. Check the harness wires between M-ASTC-ECU
connector E-120 terminal 46 and ABS sensor <rear: LH>
connector G-21 terminal 2 or M-ASTC-ECU connector
E-120 terminal 47 and ABS sensor <rear: LH> connector
G-21 terminal 1.
NOTE: After inspecting M-ASTC-ECU connector E-120, inter-
mediate connector F-11, D-111,E-110 and ABS sensor <rear:
LH> connector G-21, inspect the wire. If M-ASTC-ECU connec-
tor E-120, intermediate connector F-11, D-111,E-110 and ABS
sensor <rear: LH> connector G-21 are damaged, repair or
replace them. Refer to GROUP 00E, Harness Connector
Inspection

P.00E-2

. Then go to Step 11.

AC203901

AC204627

CONNECTOR: E-120

AF

E-120

E-120 HARNESS CONNECTOR:
COMPONENT SIDE

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-33

Q: Is the harness wire between M-ASTC-ECU connector

E-120 terminal 46 and ABS sensor <rear: LH> connector
G-21 terminal 2 or M-ASTC-ECU connector E-120
terminal 47 and ABS sensor <rear: LH> connector G-21
terminal 1 damaged?
YES : Repair it and then go to Step 11.
NO :  Go to Step 11.

AC204390

AC204668

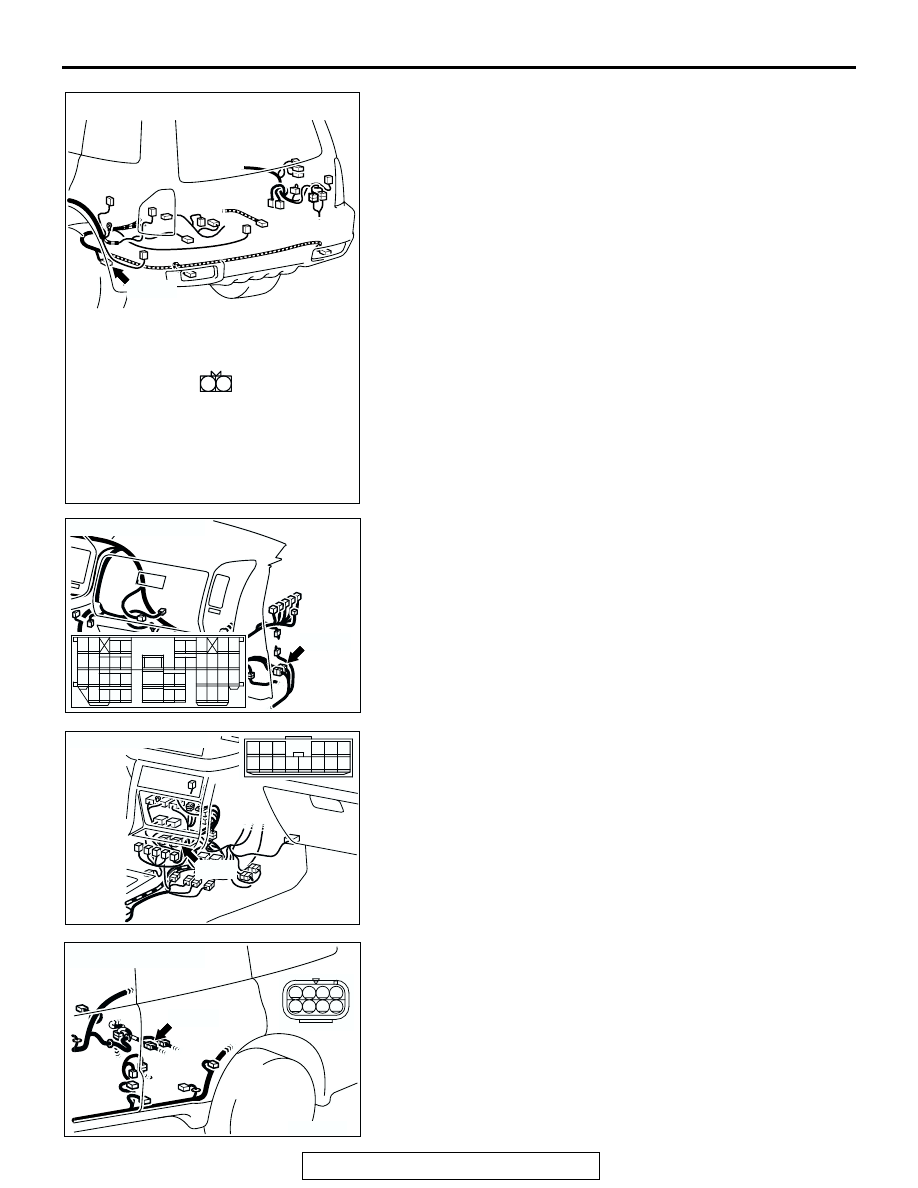

CONNECTOR: G-21

G-21(B)

AB

G-21 HARNESS CONNECTOR:
COMPONENT SIDE

2 1

AC204384

CONNECTOR: D-111

D-111

AC

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22

AC204385

CONNECTOR: E-110

AD

E-110

6

1

7

2

9

8

10

3

5

12

11

4

1314

AC204386

CONNECTOR: F-11

F-11(B)

AC

7

3

5

1

6

2

8

4

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-34

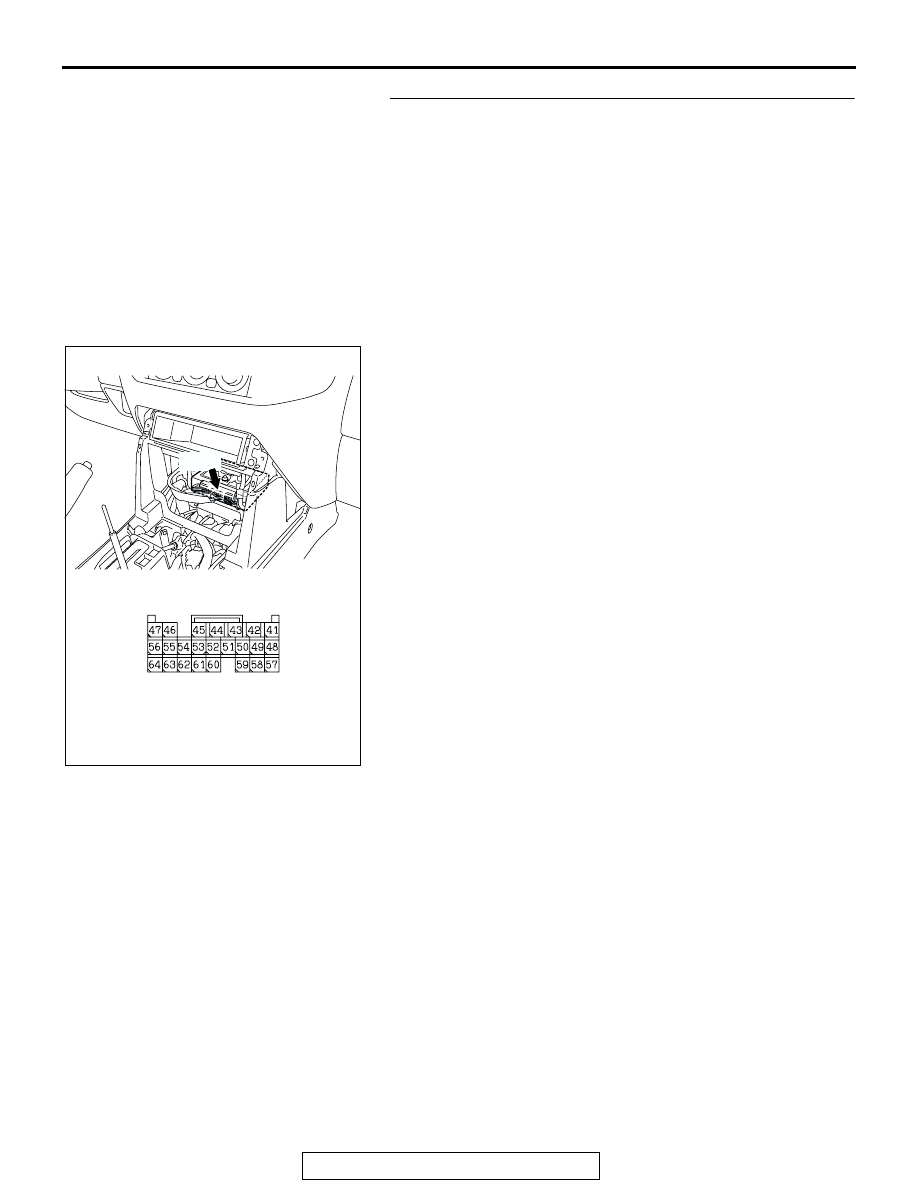

STEP 8. Check the harness wires between M-ASTC-ECU
connector E-120 terminal 60 and ABS sensor <rear: RH>
connector G-14 terminal 2 or M-ASTC-ECU connector
E-120 terminal 61 and ABS sensor <rear: RH> connector
G-14 terminal 1.
NOTE: After inspecting M-ASTC-ECU connector E-120, inter-
mediate connector D-111, E-110 and ABS sensor <rear: RH>
connector G-14, inspect the wire. If M-ASTC-ECU connector
E-120, intermediate connector E-110, D-111 and ABS sensor
<rear: RH> connector G-14 are damaged, repair or replace
them. Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

. Then go to Step 11.

AC203901

AC204627

CONNECTOR: E-120

AF

E-120

E-120 HARNESS CONNECTOR:
COMPONENT SIDE
