SPECIFICATIONS

TSB Revision

BASIC BRAKE SYSTEM

35A-155

GENERAL SPECIFICATIONS

M1351000200210

SERVICE SPECIFICATIONS

M1351000300284

Brake hose connector bolt

30

± 4 N⋅m (22 ± 3 ft-lb)

Front brake assembly mounting bolt

113

± 9 N⋅m (83 ± 7 ft-lb)

Guide pin

89

± 4 N⋅m (66 ± 3 ft-lb)

Guide pin lock bolt

89

± 4 N⋅m (66 ± 3 ft-lb)

Rear disc brake
Bleeder screw

7.9

± 0.9 N⋅m (70 ± 8 in-lb)

Brake hose connector bolt

30

± 4 N⋅m (22 ± 3 ft-lb)

Rear disc brake assembly mounting bolt

100

± 10 N⋅m (74 ± 7 ft-lb)

Guide pin

44

± 5 N⋅m (33 ± 3 ft-lb)

Lock pin

44

± 5 N⋅m (33 ± 3 ft-lb)

ITEM

SPECIFICATION

ITEM

SPECIFICATION

Hydraulic brake
booster (HBB)

Master cylinder type

Single type (with center valve)

Master cylinder ID mm (in)

22.22 (0.875)

Boosting ratio

5.4

Rear wheel hydraulic pressure control type

Electronic brake-force distribution (EBD)

Front brakes

Type

Floating caliper, 2 piston, ventilated disc

Disc effective diameter mm (in)

241 (9.5)

Wheel cylinder ID mm (in)

45.4 (1.79)

Pad thickness mm (in)

10.0 (0.40)

Clearance adjustment

Automatic

Rear brakes

Type

Floating caliper, 1 piston, ventilated disc

Disc effective diameter mm (in)

256 (10.0)

Wheel cylinder ID mm (in)

44.5 (1.75)

Pad thickness mm (in)

10.0 (0.40)

Clearance adjustment

Automatic

ITEM

STANDARD VALUE

LIMIT

Brake pedal height mm (in)

192

− 195 (7.6 − 7.7)

Brake pedal play mm (in)

3 (0.1) or less

Brake pedal to floor board clearance when the brake pedal
is depressed mm (in)
<Pedal depression force: Approximately 500 N (112 lb)>

90 (3.5) or more

Hydraulic brake
booster (HBB)

Pump motor
operating time:
seconds

When brake fluid
pressure is not
applied to power
supply system

20

− 80

With power assist

− 11

SPECIFICATIONS

TSB Revision

BASIC BRAKE SYSTEM

35A-156

LUBRICANTS

M1351000400269

Hydraulic brake
booster (HBB)

Hydraulic pressure
generated at test
without booster:
kPa (psi)

Depressing
force 100 N
(22 lb)

Front 600 (87) or more

Rear

0 (0)

Depressing
force 500 N
(112 lb)

Front 4,500 (653) or more

Rear

0 (0)

Hydraulic pressure
generated at test
with booster: kPa
(psi)

Depressing
force 100 N
(22 lb)

Front 3,000

− 4,000

(435

− 580)

Rear

3,300

− 4,300

(479

− 624)

Depressing
force 200 N
(45 lb)

Front 8,000

− 10,000

(1,160

− 1,450)

Rear

8,000

− 10,000

(1,160

− 1,450)

Depressing
force 400 N
(90 lb)

Front 14,000

− 18,000

(2,030

− 2,611)

Rear

14,000

− 18,000

(2,030

− 2,611)

Depressing
force 500 N
(112 lb)

Front 15,000

− 19,000

(2,175

− 2,756)

Rear

15,000

− 19,000

(2,175

− 2,756)

Front disc brake Pad thickness   mm (in)

10.0 (0.39)

Minimum 2.0 (0.08)

Disc thickness   mm (in)

26.0 (1.02)

Minimum 24.4 (0.96)

Disc run-out   mm (in)

0.06 (0.002)

Drag force   N (lb)

55 (12)

Rear disc brake Pad thickness   mm (in)

10.0 (0.39)

Minimum 2.0 (0.08)

Disc thickness   mm (in)

22.0 (0.87)

Minimum 20.4 (0.80)

Disc run-out   mm (in)

0.06 (0.002)

Drag force   N (lb)

55 (12)

Front hub end play   mm (in)

0 (0)

Rear hub end play   mm (in)

0 (0)

ITEM

STANDARD VALUE

LIMIT

ITEM

SPECIFIED LUBRICANT

Brake fluid

DOT3 or DOT4

HBB power piston assembly, HBB master cylinder piston assembly
Brake caliper piston, caliper body piston cylinder
Piston boot, piston seal

Repair kit grease

Guide pin lock bolt, guide pin, lock pin
Rear disc brake pad assembly and shim A contact surface

Brake grease SAE J310, NLGI
No.1

Rear disc brake shim A and shim B contact surface

35B-1

GROUP 35B

ANTI-LOCK

BRAKING SYSTEM

(ABS)

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

35B-2

ANTI-LOCK BRAKING SYSTEM (ABS)
DIAGNOSIS . . . . . . . . . . . . . . . . . . . .

35B-3

INTRODUCTION TO ANTI-LOCK BRAKING

SYSTEM DIAGNOSIS  . . . . . . . . . . . . . . . .

35B-3

TROUBLESHOOTING STRATEGY . . . . . .

35B-3

TROUBLE CODE DIAGNOSIS. . . . . . . . . .

35B-4

DIAGNOSTIC TROUBLE CODE CHART . .

35B-8

DIAGNOSTIC TROUBLE CODE
PROCEDURES. . . . . . . . . . . . . . . . . . . . . .

35B-11

SYMPTOM CHART. . . . . . . . . . . . . . . . . . .

35B-85

SYMPTOM PROCEDURES . . . . . . . . . . . .

35B-86

DATA LIST REFERENCE TABLE  . . . . . . .

35B-116

ACTUATOR TEST REFERENCE . . . . . . . .

35B-118

CHECK AT M-ASTC-ECU  . . . . . . . . . . . . .

35B-120

SPECIAL TOOLS. . . . . . . . . . . . . . . .

35B-123

ON-VEHICLE SERVICE. . . . . . . . . . .

35B-124

ABS SENSOR OUTPUT VOLTAGE
CHECK . . . . . . . . . . . . . . . . . . . . . . . . . . . .

35B-124

ABS VALVE RELAY CHECK  . . . . . . . . . . .

35B-126

HYDRAULIC BRAKE BOOSTER (HBB)

HYDRAULIC UNIT CHECK . . . . . . . . . . . . .

35B-126

SOLENOID VALVE CHECK  . . . . . . . . . . . .

35B-128

IN THE EVENT OF A DISCHARGED
BATTERY  . . . . . . . . . . . . . . . . . . . . . . . . . .

35B-128

ABS CONTROL UNIT. . . . . . . . . . . . .

35B-129

REMOVAL AND INSTALLATION . . . . . . . .

35B-129

WHEEL SPEED SENSOR  . . . . . . . . .

35B-129

REMOVAL AND INSTALLATION . . . . . . . .

35B-129

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

35B-130

G-SENSOR . . . . . . . . . . . . . . . . . . . . .

35B-131

REMOVAL AND INSTALLATION . . . . . . . .

35B-131

SPECIFICATIONS  . . . . . . . . . . . . . . .

35B-131

FASTENER TIGHTENING
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . .

35B-131

SERVICE SPECIFICATIONS . . . . . . . . . . .

35B-131

GENERAL DESCRIPTION

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-2

GENERAL DESCRIPTION

M1352000100324

The ABS consists of components such as the ABS
sensors, stoplight switch, hydraulic unit in hydraulic
brake booster (HBB), HBB buzzer, M-ASTC-ECU,
ABS rotor, and the ABS warning light. If a problem
occurs in the system, the malfunctioning components
can be identified and the trouble symptoms will be
memorized by the diagnostic function.

In addition, reading of diagnostic trouble codes and
data list and actuator testing are possible by using
the Scan Tool.
The M-ASTC-ECU runs a self-check for three sec-
onds upon start-up (also ignition switch ON, engine
stopped). The ABS warning light should be illumi-
nated during the self-check and turn off when the
self-check completes.

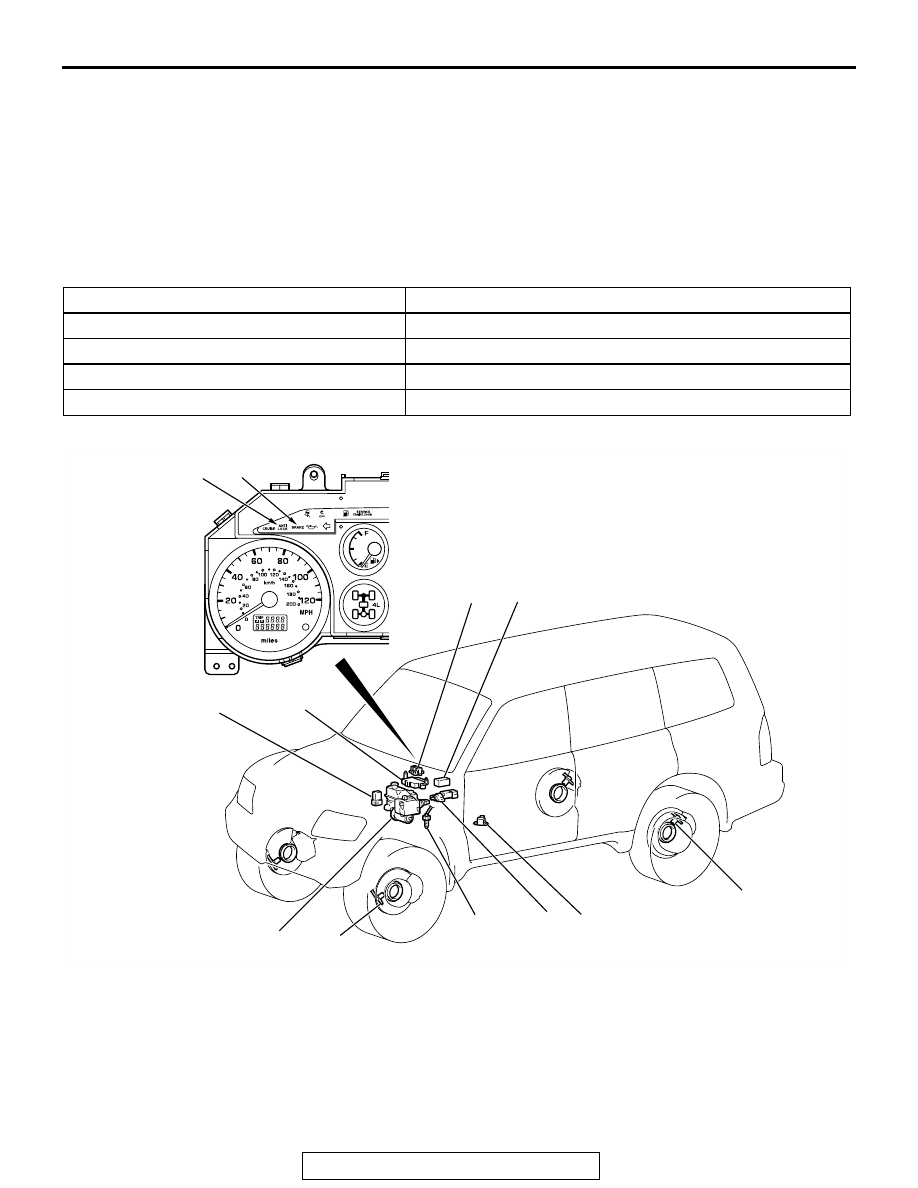

CONSTRUCTION DIAGRAM

ITEM

SPECIFICATION

ABS type

4-sensor, 4-channel type

ABS sensor

Magnet coil type on 4-wheels

Front ABS rotor teeth

50

Rear ABS rotor teeth

50

AC204969

AB

1

1

2

3

4

5

6

7

8

10

11

AB

9

1.

ABS SENSOR

2.

STOPLIGHT SWITCH

3.

G AND YAW RATE SENSOR

4.

CENTER DIFFERENTIAL LOCK
SWITCH

5.

HYDRAULIC UNIT IN HYDRAULIC
BRAKE BOOSTER (HBB)

6.

HBB BUZZER

7.

VALVE RELAY

8.

ABS WARNING LIGHT

9.

BRAKE WARNING LIGHT

10. DATA LINK CONNECTOR
11. M-ASTC-ECU
