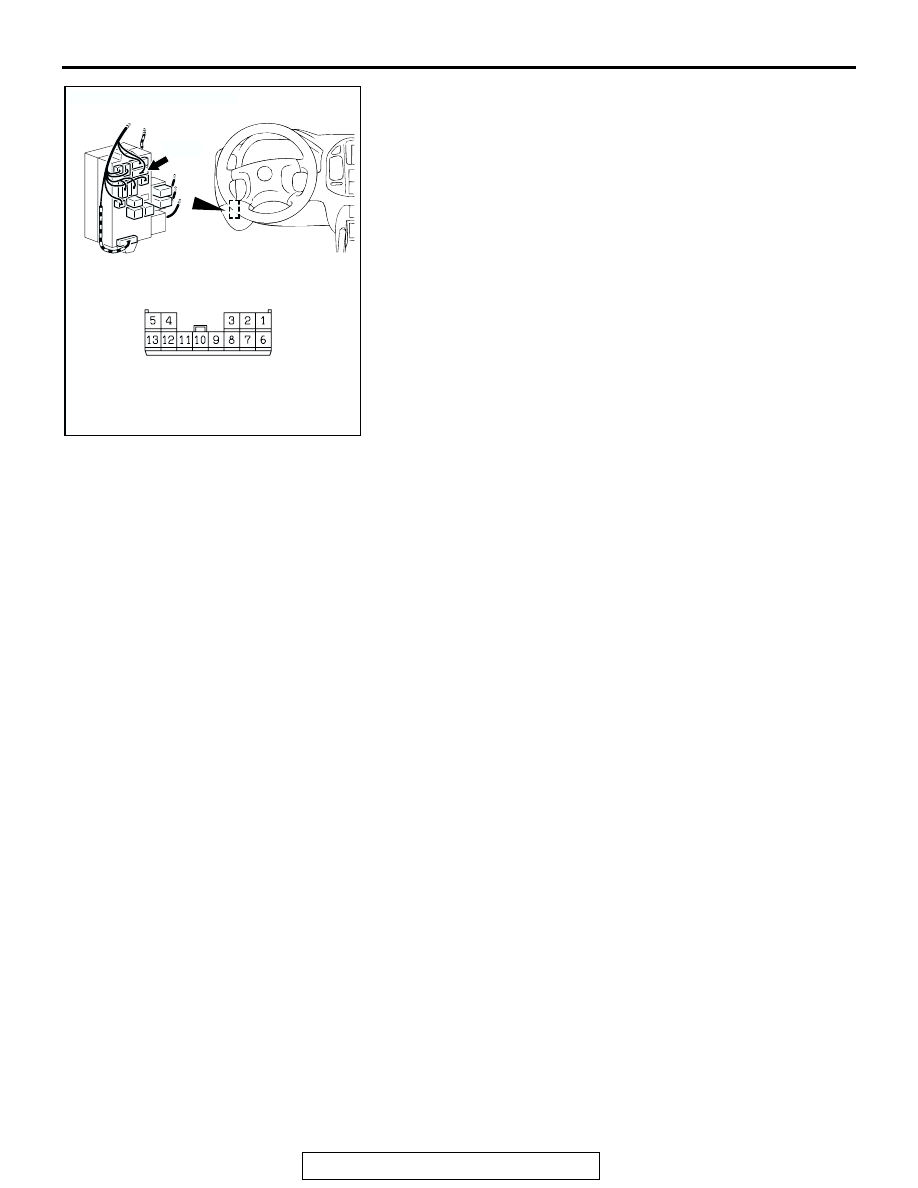

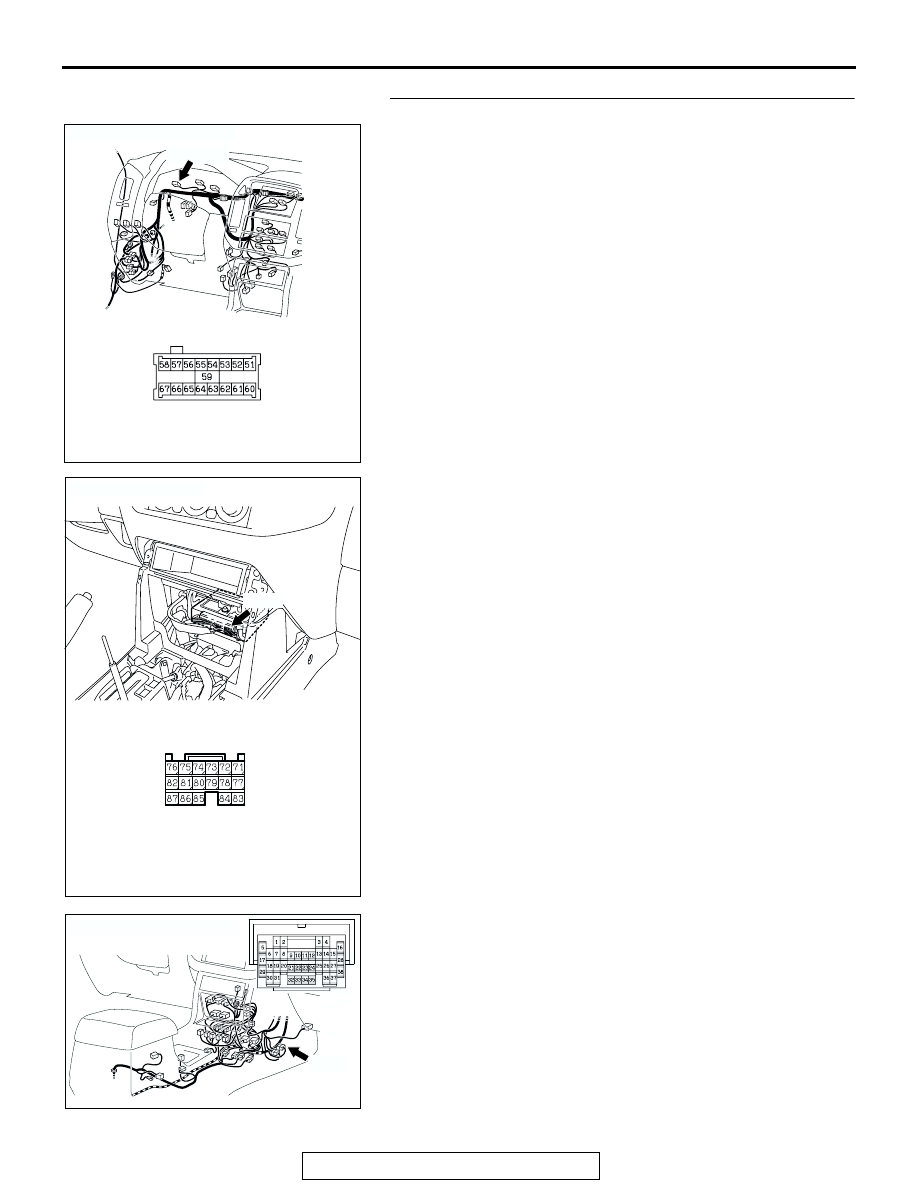

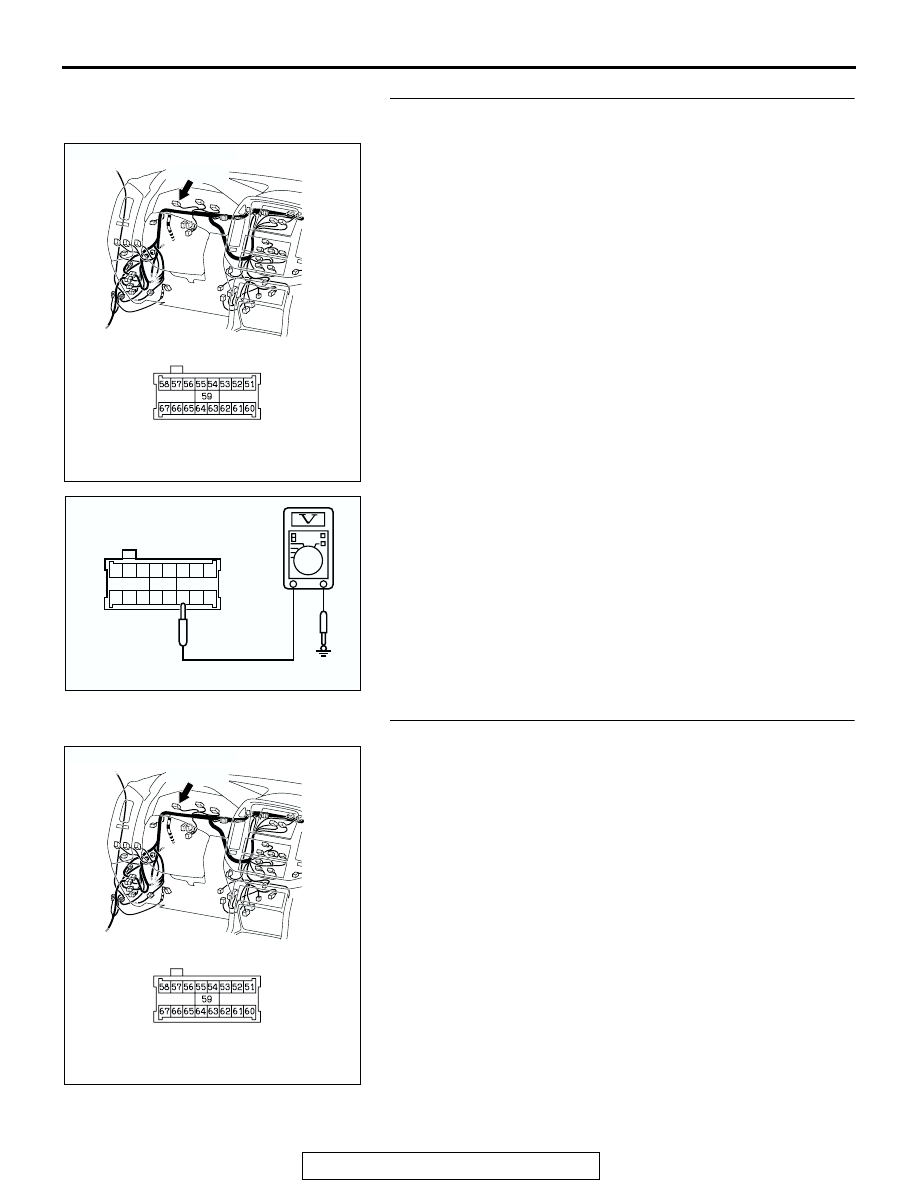

HYDRAULIC BRAKE BOOSTER (HBB) DIAGNOSIS TSB Revision BASIC BRAKE SYSTEM 35A-87 STEP 4. Check the following harness wire. • The wire between combination meter connector D-03 (ter- minal 55) and M-ASTC-ECU connector E-121 (terminal 81) NOTE: Also check intermediate connector E-111 for loose, cor- . If the connector has been repaired or replaced, go to Step 9. Q: Is the harness wire damaged? YES : Repair it and then go to Step 9. 54A, Combination Meter and Vehicle Speed Sensor ) and then go to Step 9. AC204690 AC CONNECTOR: D-03 D-03 (GR) HARNESS CONNECTOR: D-03 AC203901 AC204627AR CONNECTOR: E-121 E-121 E-121 HARNESS CONNECTOR: AC204548AK CONNECTOR: E-111 E-111 |
