Mitsubishi Montero (2004+). Manual - part 99





11A-1

GROUP 11A

ENGINE

MECHANICAL

CONTENTS

GENERAL DESCRIPTION. . . . . . . . .

11A-2

ENGINE DIAGNOSIS. . . . . . . . . . . . .

11A-2

SPECIAL TOOLS. . . . . . . . . . . . . . . .

11A-4

ON-VEHICLE SERVICE. . . . . . . . . . .

11A-7

DRIVE BELT TENSION CHECK. . . . . . . . .

11A-7

AUTO-TENSIONER CHECK  . . . . . . . . . . .

11A-7

IGNITION TIMING CHECK . . . . . . . . . . . . .

11A-7

CURB IDLE SPEED CHECK  . . . . . . . . . . .

11A-8

IDLE MIXTURE CHECK . . . . . . . . . . . . . . .

11A-9

COMPRESSION PRESSURE CHECK. . . .

11A-10

MANIFOLD VACUUM CHECK . . . . . . . . . .

11A-11

LASH ADJUSTER CHECK . . . . . . . . . . . . .

11A-12

ENGINE ASSEMBLY . . . . . . . . . . . . .

11A-15

REMOVAL AND INSTALLATION . . . . . . . .

11A-15

CAMSHAFT AND VALVE STEM
SEAL  . . . . . . . . . . . . . . . . . . . . . . . . .

11A-18

REMOVAL AND INSTALLATION . . . . . . . .

11A-18

CAMSHAFT OIL SEAL  . . . . . . . . . . .

11A-23

REMOVAL AND INSTALLATION . . . . . . . .

11A-23

OIL PAN AND OIL SCREEN  . . . . . . .

11A-26

REMOVAL AND INSTALLATION . . . . . . . .

11A-26

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11A-28

CRANKSHAFT OIL SEAL  . . . . . . . . .

11A-28

REMOVAL AND INSTALLATION

<FRONT OIL SEAL> . . . . . . . . . . . . . . . . . .

11A-28

REMOVAL AND INSTALLATION

<REAR OIL SEAL> . . . . . . . . . . . . . . . . . . .

11A-30

CYLINDER HEAD GASKET . . . . . . . .

11A-32

REMOVAL AND INSTALLATION . . . . . . . .

11A-32

TIMING BELT . . . . . . . . . . . . . . . . . . .

11A-36

REMOVAL AND INSTALLATION . . . . . . . .

11A-36

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

11A-43

SPECIFICATIONS  . . . . . . . . . . . . . . .

11A-44

FASTENER TIGHTENING
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . .

11A-44

SERVICE SPECIFICATIONS . . . . . . . . . . .

11A-45

LUBRICANT  . . . . . . . . . . . . . . . . . . . . . . . .

11A-45

SEALANTS . . . . . . . . . . . . . . . . . . . . . . . . .

11A-45

GENERAL DESCRIPTION

TSB Revision

ENGINE MECHANICAL

11A-2

GENERAL DESCRIPTION

M1111000100527

The 6G75 (3.8 L) engine is a six-cylinder engine. The
cylinder numbers are assigned as 1-3-5 for the right
bank and 2-4-6 for the left bank from the front of the
engine (timing belt side). This engine is fired in the
order of 1-2-3-4-5-6 cylinders.

ENGINE DIAGNOSIS

M1111000700295

ITEMS

SPECIFICATIONS

Type

V type, overhead camshaft

Number of cylinders

6

Bore mm (in)

95.0 (3.74)

Stroke mm (in)

90.0 (3.54)

Total displacement cm

3

 (cu. in)

3,828 (233.6)

Compression ratio

10.0

Firing order

1-2-3-4-5-6

Valve timing

Intake valve

Opens (BTDC)

5

°

Closes (ABDC)

55

°

Exhaust valve

Opens (BBDC)

51

°

Closes (ATDC)

17

°

Lubrication system

Pressure feed, full-flow filtration

Oil pump type

Trochoid type

SYMPTOMS

PROBABLE CAUSE

REMEDY

Compression is too
low

Blown cylinder head gasket

Replace the gasket.

Worn or damaged piston rings

Replace the rings.

Worn piston or cylinder

Repair or replace the piston and/or the
cylinder block.

Worn or damaged valve seat

Repair or replace the valve and/or the
seat ring

Drop in engine oil
pressure

Engine oil level is too low

Check the engine oil level.

Malfunction of engine oil pressure switch Replace the engine oil pressure switch.
Clogged oil filter

Install a new filter.

Worn oil pump gears or cover

Replace the gears and/or the cover.

Thin or diluted engine oil

Change the engine oil to the correct
viscosity.

Stuck (opened) oil relief valve

Repair the relief valve.

Excessive bearing clearance

Replace the bearings.

Engine oil pressure
too high

Stuck (closed) oil relief valve

Repair the relief valve.

ENGINE DIAGNOSIS

TSB Revision

ENGINE MECHANICAL

11A-3

Noisy valves

Malfunction of lash adjuster (including
entry of air into high pressure chamber)

Check the lash adjuster.

Thin or diluted engine oil (low engine oil
pressure)

Change the engine oil.

Worn or damaged valve stem or valve
guide

Replace the valve and/or the guide.

Connecting rod
noise/main bearing
noise

Insufficient oil supply

Check the engine oil level.

Thin or diluted engine oil

Change the engine oil.

Excessive bearing clearance

Replace the bearings.

SYMPTOMS

PROBABLE CAUSE

REMEDY

SPECIAL TOOLS

TSB Revision

ENGINE MECHANICAL

11A-4

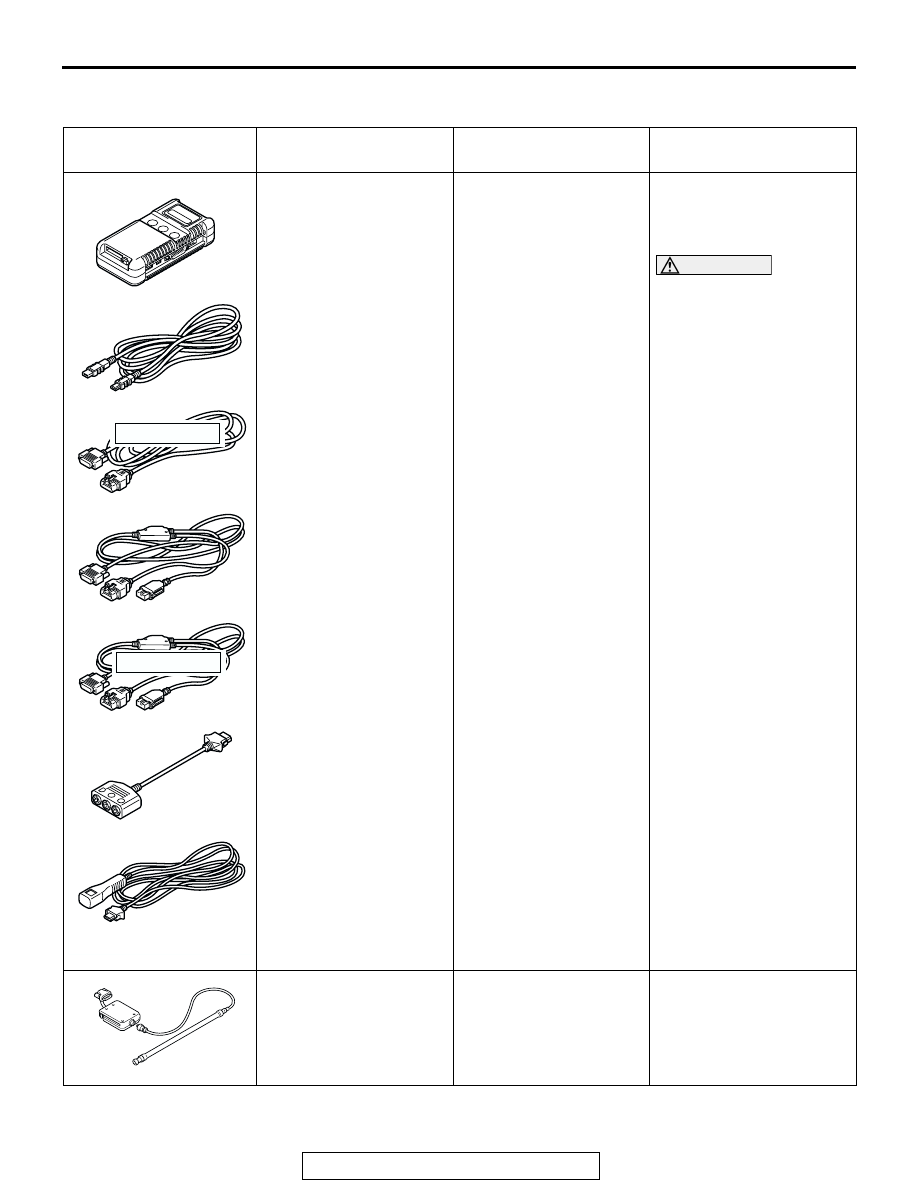

SPECIAL TOOLS

M1111000600630

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991958
Scan tool (MUT-III sub
assembly)

A: MB991824

Vehicle
communication
interface (V.C.I.)

B: MB991827

MUT-III USB cable

C: MB991910

MUT-III main harness
A (Vehicles with CAN
communication
system)

D: MB991911

MUT-III main harness
B (Vehicles without
CAN communication
system)

E: MB991914

MUT-III main harness
C (for Daimler
Chrysler models only)

F: MB991825

MUT-III measurement
adapter

G: MB991826

MUT-III trigger
harness

MB991824-KIT
NOTE: G: MB991826
MUT-III trigger harness is
not necessary when
pushing V.C.I. ENTER
key.

• Drive belt tension check

• Ignition timing check

• Curb idle speed check

• Idle mixture check

CAUTION

MUT-III main harness B
(MB991911) should be
used. MUT-III main
harness A and C should
not be used for this
vehicle.

MB991668
Belt tension meter set

Tool not available

Measurement of drive belt
tension (used together with
scan tool <MUT-III Sub
Assembly>)

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

A

B

C

D

E

F

G

DO NOT USE

B991668
