Mitsubishi Montero (2004+). Manual - part 88

ACTIVE TRAC 4WD II SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-231

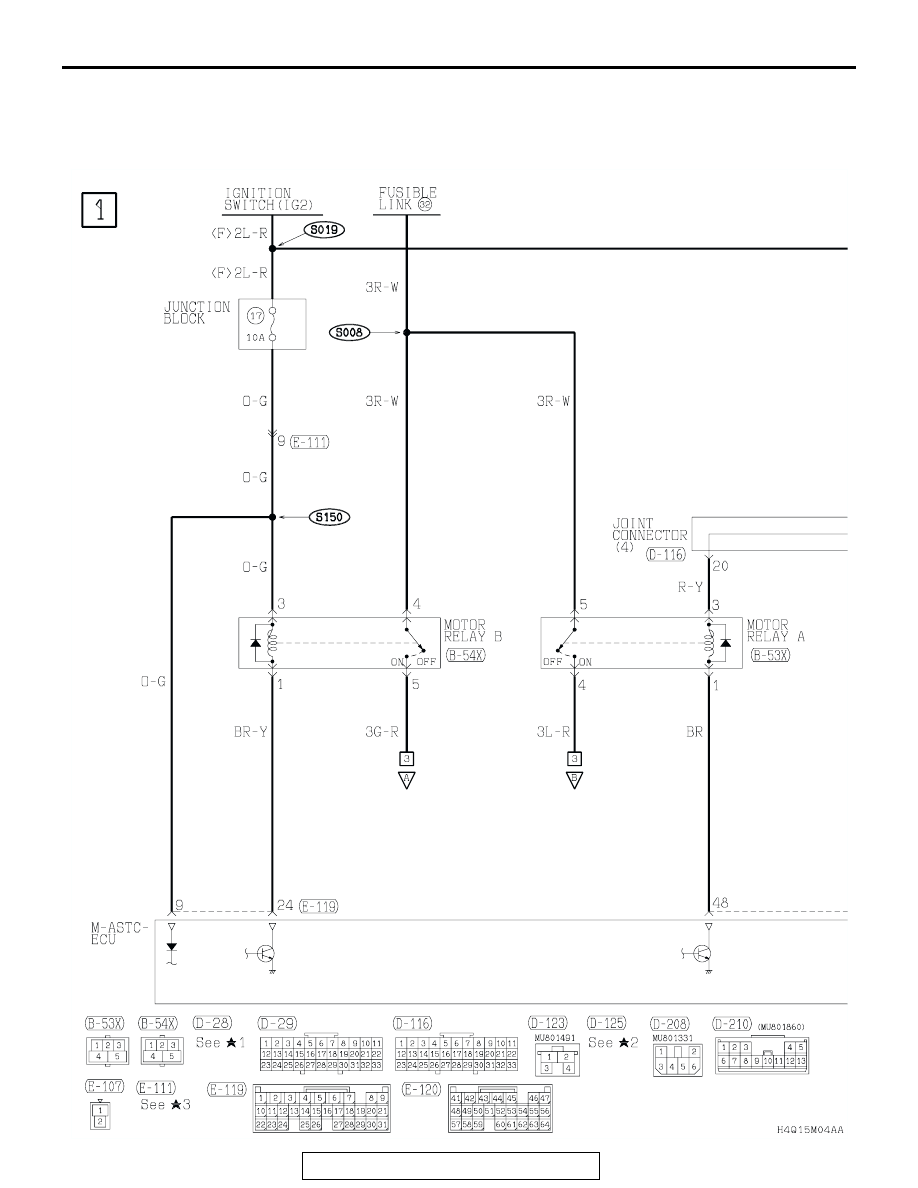

ACTIVE TRAC 4WD II SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-232

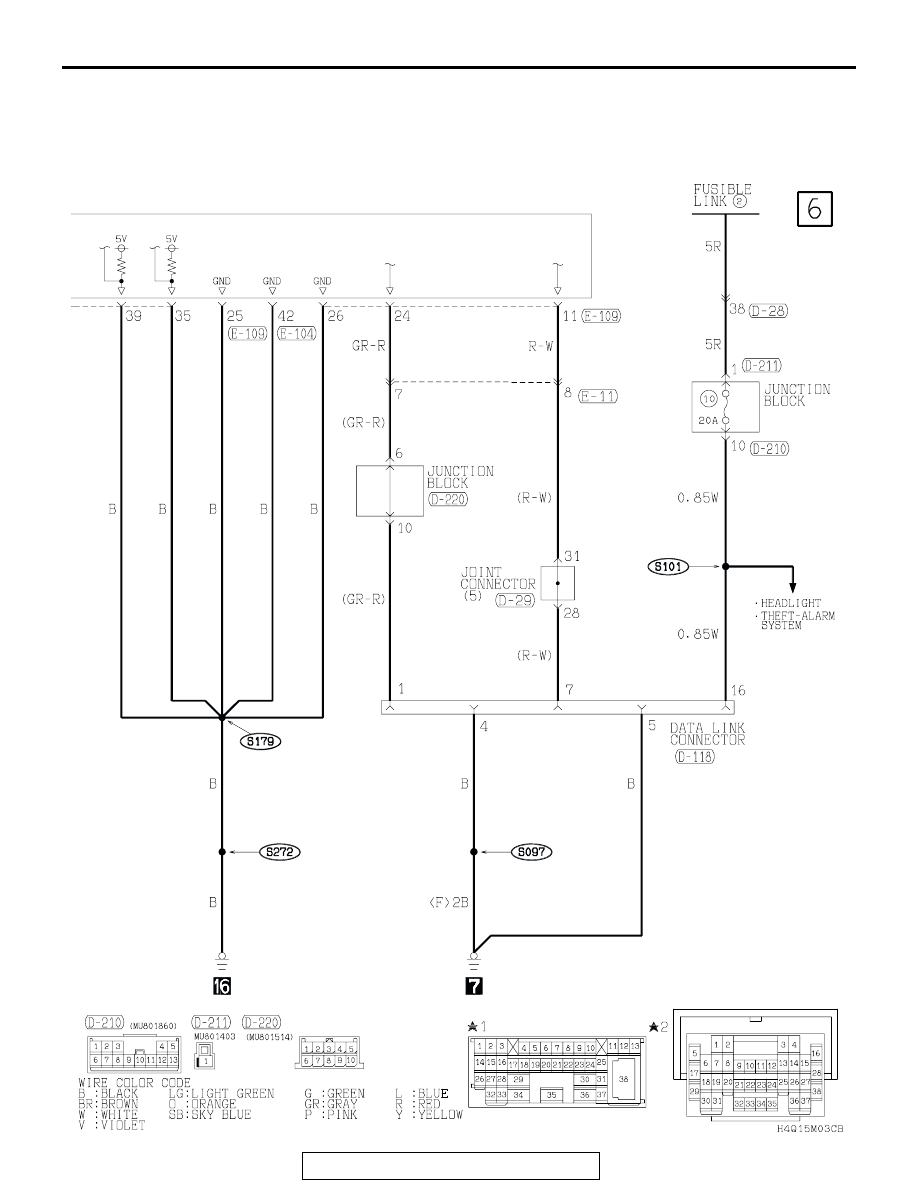

ACTIVE TRAC 4WD II SYSTEM (CONTINUED)

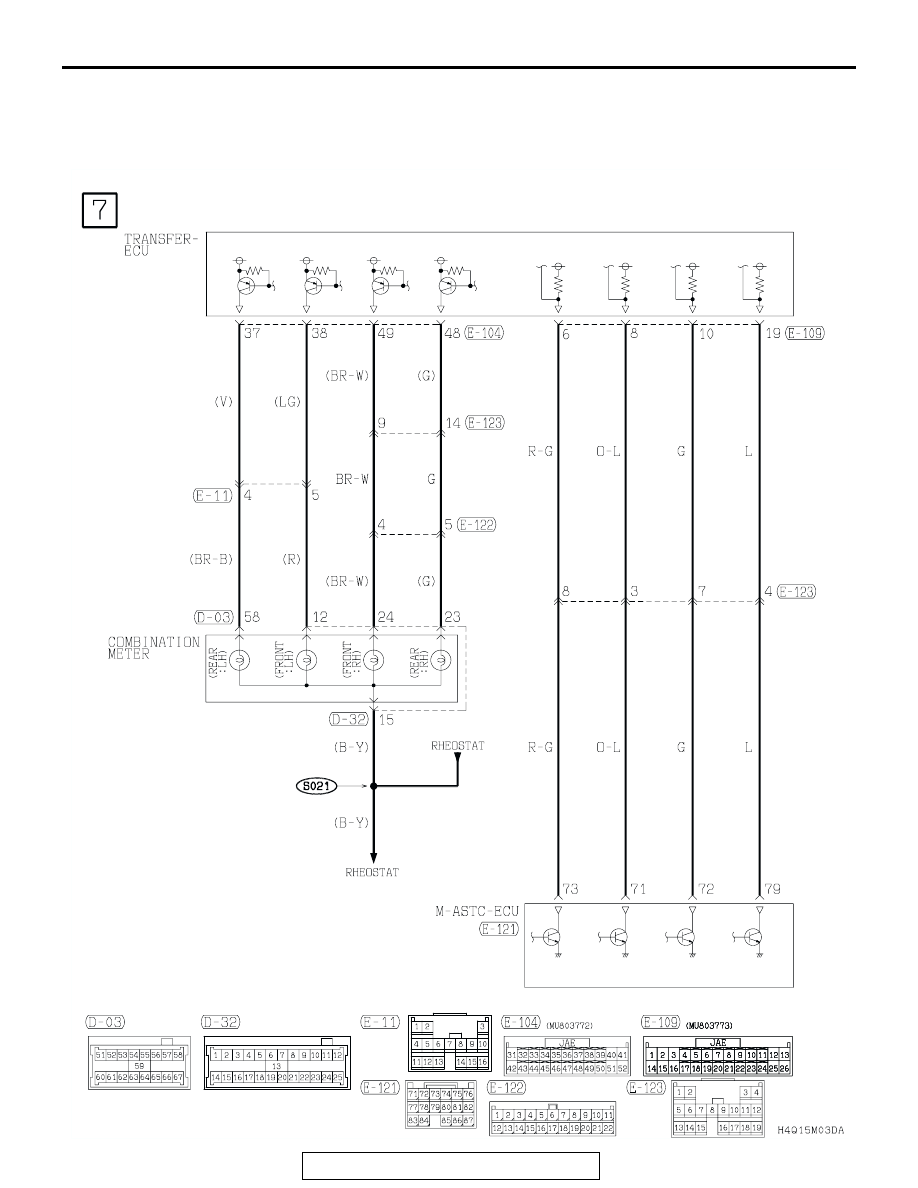

ACTIVE TRAC 4WD II SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-233

NOTES

HYDRAURIC BRAKE BOOSTER (HBB), ELECTRONIC BRAKE-FORCE DISTRIBUTION (EBD), ANTI-LOCK BRAKING SYSTEM (ABS), MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM (M-ASTC)

TSB Revision

CIRCUIT DIAGRAMS

90-234

HYDRAURIC BRAKE BOOSTER (HBB), ELECTRONIC BRAKE-FORCE

DISTRIBUTION (EBD), ANTI-LOCK BRAKING SYSTEM (ABS), MITSUBISHI

ACTIVE SKID AND TRACTION CONTROL SYSTEM (M-ASTC)

M1901003800036

                                                 HBB, EBD, ABS, M-ASTC
