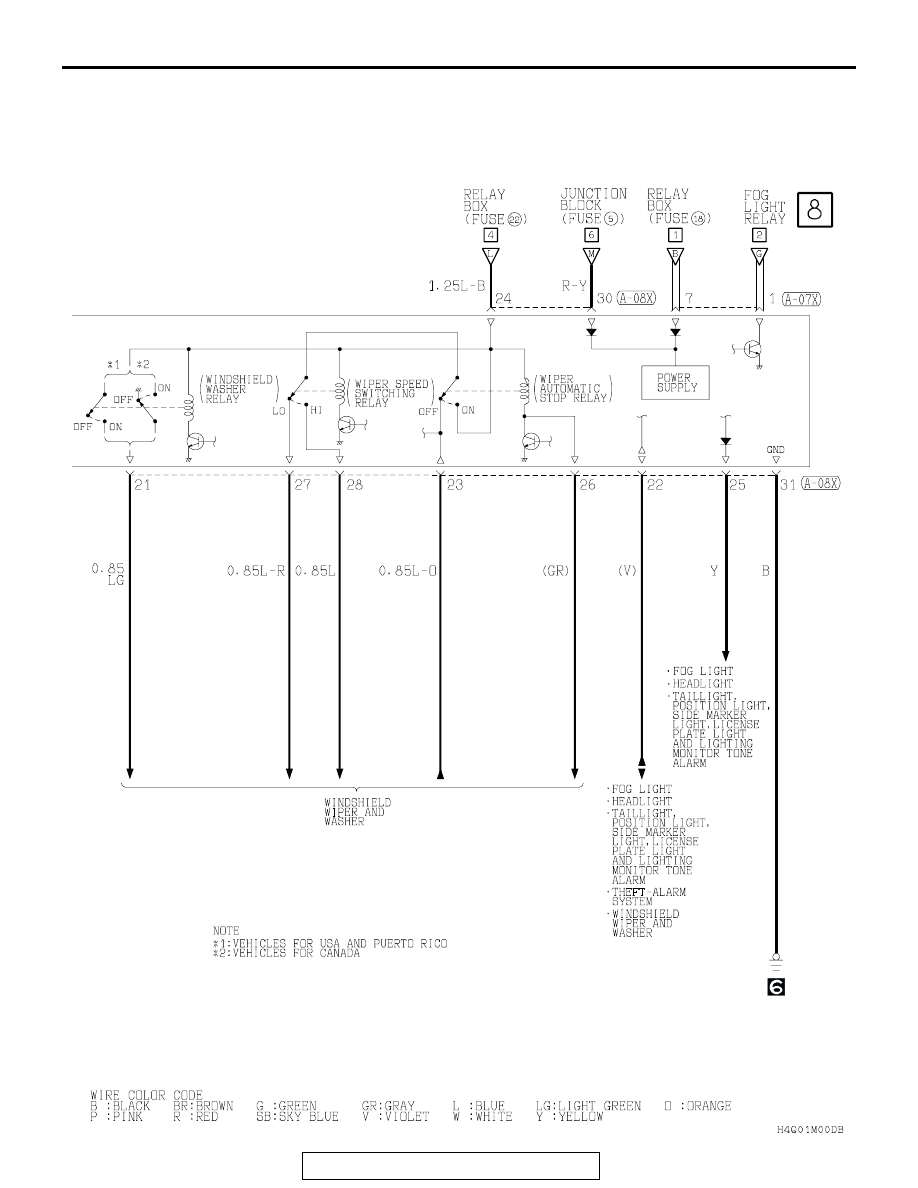

POWER DISTRIBUTION SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-35

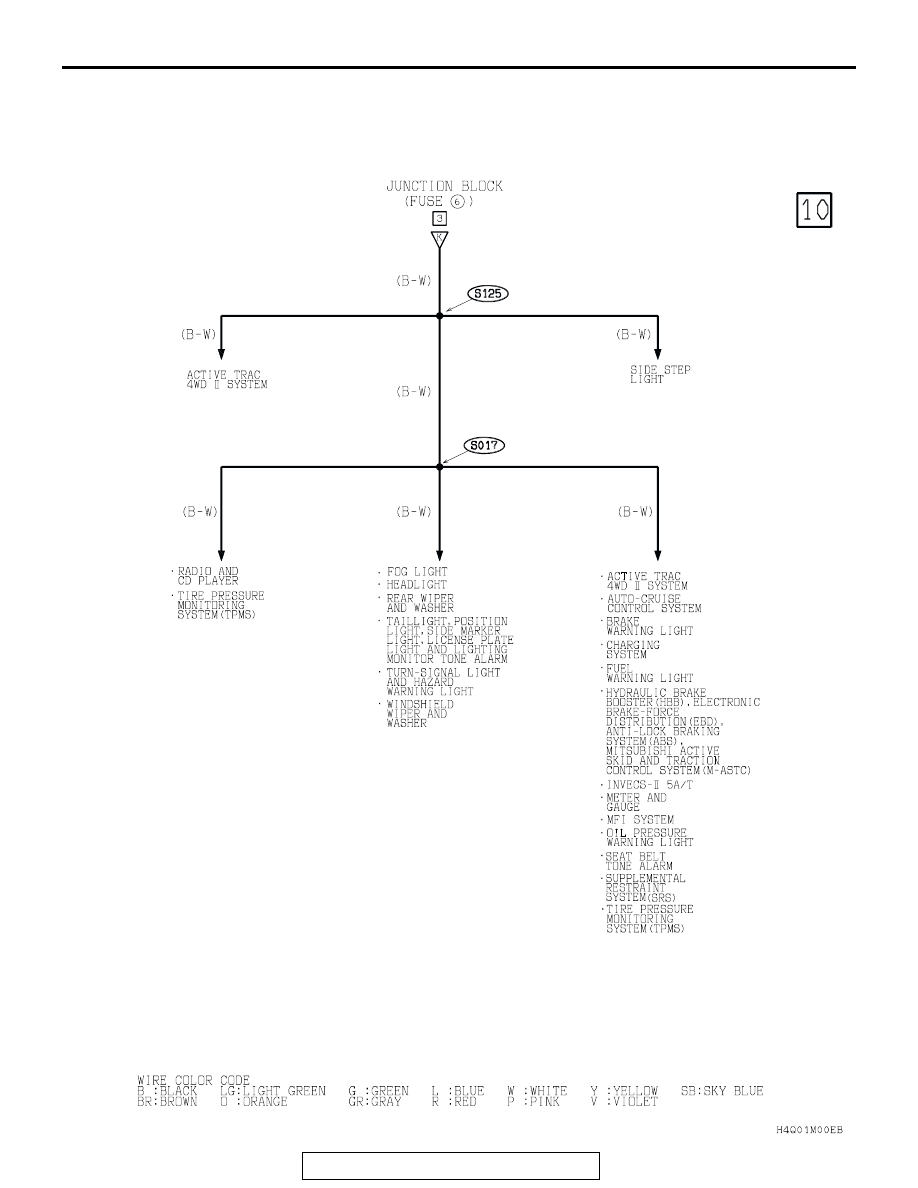

POWER DISTRIBUTION SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-36

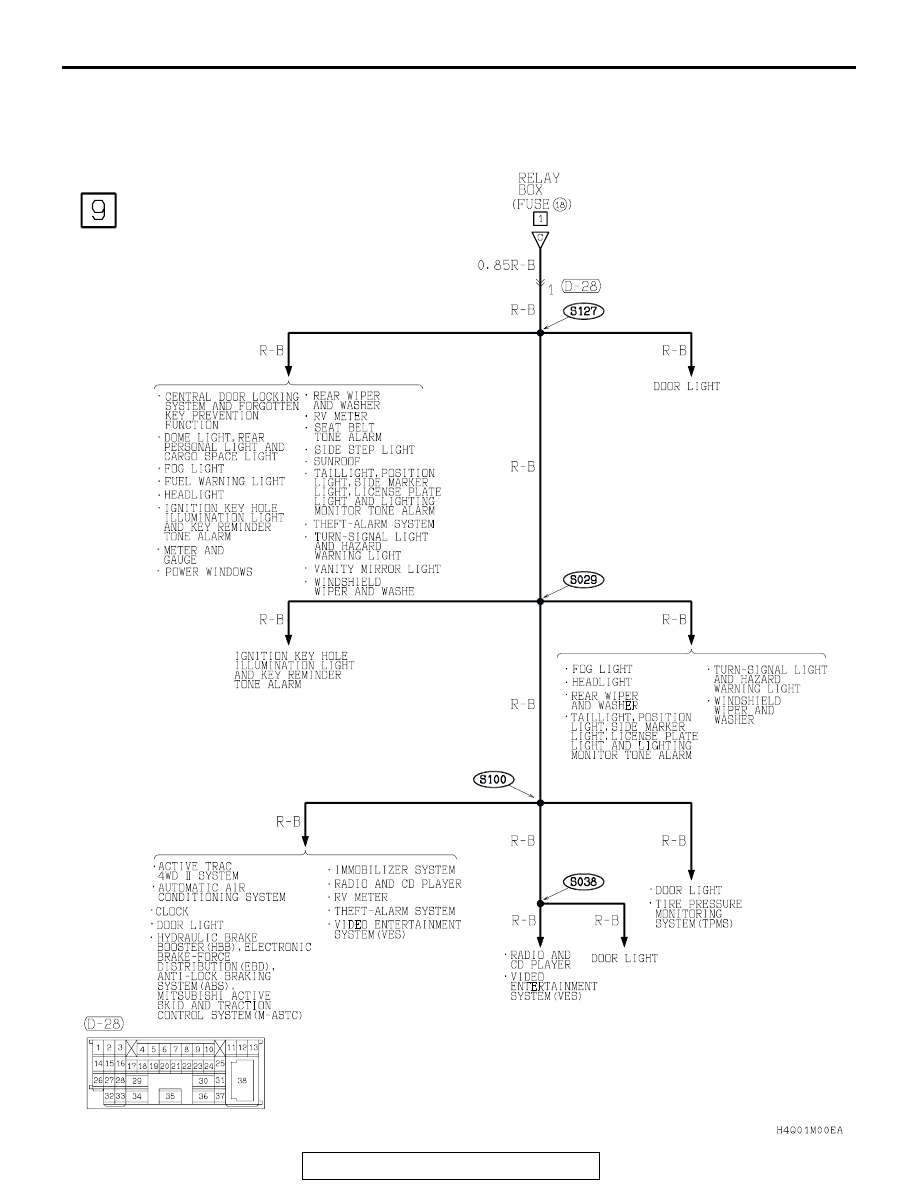

POWER DISTRIBUTION SYSTEM (CONTINUED)

POWER DISTRIBUTION SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-37

STARTING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-38

STARTING SYSTEM

M1901000500746
