FRONT FLOOR AND ROOF

TSB Revision

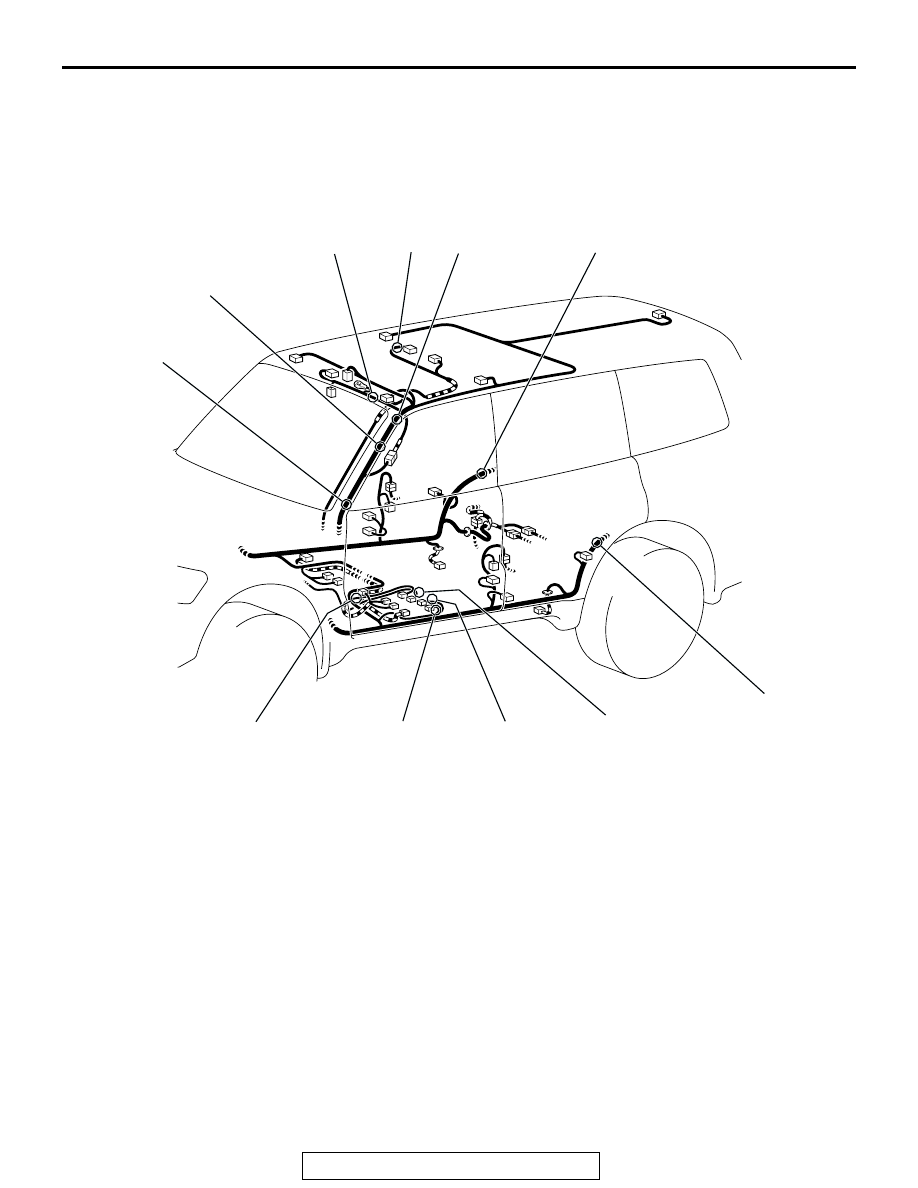

SPLICE LOCATIONS

80B-11

FRONT FLOOR AND ROOF

M1802001800081

AC303849

AB

S184

S277
S278
S279

S215
S280
S295

S185
S186
S281

S189

S283
S288
S289

S285
S286
S287

S284

S214
S276
S294

S210
S211
S213

S282

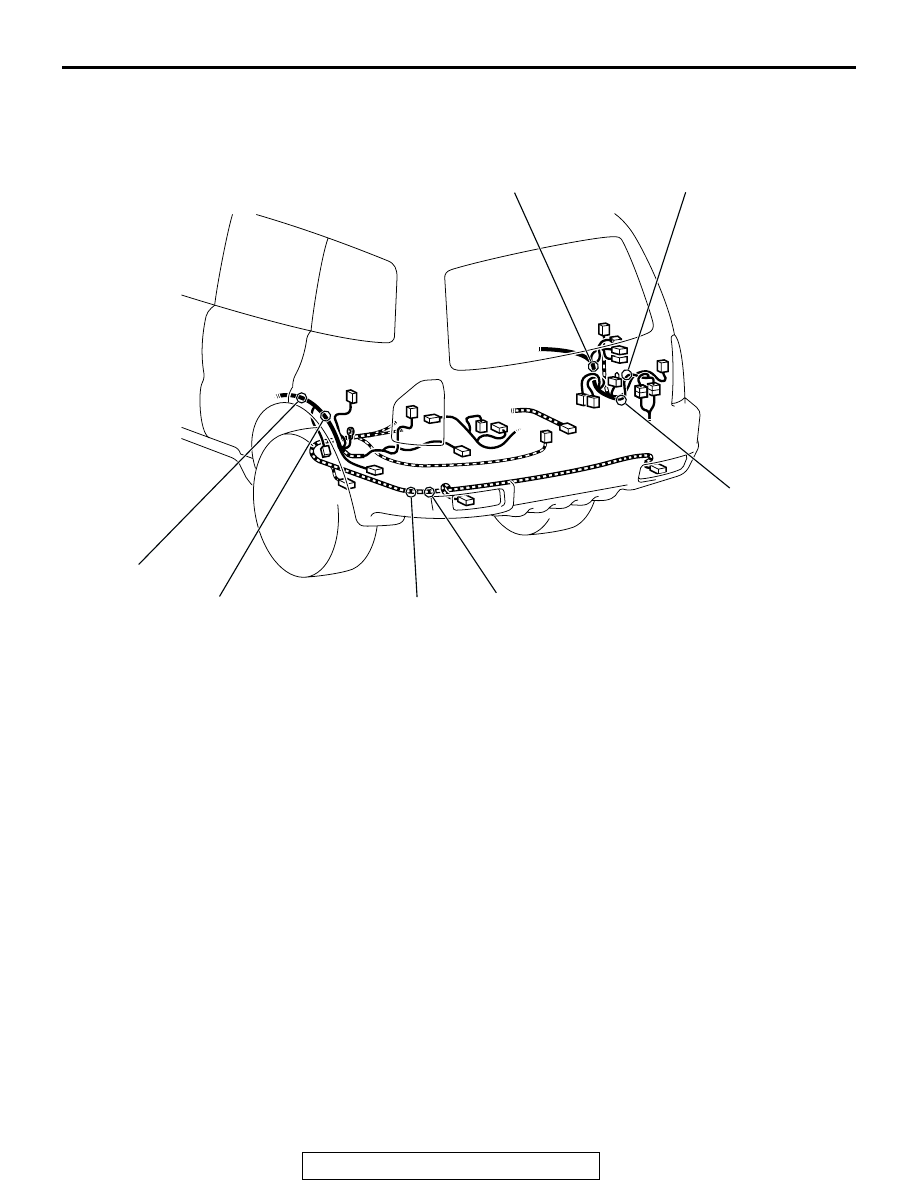

REAR FLOOR AND UNDER FLOOR

TSB Revision

SPLICE LOCATIONS

80B-12

REAR FLOOR AND UNDER FLOOR

M1802001900088

AC303850

S190

S191

S192

S197

S196

S194 S291
S290 S292

S193

AB

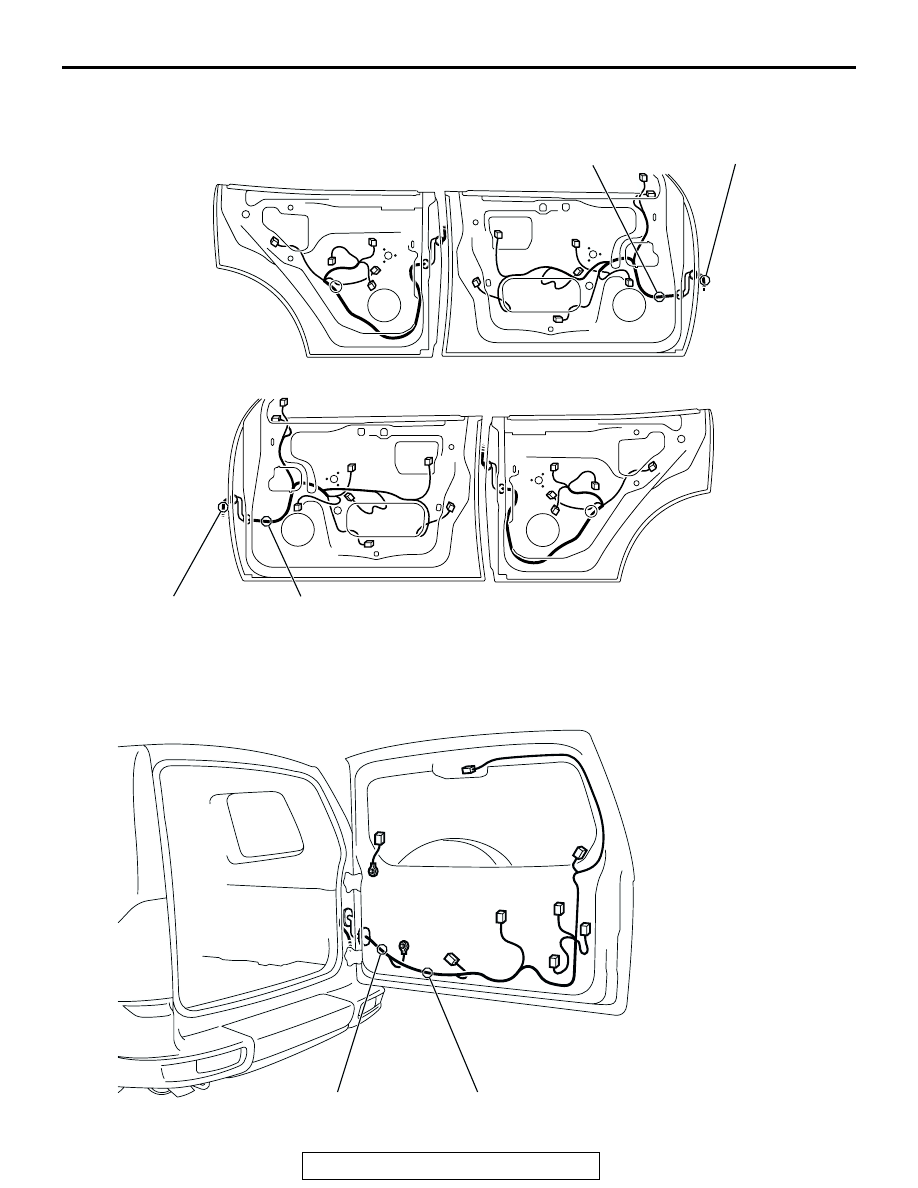

DOOR

TSB Revision

SPLICE LOCATIONS

80B-13

DOOR

M1802000800486

BACK DOOR

M1802002000088

AC303493

AB

DRIVER'S
SIDE

PASSENGER'S
SIDE

S198

S199 S201
S200

S203 S205
S204

S206

ACX02164 AE

S207
S208

S209
