HOW TO DIAGNOSE

TSB Revision

GENERAL <ELECTRICAL>

00E-11

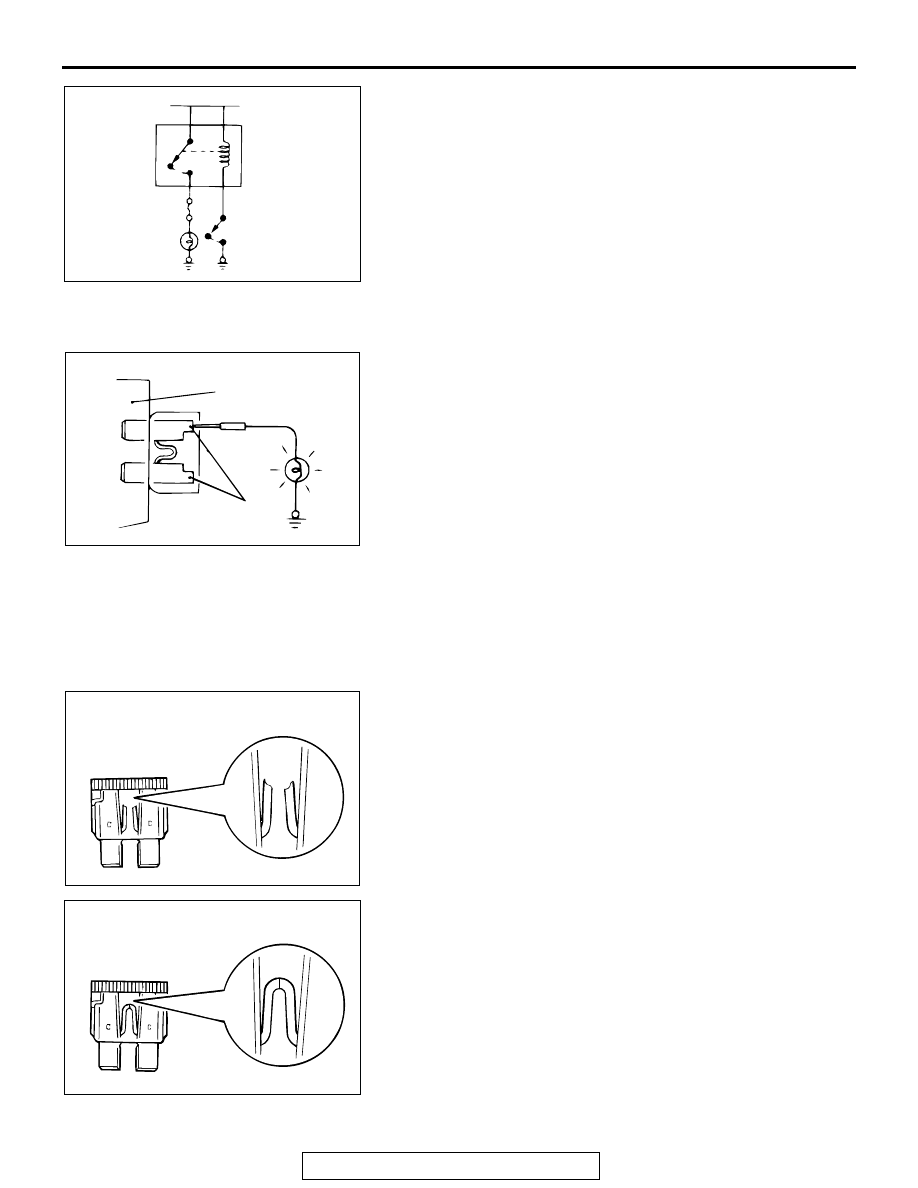

3. By using a relay, a heavy current can be turned on and off by

a switch using much less current. For example, in the circuit
shown here, when the switch is turned on (closed), current
flows to the coil of the relay. Then, its contact is turned on
(closed) and the light comes on. The current flowing through
the switch is much less than that for the light.

CHECKING FUSES

M1001005000044

A blade type fuse has test taps provided to allow checking of
the fuse itself without removing it from the fuse block. The fuse
is okay if the test light comes on when its one lead is connected
to the test taps (one at a time) and the other lead is grounded.
Remember to turn the ignition switch to ON to ensure all cir-
cuits are live.

CAUTIONS IN EVENT OF BLOWN FUSE

When a fuse is blown, there are two probable causes. One is
that it is blown due to flow of current exceeding its rating. The
other is that it is blown due to repeated on/off current flowing
through it. Which of the two causes is responsible can be easily
determined by visual check as described below.
1. Fuse blown due to current exceeding rating

The illustration shows the state of a fuse blown due to this
cause. In this case, do not replace the fuse with a new one
hastily since a current heavy enough to blow the fuse has
flowed through it. First, check the circuit for shorts and check
for abnormal electric parts. After correcting shorts or
replacing parts, use only a fuse of the same capacity as a
replacement. Never use a fuse of larger capacity than the
original fuse. If a larger capacity fuse is used, electric parts
or wiring could be damaged, or could start a fire.

2. Fuse blown due to repeated turning current on and off

The illustration shows the state of a fuse blown due to
repeated current on/off. Normally, this type of problem
occurs after a fairly long period of use and is less frequent
than above. In this case, simply replace with a new fuse of
the same capacity.

ACX00948 AB

POWER SUPPLY

FUSE

LIGHT

RELAY

SWITCH
ON

OFF

ON

OFF

ACX00951AB

FUSE BLOCK

TEST TAPS

ACX00952 AB

STATE OF FUSE BLOWN DUE TO
OVERCURRENT

ACX00953 AB

STATE OF FUSE BLOWN DUE TO
THERMAL FATIGUE

HOW TO DIAGNOSE

TSB Revision

GENERAL <ELECTRICAL>

00E-12

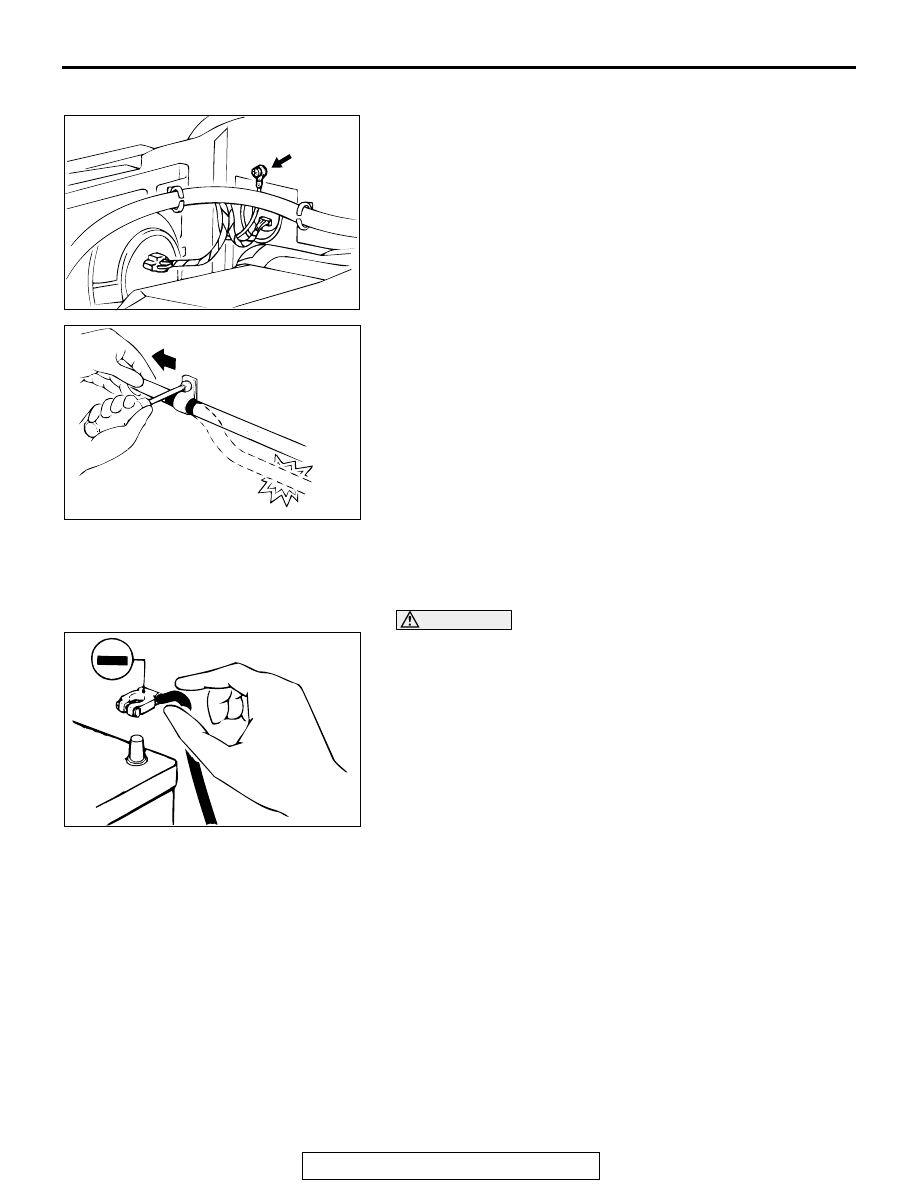

CABLES AND WIRES CHECK

M1001005100041

1. Check connections for looseness, rust, and stains.
2. Check terminals and wires for corrosion by battery

electrolyte, etc.

3. Check terminals and wires for open circuit or impending

open circuit.

4. Check wire insulation and coating for damage, cracks, and

wear.

5. Check conductive parts of terminals for contact with other

metallic parts (vehicle body and other parts).

6. Check grounding parts to verify that there is complete

continuity between attaching bolt(s) and vehicle body.

7. Check for incorrect wiring.
8. Check that harnesses are secured to prevent contact with

sharp edges and corners or hot parts (exhaust manifold,
pipe, etc.).

9. Check that harnesses are secured firmly to provide enough

clearance from the fan pulley, fan belt, and other rotating or
moving parts.

10.Check that the harness between fixed parts (such as the

vehicle body) and vibrating parts (such as the engine) are
long enough to allow for vibration and movement.

BATTERY HANDLING

M1001005200048

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

When checking or servicing does not require power from the
vehicle battery, be sure to disconnect the cable from the battery
(

−) terminal. This will prevent problems that could be caused by

a short circuit. Disconnect the (

−) battery terminal first and

reconnect it last.

GENERAL ELECTRICAL SYSTEM CHECK

M1001005300045

A circuit consists of the power supply, switch, relay, load,
ground, etc. There are various methods to check a circuit
including an overall check, voltage check, short-circuit check,
and continuity check. Each of the methods briefly described
below apply only to circuits similar to the illustration.

ACX00954 AB

ACX00955AB

AC000017

HOW TO DIAGNOSE

TSB Revision

GENERAL <ELECTRICAL>

00E-13

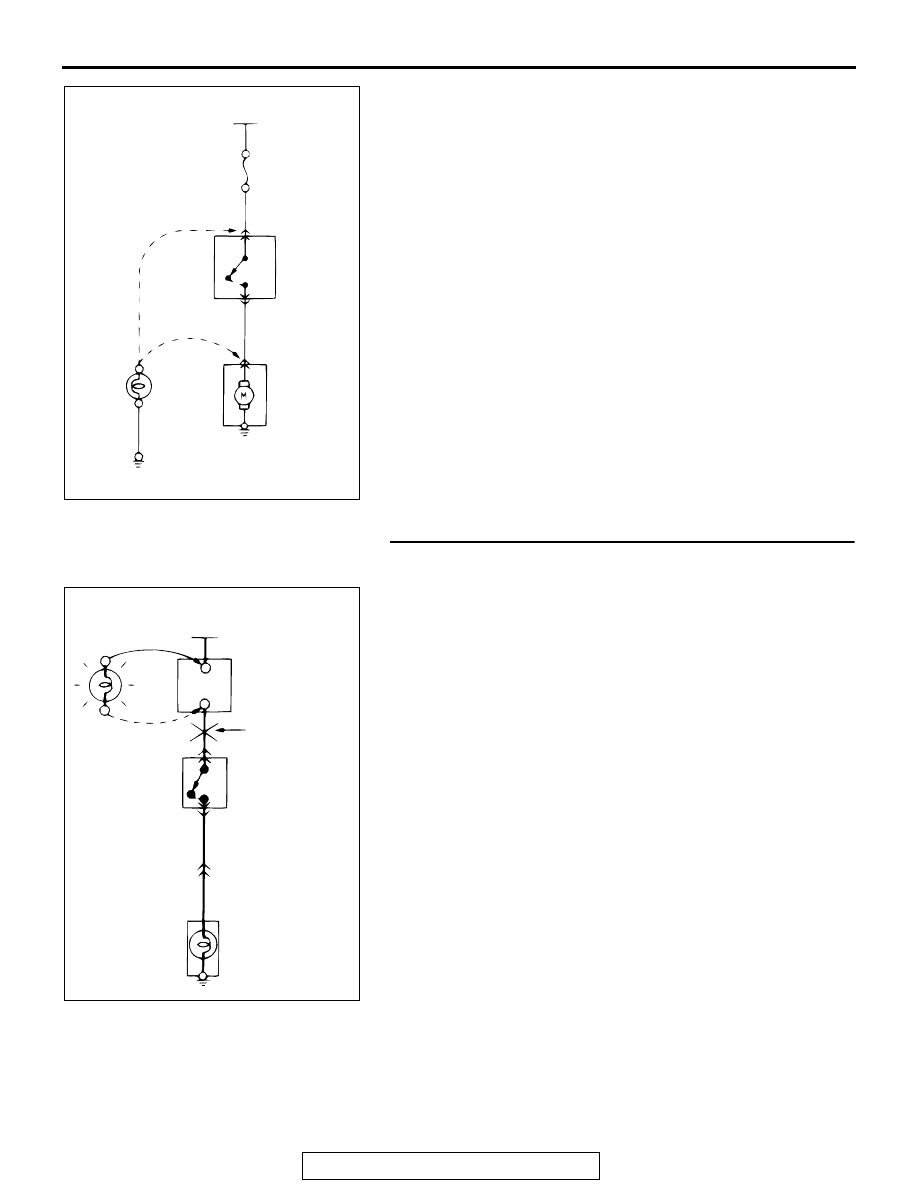

1. VOLTAGE CHECK

(1) Ground one lead wire of the test light. If a voltmeter is

used instead of the test light, ground the grounding side
lead wire.

(2) Connect the other lead wire of the test light to the power

side terminal of the switch connector. The test light
should come on or the voltmeter should indicate a
voltage.

(3) Then, connect the test light or voltmeter to the motor

connector. The test light should not come on, or the
voltmeter should indicate no voltage. When the switch is
turned ON in this state, the test light should come on, or
the voltmeter should indicate a voltage, with the motor
starting to run.

(4) The circuit illustrated here is normal. If there is any

problem, such as the motor failing to run, check voltages
beginning at the connector nearest to the motor until the
faulty part is identified.

2. SHORT-CIRCUIT CHECK

Because the fuse has blown, it is probable that there is a
short circuit. Follow the procedures below to narrow down
the short-circuit location.

STEP 1. Remove the blown fuse and connect the test light
across the fuse terminals (Circuit switch: OFF).
Q: Does the test light illuminate?

YES : Short-circuit exists between the fuse block and the

switch. Repair the harness between the fuse block
and the switch.

NO :  Go to Step 2.

ACX00956AB

POWER SUPPLY

FUSE

SWITCH

MOTOR

(3)

ON  (2)

OFF

(1)

TEST LIGHT
(OR
VOLTMETER)

ACX00957AB

POWER SUPPLY

SWITCH

OFF

ILLUMINATION
LIGHT

TEST
LIGHT

FUSE BLOCK
(REMOVE
THE FUSE)

SHORT-CIRCUIT
LOCATION

HOW TO DIAGNOSE

TSB Revision

GENERAL <ELECTRICAL>

00E-14

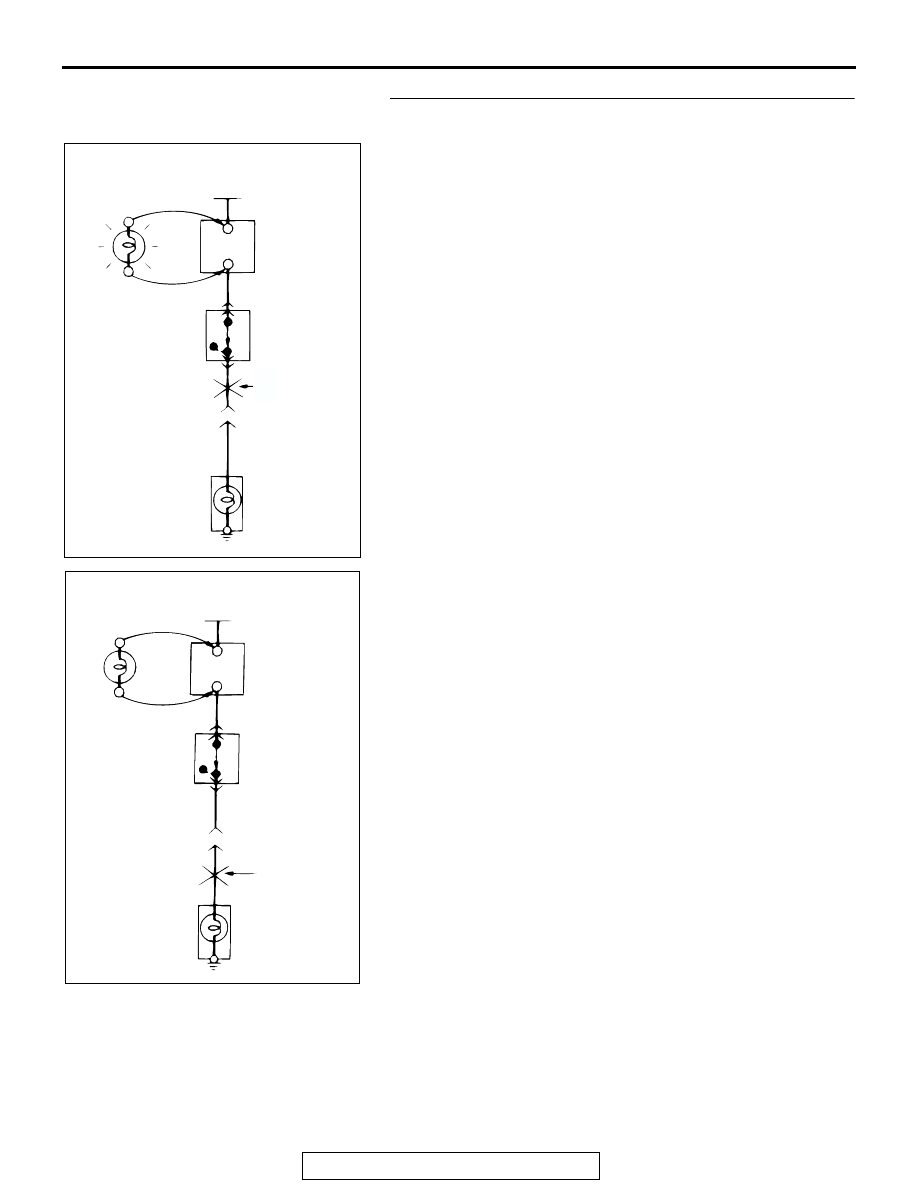

STEP 2. Turn the switch ON and disconnect the
illumination light connector.
Q: Does the test light illuminate?

YES : Short-circuit exists between the switch and the

connector. Repair the harness between the switch
and the connector.

NO :  Short-circuit exists between the connector and the

illumination light. Repair the harness between the
connector and the illumination light.

ACX00958AB

POWER SUPPLY

SWITCH

ON

ILLUMINATION
LIGHT

TEST
LIGHT

FUSE BLOCK
(REMOVE
THE FUSE)

DISCONNECT
THE LOAD

SHORT-CIRCUIT
LOCATION

ACX00959AB

POWER SUPPLY

SWITCH

ON

ILLUMINATION
LIGHT

TEST
LIGHT

FUSE BLOCK
(REMOVE
THE FUSE)

DISCONNECT
THE LOAD

SHORT-CIRCUIT
