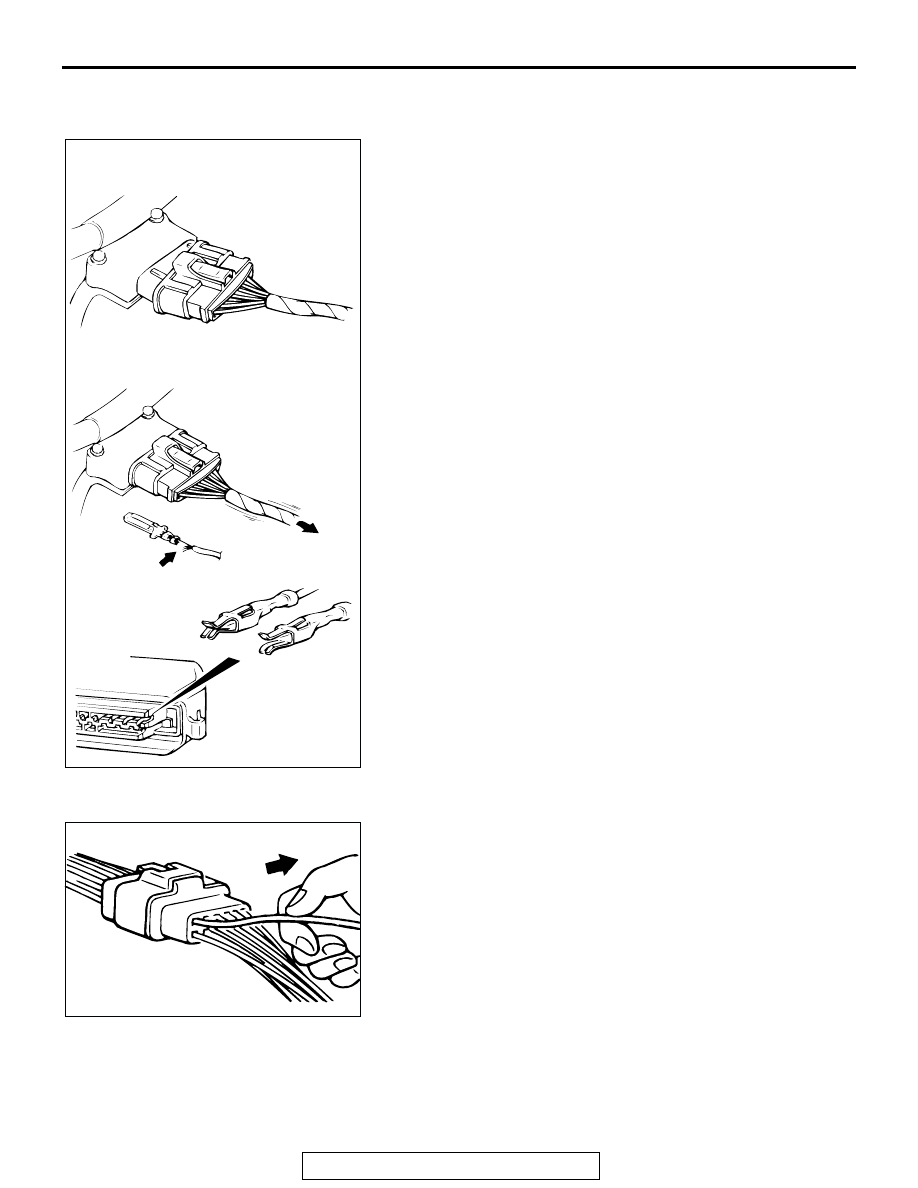

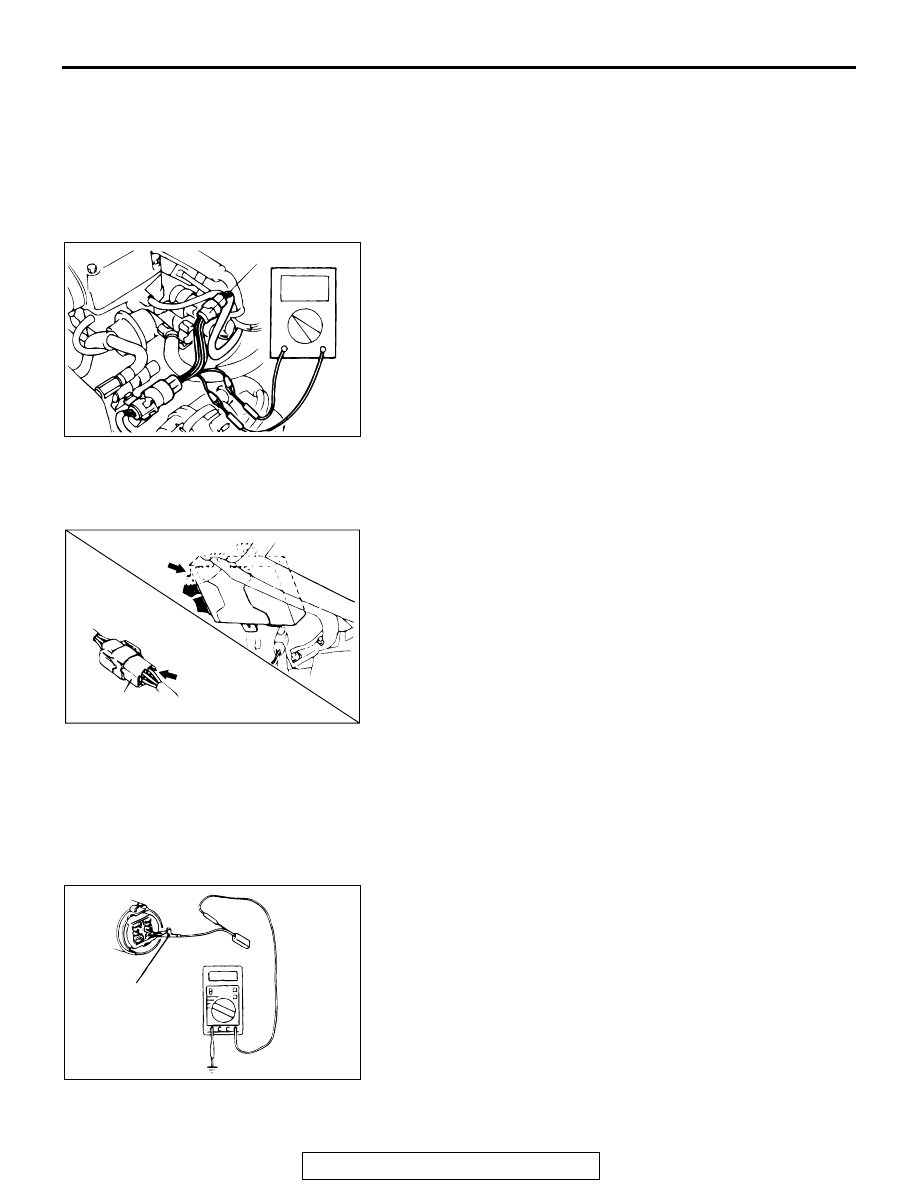

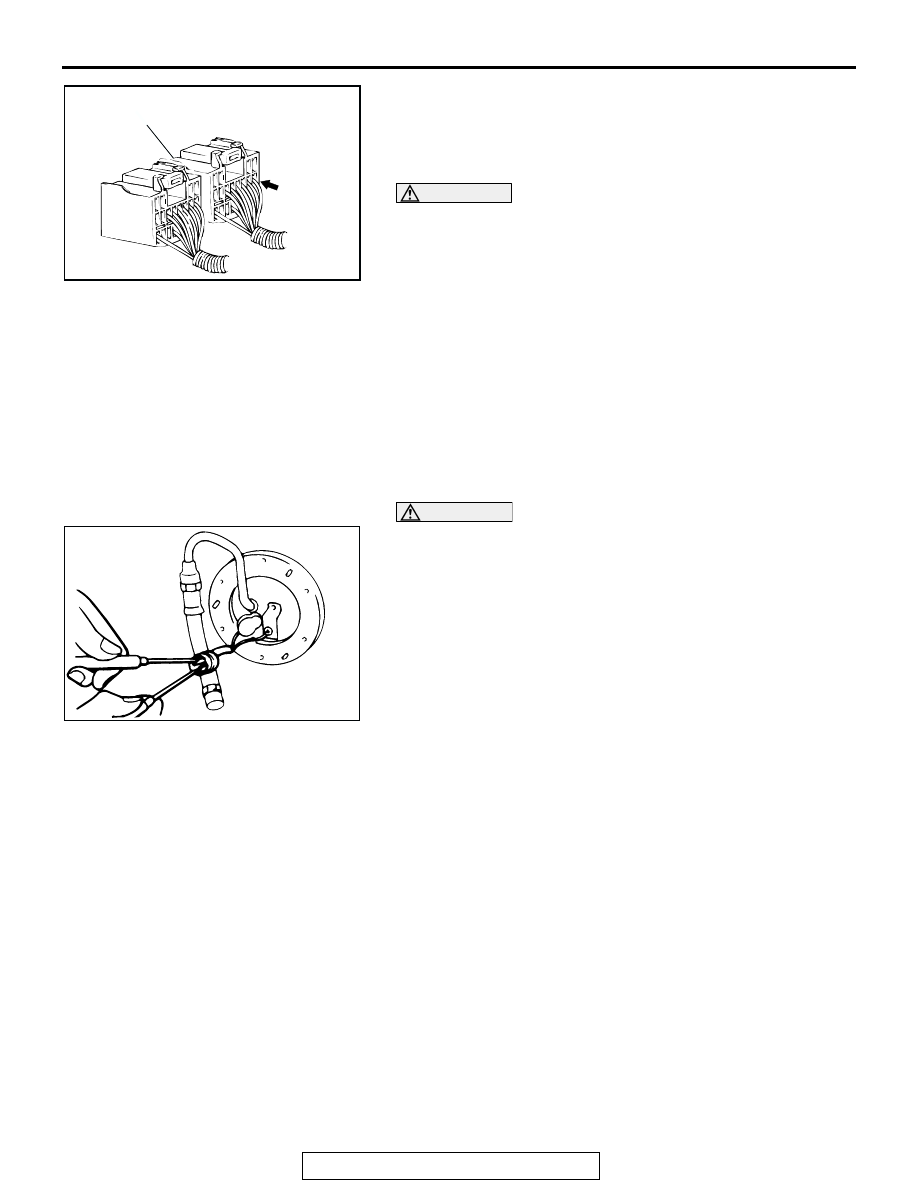

HARNESS INSPECTION
Check for an open or short circuit in the harness
between the terminals which were faulty according to
the connector measurements. Carry out this inspec-
tion while referring to GROUP 00E, Harness Con-
nector Inspection. Here, "Check harness between
power supply and terminal xx" also includes check-
ing for blown fuse. For inspection service points
when there is a blown fuse, refer to "Inspection Ser-
vice Points for a Blown Fuse."
.
MEASURES TO TAKE AFTER REPLACING THE
ECU
If the trouble symptoms have not disappeared even
after replacing the ECU, repeat the inspection proce-
dure from the beginning.
AC308626
Vehicle Communication Interface (MUT-III)
MUT-III USB Cable
MUT-III Main Harness
AC306409AF
MB991824
MB991827
MB991911

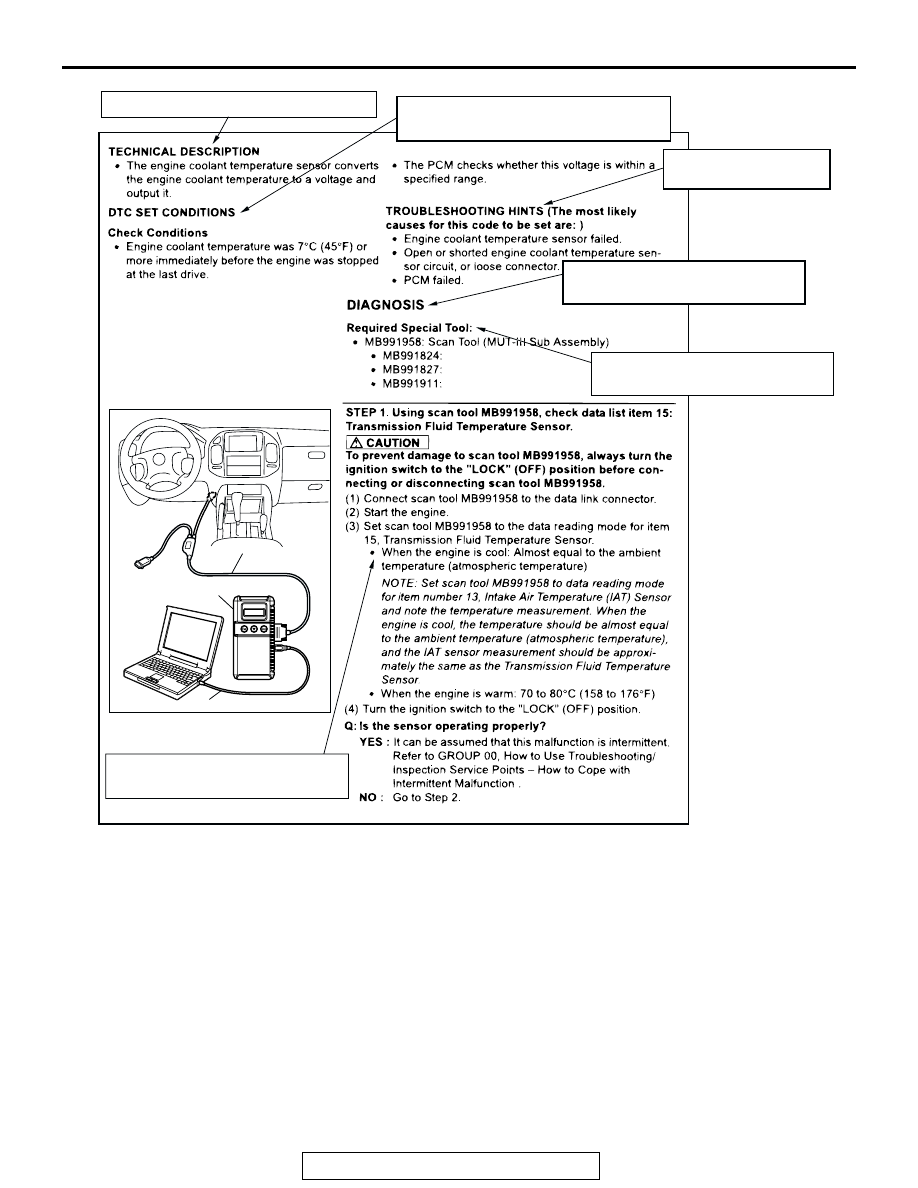

(5) Explains about technical details.
(6) Describes the conditions for that DTC
being set (stored).
(8) Start of the diagnosis procedure
for that DTC.
(10) Provides the inspection procedure
for that DTC step by step.
(7) Describes possible
cause(s)for that DTC.
(9) Identifies the special tool(s)
necessary for diagnosing that DTC.
