TRANSFER DIAGNOSIS <ACTIVE TRAC 4WD II>
TSB Revision

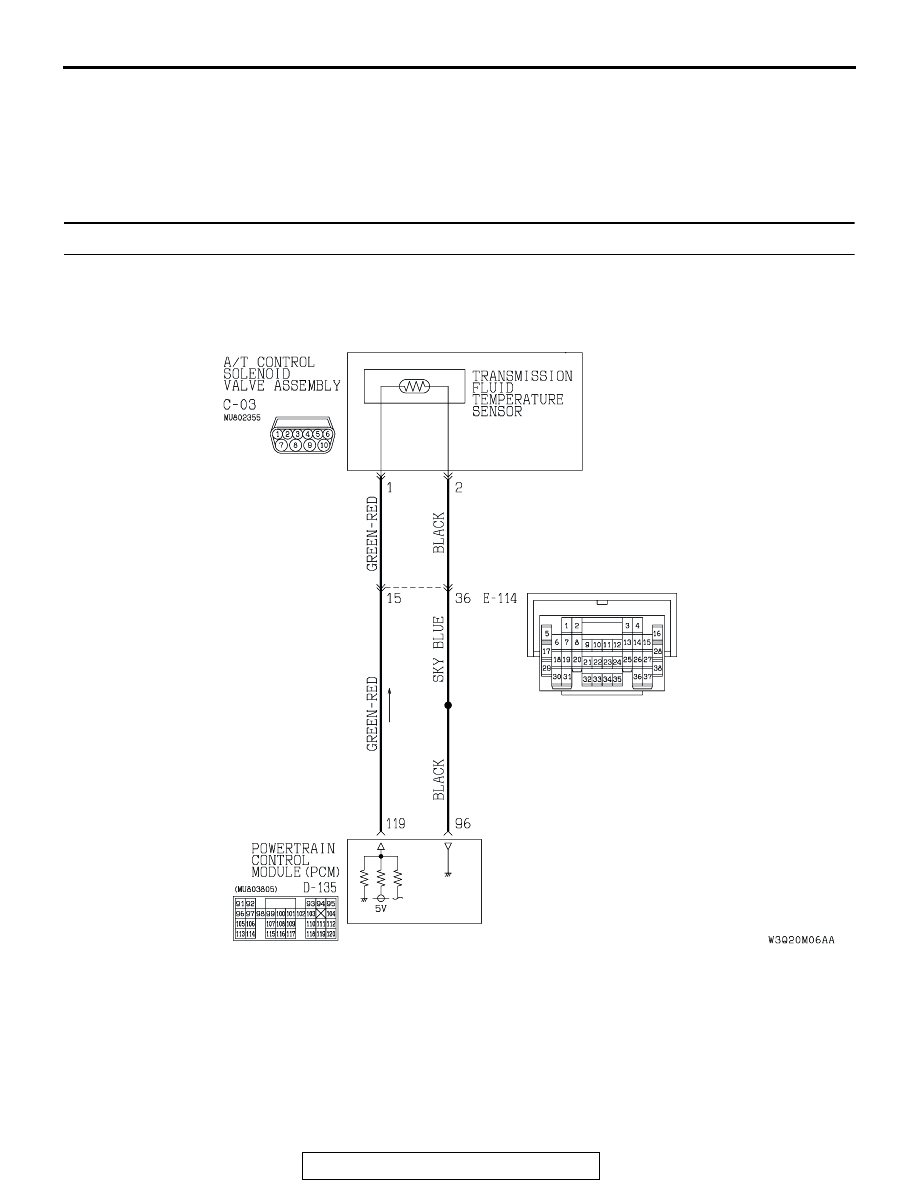

AUTOMATIC TRANSMISSION DIAGNOSIS
23Ab-57
48
2WD indicator light
(RR)
Ignition switch: ON
Transmission range:
N
Transfer shift lever
position: 4HLc
⇔
4LLc
Battery positive voltage
⇔ 1 V or less → battery
positive voltage
Transfer shift lever
position: 2H
⇔ 4H
⇔ 4HLc
Battery positive voltage
49
4WD indicator light
(FR)
Ignition switch: ON
Transmission range:
N
Transfer shift lever
position: 2H
1 V or less
Transfer shift lever
position: Other
than 2H
1 V or less
⇔ battery
positive voltage
50
Free-wheel engage
switch
Engine: Idling
Transmission range:
N
4WD indicator light:
Should not be
flashing
Transfer shift lever
position: 2H
Battery positive voltage
Transfer shift lever
position: Other
than 2H
1 V or less
51
Buzzer
Ignition switch: ON
When buzzer not
sounds
Battery positive voltage
When buzzer
sounds
0 V
⇔ battery positive
voltage
52
4LLc indicator light
Ignition switch: ON
Transmission range:
N
Transfer shift lever
position: 4LLc
1 V or less
Transfer shift lever
position: Other
than 4LLc
Battery positive voltage
TERMINAL
NO.
INSPECTION ITEMS
INSPECTION REQUIREMENT
NORMAL CONDITION
