Mitsubishi Montero (2002-2004). Manual - part 787





SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-17

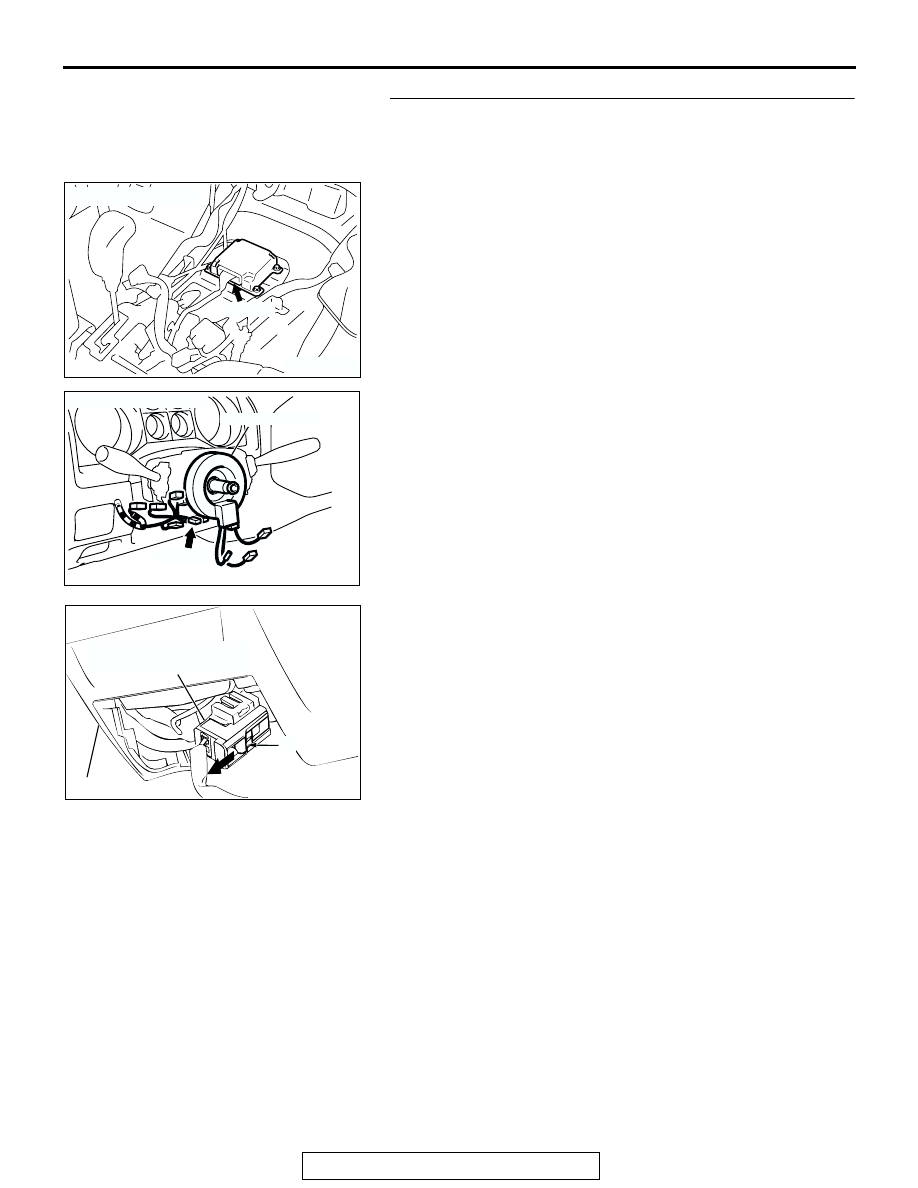

STEP 3. Check SRS-ECU connector E-08, clock spring
connector D-206 and driver’s airbag module connector D-
229.
(1) Disconnect the negative battery terminal.
(2) Disconnection connectors E-08, D-206 and D-229, and

then reconnect them.

(3) Connect the negative battery terminal.
(4) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is DTC 21 set?

YES : Go to Step 4.
NO :  The procedure is complete. (It is assumed that DTC

21 set as connector E-08, D-206 or D-229 was
engaged improperly.)

ACX01478 AG

CONNECTOR: E-08

E-08 (Y)

AC204226AB

CONNECTOR: D-206

CLOCK SPRING

D-206 (Y)

AC100441AE

D-229 AIR BAG MODULE
CONNECTOR

STEERING WHEEL

A

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-18

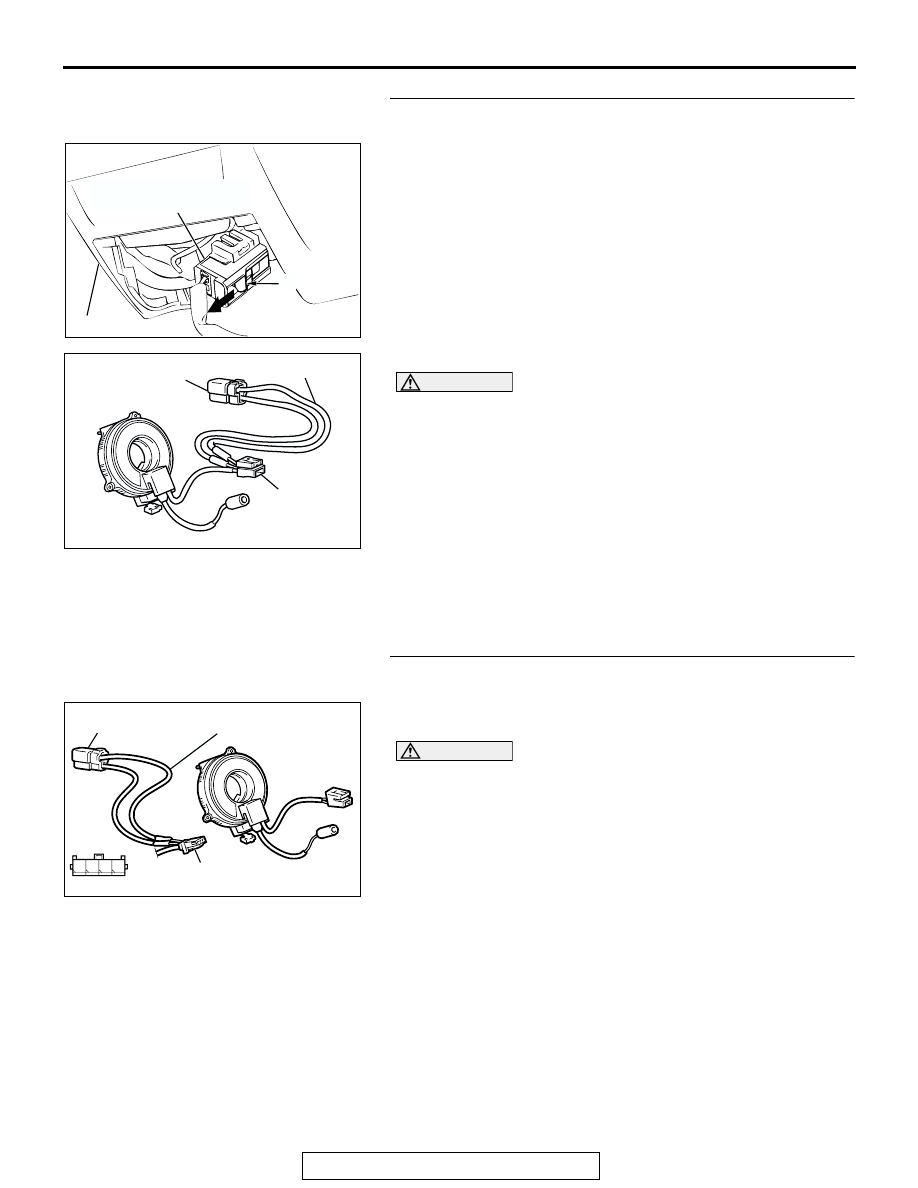

STEP 4. Check the driver's air bag module.
(1) Disconnect the negative battery terminal.
(2) By sliding the A section (in the figure) of air bag module

connector D-229 in the arrow direction, disconnect the
connector.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into clock spring side air bag

module connector D-229 by backprobing.

(5) Connect the negative battery terminal.
(6) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q:  Is DTC 21 set?

YES : Go to Step 5.
NO :  Replace the driver's air bag module. (Refer to

P.52Ba-33

.) Then go to Step 8.

STEP 5. Check the clock spring.
(1) Disconnect the negative battery terminal.
(2) Disconnect the clock spring connector D-206.
(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into clock spring harness

connector D-206 (terminal No.3 and 4) by backprobing.

(5) Connect the negative battery terminal.
(6) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is DTC 21 set?

YES : Go to Step 6.
NO :  Replace the clock spring. (Refer to

P.52Ba-33

.) Then

go to Step 8.

AC100441AE

D-229 AIR BAG MODULE
CONNECTOR

STEERING WHEEL

A

AC006030 AH

D-229 AIR BAG
MODULE
CONNECTOR

MB991865
(DUMMY RESISTOR : 3

Ω)

MB991866 (RESISTOR
HARNESS)

AC006031

D-206 CLOCK SPRING
CONNECTOR

AJ

MB991865
(DUMMY RESISTOR : 3

Ω)

MB991866 (RESISTOR
HARNESS)

1 2

4

3

(REAR VIEW)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-19

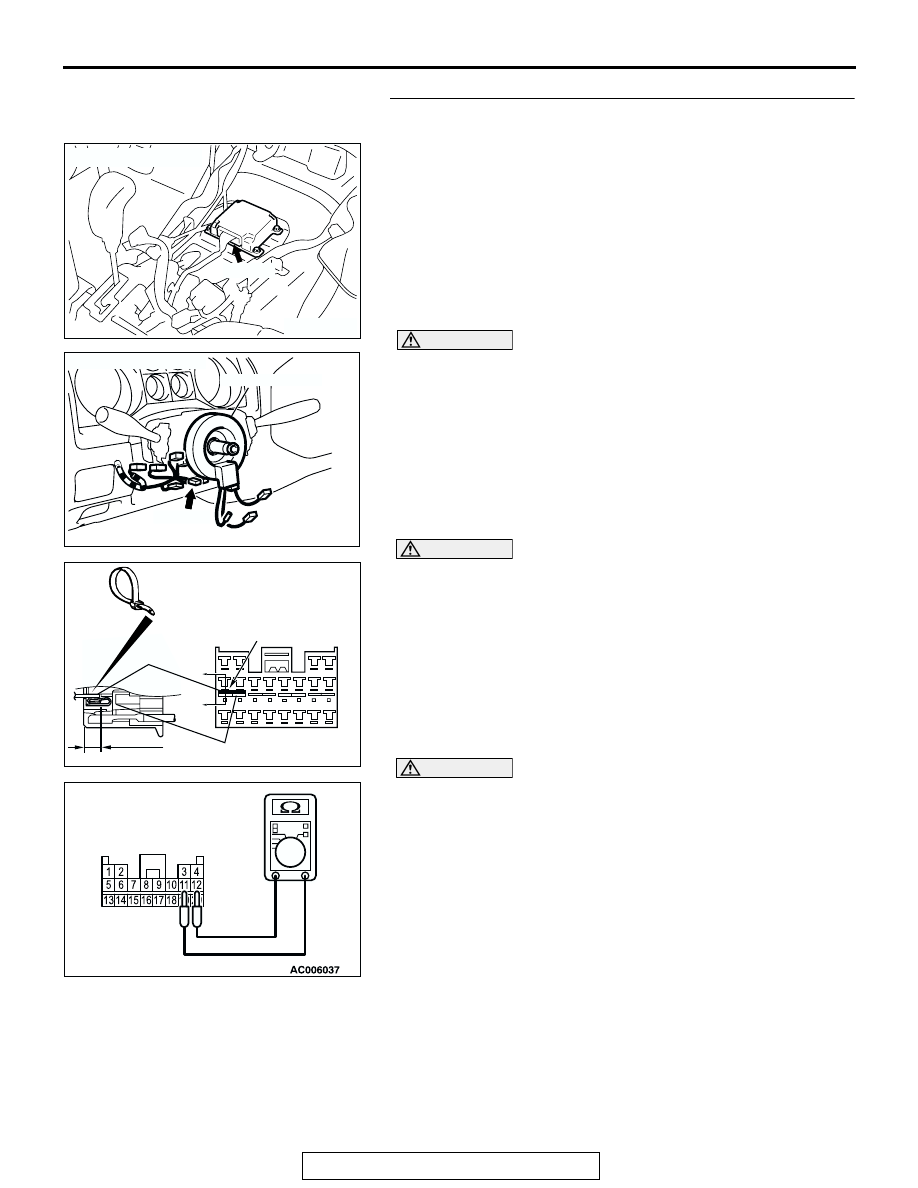

STEP 6. Check harness between the SRS-ECU and the
clock spring for short circuit.
(1) Disconnect SRS-ECU connector E-08.

DANGER

To prevents the air bag from deploying unintention-
ally, disconnect the clock spring connector D-206 to
short the squib circuit.

(2) Disconnect the clock spring connector D-206.

CAUTION

Insert an insulator such as a cable tie to a depth of 4mm
(0.16 inch) or more, otherwise the short bar will not cable
tie release.
(3) Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch)

thick] between terminals 11, 12 and the short bar to release
the short bar.

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(4) Check for continuity between E-08 harness connector

terminals 11 and 12.
It should be open circuit.

Q: Does continuity exist?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC 21 sets, replace
the SRS-ECU. (Refer to

P.52Ba-31

.) Then go to Step

8.

NO :  Go to Step 7.

ACX01478 AG

CONNECTOR: E-08

E-08 (Y)

AC204226AB

CONNECTOR: D-206

CLOCK SPRING

D-206 (Y)

AC100391AK

SECTION
A - A

E-08 HARNESS CONNECTOR:
COMPONENT SIDE

CABLE TIE

SHORT BAR

4 mm (0.16 inch) OR MORE

TERMINAL

A

A

E-08
HARNESS CONNECTOR:
HARNESS SIDE

AI

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DIAGNOSIS

52Bb-20

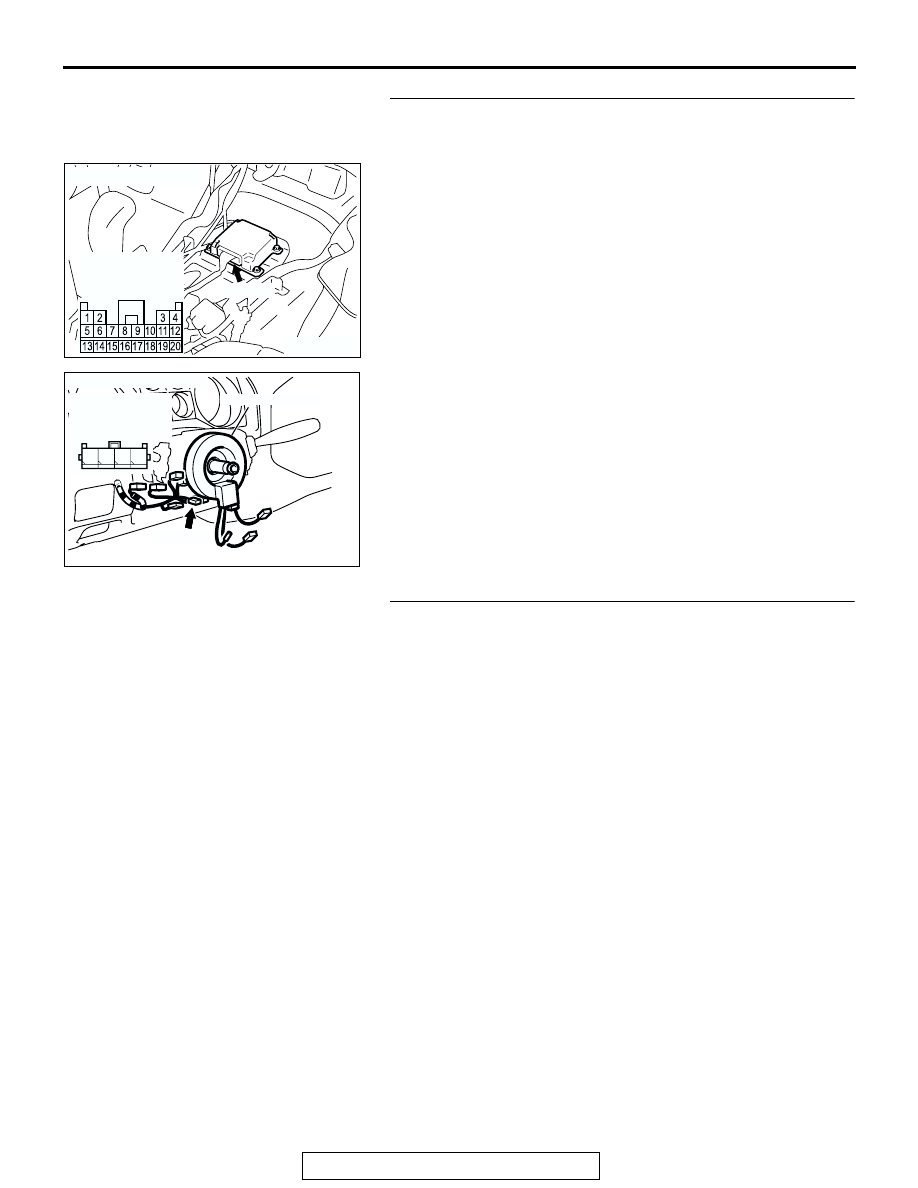

STEP 7. Check the harness for short circuit between SRS-
ECU connector E-08 (terminal No.11 and 12) and clock
spring connector D-206 (terminal No.3 and 4).
Q: Are harness wires between SRS-ECU connector E-08

(terminal No.11 and 12) and clock spring connector D-
206 (terminal No.3 and 4) in good condition?
YES :
Go to Step 8.
NO :  Repair the harness wires between SRS-ECU

connector E-08 and clock spring connector D-206.
Then go to Step 8.

STEP 8. Recheck for diagnostic trouble code.
Q: Is DTC 21 set?

YES : Return to Step 1.
NO :  The procedure is complete. (If no malfunctions are not

found in all steps, an intermittent malfunction is
suspected. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-6

.)

ACX01478AH

CONNECTOR: E-08

E-08 (Y)

HARNESS
CONNECTOR:
HARNESS SIDE

AC204226AC

CONNECTOR: D-206

CLOCK SPRING

D-206 (Y)

HARNESS
CONNECTOR:
HARNESS SIDE

1 2

4

3
