Mitsubishi Montero (2002-2004). Manual - part 777





AIR BAG MODULE(S) AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52Ba-41

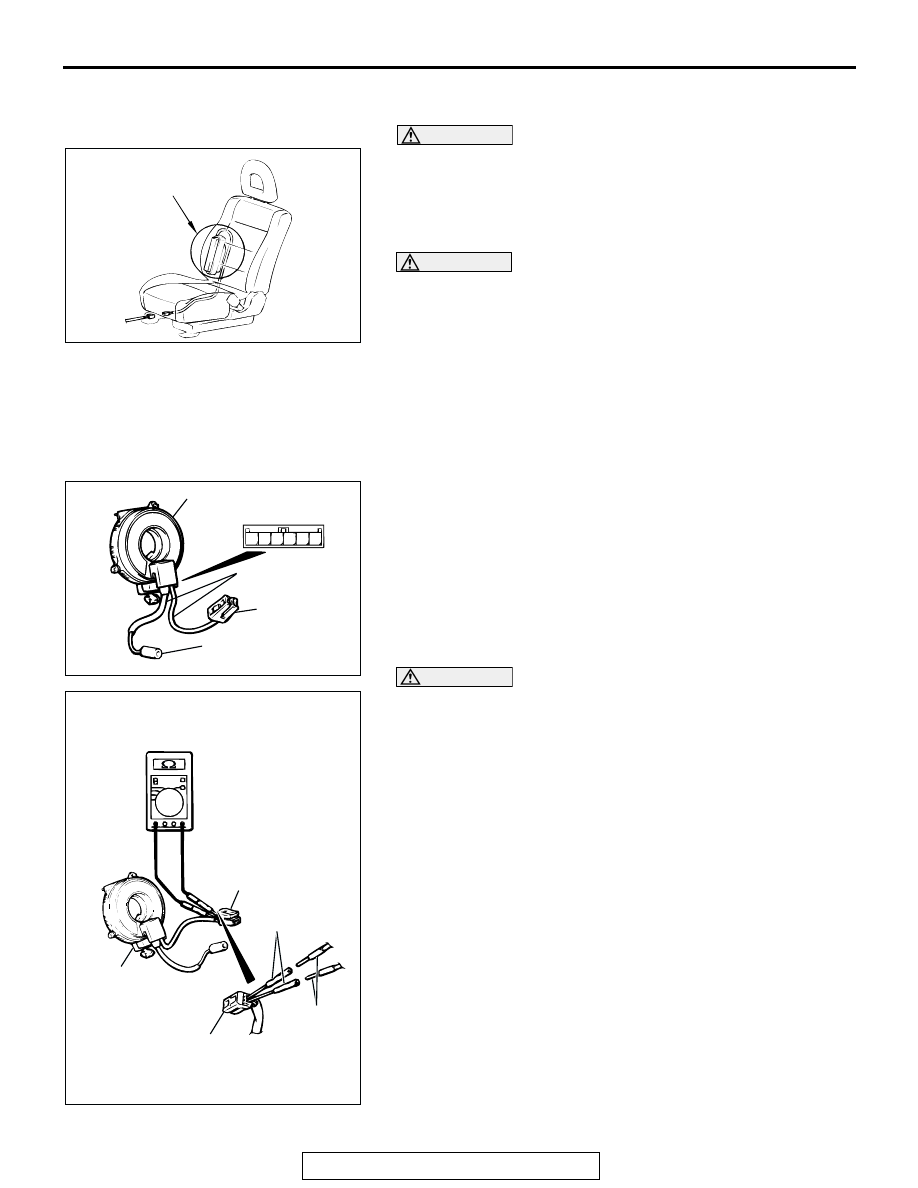

FRONT SEATBACK ASSEMBLY WITH SIDE-AIRBAG
MODULE CHECK

DANGER

Never attempt to measure the circuit resistance of the
air bag module (squib) even if you are using the spec-
ified tester. If the circuit resistance is measured with a
tester, accidental air bag deployment will result in
serious personal injury.

WARNING

If any improper part is found during the following
inspection, replace the front seatback assembly with
a new one. Dispose of the old one according to the
specified procedure. (Refer to

P.52Ba-48

.)

1. Check the air bag module deployment section for dents or

deformation.

2. Check the connector for damage, the terminals for

deformation, and the harness for binds.

.

CLOCK SPRING CHECK
If any malfunction is found in the following inspections, replace
the clock spring with a new one.
1. Check the connectors and protective tube for damage, and

the terminals for deformation.

2. Visually check the case for damage.
3. Check to see that there is a change (continuity) between the

D-206 clock spring connector terminal and D-228 horn
switch connector.

CAUTION

Do not insert the probe directly to the terminal from the
front of the connector.
4. Insert special tool MB991222 from behind the airbag module

connector of the D-229 driver's side.

5. As shown in the Figure, connect the circuit tester to special

tool MB991222 and check to see that there is a charge
between the terminals.

ACX00590 AB

SIDE-AIRBAG MODULE

DEPLOYMENT MODULE

AC201028

5 6

1 2 3 4

D-206 CLOCK SPRING
CONNECTOR

D-228
HORN SWITCH
CONNECTOR

AD

CASE

PROTECTIVE
TUBE

D-229 AIR BAG
MODULE
CONNECTOR

AC100448

CLOCK SPRING

PLOBE
(MB991222)

DIGITAL
MULTI-METER

AG

D-229 AIR BAG
MODULE CONNECTOR
(DRIVER'S SIDE)

D-229 AIR BAG
MODULE CONNECTOR
(DRIVER'S SIDE)

SIDE IMPACT SENSOR

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52Ba-42

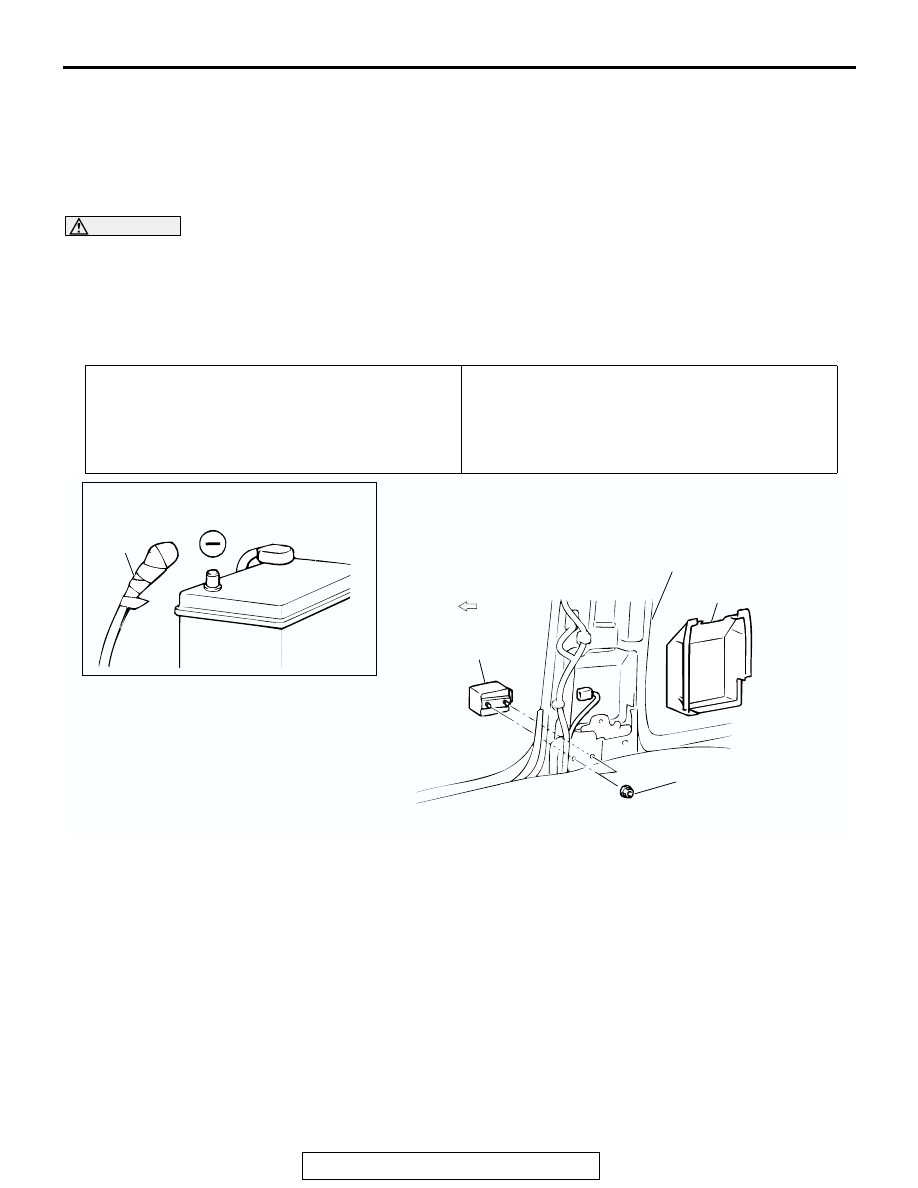

SIDE IMPACT SENSOR

REMOVAL AND INSTALLATION

M1524004600179

A side impact sensor is installed behind the center pillar trim on both driver and passenger sides of the vehi-
cle.

WARNING

Never attempt to disassemble or repair the side impact sensor. If faulty, replace it.

Do not drop or subject the side impact sensor to impact or vibration. Replace the side
impact sensor, if dents, cracking, deformation, or rust are present.

Replace the side impact sensor after the air bag has deployed.

NOTE: The illustration above shows the side impact sensor (RH). The position of the side impact sensor (LH)
is symmetrical to this.

Pre-removal Operation
• Turn the ignition key to "LOCK" (OFF) position.

• Front Seat Belt Removal (Refer to GROUP 52A, Front

Seat Belt

P.52A-28

.)

• Center Pillar Trim, Lower Removal (Refer to GROUP 52A,

Trims

P.52A-8

.)

Post-installation Operation
• Center Pillar Trim, Lower Installation (Refer to GROUP

52A, Trim

P.52A-8

.)

• Front Seat Belt Installation (Refer to GROUP 52A, Front

Seat Belt

P.52A-28

.)

ACX01489AB

1

3

CENTER PILLAR

4.9 ± 1.0 N·m
43 ± 8 in-lb

2

FORWARD

REMOVAL STEPS

<<A>>

1.

NEGATIVE (-) BATTERY CABLE
CONNECTION

2.

FRONT NOISE PROTECTOR

3.

SIDE IMPACT SENSOR

INSTALLATION STEPS

>>A<<

PRE-INSTALLATION INSPECTION

>>B<<

3.

SIDE IMPACT SENSOR

2.

FRONT NOISE PROTECTOR

1.

NEGATIVE (-) BATTERY CABLE
CONNECTOR

>>C<<

POST-INSTALLATION
INSPECTION

SIDE IMPACT SENSOR

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52Ba-43

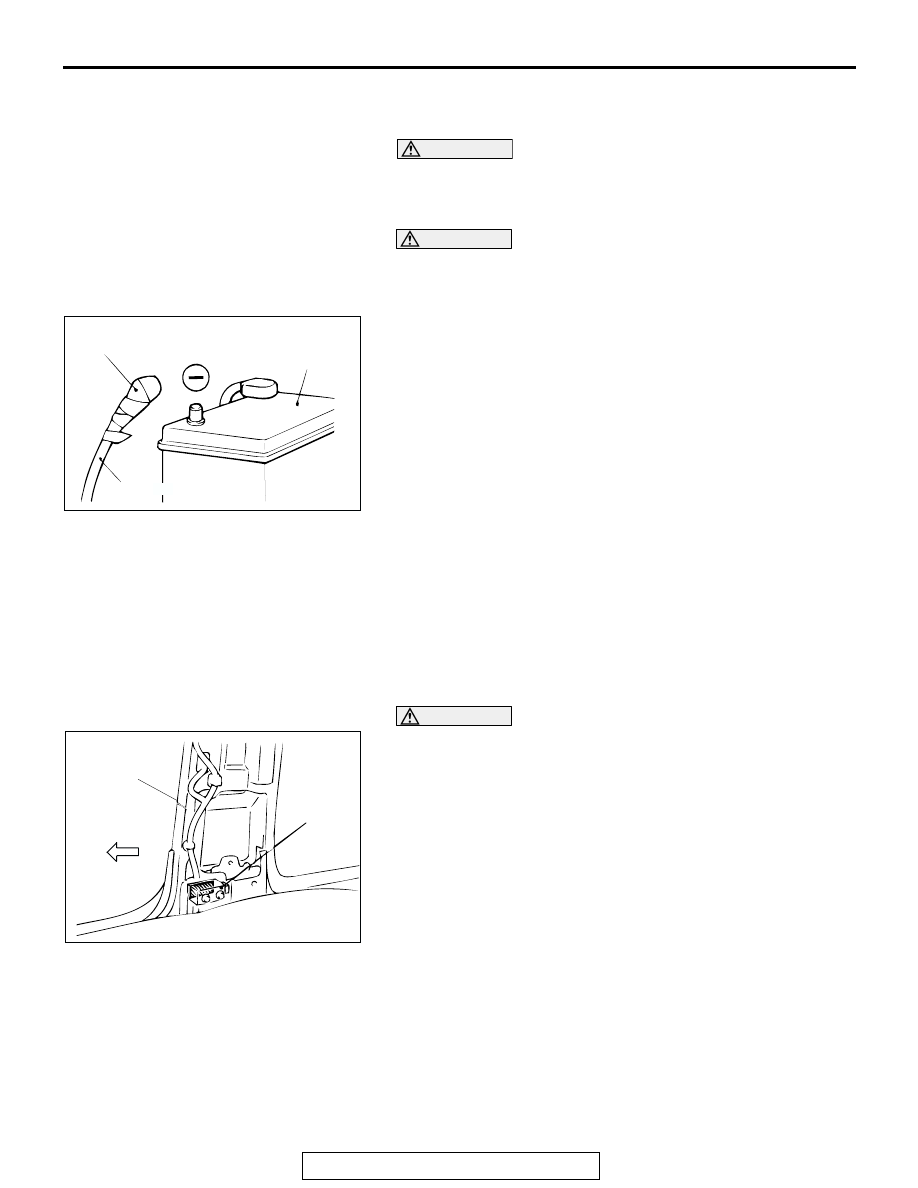

REMOVAL SERVICE POINT

.

<<A>> NEGATIVE (

) BATTERY CABLE DISCONNECTION

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work. (Refer to

P.52Ba-18

.)

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

Disconnect the negative (

−) battery cable from the battery and

tape the terminal to prevent accidental connection and air
bag(s) deployment.

INSTALLATION SERVICE POINTS

.

>>A<< PRE-INSTALLATION INSPECTION
Check the side impact sensor for dents, breakage and bending
and measure the resistance between the terminals, even when
installing a new side impact sensor.

.

>>B<< SIDE IMPACT SENSOR INSTALLATION

WARNING

If the side impact sensor is not installed securely and
correctly, the side air bag may not operate normally.

Securely connect the connector.

.

ACX00583

INSULATING TAPE

BATTERY

BATTERY CABLE (–)

AC

ACX00591

CENTER
PILLAR

FORWARD

AB

SIDE IMPACT
SENSOR

SEAT BELTS WITH PRE-TENSIONER

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52Ba-44

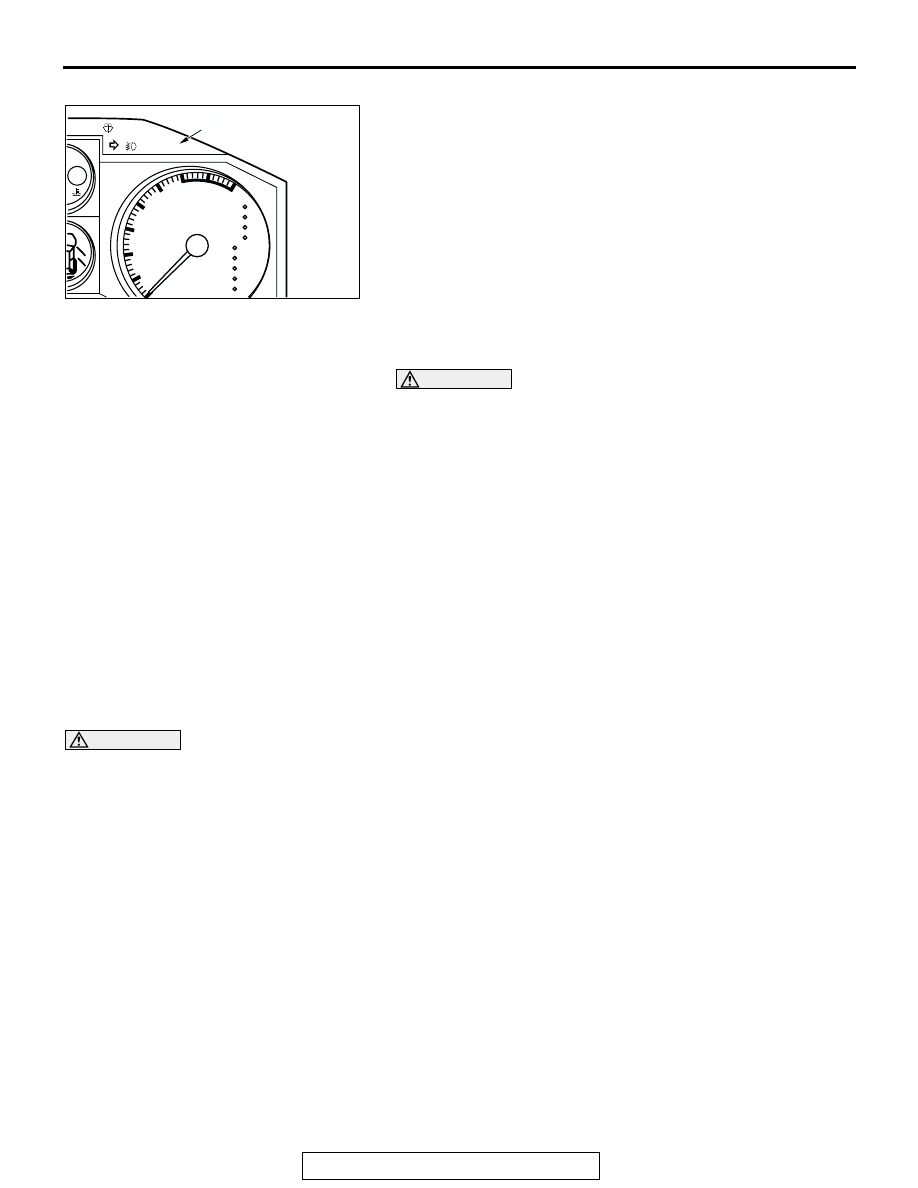

>>C<< POST-INSTALLATION INSPECTION

1. Reconnect the negative (

−) battery cable.

2. Turn the ignition switch to "ON" position.
3. Does the "SRS" warning light illuminate for approximately

seven seconds, and then remain off for at least five sec-
onds after turning "OFF"?

4. If yes, the SRS system is functioning properly. If no, refer to

P.52Bb-3

.

INSPECTION

M1524004700109

WARNING

If a dent, crack, deformation or rust is detected,
replace with a new sensor.

NOTE: For checking of the side impact sensor other than
described above, refer to the section concerning SRS diagno-
sis (Refer to

P.52Bb-4

.)

• Check the side impact sensor and bracket for dents, cracks

or deformation.

• Check the connector for damage, and terminal for deforma-

tion.

• Check that there is no bending or corrosion in the center pil-

lar.

SEAT BELTS WITH PRE-TENSIONER

REMOVAL AND INSTALLATION

M1524004100152

WARNING

Never attempt to disassemble or repair the seat belt pre-tensioner. If faulty, replace it.

Be extremely careful when handling the seat with pre-tensioner. Do not subject it to
shocks, drop it, bring it close to strong magnets or allow contact with water, grease or oil.
Always replace it with a new part if any dents, cracks or deformation is found.

Do not place anything on top of the seat belt pre-tensioner.

Do not expose the seat belt pre-tensioner to temperatures over 90

°C (194°F).

After operating the seat belt pre-tensioner, replace the seat belt pre-tensioner with a new
part.

Gloves and protective goggles should be worn when handling a seat belt pre-tensioner
once it has been used.

If disposing of a seat belt with pre-tensioner which has not yet been operated, its seat belt
pre-tensioner should be operated first before disposal. (Refer to

P.52Ba-48

.)

ACX01667

AT

TEMP

SRS

P
R
N
D

5
4
3
2
1

x1000r/min

2

3

4

5

6

7

8

1

AB

SRS WARNING LIGHT
