TSB Revision

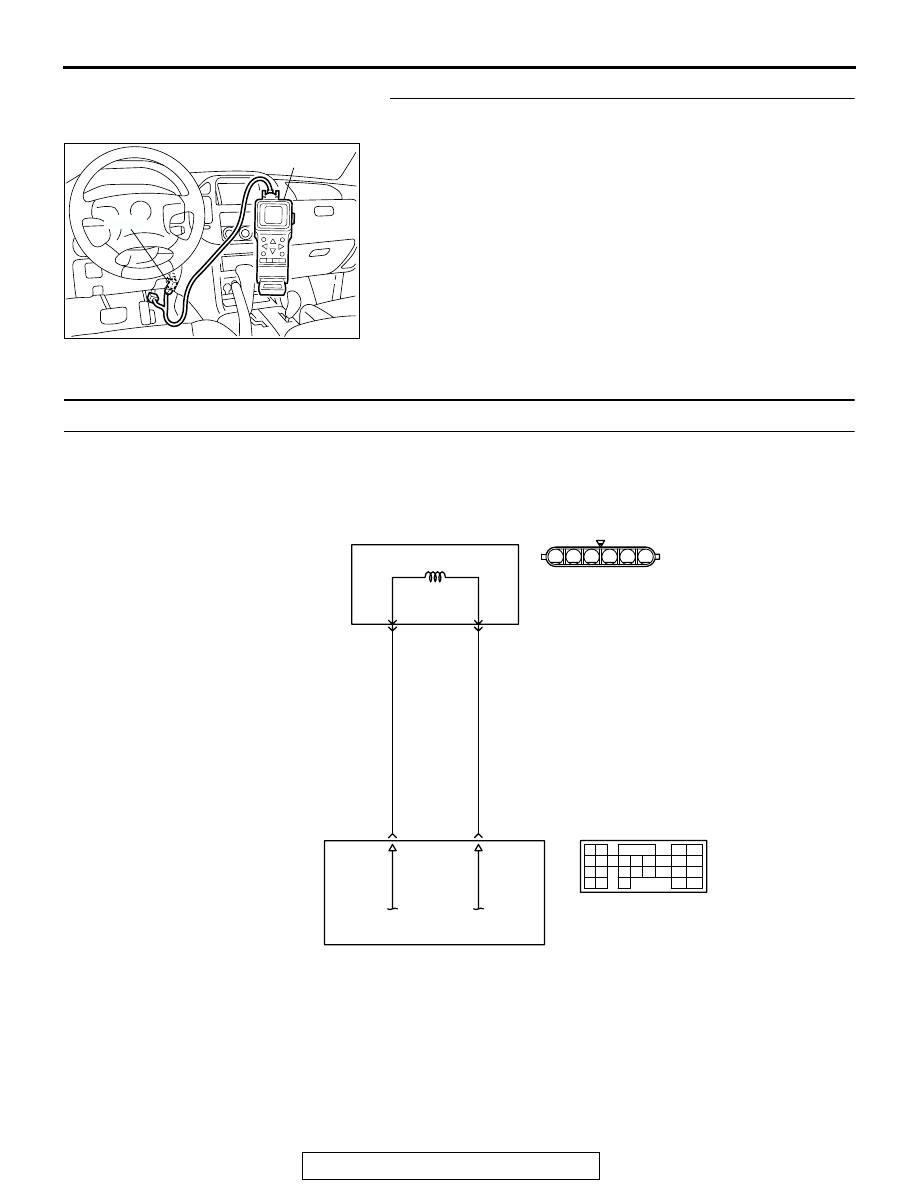

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-577

STEP 8. Using scan tool MB991502, read the diagnostic
trouble code (DTC).
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is DTC P2100 set?

YES : Retry the troubleshooting.
NO : The inspection is complete.

P2101 Throttle Actuator Control Motor Magneto Malfunction

ACX01539

16-PIN

MB991502

AK201462

GREEN-

WHITE

GREEN-

YELL

B-05

133

THROTTLE
ACTUATOR
CONTROL
MOTOR

POWERTRAIN
CONTROL
MODULE

141

1 2 3 4 5

D-136

(MU803801)

121122

123

125126127128129 130 131 132

134135

136 137 138 139 140

142143

144

145

124

133

141

146

TSB Revision

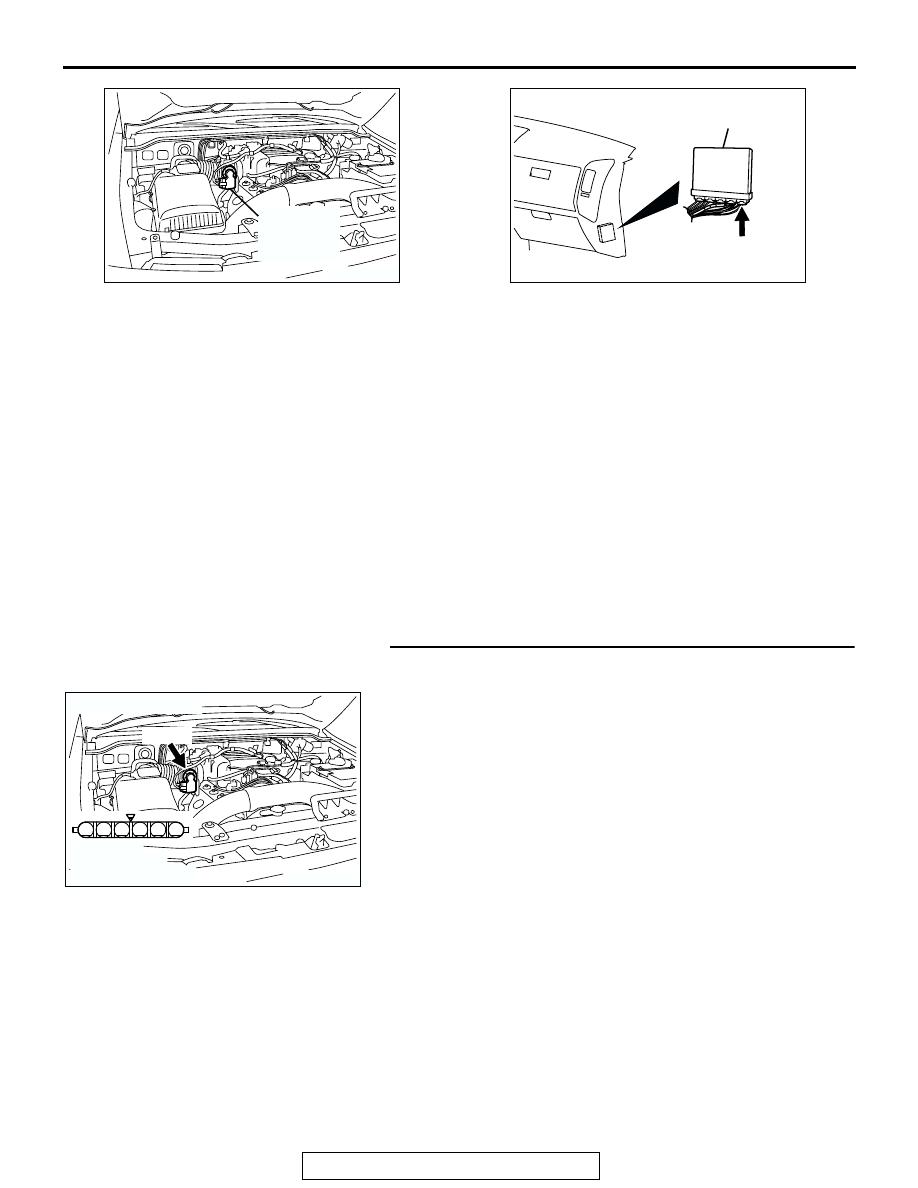

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-578

TECHNICAL DESCRIPTION

• PCM check whether the throttle actuator control

motor magneto has failed.

DTC SET CONDITIONS

Check Condition

• Battery positive voltage is higher than 8.3 volts.

Judgement Criteria

• The coil temperature of the throttle actuator con-

trol motor should be 180

°C (356°F) or higher for

0.16 seconds.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Throttle actuator control motor failed or malad-

justed.

• Open or shorted throttle actuator control motor

circuit, or loose connector.

• PCM failed.

DIAGNOSIS

Required Special Tool:

• MB991502: Scan Tool (MUT-II)

STEP 1. Check connector B-05 at throttle actuator control
motor for damage.
Q: Is the connector in good condition?

YES : Go to Step 2.
NO : Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 7.

AK201173AC

THROTTLE
ACTUATOR
CONTROL
MOTOR

AK201038AI

CONNECTOR: D-136

PCM

D-136(GR)

AK201174

6 5 4 3 2

B-05(B)

CONNECTOR: B-05

HARNESS
CONNECTOR:
COMPONENT SIDE

TSB Revision

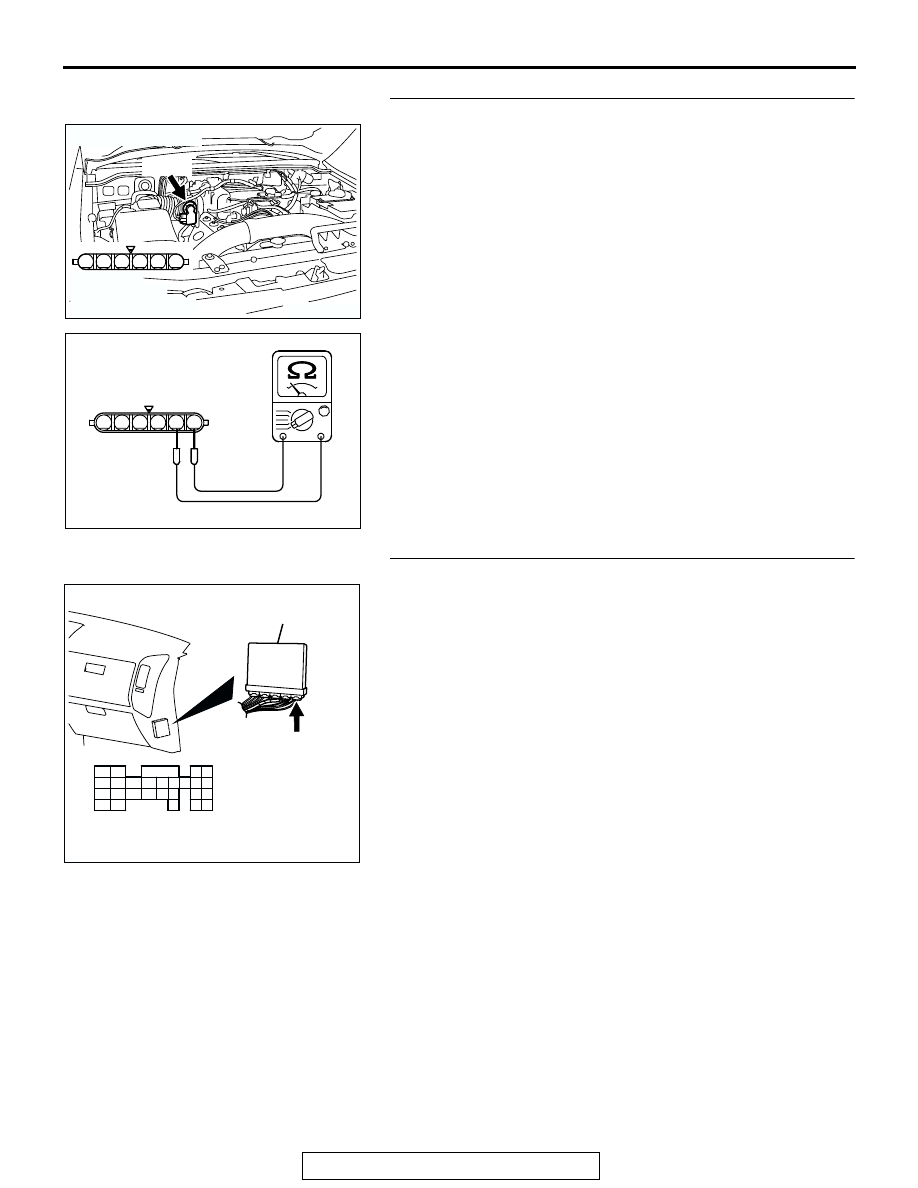

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-579

STEP 2. Check the throttle actuator control motor.
(1) Disconnect the connector B-05.

(2) Measure the resistance between throttle actuator control

motor side connector terminal No. 5 and No. 6.

Standard value: 0.3

− 100 ohms

Q: Is the measured resistance between 0.3 and 100 ohms?

YES : Go to Step 3.
NO : Replace the throttle body ASSY. Then go to Step 7.

STEP 3. Check connector D-136 at PCM for damage
Q: Is the connector in good condition?

YES : Go to Step 4.
NO : Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 7.

AK201174

6 5 4 3 2

B-05(B)

CONNECTOR: B-05

HARNESS
CONNECTOR:
COMPONENT SIDE

1 2 3 4 5

AK201513AB

THROTTLE ACTUATOR
CONTROL MOTOR
SIDE CONNECTOR

AK201170

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

CONNECTOR: D-136

PCM

D-136(GR)

HARNESS CONNECTOR:
COMPONENT SIDE

TSB Revision

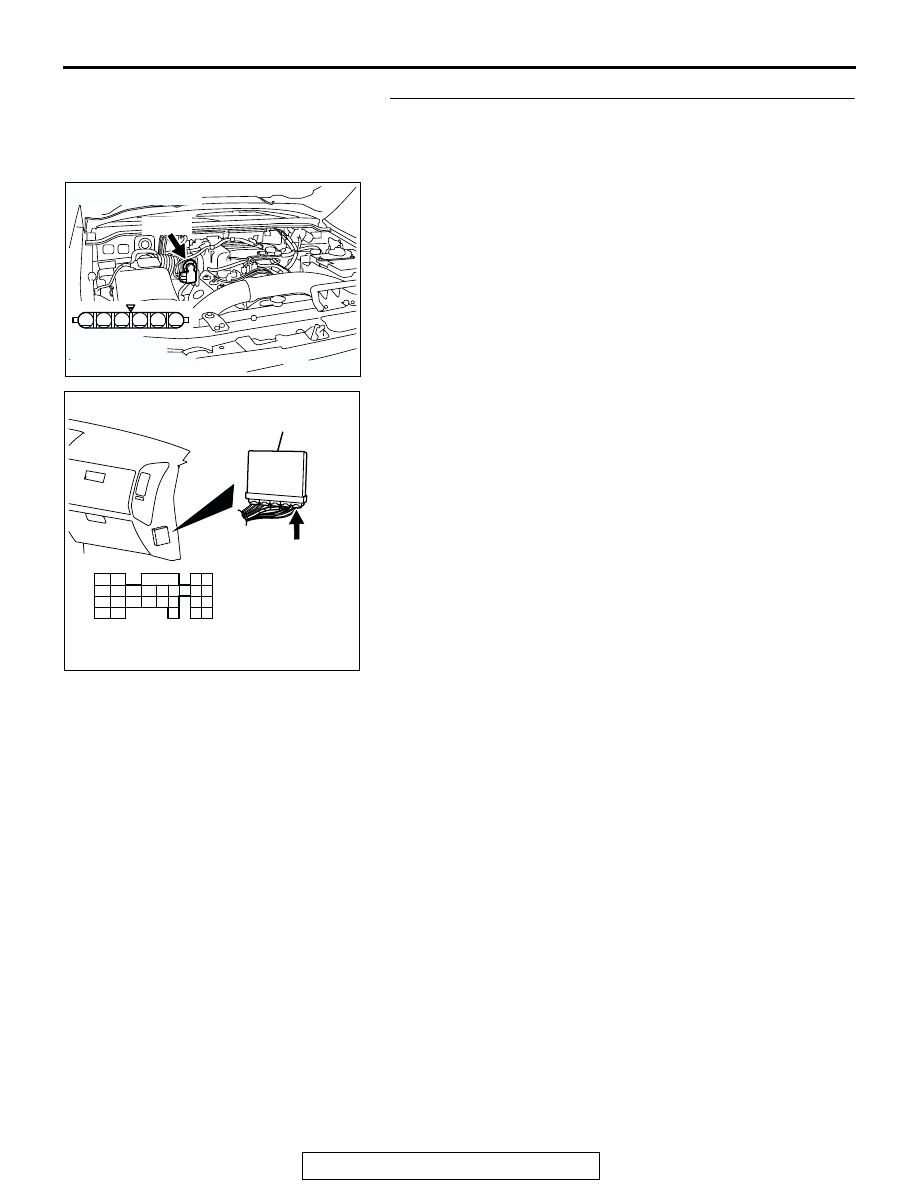

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-580

STEP 4. Check for short circuit to ground and harness
damage between throttle actuator control motor connector
B-05 (terminal No. 6) and PCM connector D-136 (terminal
No. 133).
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO : Repair it. Then go to Step 7.

AK201174

6 5 4 3 2

B-05(B)

CONNECTOR: B-05

HARNESS
CONNECTOR:
COMPONENT SIDE

AK201170

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

CONNECTOR: D-136

PCM

D-136(GR)

HARNESS CONNECTOR:
COMPONENT SIDE
