Mitsubishi Montero (2002-2004). Manual - part 699

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-493

STEP 16. Check for leaks in the evaporative emission
canister.
(1) Remove the evaporative emission canister. (Refer to

GROUP 17, Evaporative Emission Canister and Fuel Tank
Pressure Relief Valve

P.17-66

).

(2) Connect a hand vacuum pump to the vent nipple of the

evaporative emission canister.

(3) Plug the other two nipples or loop a hose between them.
(4) Apply vacuum with the hand vacuum pump and confirm that

the canister holds vacuum.

Q: Does the evaporative emission canister hold vacuum?

YES : Reinstall the evaporative emission canister. (Refer to

GROUP 17, Evaporative Emission Canister and Fuel
Tank Pressure Relief Valve

P.17-66

). Go to Step 17 .

NO :  Replace the evaporative emission canister. (Refer to

GROUP 17, Evaporative Emission Canister and Fuel
Tank Pressure Relief Valve

P.17-66

). Go to Step 26 .

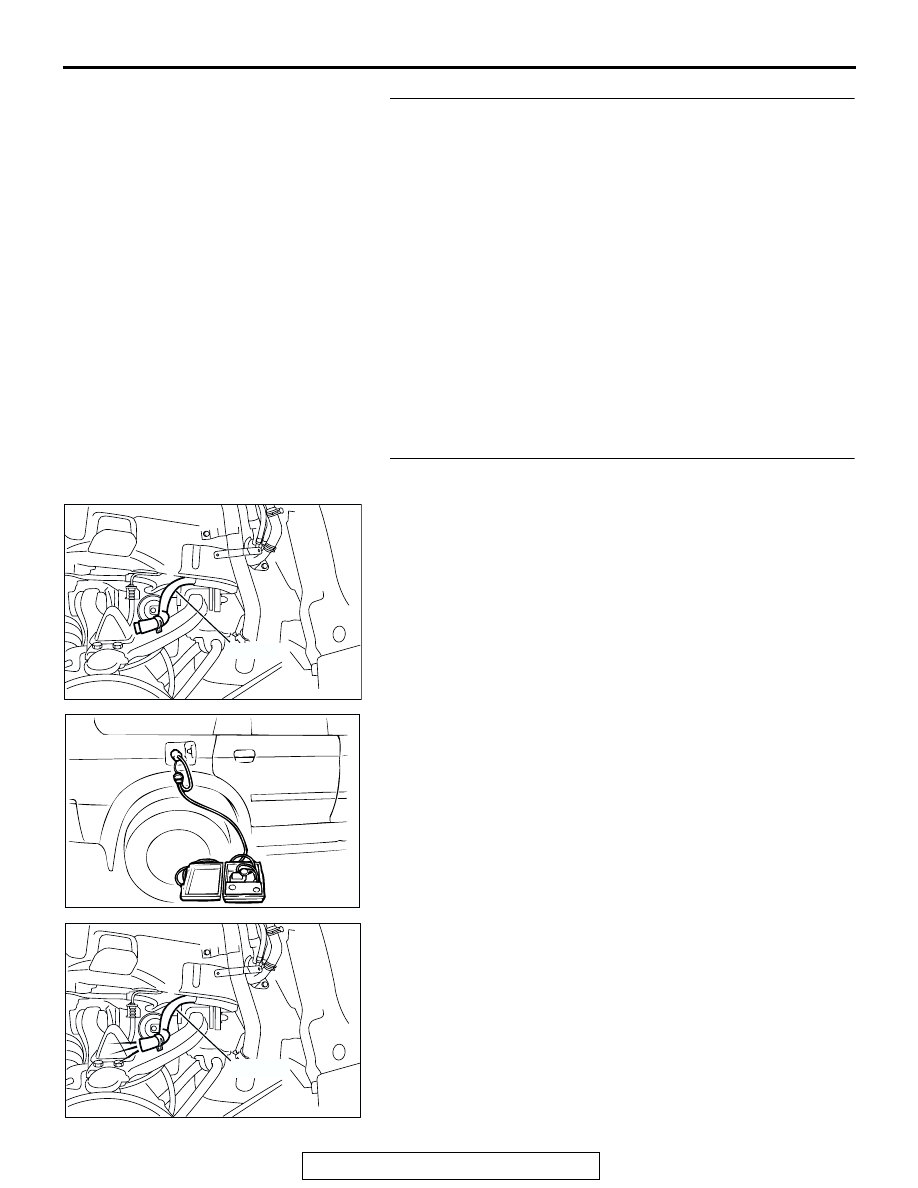

STEP 17. Pressure test for clogging in evaporative
emission system lines between hose F and R.
(1) Disconnect hose F from the evaporative emission canister

and plug hose F securely.

(2) Confirm that the evaporative emission system pressure

pump (Miller number 6872A) is operating properly. Perform
the self-test as described in the manufacturer's instructions.

(3) Remove the fuel cap.

(4) Connect the evaporative emission system pressure pump

to the fuel tank filler tube.

(5) After it is confirmed that pressure maintained, unplug hose

F.

(6) Disconnect the evaporative emission system pressure

pump and reinstall the fuel cap.

(7) Connect hose F to the evaporative emission canister.
Q: Does hose F blow the air?

YES : Go to Step 23.
NO :  Go to Step 18.

AC102602 AC

HOSE F

ACX01358

AC102548

HOSE F

AC

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-494

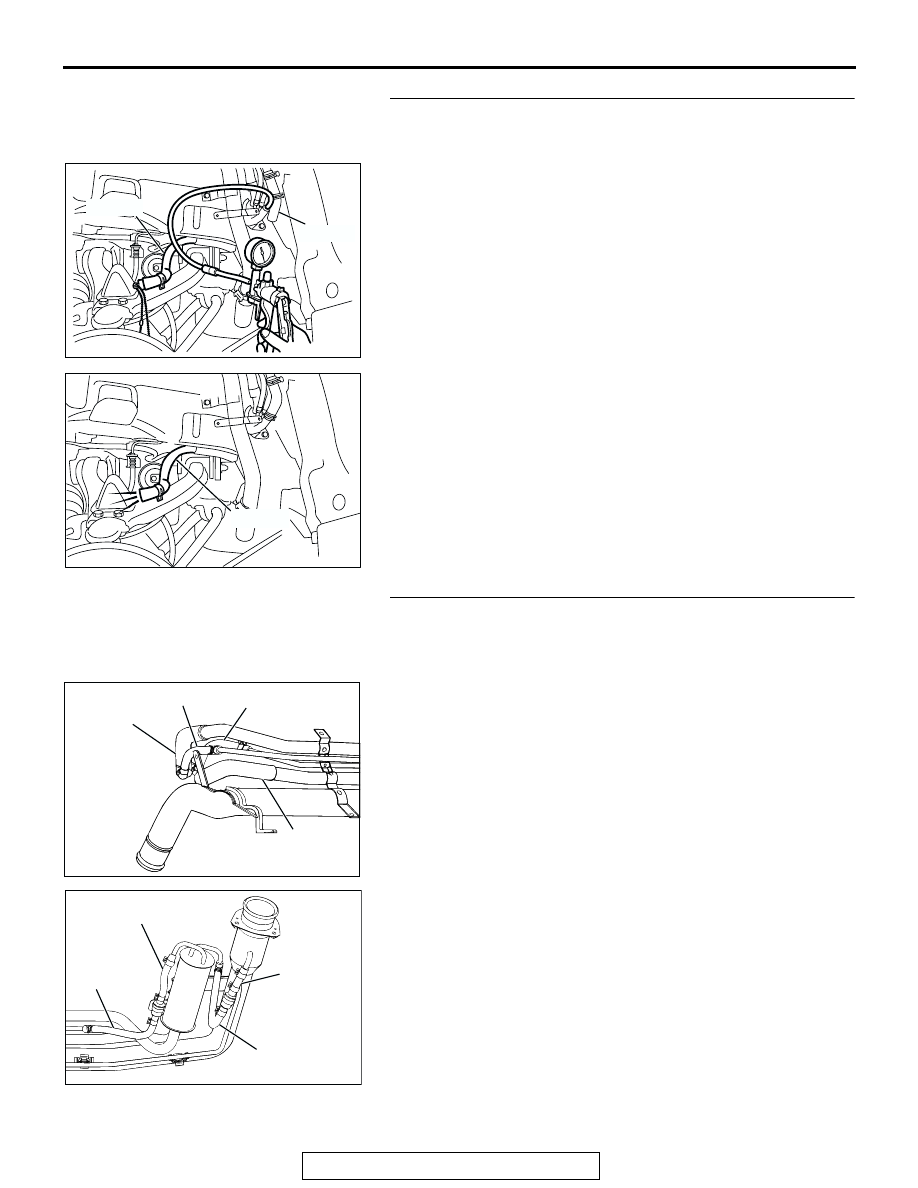

STEP 18. Check for clogging in the evaporator line hose F.
(1) Remove the fuel tank filler tube protector. (Refer to GROUP

13B, Fuel Tank

P.13B-11

).

(2) Disconnect hose F from the evaporative emission canister

and plug hose F securely.

(3) Disconnect hose G from the evaporative emission canister

side, and connect a hand vacuum pump.

(4) Apply vacuum with the hand vacuum pump, unplug hose F.
(5) Disconnect the hand vacuum pump and connect hose F

and G.

Q: Does hose F blow the air?

YES : Go to Step 19.
NO :  Replace hose F and reinstall the fuel tank filler tube

protector. (Refer to GROUP 13B, Fuel Tank

P.13B-

11

). Go to Step 26.

STEP 19. Check for clogging in the evaporative emission
system hoses G through N.
(1) Remove the fuel tank filler tube. (Refer to GROUP 13B,

Fuel Tank

P.13B-11

).

(2) Use a hand vacuum pump to clogging test on each hose

from hose G to hose N.

Q: Are the hoses in good condition?

YES : Go to Step 20.
NO :  Replace any damaged hose, and reinstall the fuel

tank filler tube and the fuel tank filler tube protector.
(Refer to GROUP 13B, Fuel Tank

P.13B-11

). Go to

Step 26.

AC101767 AC

HOSE F

HOSE G

AC102548

HOSE F

AC

AC102673 AC

HOSE G

HOSE L

HOSE M

HOSE N

AC102646 AC

HOSE K

HOSE I

HOSE H

HOSE J

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-495

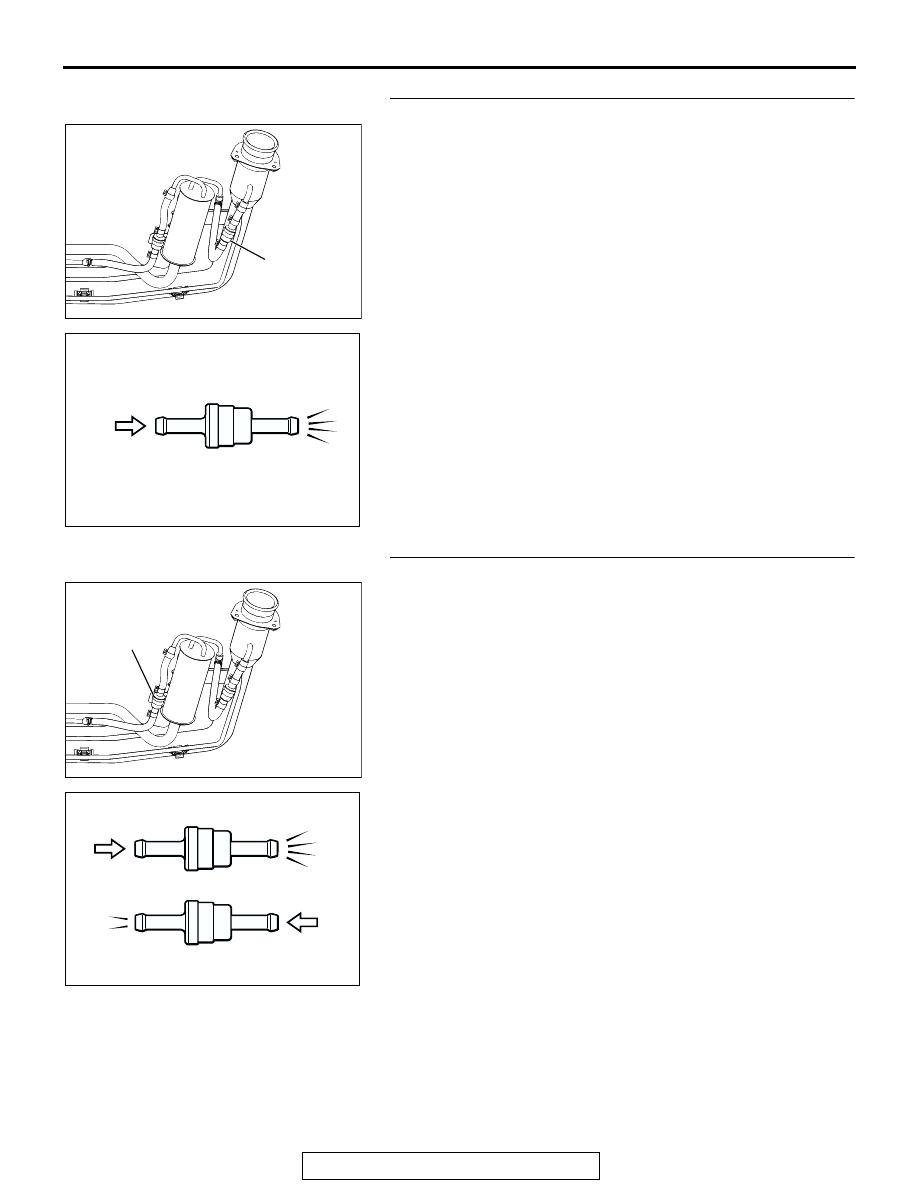

STEP 20. Check the check valve A.
(1) Check valve A is a one-way check valve.

(2) Check valve A should allow air to flow in only one direction.
Q: Does check valve A allow air to press in one direction

only?
YES : Go to Step 21.
NO :  Replace check valve A, and reinstall the fuel tank filler

tube and the fuel tank filler tube protector. (Refer to
GROUP 13B, Fuel Tank

P.13B-11

). Go to Step 26.

STEP 21. Check the check valve B.
(1) Check valve B is a one-way check valve.

(2) Check valve B should allow air to flow in only one direction.
Q: Does check valve B allow air to press in one direction

only?
YES : Go to Step 22.
NO :  Replace check valve B, and reinstall the fuel tank filler

tube and the fuel tank filler tube protector. (Refer to
GROUP 13B, Fuel Tank

P.13B-11

). Go to Step 26.

AC102646 AD

CHECK
VALVE A

AC002076 AB

CHECK VALVE A

AC102646 AE

CHECK
VALVE B

AC002078

CHECK VALVE B

AB

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-496

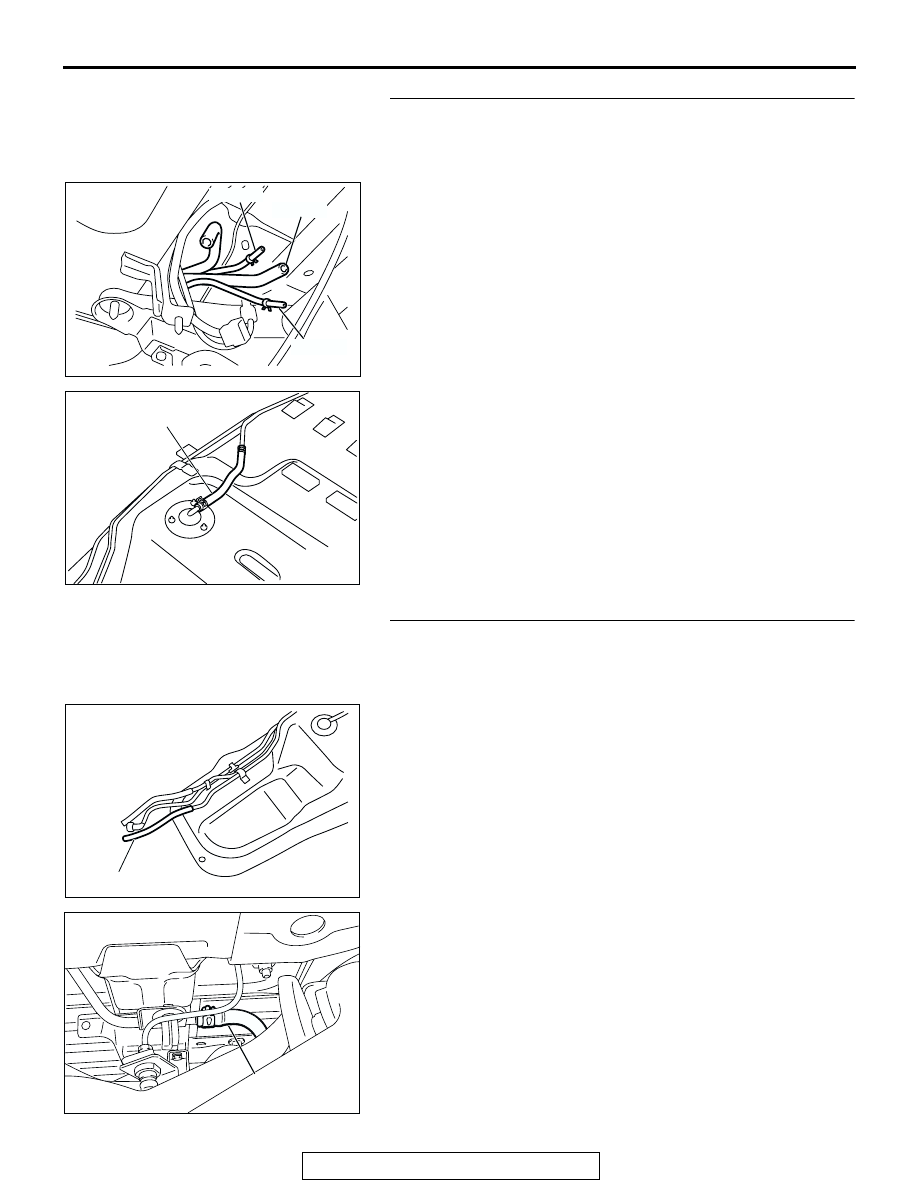

STEP 22. Check for clogging in the evaporative emission
system hoses O through R.
(1) Remove the fuel tank. (Refer to GROUP 13B, Fuel Tank

P.13B-11

).

(2) Use a hand vacuum pump to clogging test on each hose

from hose O to hose R.

Q: Are the hoses in good condition?

YES : Go to Step 25.
NO :  Replace any damaged hose, and reinstall the fuel

tank, the fuel tank filler tube and the fuel tank filler
tube protector. (Refer to GROUP 13B, Fuel Tank

P.13B-11

). Go to Step 26.

STEP 23. Check for clogging in the evaporative emission
system hose C and hose D.
(1) Remove the fuel tank. (Refer to GROUP 13B, Fuel Tank

P.13B-11

).

(2) Use a hand vacuum pump to clogging test on each hose C

and hose D.

Q: Are the hoses in good condition?

YES : Reinstall the fuel tank. (Refer to GROUP 13B, Fuel

Tank

P.13B-11

). Go to Step 24.

NO :  Replace any damaged hose and reinstall the fuel

tank. (Refer to GROUP 13B, Fuel Tank

P.13B-11

). Go

to Step 26.

AC101748

HOSE P

HOSE R

AD

HOSE O

ACX01353 AC

HOSE Q

ACX01354 AD

HOSE C

AC102448

HOSE D

AC
