TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-477

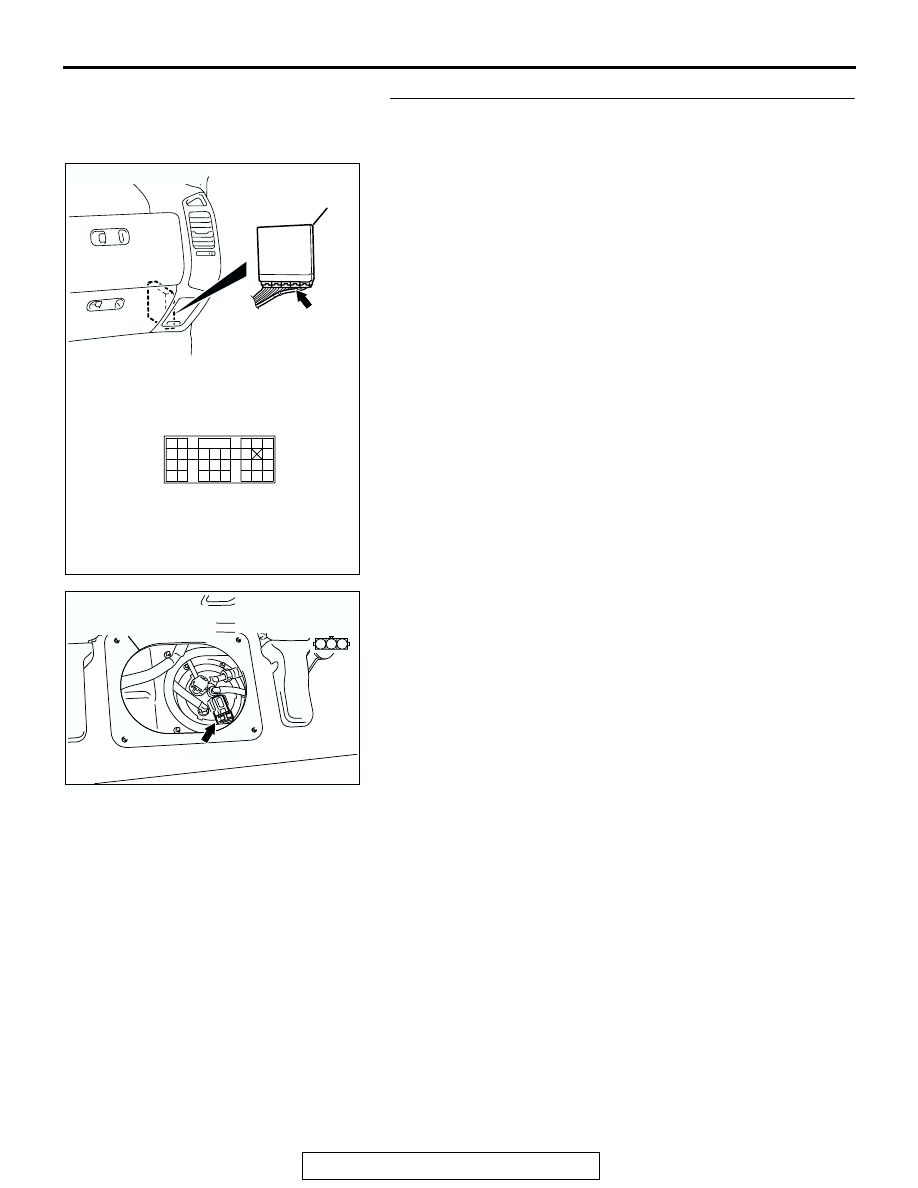

STEP 9. Check the harness wires between PCM connector
D-135 terminal 96 and fuel tank differential pressure
sensor connector G-05 terminal 2 for damage.
Q: Are the harness wires in good condition?

YES : Replace the fuel tank differential pressure sensor.

(Refer to GROUP 13B, Fuel Tank

P.13B-11

). Go to

Step 14.

NO :  Repair the damaged harness wires. Go to Step 15.

AC203997

CONNECTOR: D-135

AB

D-135 (GR)

PCM

D-135 HARNESS CONNECTOR:
HARNESS SIDE

94

93

95

96 97 98 99 100

92

91

101 102103

104

105 106

107 108 109

110 111 112

113 114

115 116 117

118 119 120

ACX00218

CONNECTOR : G-05

AR

G-05 (B)

SECOND SEAT UNDER
SERVICE HOLE

G-05 HARNESS
CONNECTOR:
COMPONENT SIDE

1

2

3

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-478

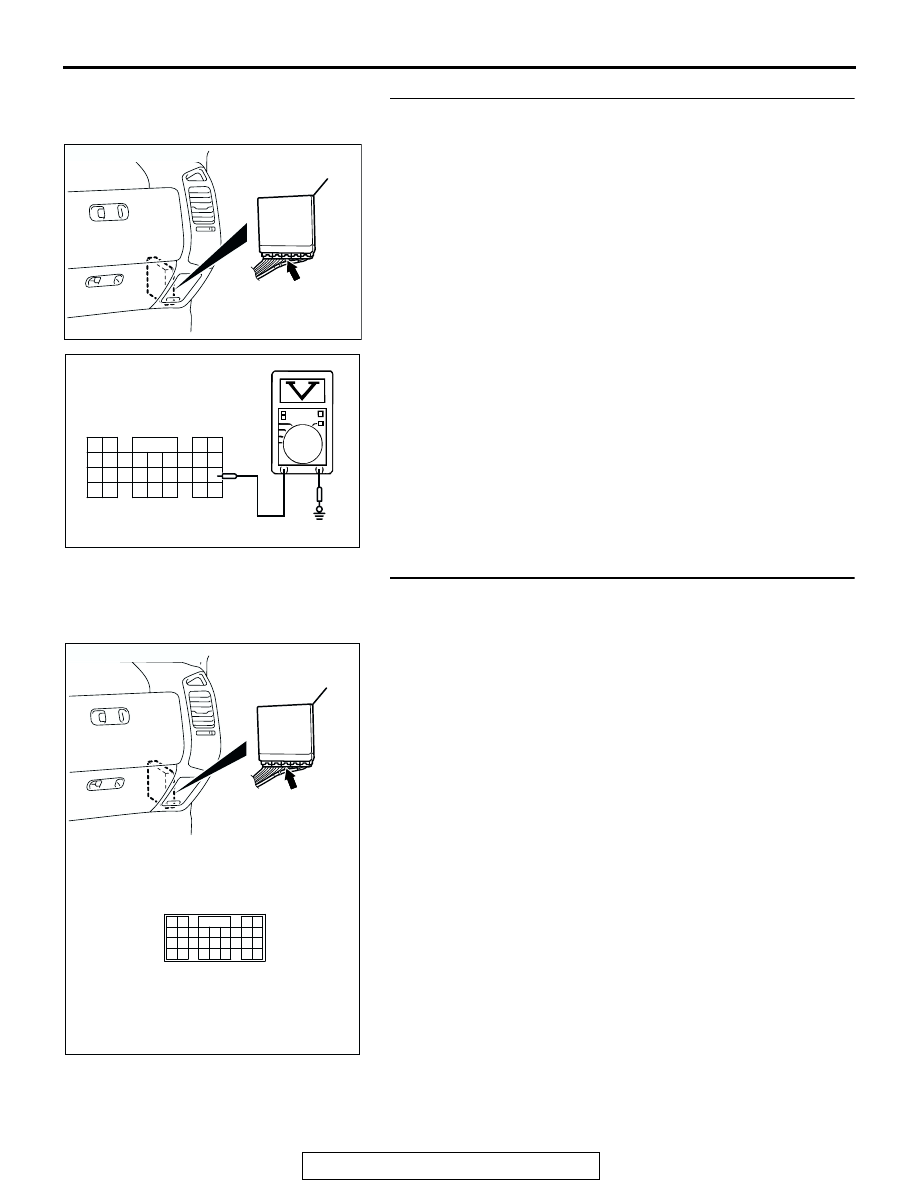

STEP 10. Measure the signal voltage at PCM connector D-
134 by backprobing.
(1) Do not disconnect PCM connector D-134.
(2) Turn the ignition switch to the "ON" position.
(3) Remove the fuel cap.

(4) Measure the voltage between PCM connector D-134

terminal 82 and ground by backprobing.

• The voltage should measure between 2.0 and 3.0 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 2.0 and 3.0 volts?

YES : Go to Step 14.
NO :  Go to Step 11.

STEP 11. Check PCM connector D-134 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.
Q: Are the connector and terminals in good condition?

YES : Go to Step 12.
NO :  Repair or replace the faulty component. (Refer to

GROUP 00E, Harness Connector Inspection

P.00E-

2

). Go to Step 15.

AC203993

CONNECTOR: D-134

AD

D-134 (GR)

PCM

AC204161

64

63

65 66 67 68

62

61

69 70 71 72 73

74 75 76 77 78 79 8081 82
83 84

85 86 87

88 89

AB

D-134 HARNESS CONNECTOR:
HARNESS SIDE

AC203997

CONNECTOR: D-134

AC

D-134 (GR)

PCM

D-134 HARNESS CONNECTOR:
HARNESS SIDE

64

63

65 66 67 68

62

61

69 70 71 72 73

74 75 76 77 78 79 80 81 82
83 84

85 86 87

88 89

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-479

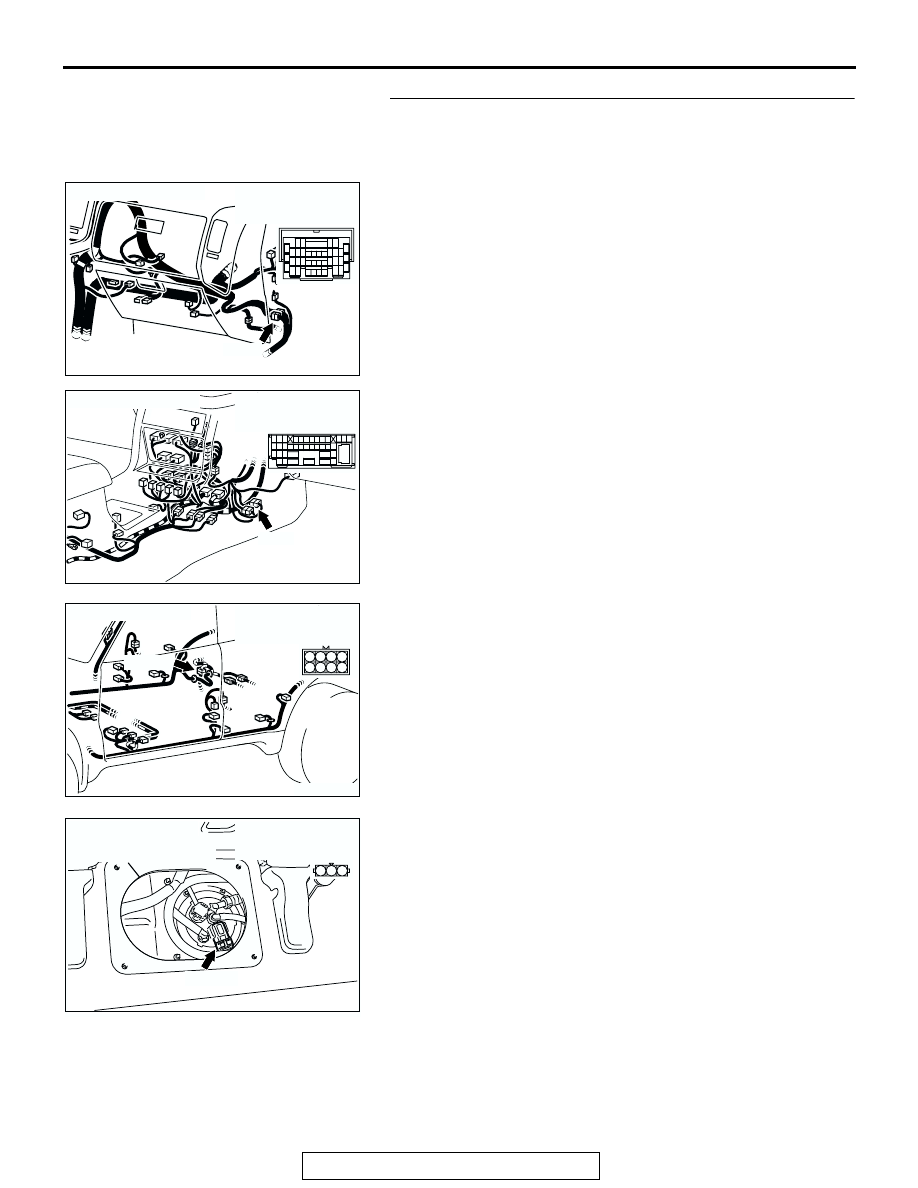

STEP 12. Check intermediate connectors D-112, E-111 and
F-07, and fuel tank differential pressure sensor connector
G-05 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Are the connectors and terminals in good condition?

YES : Go to Step 13.
NO :  Repair or replace the faulty component. (Refer to

GROUP 00E, Harness Connector Inspection

P.00E-

2

). Go to Step 15.

AC203998

CONNECTOR: D-112

AC

D-112

D-112 HARNESS
CONNECTOR:
COMPONENT SIDE

38

28

16

33

22

10

31

19

7

1

18

30

29

17

5

6

21

20

32

8

2

9

25

13

3

24

23

34 35

11 12

27

26

36 37

14

4

15

AC203999

CONNECTOR: E-111

AC

E-111

E-111 HARNESS
CONNECTOR:
COMPONENT SIDE

38

12 13

11

26

14

1

20

6

23 24 25

37

31

36

30

10

9

21 22

35

8

7

34

17

29

18 19

5

4

15 16

33

28

32

27

3

2

AC204000

CONNECTOR: F-07

AC

F-07 (B)

F-07 HARNESS
CONNECTOR:
COMPONENT SIDE

8

4

3

2

1
5 6 7

ACX00218

CONNECTOR : G-05

AR

G-05 (B)

SECOND SEAT UNDER
SERVICE HOLE

G-05 HARNESS
CONNECTOR:
COMPONENT SIDE

1

2

3

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-480

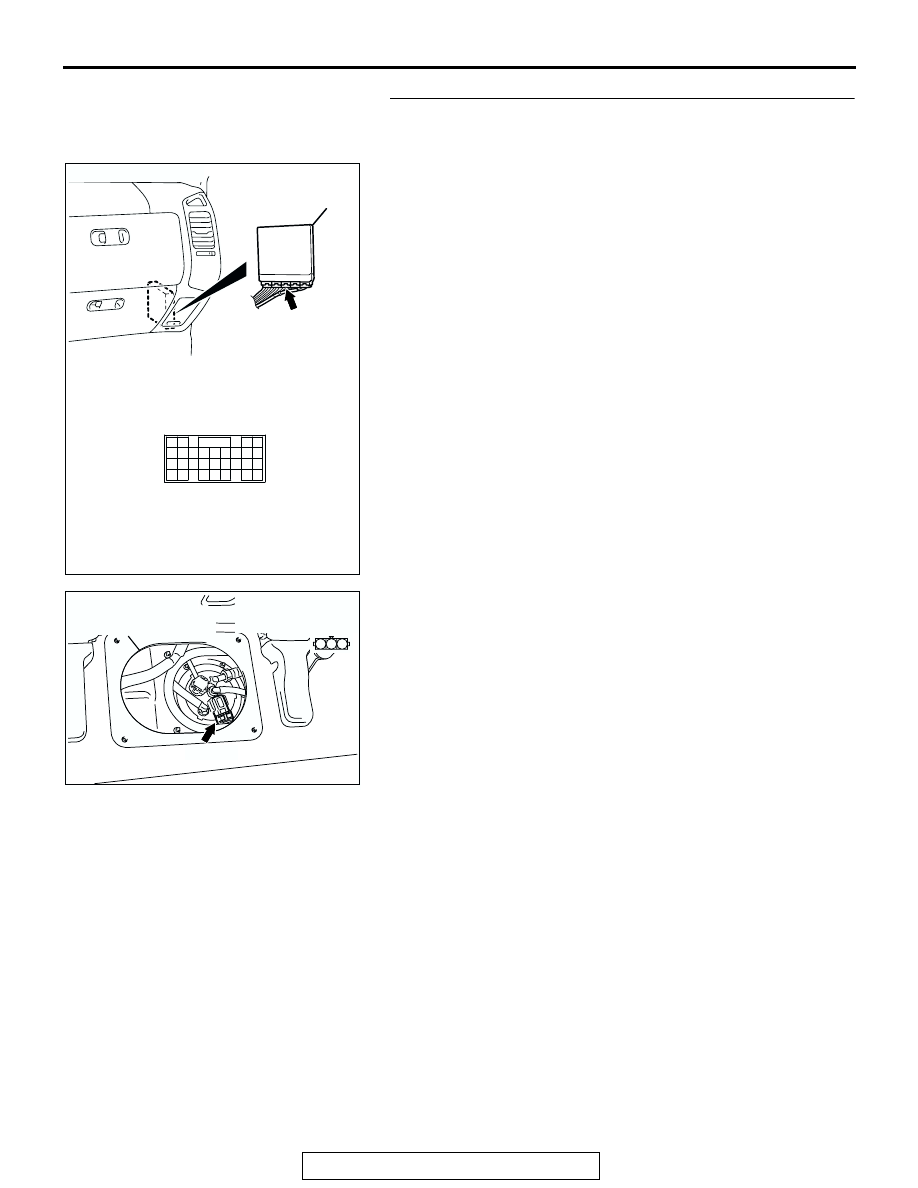

STEP 13. Check the harness wires between PCM
connector D-134 terminal 82 and fuel tank differential
pressure sensor connector G-05 terminal 1 for damage.
Q: Are the harness wires in good condition?

YES : It can be assumed that this malfunction is intermittent.

(Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

− How to Cope with

Intermittent Malfunction

P.00-6

). Go to Step 15.

NO :  Repair the damaged harness wires. Go to Step 15.

AC203997

CONNECTOR: D-134

AC

D-134 (GR)

PCM

D-134 HARNESS CONNECTOR:
HARNESS SIDE

64

63

65 66 67 68

62

61

69 70 71 72 73

74 75 76 77 78 79 80 81 82
83 84

85 86 87

88 89

ACX00218

CONNECTOR : G-05

AR

G-05 (B)

SECOND SEAT UNDER
SERVICE HOLE

G-05 HARNESS
CONNECTOR:
COMPONENT SIDE

1

2

3
