TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-421

DIAGNOSIS

Required Special Tool:

• MB991502: Scan Tool (MUT-II)

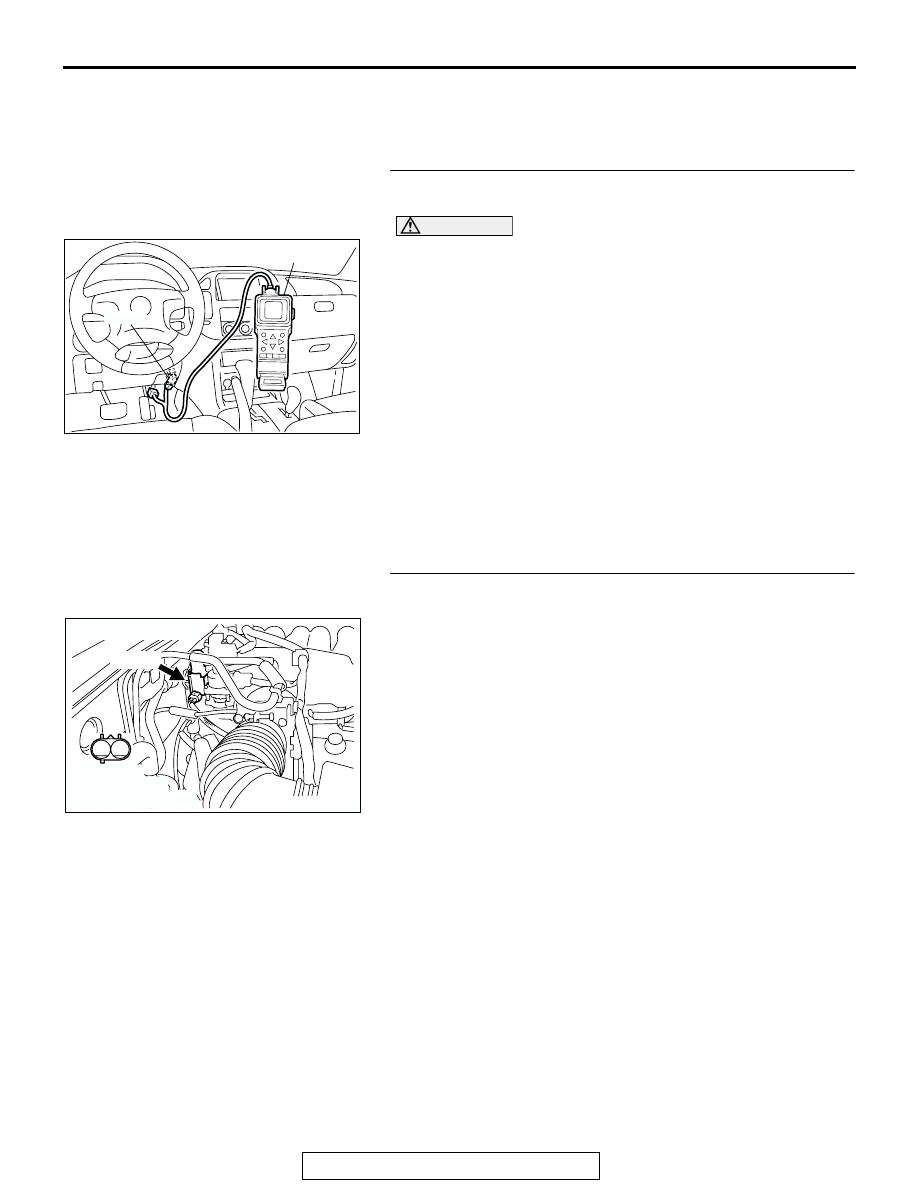

STEP 1. Using scan tool MB991502, check actuator test
item 08: Evaporative Emission Purge Solenoid.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991502 to the actuator test mode for item

08, Evaporative emission purge solenoid.

• An operation sound should be heard and vibration

should be felt when the evaporative emission purge
solenoid is operated.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the solenoid operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

P.00-6

.

NO :  Go to Step 2.

STEP 2 Check harness connector B-06 at the evaporative
emission purge solenoid for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

ACX01539

16-PIN

MB991502

AC

AK201272

1

2

AB

CONNECTOR: B-06

HARNESS
CONNECTOR:
COMPONENT SIDE

B-06(B)

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-422

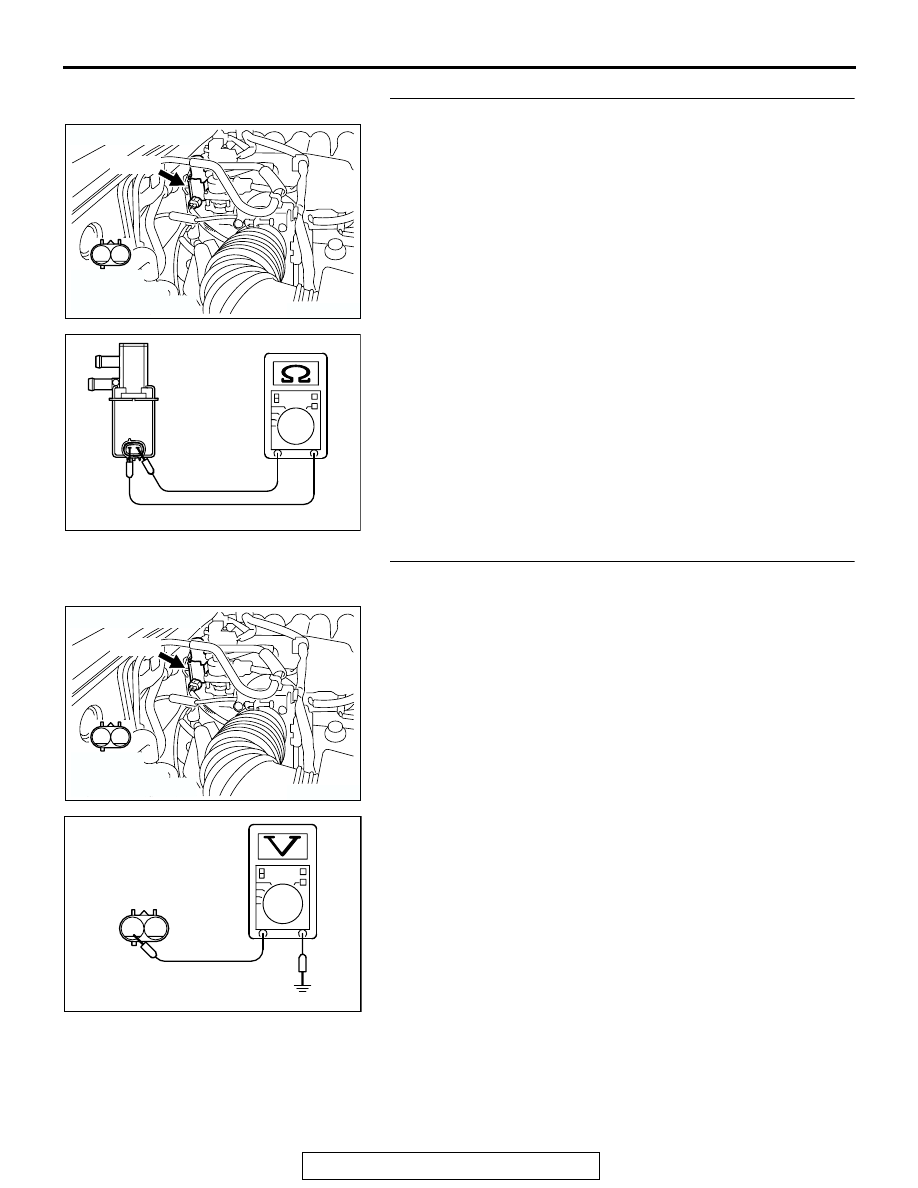

STEP 3 Check the evaporative emission purge solenoid.
(1) Disconnect the evaporative emission purge solenoid

connector B-06.

(2) Measure the resistance between evaporative emission

purge solenoid side connector terminal No. 1 and No. 2.

Standard value: 30

− 34 ohms [at 20°C (68°F)]

Q: Is the resistance between 30 and 34 ohms [at 20

°C

(68

°F)]?

YES : Go to Step 4
NO :  Replace the evaporative emission purge solenoid.

Then go to Step 12.

STEP 4. Measure the power supply voltage at evaporative
emission purge solenoid harness side connector B-06.
(1) Disconnect the connector B-06 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 2 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 6.
NO :  Go to Step 5.

AK201272

1

2

AB

CONNECTOR: B-06

HARNESS
CONNECTOR:
COMPONENT SIDE

B-06(B)

AKX00342

AK201272

1

2

AB

CONNECTOR: B-06

HARNESS
CONNECTOR:
COMPONENT SIDE

B-06(B)

AKX01502

1

2

B-06 HARNESS
CONNECTOR:
COMPONENT SIDE

AV

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-423

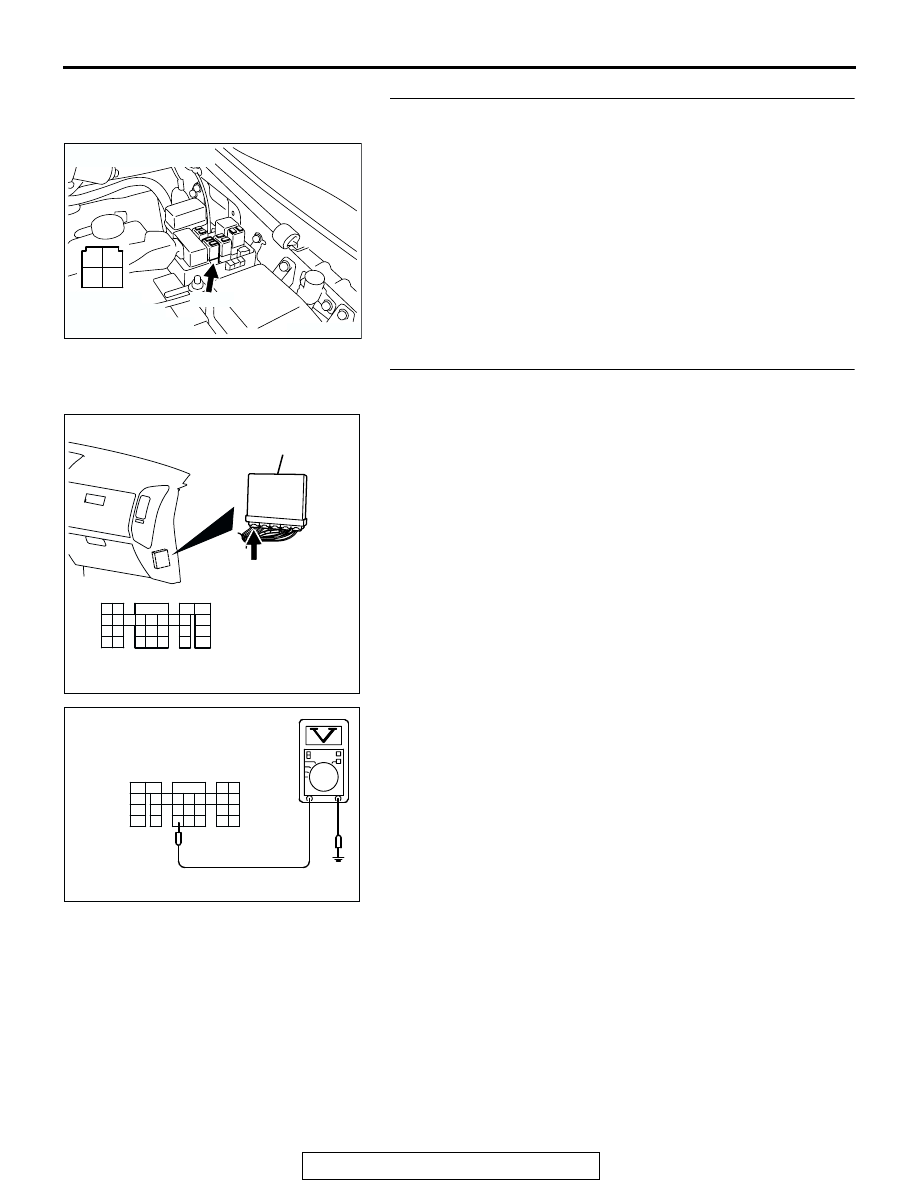

STEP 5. Check harness connector B-22X at MFI relay for
damage.
Q: Is the harness connector in good condition?

YES : Repair harness wire between MFI relay connector B-

22X (terminal No. 1) and evaporative emission purge
solenoid connector B-06 (terminal No. 2) because of
open circuit or short circuit to ground. Then go to Step
12.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

STEP 6. Measure the power supply voltage at PCM
connector D-132 by backprobing.
(1) Do not disconnect the connector D-132.
(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 23 and ground

by backprobing.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES : Go to Step 9.
NO :  Go to Step 7.

AK200951

2 1

3

4

B-22X

AB

CONNECTOR: B-22X

HARNESS
CONNECTOR:
COMPONENT SIDE

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)

AK201421

1

2

3

5

6 7 8 9

4

20

21 22

232425

2627

10111213

14 15

16 1718

19

D-132 HARNESS
CONNECTOR:
HARNESS SIDE

AB

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-424

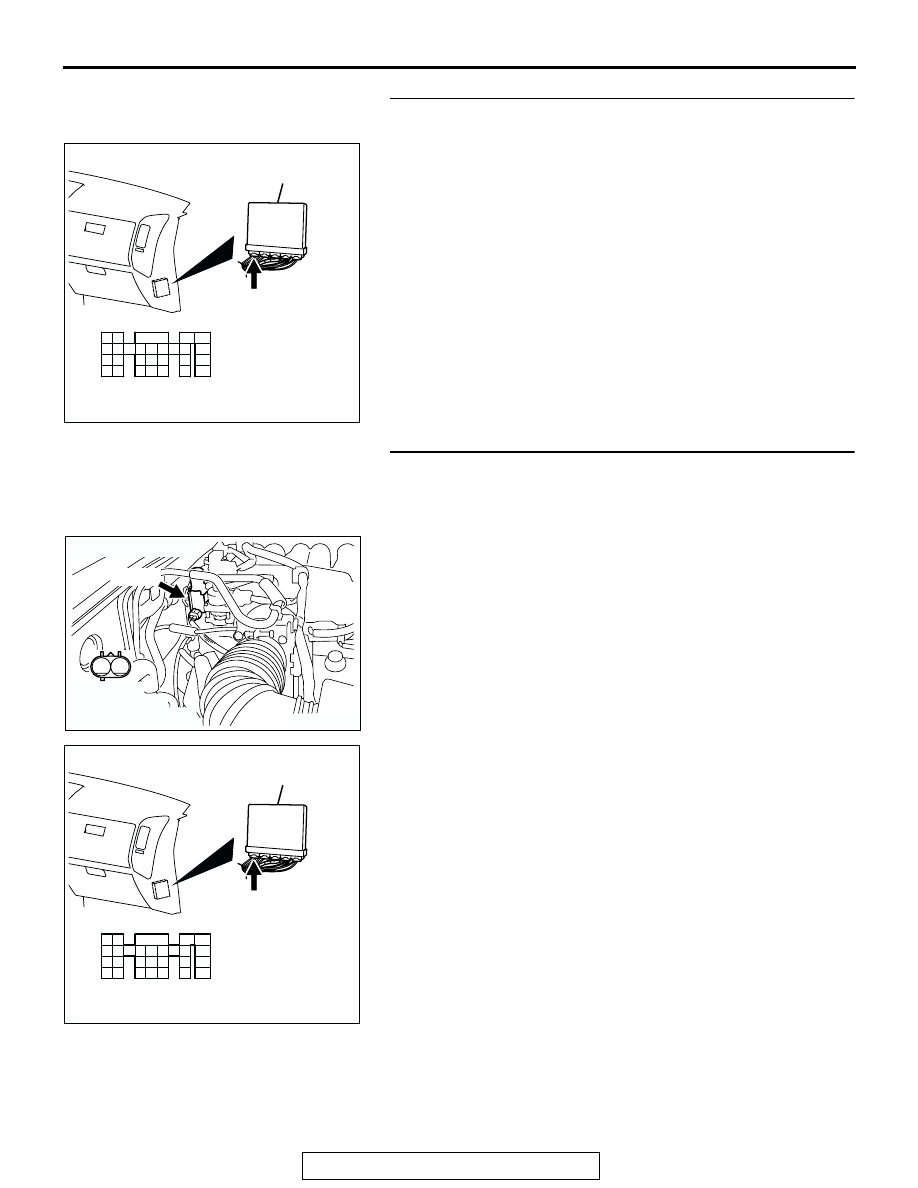

STEP 7. Check harness connector D-132 at PCM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

STEP 8. Check for open circuit and short circuit to ground
between evaporative emission purge solenoid connector
B-06 (terminal No. 1) and PCM connector D-132 (terminal
No. 23).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 12.
NO :  Repair it. Then go to Step 12.

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)

AK201272

1

2

AB

CONNECTOR: B-06

HARNESS
CONNECTOR:
COMPONENT SIDE

B-06(B)

AK200938

2

3

4

5

6

7

8

9

1

10

14

15

16

17

18

19

20

21

22

23

24

25

26

27

11

12

13

AB

CONNECTOR: D-132

HARNESS CONNECTOR:
COMPONENT SIDE

PCM

D-132(GR)
