TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-241

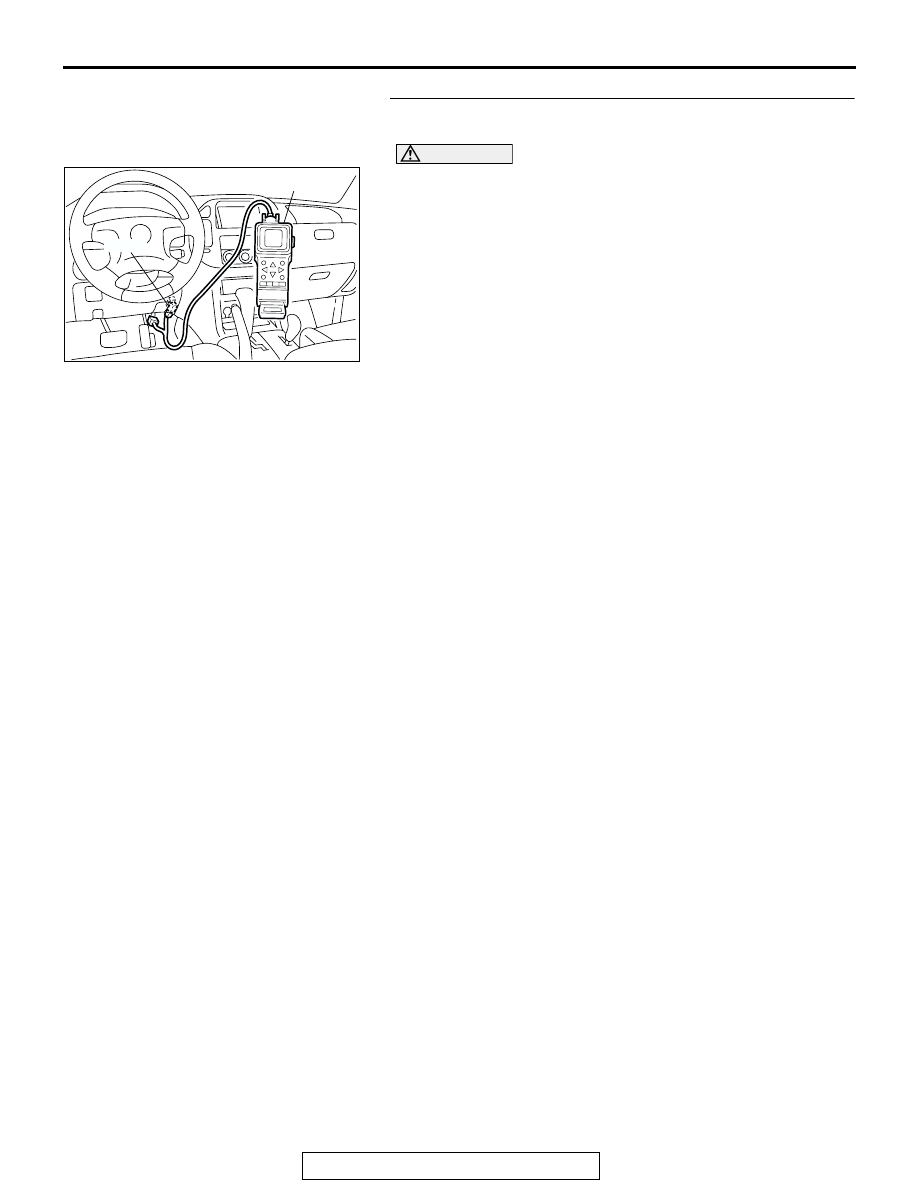

STEP 5. Using scan tool MB991502, check data list item 59:
Heated Oxygen Sensor Bank 2, Sensor 2 (left rear).

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Start the engine and run at idle.
(3) Set scan tool MB991502 to the data reading mode for item

59, Heated Oxygen Sensor Bank 2, Sensor 2 (left rear).

• Warming up the engine. When the engine is revved, the

output voltage should repeat 0 volt and 0.6 to 1.0 volt
alternately.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points

P.00-6

.

NO :  Replace the PCM. Then go to Step 15.

ACX01539

16-PIN

MB991502

AC

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-242

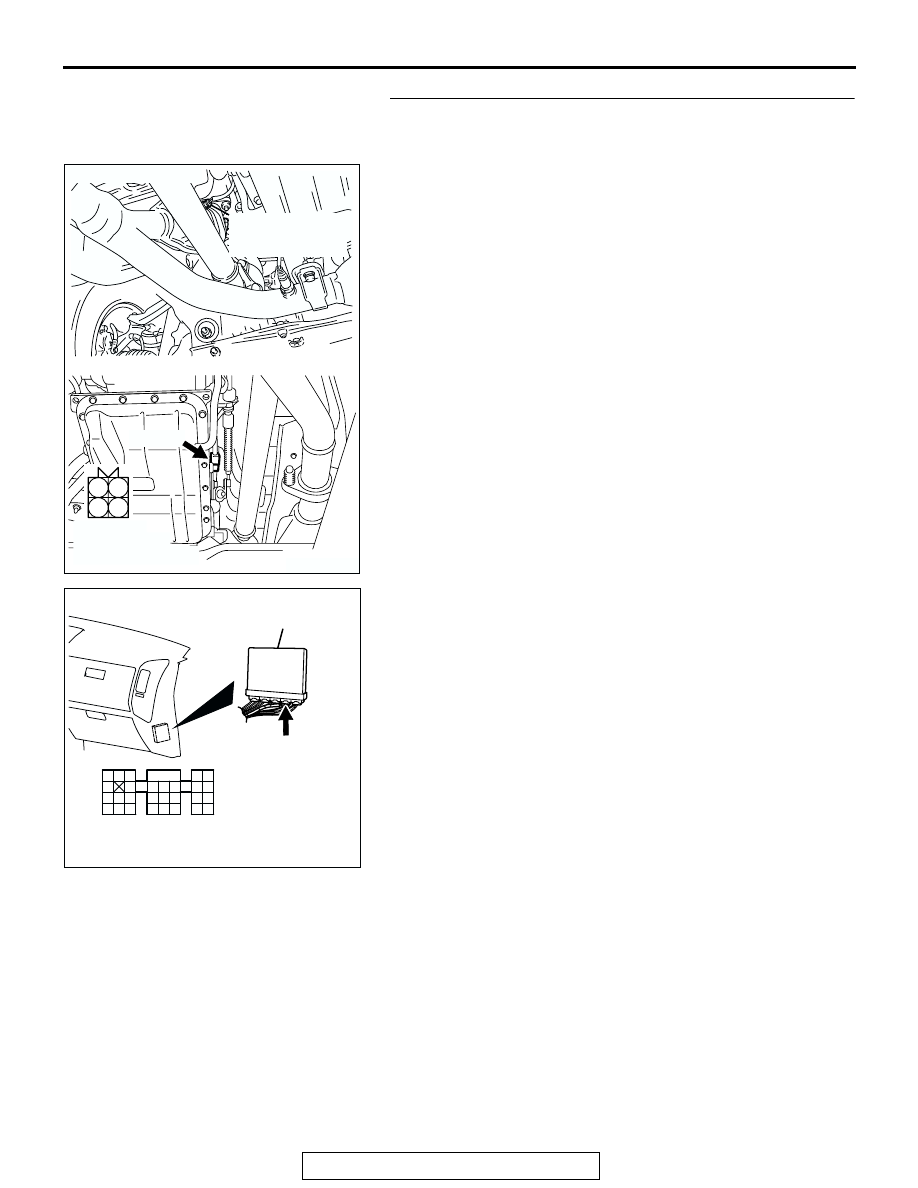

STEP 6. Check harness connector C-15 at left bank heated
oxygen sensor (rear) and harness connector D-135 at PCM
for damage.
Q: Is the harness connector in good condition?

YES : Check harness connector E-112 at intermediate

connector for damage, and repair or replace as
required. Refer to GROUP 00E, Harness Connector
Inspection. If intermediate connector E-112 is in good
condition, repair harness wire between left bank
heated oxygen sensor (rear) connector C-15 (terminal
No. 4) and PCM connector D-135 (terminal No. 116)
because of open circuit or harness damage. Then go
to Step 15.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 15.

AK201280

1

2

3

4

CONNECTOR: C-15

C-15(B)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

RIGHT BANK
HEATED OXYGEN
SENSOR (REAR)

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-243

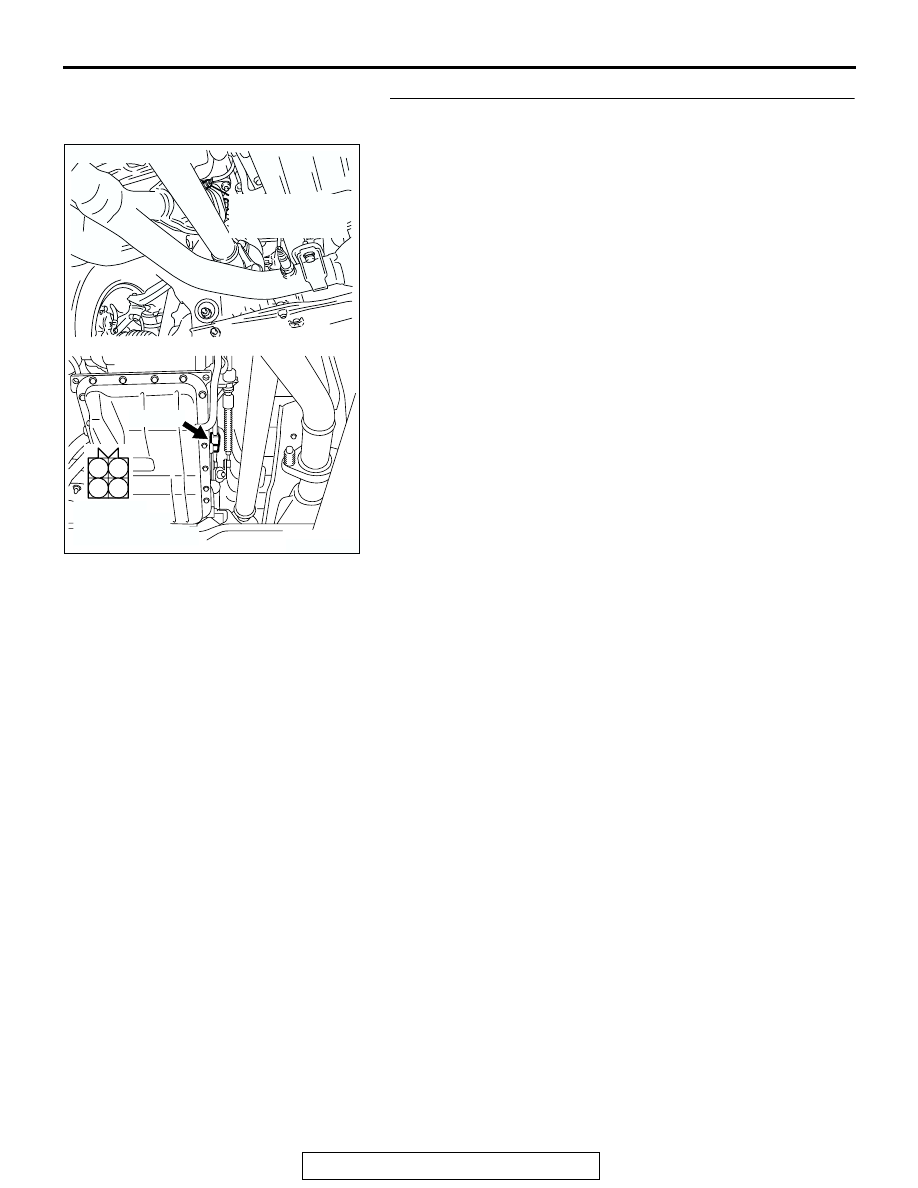

STEP 7. Check harness connector C-15 at left bank heated
oxygen sensor (rear) for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 15.

AK201280

1

2

3

4

CONNECTOR: C-15

C-15(B)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

RIGHT BANK
HEATED OXYGEN
SENSOR (REAR)

TSB Revision

DIAGNOSTIC TROUBLE CODE PROCEDURES

13Ac-244

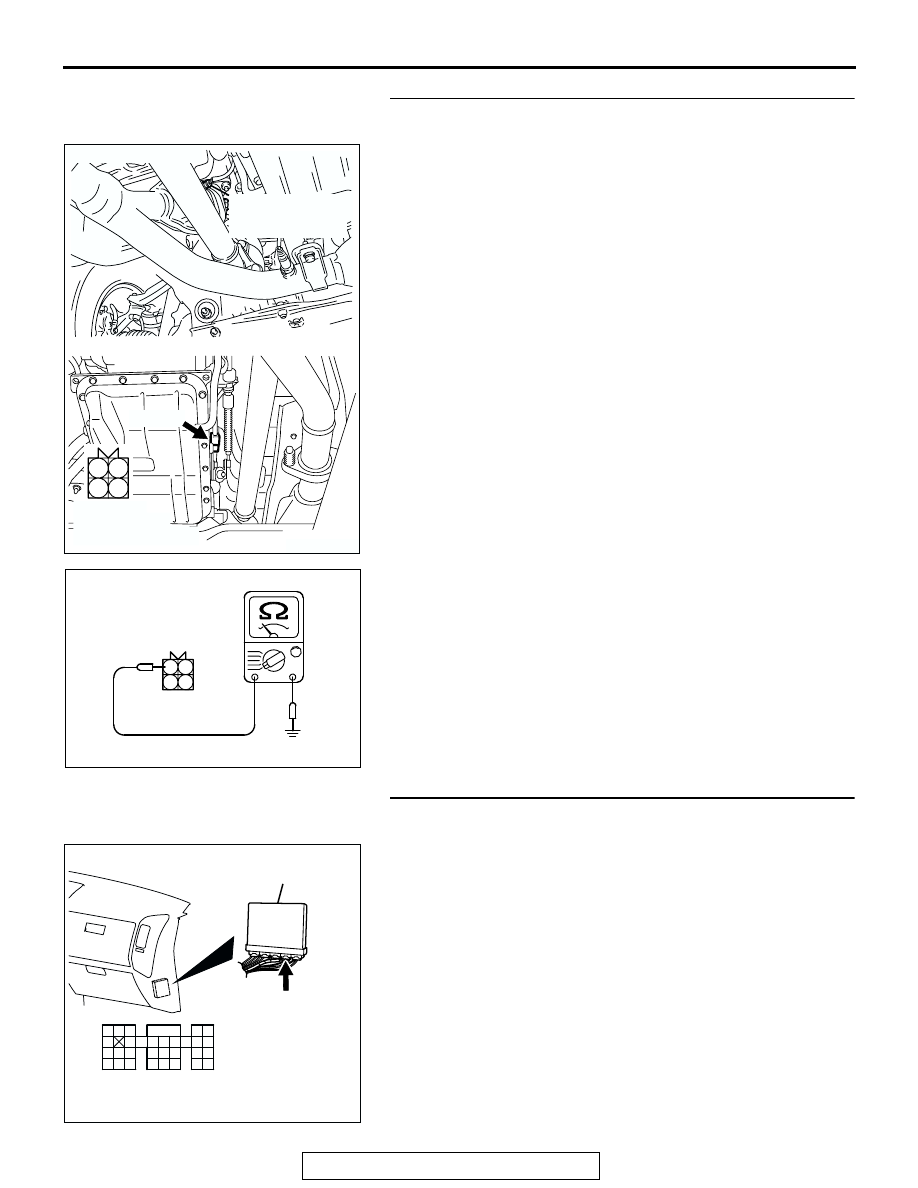

STEP 8. Check the continuity at left bank heated oxygen
sensor (rear) harness side connector C-15.
(1) Disconnect the connector C-15 and measure at the harness

side.

(2) Check for the continuity between terminal No. 2 and

ground.

• Should be less than 2 ohms.

Q: Is the continuity normal?

YES : Go to Step 11.
NO :  Go to Step 9.

STEP 9. Check harness connector D-135 at PCM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 15.

AK201280

1

2

3

4

CONNECTOR: C-15

C-15(B)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

RIGHT BANK
HEATED OXYGEN
SENSOR (REAR)

AK000239 AX

1

2

4 3

C-15 HARNESS
CONNECTOR:
COMPONENT SIDE

AK200947

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

CONNECTOR: D-135

HARNESS CONNECTOR:
COMPONENT SIDE

AB

PCM

D-135(GR)
