Mitsubishi Montero (2002-2004). Manual - part 529

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-47

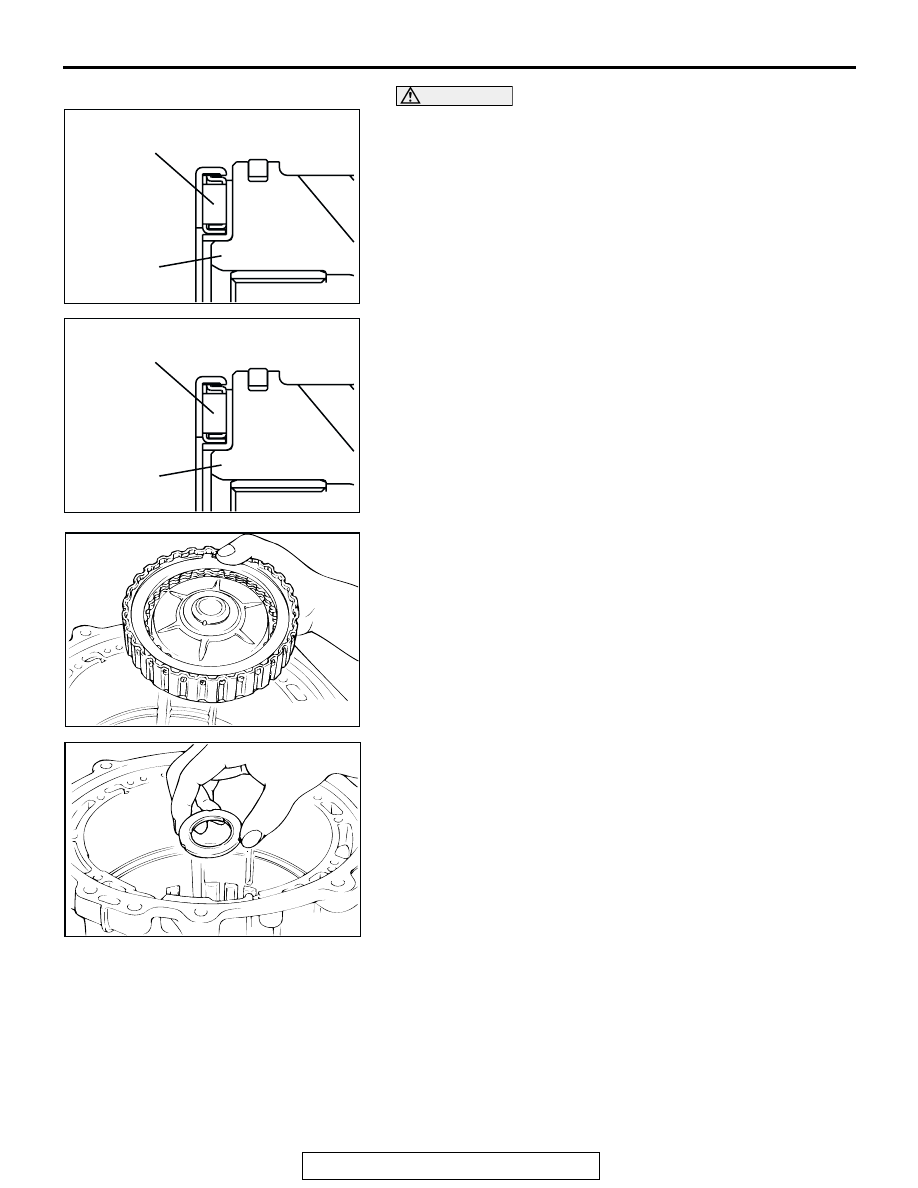

CAUTION

Make sure thrust bearing number 12 is mounted in the cor-
rect direction.

18.Install the underdrive clutch. <V4A51>

19.Apply Vaseline or petroleum jelly on the thrust bearing

number 11, and then install on the front end of the
underdrive clutch retainer. <V4A51>

AKX00063

THRUST BEARING NO.12

OUTPUT
SHAFT

<V4A51>

AB

AKX00063

THRUST BEARING NO.12

DIRECT
PLANETARY
CARRIER

<V5A51>

AC

AKX00065

<V4A51>

AB

AKX00067

<V4A51>

AB

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-48

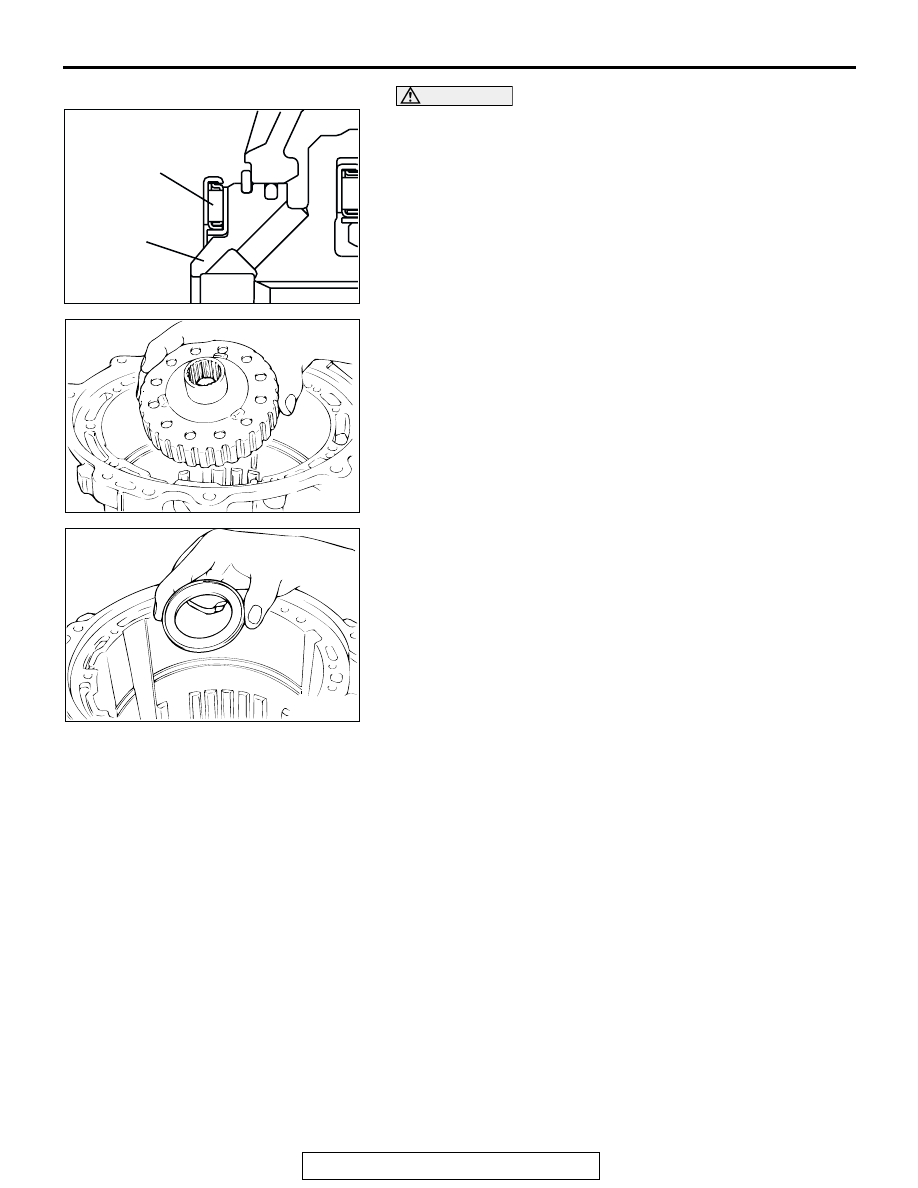

CAUTION

Make sure thrust bearing number 11 is mounted in the cor-
rect direction.

20.Install the underdrive clutch hub. <V4A51>

21.Apply Vaseline or petroleum jelly on the thrust bearing

number 10, and then install it on the underdrive clutch hub.
<V4A51>

AKX00066

THRUST
BEARING NO.11

UNDERDRIVE
CLUTCH
RETAINER

<V4A51>

AB

AKX00068

<V4A51>

AB

AKX00070

<V4A51>

AB

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-49

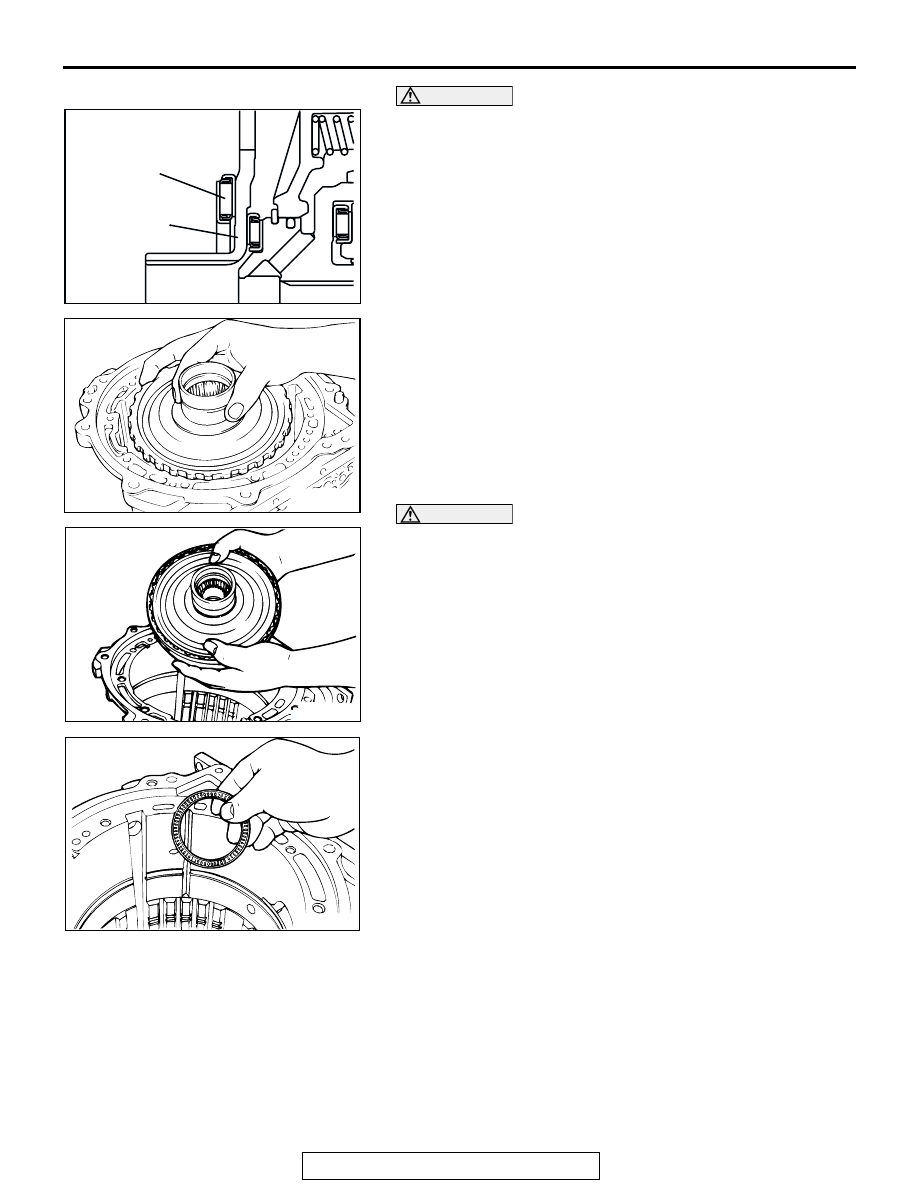

CAUTION

Make sure thrust bearing number 10 is mounted in the cor-
rect direction.

22.Install the output flange. <V4A51>

CAUTION

Confirm that the thrust bearing number 10 in the direct
annulus gear is still at specified location.
23.Insert the direct annulus gear. <V5A51>

24.Apply Vaseline or petroleum jelly on the thrust bearing

number 9, and then install on the output flange <V4A51> or
direct annulus gear <V5A51>.

AKX00069

THRUST
BEARING NO.10

UNDERDRIVE
CLUTCH HUB

<V4A51>

AB

AKX00071

<V4A51>

AB

AKX00302

<V5A51>

AB

AKX00073

TRANSMISSION

TSB Revision

AUTOMATIC TRANSMISSION OVERHAUL

23B-50

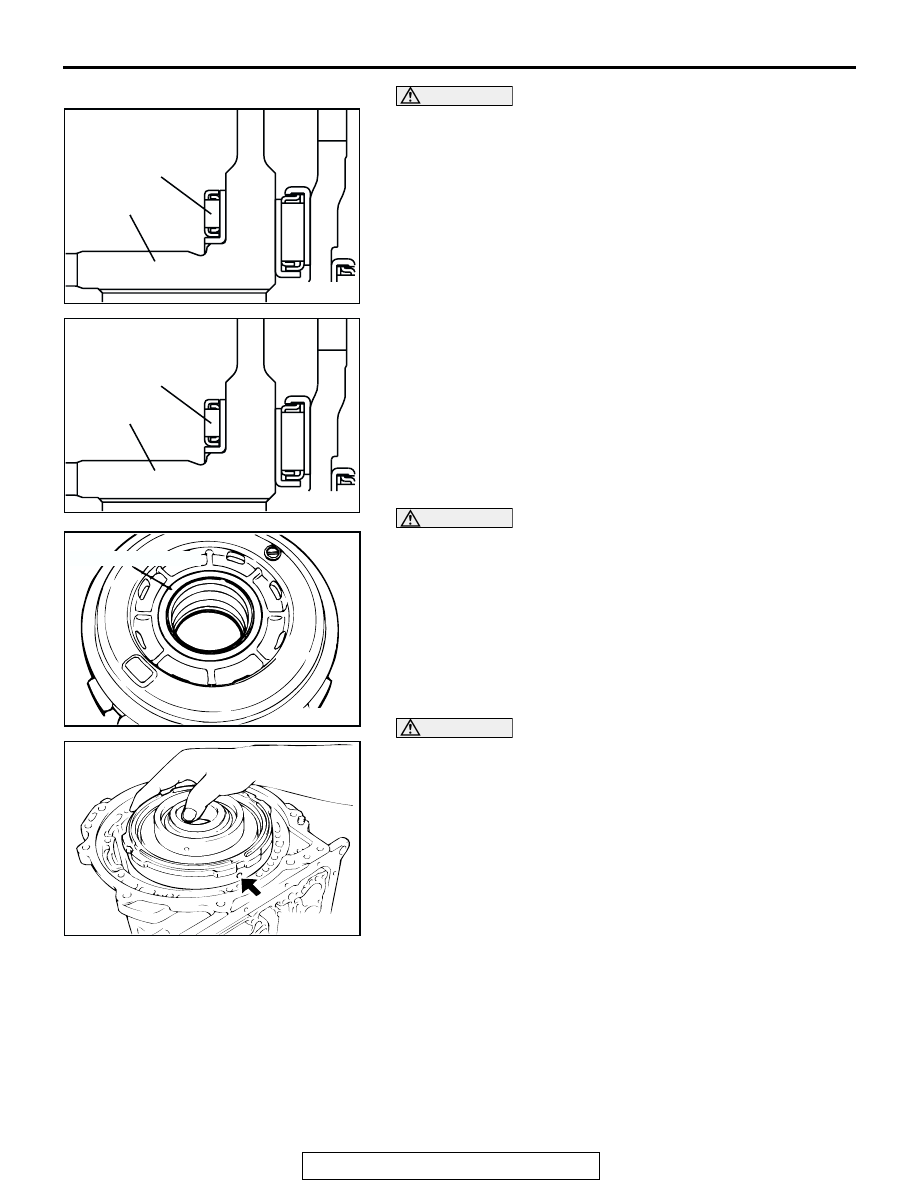

CAUTION

Make sure thrust bearing number 9 is mounted in the cor-
rect direction.

CAUTION

Measure and record the thickness of the thrust race num-
ber 8 to be assembled.
25.Apply Vaseline or blue petroleum jelly on the thrust race

number 8 being used, and then install it on the rear side of
the center support.

CAUTION

• Install the center support so that the oil holes shown in

the illustration face the lower side of the transmission
case.

• Make sure that the thrust race number 8 attached to the

rear side of the center support does not fall off.

26.Install the center support.

AKX00072

THRUST
BEARING NO.9

OUTPUT FLANGE

<V4A51>

AB

AKX00072

THRUST
BEARING NO.9

DIRECT
ANNULUS GEAR

<V5A51>

AC

AKX00074

THRUST RACE NO.8

AB

AKX00075
