RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-127

STEP 2. Check amplifier connector G-19 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is amplifier connector G-19 in good condition?

YES : Go to Step 3.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The speakers should sound.

STEP 3. Check the wiring harness between amplifier
connector G-19 (terminal 6 and 16) and the battery.

NOTE: Also check intermediate connector D-28 and D-125. If
intermediate connectors D-28 or D-125 are damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between amplifier connector G-19

(terminal 6 and 16) and the battery in good condition?
YES : There is no action to be taken.
NO :  Repair the wiring harness. The speakers should

sound.

AC204179

CONNECTOR : G-19

AV

HARNESS SIDE

3 2

1110

4

1312

1
9

5

6

1615

7

8

1817

14

AC204179

CONNECTOR : G-19

AV

HARNESS SIDE

3 2

1110

4

1312

1
9

5

6

1615

7

8

1817

14

AC204188

CONNECTORS: D-28, D-125

BO

D-125

D-28

D-125

D-28

9

8

6 7

5

3 4

20

32

21

33

43

17 18

30

41

16

29

28

39 40

13

25

12

24

35 36

14

26

37

15

27

38

19

31

42

1

10

22

2

11

23

34

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-128

STEP 4. Measure at amplifier connector G-19 in order to
check the ground circuit to the amplifier.
(1) Disconnect amplifier connector G-19, and measure at the

wiring harness side.

(2) Measure the resistance between terminal 7 and ground by

backprobing.

• The resistance should equal 2 ohms or less.

(3) Measure the resistance between terminal 17 and ground by

backprobing.

• The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 7.
NO :  Go to Step 5.

STEP 5. Check amplifier connector G-19 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is amplifier connector G-19 in good condition?

YES : Go to Step 6.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The speakers should sound.

STEP 6. Check the wiring harness between amplifier
connector G-19 (terminal 7 and 17) and ground.
Q: Is the wiring harness between amplifier connector G-19

(terminal 7 and 17) and ground in good condition?
YES : There is no action to be taken.
NO :  Repair the wiring harness. The speakers should

sound.

AC204179

CONNECTOR : G-19

AV

HARNESS SIDE

3 2

1110

4

1312

1
9

5

6

1615

7

8

1817

14

AC204738 EJ

HARNESS SIDE: G-19

3 2

11 10

4

13 12

1
9

5

6

16 15

7

8

18 17

14

AC204179

CONNECTOR : G-19

AV

HARNESS SIDE

3 2

1110

4

1312

1
9

5

6

1615

7

8

1817

14

AC204179

CONNECTOR : G-19

AV

HARNESS SIDE

3 2

1110

4

1312

1
9

5

6

1615

7

8

1817

14

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-129

STEP 7. Check the DIN cable between amplifier and radio
and CD player.
Q: Is the DIN cable in good condition?

YES : Go to Step 8.
NO :  Repair or replace the DIN cable. The speakers should

sound.

STEP 8. Replace the radio and CD player.
Q:  Do the speakers sound normally?

YES : There is no action to be taken.
NO :  Repair or replace the amplifier. The speakers should

sound.

RADIO WITH TAPE PLAYER AND CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-130

INSPECTION PROCEDURE 3: No Sound from One Speaker. <Vehicles without Amplifier>

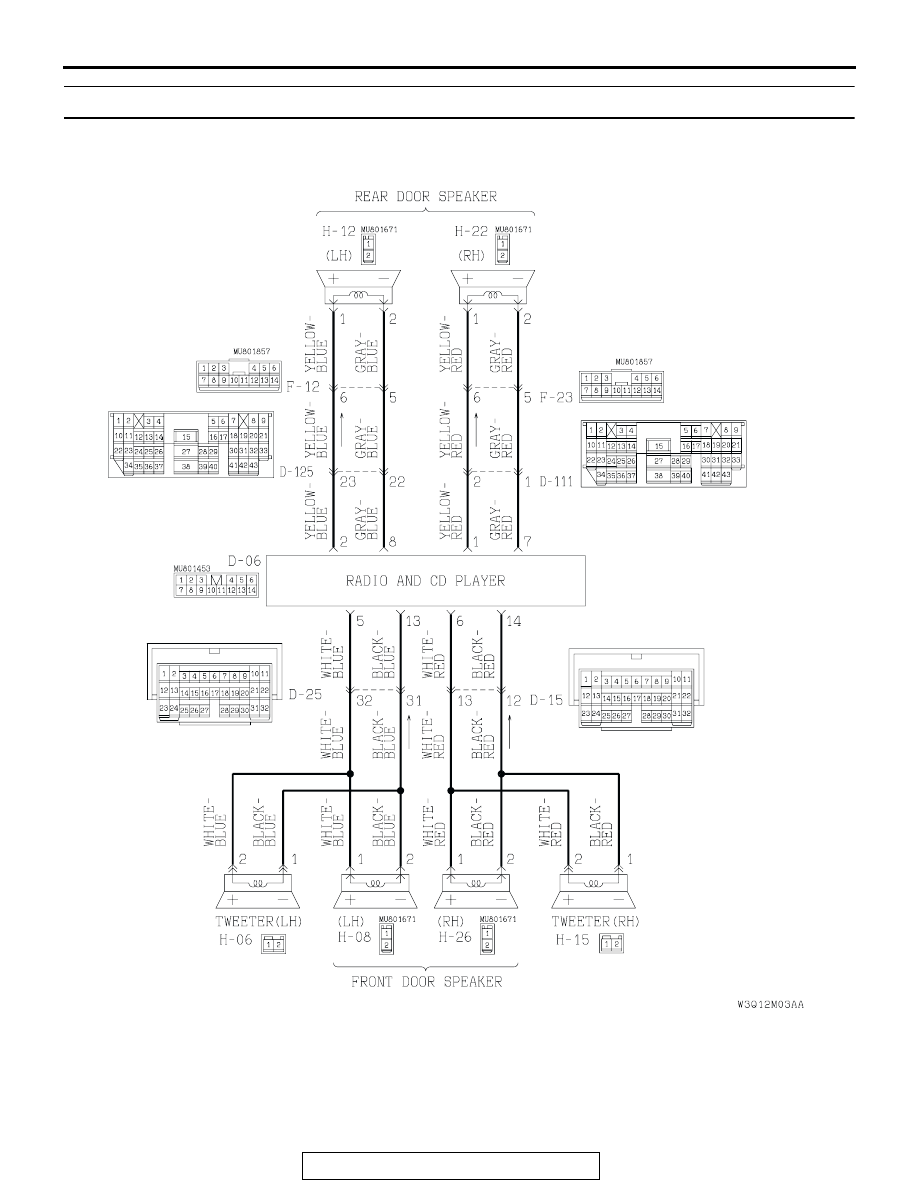

Speaker System Circuit <Vehicles without Amplifier>
