COMBINATION METERS ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-47

STEP 9. Check fuel level sensor connector G-03 and
combination meter connector D-03 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Are fuel level sensor connector G-03 and combination

meter connector D-03 in good condition?
YES : Go to Step 10.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The fuel gauge should now operate

normally.

AC204170

CONNECTOR : D-03

AC

D-03(GR)

HARNESS
SIDE

51

52

61 60

53

54

56

57

55

63

66 65 64

59

62

58

67

D-03(GR)

AC204179

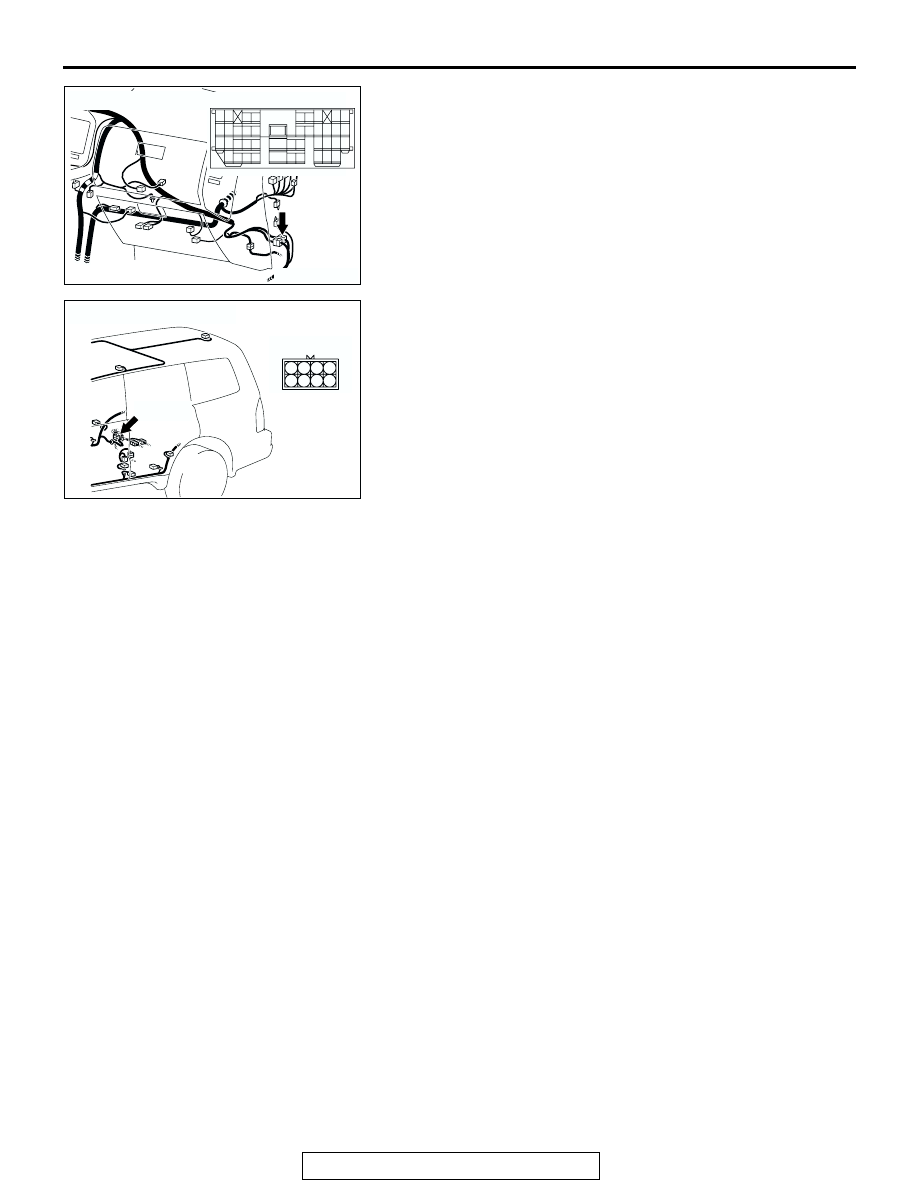

CONNECTOR : G-03

AU

G-03(B)

G-03(B)

HARNESS
SIDE

2

3

1

COMBINATION METERS ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-48

STEP 10. Check the wiring harness between fuel level
sensor connector G-03 (terminal 1) and combination meter
connector D-03 (terminal 63).

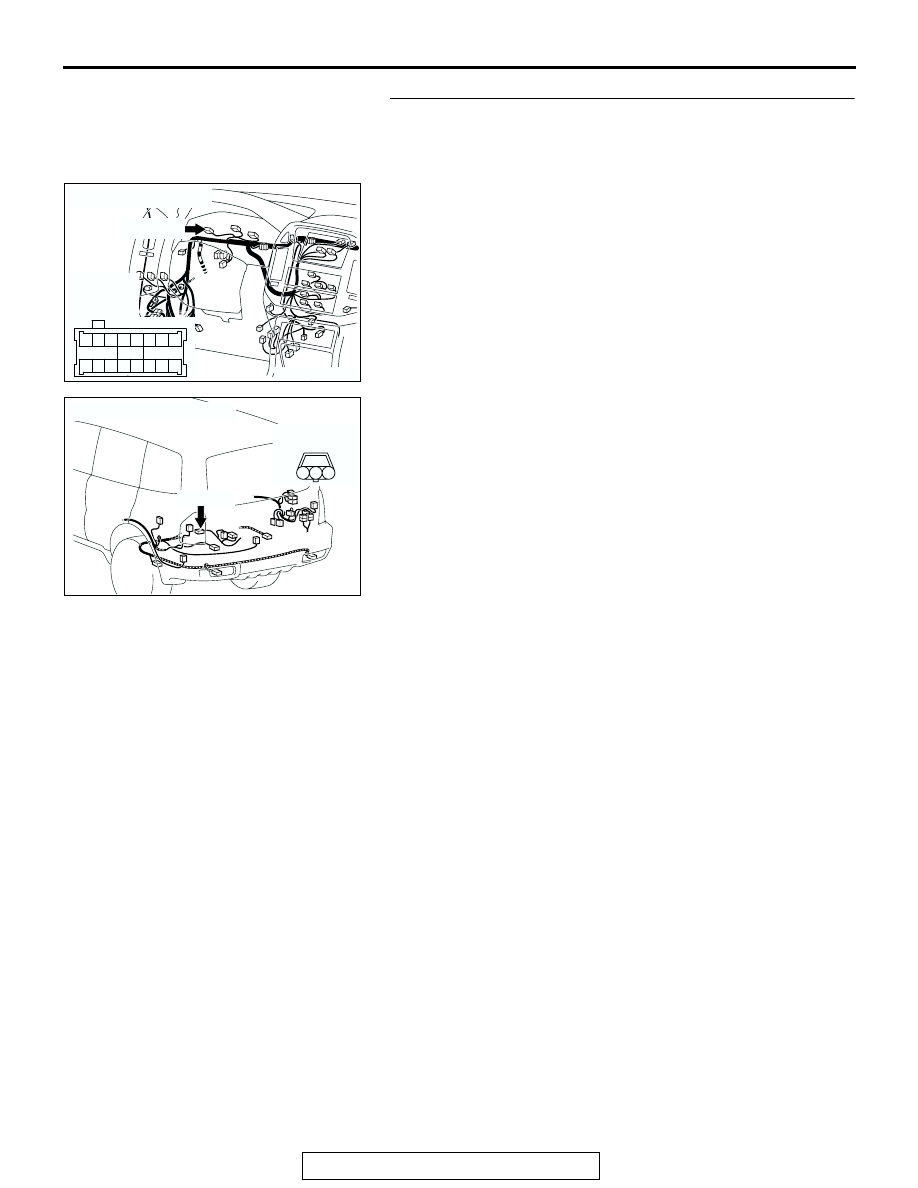

AC204188

CONNECTORS: D-03, D-29

BI

HARNESS SIDE

D-29

D-29

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

D-03(GR)

51

52

61 60

53

54

56

57

55

63

66 65 64

59

62

58

67

D-03(GR)

AC204179

CONNECTOR : G-03

AU

G-03(B)

G-03(B)

HARNESS
SIDE

2

3

1

COMBINATION METERS ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-49

NOTE: Also check intermediate connectors F-07, D-111 and
joint connector (5) D-29. If intermediate connector F-07, D-111
or joint connector (5) D-29 is damaged, repair or replace the
connector as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the wiring harness between fuel level sensor

connector G-03 (terminal 1) and combination meter
connector D-03 (terminal 63) in good condition?
YES : Repair or replace the combination meter. The fuel

gauge should now operate normally.

NO :  Repair the wiring harness. The fuel gauge should now

operate normally.

AC204171

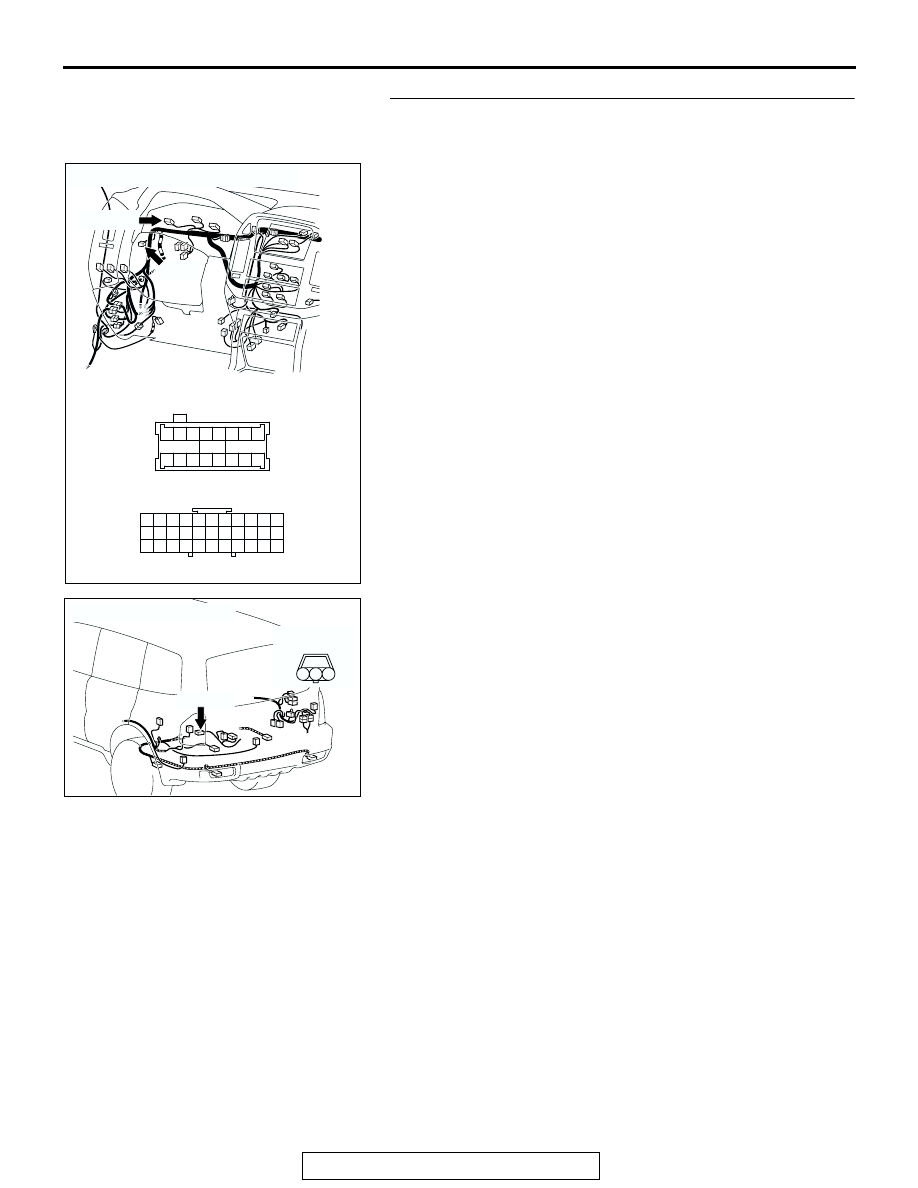

CONNECTOR : D-111

AQ

9

8

6 7

5

3 4

20

32

21

33

43

17 18

30

41

16

29

28

39 40

13

25

12

24

35 36

14

26

37

15

27

38

19

31

42

1

10

22

2

11

23

34

AC204178

CONNECTOR : F-07

AN

F-07(B)

F-07(B)

7

6

5

1 2 3 4

8

COMBINATION METERS ASSEMBLY AND VEHICLE SPEED SENSOR

TSB Revision

CHASSIS ELECTRICAL

54A-50

INSPECTION PROCEDURE 4: Engine Coolant Temperature Gauge does not Work.

.

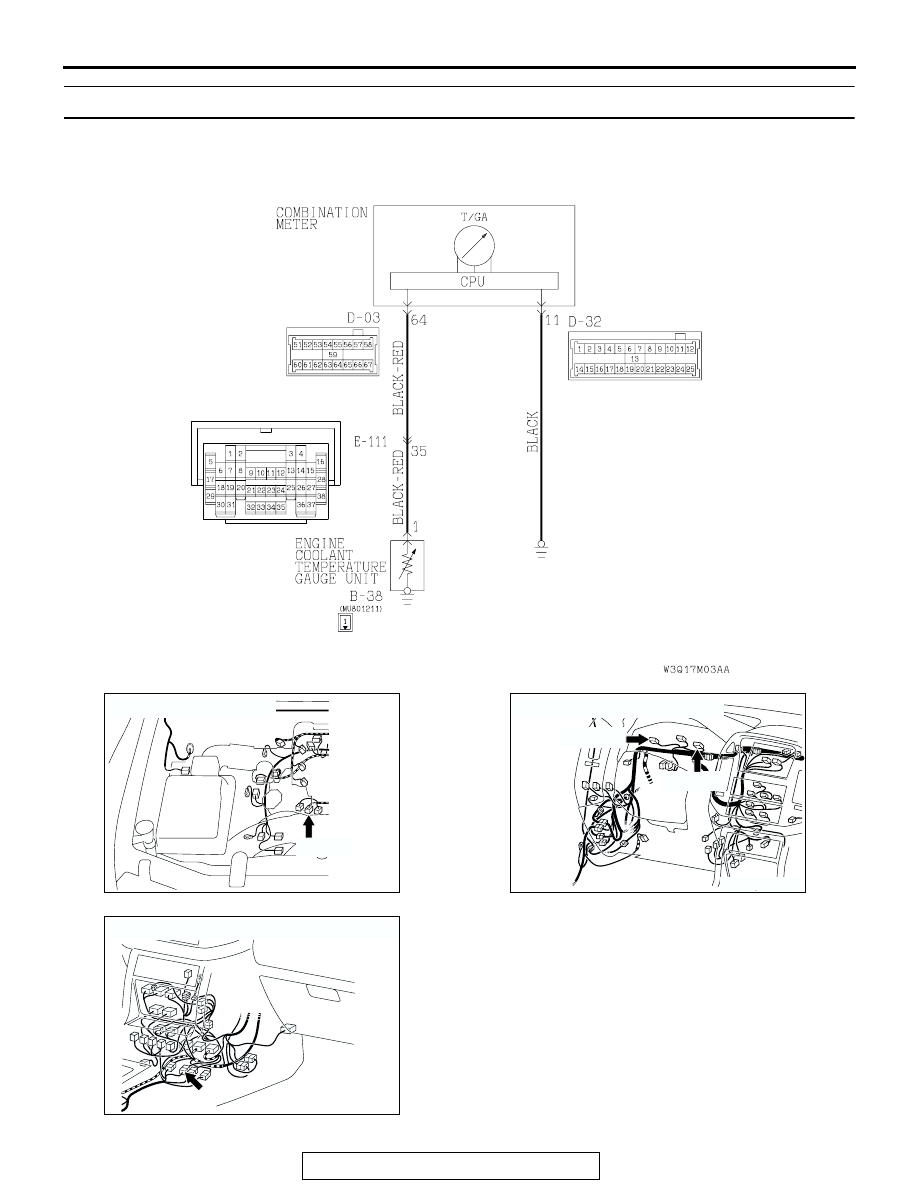

Engine Coolant Temperature Gauge Circuit

AC204168

CONNECTOR : B-38

AE

B-38(B)

AC204170

CONNECTORS : D-03, D-32

DF

D-03(GR)

D-32(GR)

AC204176

CONNECTOR: E-111

AK
