IGNITION SYSTEM

TSB Revision

ENGINE OVERHAUL

11B-9

REMOVAL SERVICE POINT

.

<<A>> CAMSHAFT POSITION SENSING CYLINDER
REMOVAL

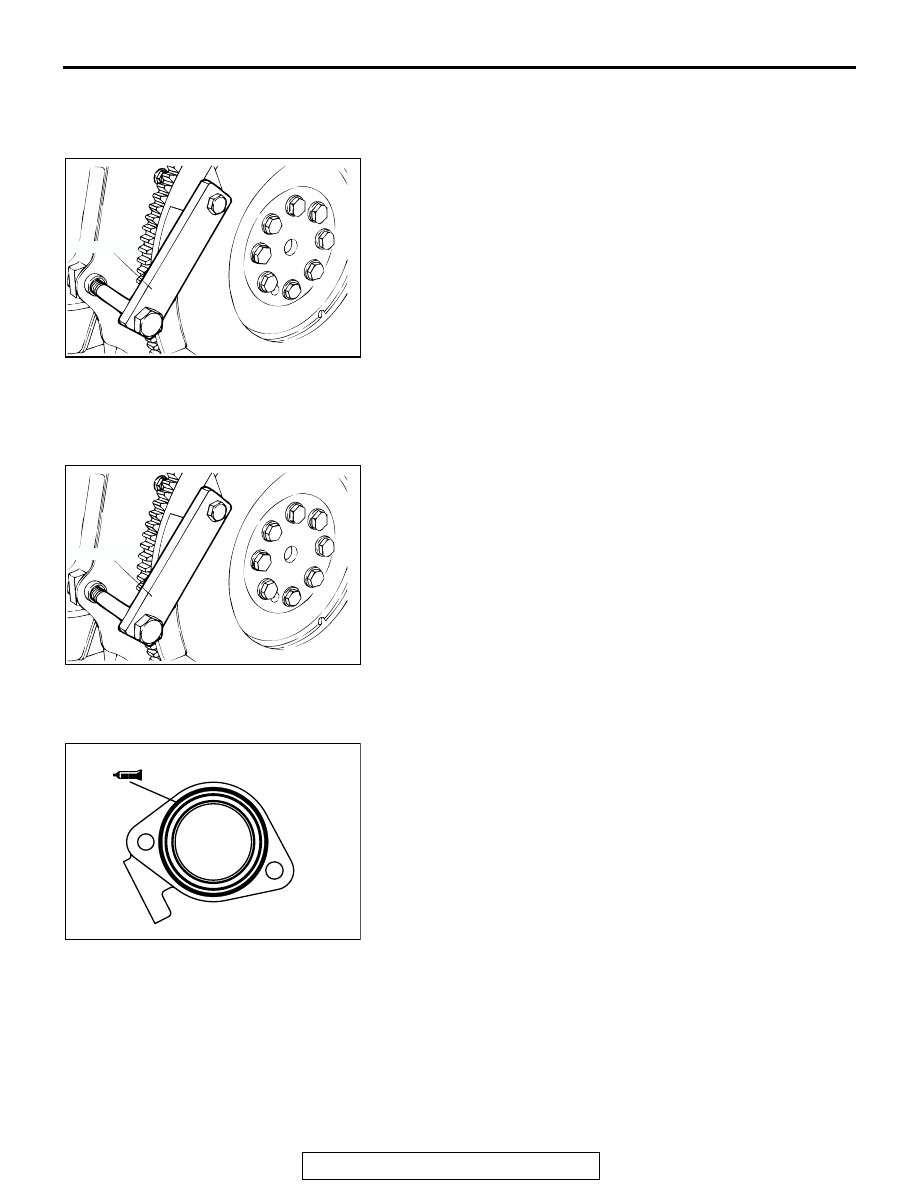

1. Using special tool MD998781, hold the drive plate or

flywheel.

2. Loosen the camshaft position sensing cylinder bolt.

INSTALLATION SERVICE POINT

.

>>A<< CAMSHAFT POSITION SENSING CYLINDER
INSTALLATION
1. Using special tool MD998781, hold the drive plate or

flywheel.

2. Tighten the camshaft position sensing cylinder bolt to the

specified torque.

Tightening torque: 22

± 4 Nm (16 ± 3 ft-lb)

.

>>B<< CAMSHAFT POSITION SENSOR SUPPORT
INSTALLATION
Apply a 3 mm (0.12 inch) diameter bead of sealant Mitsubishi
Genuine Parts number MD970389, or equivalent to the cam-
shaft position sensor support.

AKX01329

MD998781

AB

AKX01329

MD998781

AB

AK000008

TIMING BELT

TSB Revision

ENGINE OVERHAUL

11B-10

TIMING BELT

REMOVAL AND INSTALLATION

M1113001900403

Required Special Tool:

• MB990767: End Yoke Holder

• MD998715: Pins

• MD998767: Tensioner Pulley Wrench

• MD998769: Crankshaft Spacer

AK201074 AB

44 ± 10 N·m
33 ± 7 ft-lb

88 ± 10 N·m
65 ± 7 ft-lb

14 ± 1 N·m
124 ± 9 in-lb

48 ± 6 N·m
35 ± 4 ft-lb

24 ± 3 N·m
17 ± 2 ft-lb

4

5

6

1

2

3

7

8

9

14

15

16

11

12

13

17

10

14 ± 1 N·m
124 ± 9 in-lb

8.5 ± 0.5 N·m
76 ± 4 in-lb

44 ± 10 N·m
33 ± 7 ft-lb

11 ± 1 N·m
97 ± 9 in-lb

REMOVAL STEPS

1. TIMING BELT FRONT UPPER

COVER, RIGHT

2. TIMING BELT FRONT UPPER

COVER, LEFT

3. TIMING BELT FRONT LOWER

COVER

<<A>> >>D<<

4. TIMING BELT
5. CRANKSHAFT POSITION SENSOR

>>C<<

6. AUTO-TENSIONER
7. TENSIONER PULLEY

8. TENSIONER ARM
9. SHAFT
10. IDLER PULLEY
11. IDLER PULLEY SPACER

>>B<<

12. CRANKSHAFT SPROCKET
13. CRANKSHAFT SENSING BLADE

>>B<<

14. CRANKSHAFT SPACER

<<B>> >>A<<

15. CAMSHAFT SPROCKET BOLT
16. CAMSHAFT SPROCKET
17. TIMING BELT REAR COVER

REMOVAL STEPS (Continued)

TIMING BELT

TSB Revision

ENGINE OVERHAUL

11B-11

REMOVAL SERVICE POINTS

.

<<A>> TIMING BELT REMOVAL

CAUTION

Water or oil on the belt shortens its life drastically, so the
removed timing belt, sprocket, and tensioner must be kept
free from oil and water. Do not immerse parts in cleaning
solvent.
Mark the belt running direction for reference in reinstallation.
NOTE: If there is oil or water on any part, check the front case
oil seal, camshaft oil seal, and water pump for leaks.

.

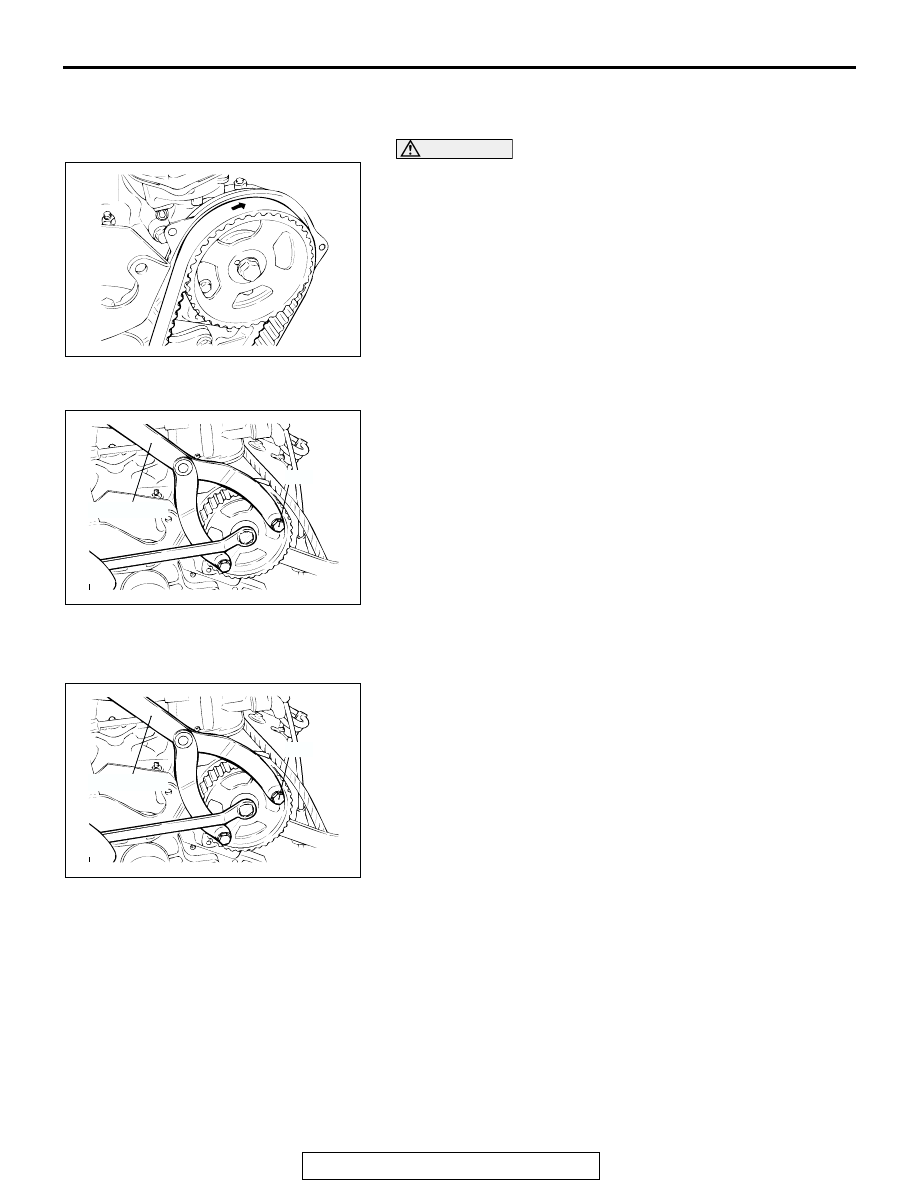

<<B>> CAMSHAFT SPROCKET BOLT REMOVAL
Use special tools MB990767 and MD998715 to prevent the
camshaft sprocket from turning, and then loosen the camshaft
sprocket bolt.

INSTALLATION SERVICE POINTS

.

>>A<< CAMSHAFT SPROCKET BOLT INSTALLATION
Use special tools MB990767 and MB998715 to prevent the
camshaft sprocket from turning, and then tighten the camshaft
sprocket bolt.

Tightening torque: 88

± 10 Nm (65 ± 7 ft-lb)

.

AKX00725

AKX00720

AB

MB990767

MD998715

AKX00720

AB

MB990767

MD998715

TIMING BELT

TSB Revision

ENGINE OVERHAUL

11B-12

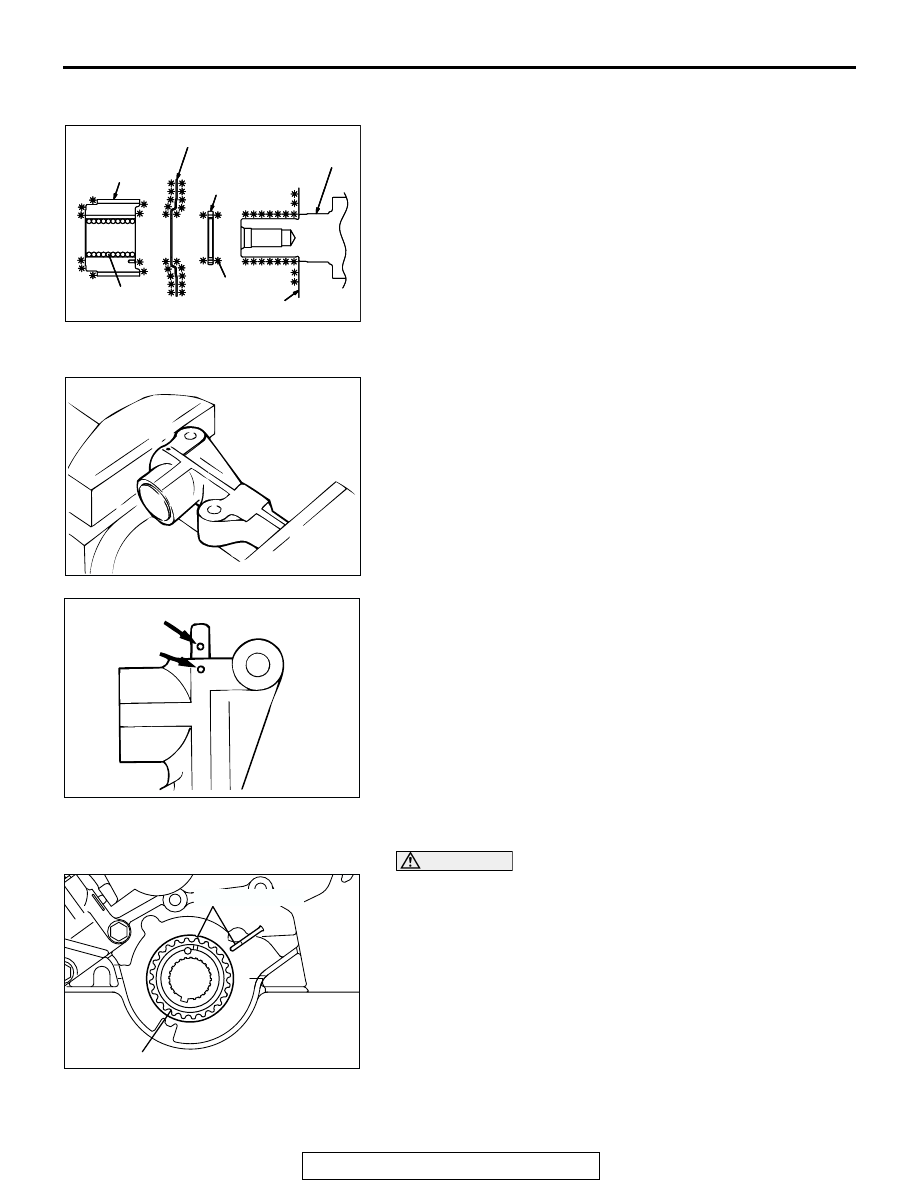

>>B<< CRANKSHAFT SENSING BLADE/CRANKSHAFT
SPACER/CRANKSHAFT SPROCKET INSTALLATION
1. Clean the hole in the crankshaft sprocket.
2. Clean and degrease the mating surfaces of the crankshaft

sprocket; sensing blade; and spacer.

NOTE: Degreasing is necessary to prevent decrease in friction
between the mating surface due to presence of oil.

.

>>C<< AUTO-TENSIONER INSTALLATION
If the auto-tensioner rod is fully extended, set it in the retracted
position with the following procedure.
1. Set the auto-tensioner in a vice.

2. Slowly close the vice to force the rod in until the set hole (A)

of the rod is lined up with the set hole (B) of the cylinder.

3. Insert a wire [1.4 mm (0.06 inch) in diameter] into the set

holes.

4. Remove the auto-tensioner from the vice.

.

>>D<< TIMING BELT INSTALLATION

CAUTION

If the camshaft sprocket is rotated with the piston at the
top dead center on the compression stroke of the number
1 cylinder, the valve and piston might interfere.
1. Move the timing mark of the crankshaft sprocket three teeth

to slightly lower the piston below the top dead center on the
compression stroke of the number 1 cylinder.

AK101126AB

AK101126

CRANKSHAFT SENSING BLADE

DEGREASE

CLEAN

OIL PUMP CASE

CRANKSHAFT
SPACER

CRANKSHAFT
SPROCKET

CRANKSHAFT

AKX01371

AKX01372

A

B

AB

AKX01373

CRANKSHAFT SPROCKET

TIMING MARKS

AB
