INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-27

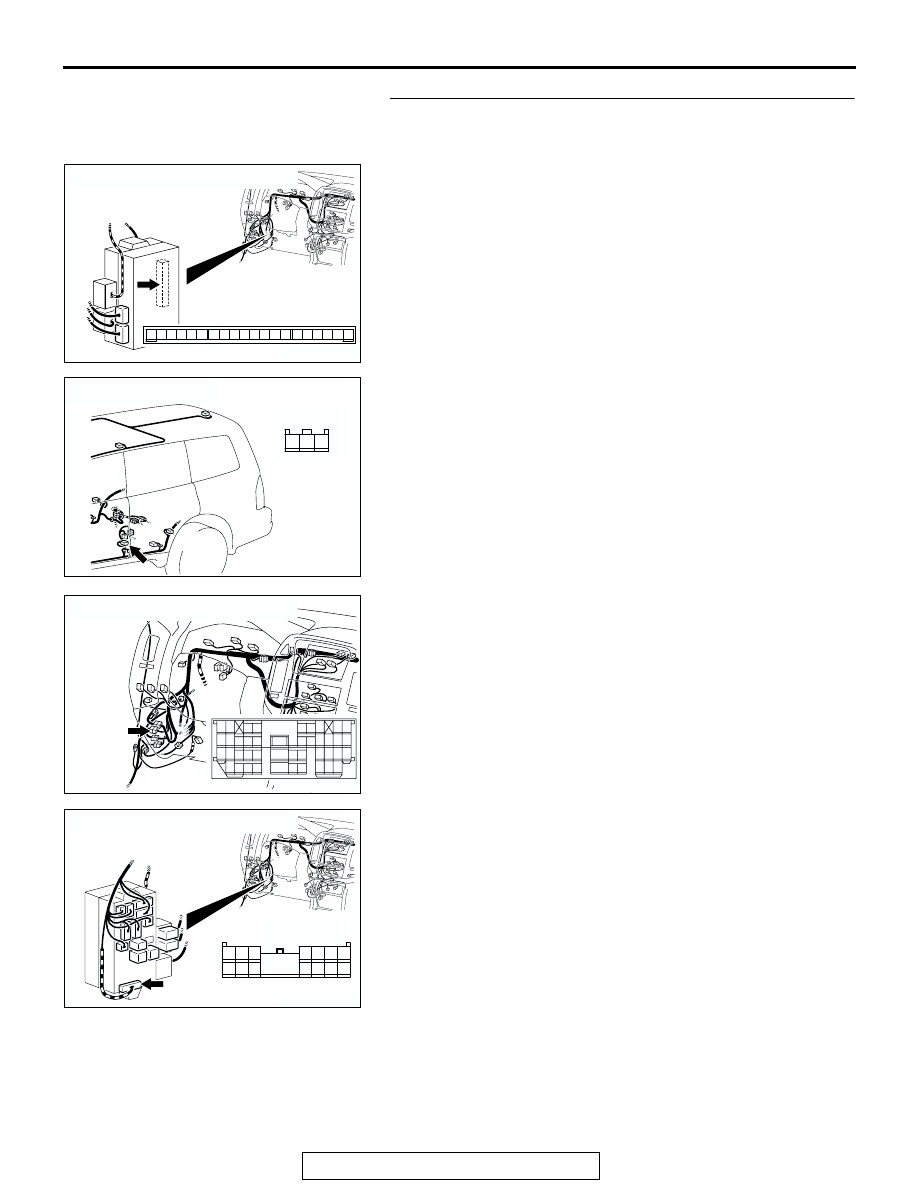

STEP 5. Check the wiring harness between driver's door
switch connector F-14 (terminal 1) and ETACS-ECU
connector D-222 (terminal 9).

NOTE: Also check intermediate connector D-125 and junction
block connector D-217 for loose, corroded, or damaged termi-
nals, or terminals pushed back in the connector. If junction
block connector D-217 or intermediate connector D-125 is
damaged, Repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between driver's door switch

connector F-14 and ETACS-ECU connector D-222 in
good condition?
YES : Replace the ETACS-ECU. If the functions, which are

described in "CIRCUIT OPERATION", work normally,
the input signal from the driver's door switch should
be normal.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the
functions, which are described in "CIRCUIT
OPERATION", work normally, the input signal from
the driver's door switch should be normal.

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC204178

CONNECTOR : F-14

AF

HARNESS SIDE

1

2

3

F-14

AC204170

CONNECTOR : D-125

AO

9

8

6 7

5

3 4

20

32

21

33

43

17 18

30

41

16

29

28

39 40

13

25

12

24

35 36

14

26

37

15

27

38

19

31

42

1

10

22

2

11

23

34

AC204173

CONNECTOR : D-217

AG

HARNESS SIDE

8

1

11 10

3

4

12

9

2

13

14

6 5

15

7

D-217

INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-28

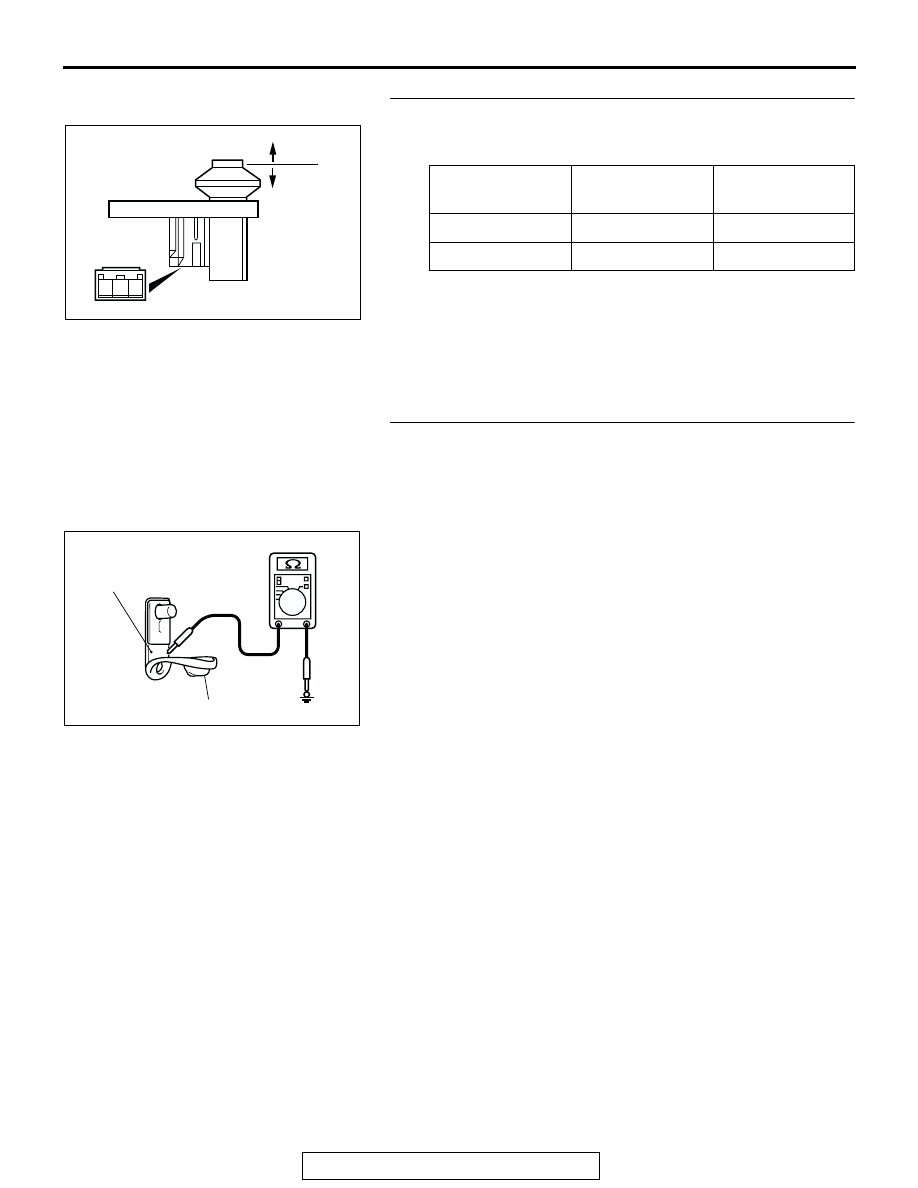

STEP 6. Check the passenger's door switch.
Remove the passenger's door switch. Then check the continu-
ity between the switch terminals and the switch body.

Q: Is the passenger's door switch in good condition?

YES : Go to Step 7.
NO :  Replace the passenger's door switch. If the functions,

which are described in "CIRCUIT OPERATION", work
normally, the input signal from the passenger's door
switch should be normal.

STEP 7. Measure at the lower metal part of the passenger's
door switch in order to check the ground circuit to the
passenger's door switch.
NOTE: Check that the passenger's door switch is grounded to
the vehicle body by means of its mounting screw.
Remove the cap, and measure the resistance value between
the lower metal part and the ground.

• The resistance should equal 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 8.
NO :  Check the fit of the switch, and repair if necessary. If

the functions, which are described in "CIRCUIT
OPERATION", work normally, the input signal from
the passenger's door switch should be normal.

SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

Released (ON)

1

− switch body

Less than 2 ohms

Depressed (OFF) 1

− switch body

Open circuit

1 2 3

ACX01865 AC

ON

OFF

ACX01600AB

METAL PART

CUP

INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-29

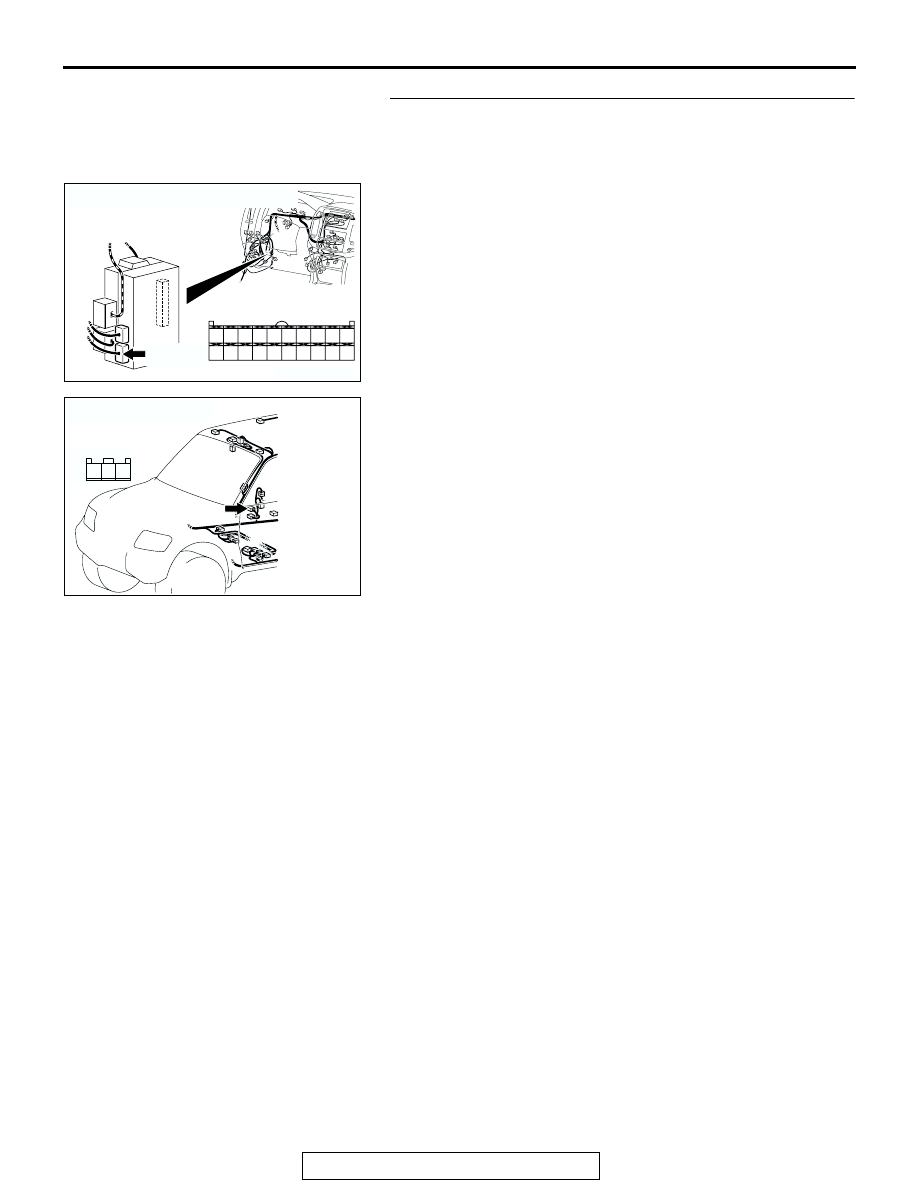

STEP 8. Check passenger's door switch connector F-22
and ETACS-ECU connector D-224 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Are passenger's door switch connector F-22 or ETACS-

ECU connector D-224 in good condition?
YES : Go to Step 9.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the functions, which are described in

"CIRCUIT OPERATION", work normally, the input
signal from the passenger's door switch should be
normal.

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

AC204177

CONNECTOR : F-22

AE

HARNESS SIDE

1

2

3

F-22

INPUT SIGNAL PROCEDURES

TSB Revision

SWS INPUT SIGNAL PROCEDURES

54Bc-30

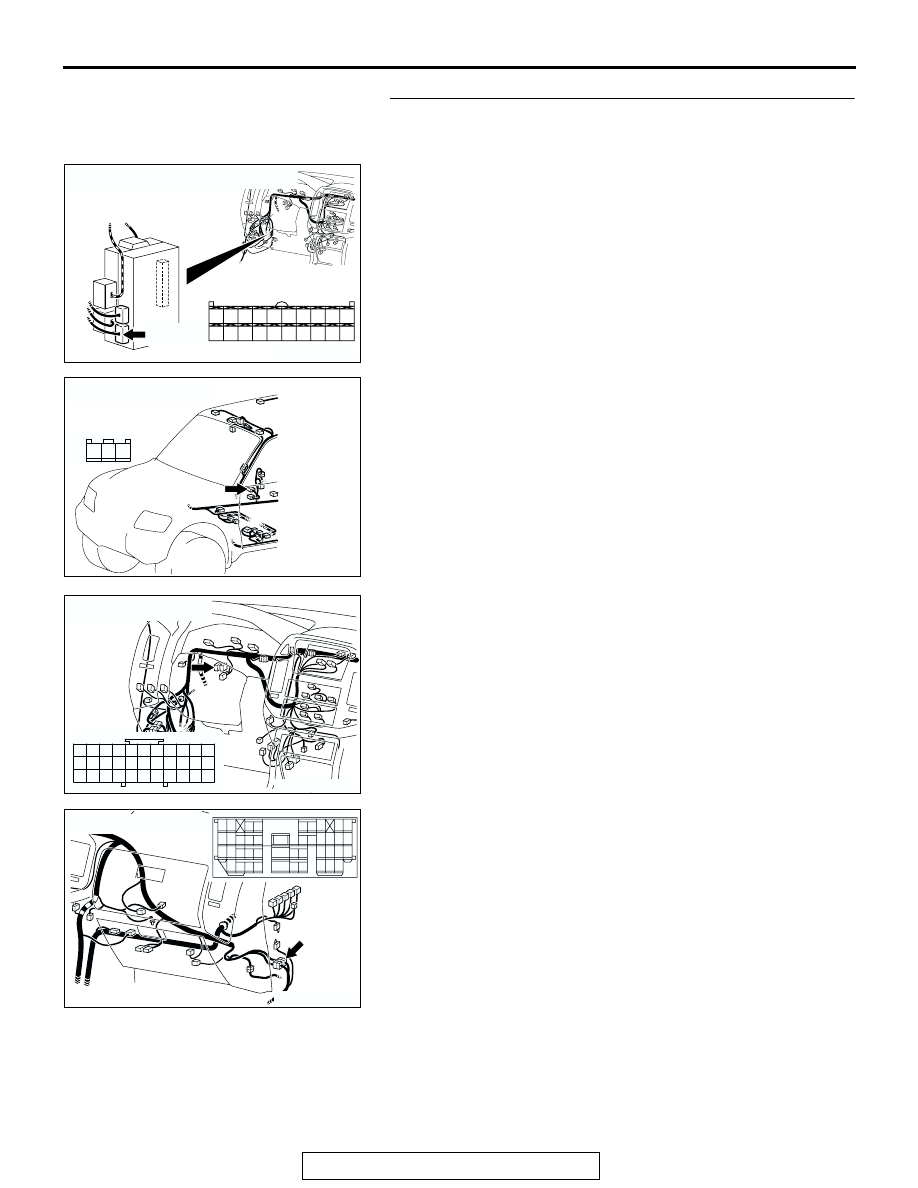

STEP 9. Check the wiring harness between passenger's
door switch connector F-22 (terminal 1) and ETACS-ECU
connector D-224 (terminal 29).

NOTE: Also check joint connector D-01 and intermediate con-
nector D-111 for loose, corroded, or damaged terminals, or ter-
minals pushed back in the connector. If joint connector D-01 or
intermediate connector D-111 is damaged, Repair or replace
the damaged component(s) as described in GROUP 00E, Har-
ness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between passenger's door switch

connector F-22 (terminal 1) and ETACS-ECU connector
D-224 (terminal 2) in good condition?
YES : Replace the ETACS-ECU. If the functions, which are

described in "CIRCUIT OPERATION", work normally,
the input signal from the passenger's door switch
should be normal.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the
functions, which are described in "CIRCUIT
OPERATION", work normally, the input signal from
the passenger's door switch should be normal.

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

AC204177

CONNECTOR : F-22

AE

HARNESS SIDE

1

2

3

F-22

AC204170

CONNECTOR: D-01

AB

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

AC204171

CONNECTOR : D-111

AC

9

8

6 7

5

3 4

20

32

21

33

43

17 18

30

41

16

29

28

39 40

13

25

12

24

35 36

14

26

37

15

27

38

19

31

42

1

10

22

2

11

23

34
