SYMPTOM PROCEDURES

TSB Revision

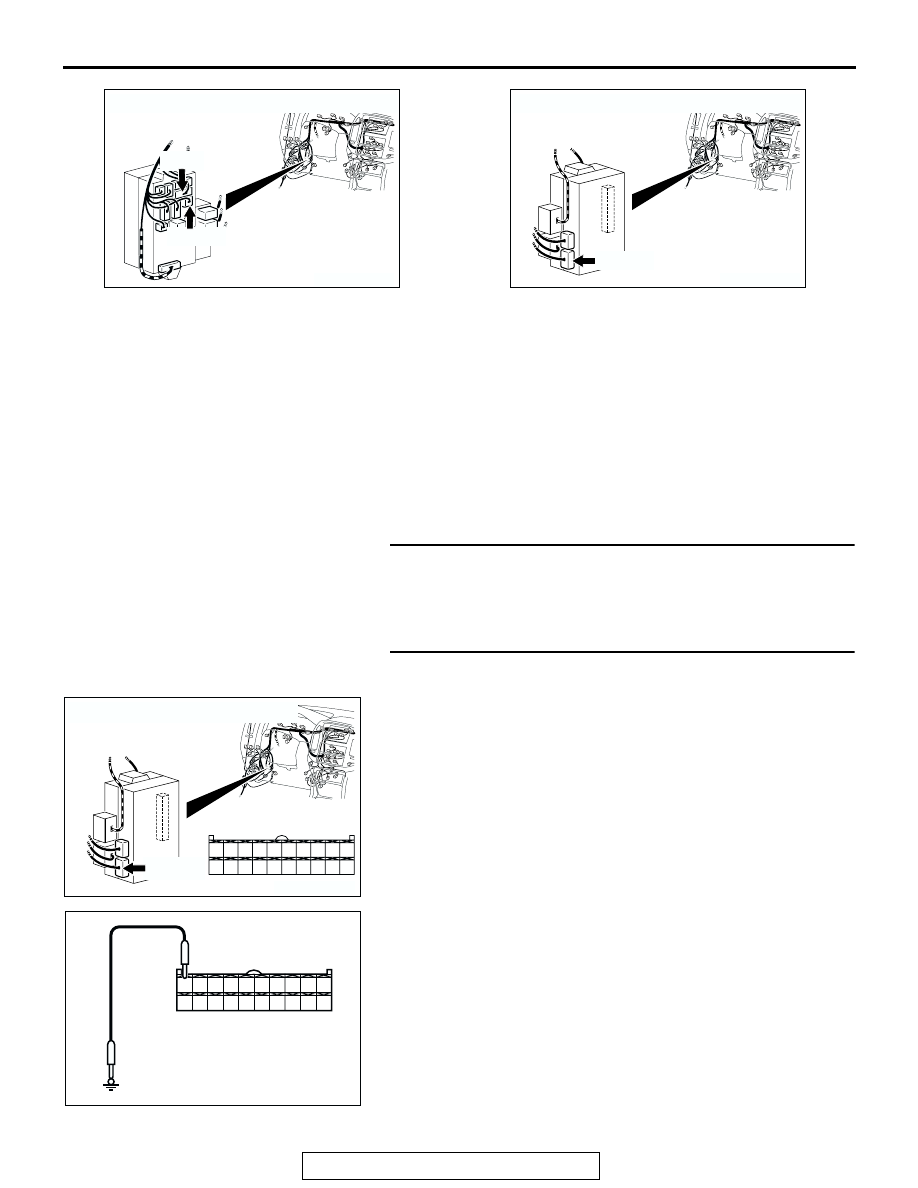

SWS SYMPTOM PROCEDURES

54Bb-367

.

TECHNICAL DESCRIPTION (COMMENT)
If the high-beam indicator light does not illuminate,
the high-beam indicator light bulb or the ETACS-
ECU may be defective.

.

TROUBLESHOOTING HINTS

• The high-beam indicator light bulb may be defec-

tive

• The ETACS-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

.

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

STEP 1. Verify the headlight operation.
Q: Do the headlights illuminate?

YES : Go to Step 2.
NO  :  Repair the headlights first (Refer to

P.54Bb-2

).

STEP 2. Check at ETACS-ECU connector D-224 in order to
check the high-beam indicator light circuit.
(1) Disconnect ETACS-ECU connector D-224, and measure at

the wiring harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Connect terminal 30 to ground.
Q: Does the high-beam indicator light illuminate?

YES : Replace the ETACS-ECU. Verify that the high-beam

indicator light illuminates normally.

NO :  Go to Step 3.

AC204173

CONNECTORS : D-210, D-211

D-210

D-211(B)

AU

AC204174

CONNECTOR : D-224

D-224(B)

AG

AC204174

CONNECTOR : D-224

AD

D-224(B)

D-224(B)

HARNESS SIDE

21

23

24

22

32

3433

31

26

27

28

3029

38

39

40

36

37

25

35

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

AC101398 AB

CONNECTOR D-224
(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-368

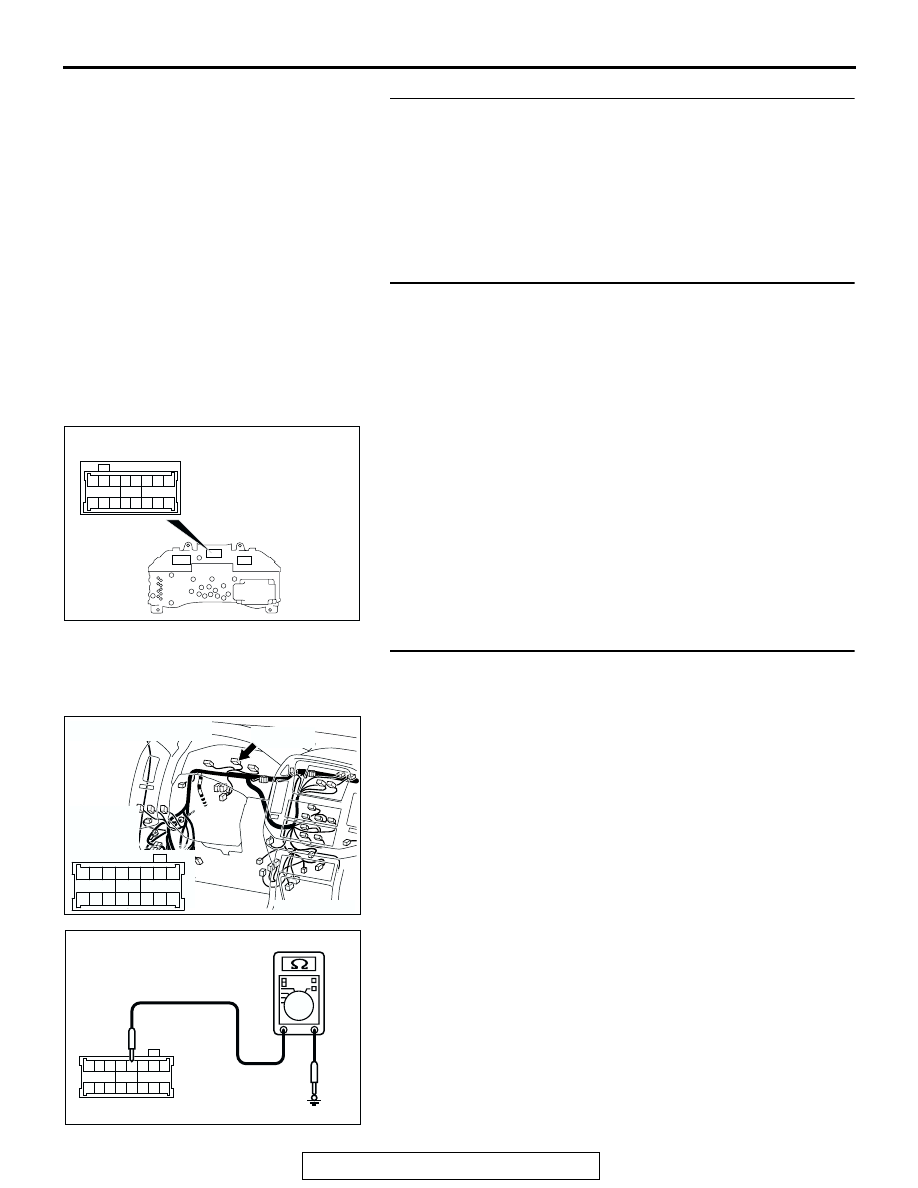

STEP 3. Check high-beam indicator light bulb.
(1) Remove the high-beam indicator light bulb.
(2) Verify that the high-beam indicator light bulb is not

damaged or burned out.

Q: Is the high-beam indicator light normal?

YES : Go to Step 4.
NO :  Replace the bulb. Verify that the high-beam indicator

light illuminates normally.

STEP 4. Check the combination meter (printed-circuit
board).
(1) Remove the combination meter. Refer to GROUP 54A,

Combination Meters Assembly And Vehicle Speed Sensor

P.54A-65

.

(2) Remove the high-beam indicator light bulb. Then measure

the resistance value between the bulb terminals.

(3) Install the bulb to the combination meter, and then measure

the resistance value between connector D-04 terminals 34
and 35. The measured resistance value should be roughly
the same as the value measured in Step (2).

Q: Are these two resistance values extremely different?

YES : Repair or replace the combination meter (printed

circuit board). Verify that the headlight-beam indicator
light illuminates normally.

NO (roughly the same)  : Go to Step 5.

STEP 5. Check the fusible link (2) line of the power supply
circuit to the combination meter. Test at combination
meter connector D-04.
(1) Disconnect combination meter connector D-04 and

measure the voltage available at the wiring harness side of
the connector.

(2) Measure the voltage between terminal 34 and ground.

• The voltage should equal 12 volts (battery positive volt-

age).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 8.
NO :  Go to Step 6.

46

45

44

43

42

41

32

31

39

47

38

37

36

35

34

33

40

AC100266AB

CONNECTOR D-04

AC204170

CONNECTOR : D-04

AD

D-04(GR)

HARNESS
SIDE

D-04(GR)

31

32

41 40

33

34

36

37

35

43

46 45 44

39

42

38

47

AC204461

41

42

43

44

45

46

37

38

39

40

31

32

33

34

35

36

47

AB

CONNECTOR D-04
(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-369

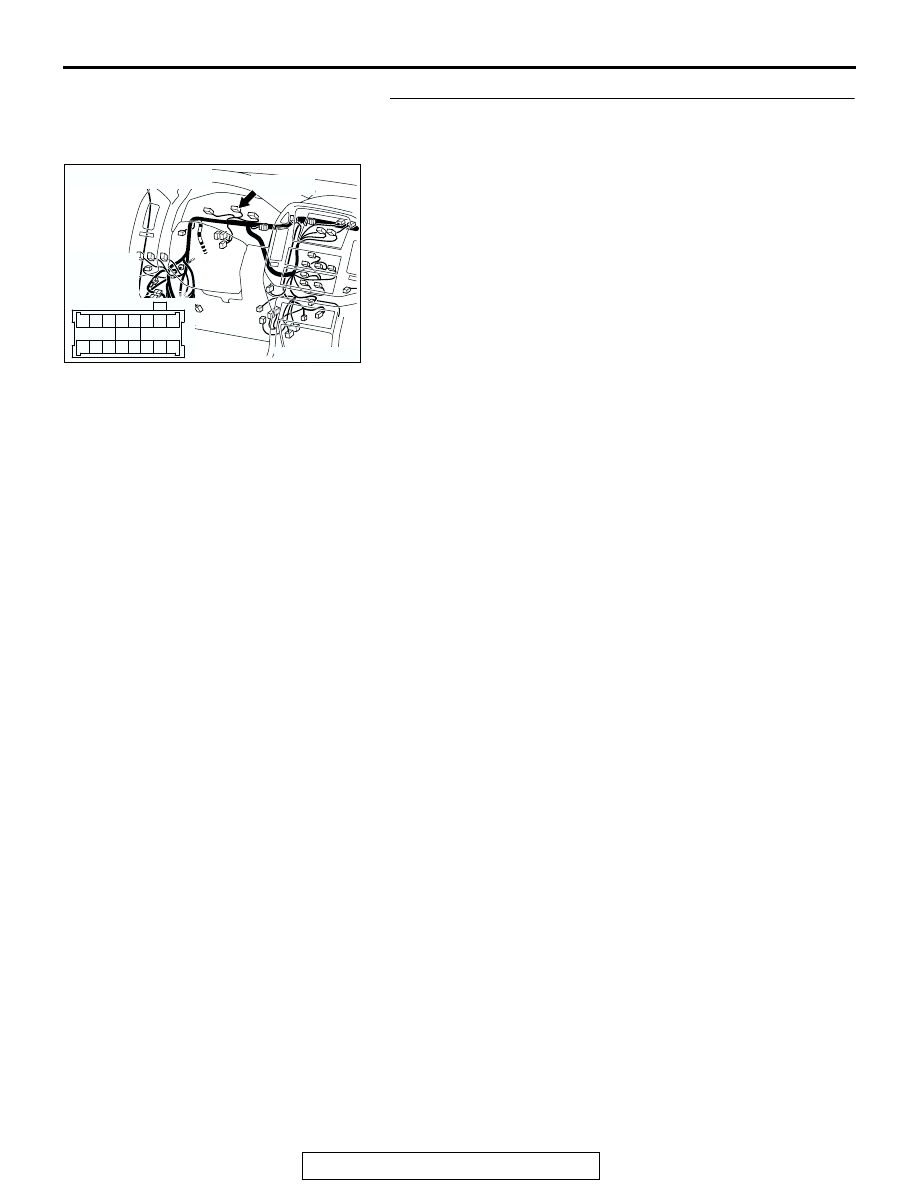

STEP 6. Check combination meter connector D-04 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is combination meter connector D-04 in good

condition?
YES : Go to Step 7.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the high-beam indicator light

illuminates normally.

AC204170

CONNECTOR : D-04

AD

D-04(GR)

HARNESS
SIDE

D-04(GR)

31

32

41 40

33

34

36

37

35

43

46 45 44

39

42

38

47

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-370

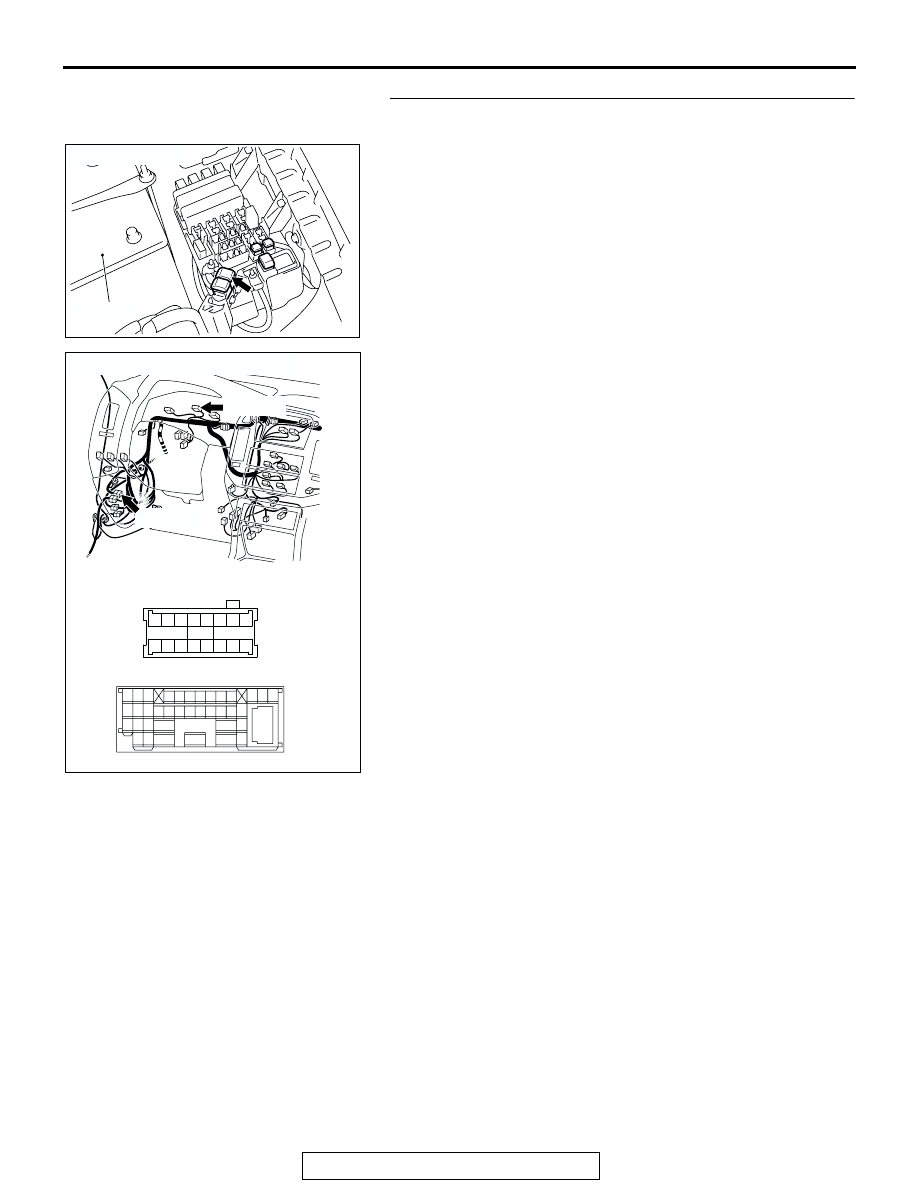

STEP 7. Check the wiring harness between combination
meter connector D-04 (terminal 34) and the fusible link (2).

ACX02274

FUSIBLE LINK (2)

AC

BATTERY

AC204188

CONNECTORS : D-04, D-28

D-04(GR)

AK

HARNESS SIDE

D-04(GR)

D-28

D-28

31

32

41 40

33

34

36

37

35

43

46 45 44

39

42

38

47

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38
