SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-179

STEP 27. Check the harness wiring between power
window main switch connector H-05 (terminal 1) and rear
power window sub-switch (LH) connector H-02 (terminal
8).

AC203774

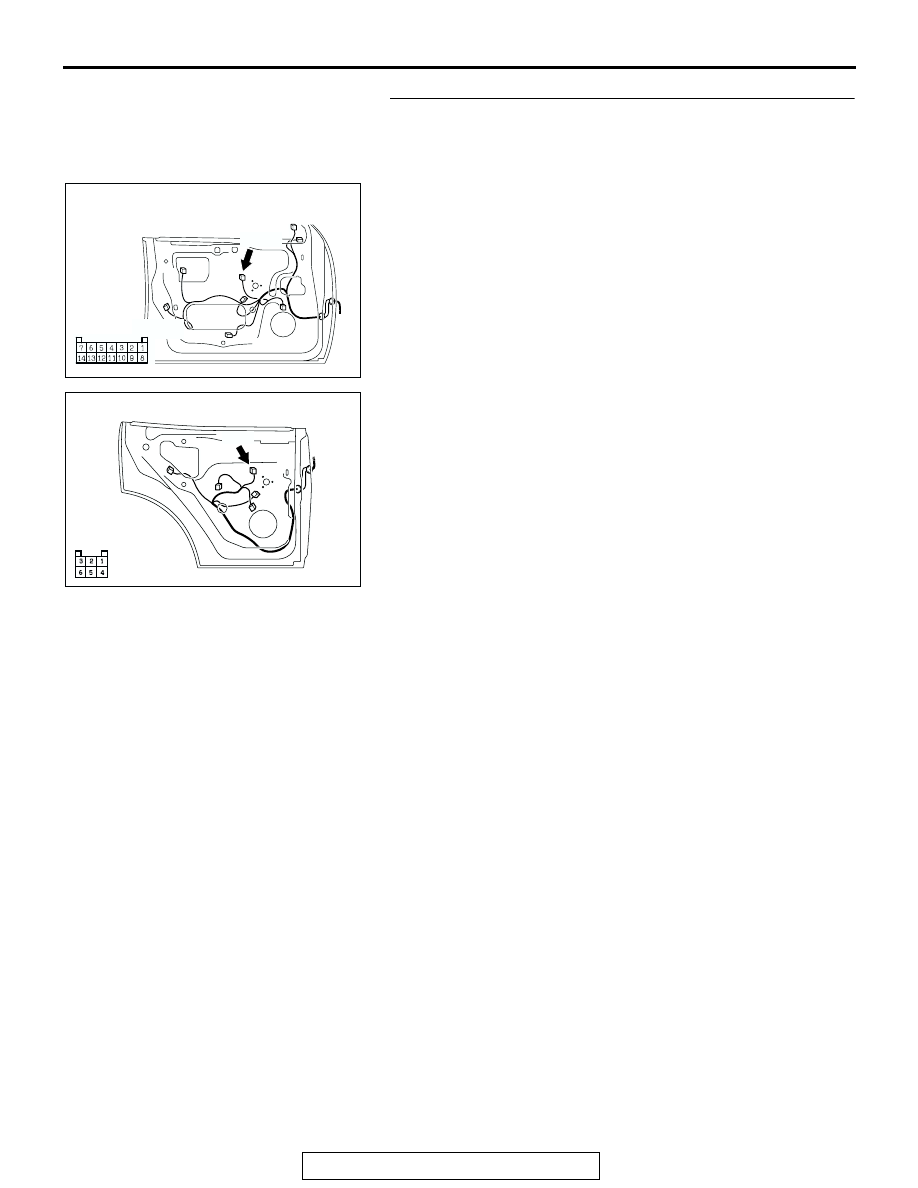

CONNECTOR: H-05

AF

DRIVER'S DOOR

H-05

H-05

(HARNESS SIDE)

AC000237AF

H-02

CONNECTOR: H-02

REAR DOOR<LH>

H-02
(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-180

NOTE: Also check intermediate connectors, D-125, D-25 and
F-12. If intermediate connector F-12, D-125 or D-25 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the harness wiring between power window main

switch connector H-05 (terminal 1) and rear power
window sub-switch (LH) connector H-02 (terminal 8) in
good condition?
YES : Go to Step 29.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the rear power window sub-switch (LH) should now
work normally.

AC203859 AE

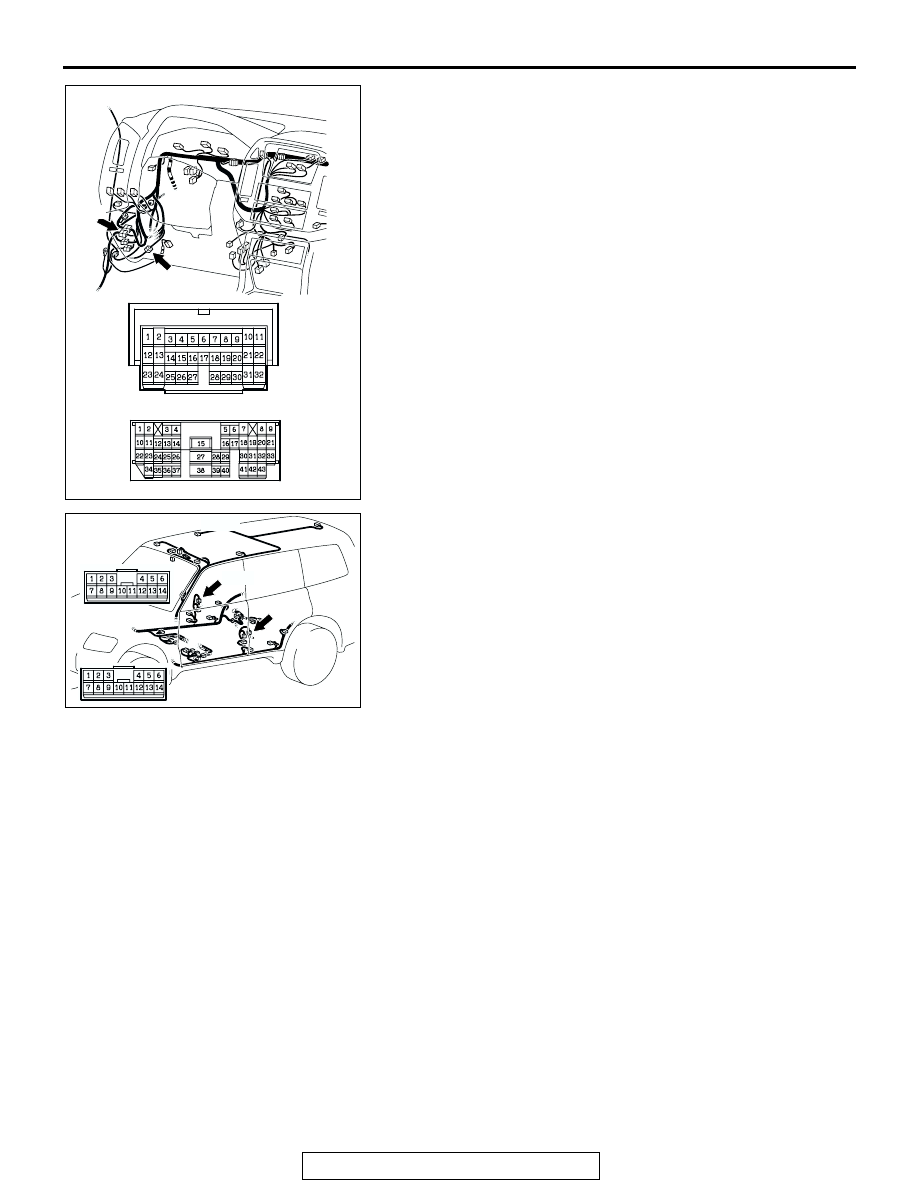

CONNECTORS: D-25, D-125

D-25

D-25

D-125

D-125

AC204484

AE

F-23

F-23

CONNECTORS: F-12, F-23

F-12

F-12

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-181

STEP 28. Check the harness wiring between power
window main switch connector H-05 (terminal 2) and rear
power window sub-switch (LH) connector H-02 (terminal
5).

AC203774

CONNECTOR: H-05

AF

DRIVER'S DOOR

H-05

H-05

(HARNESS SIDE)

AC000237AF

H-02

CONNECTOR: H-02

REAR DOOR<LH>

H-02
(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-182

NOTE: Also check intermediate connectors, D-125, D-25 and
F-12. If intermediate connector F-12, D-125 or D-25 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the harness wiring between power window main

switch connector H-05 (terminal 2) and rear power
window sub-switch (LH) connector H-02 (terminal 5) in
good condition?
YES : Replace the power window main switch. Verify that

the rear power window sub-switch (LH) should now
work normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the rear power window sub-switch (LH) should now
work normally.

AC203859 AE

CONNECTORS: D-25, D-125

D-25

D-25

D-125

D-125

AC204484

AE

F-23

F-23

CONNECTORS: F-12, F-23

F-12

F-12
