Mitsubishi Montero (2002-2004). Manual - part 265





SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-107

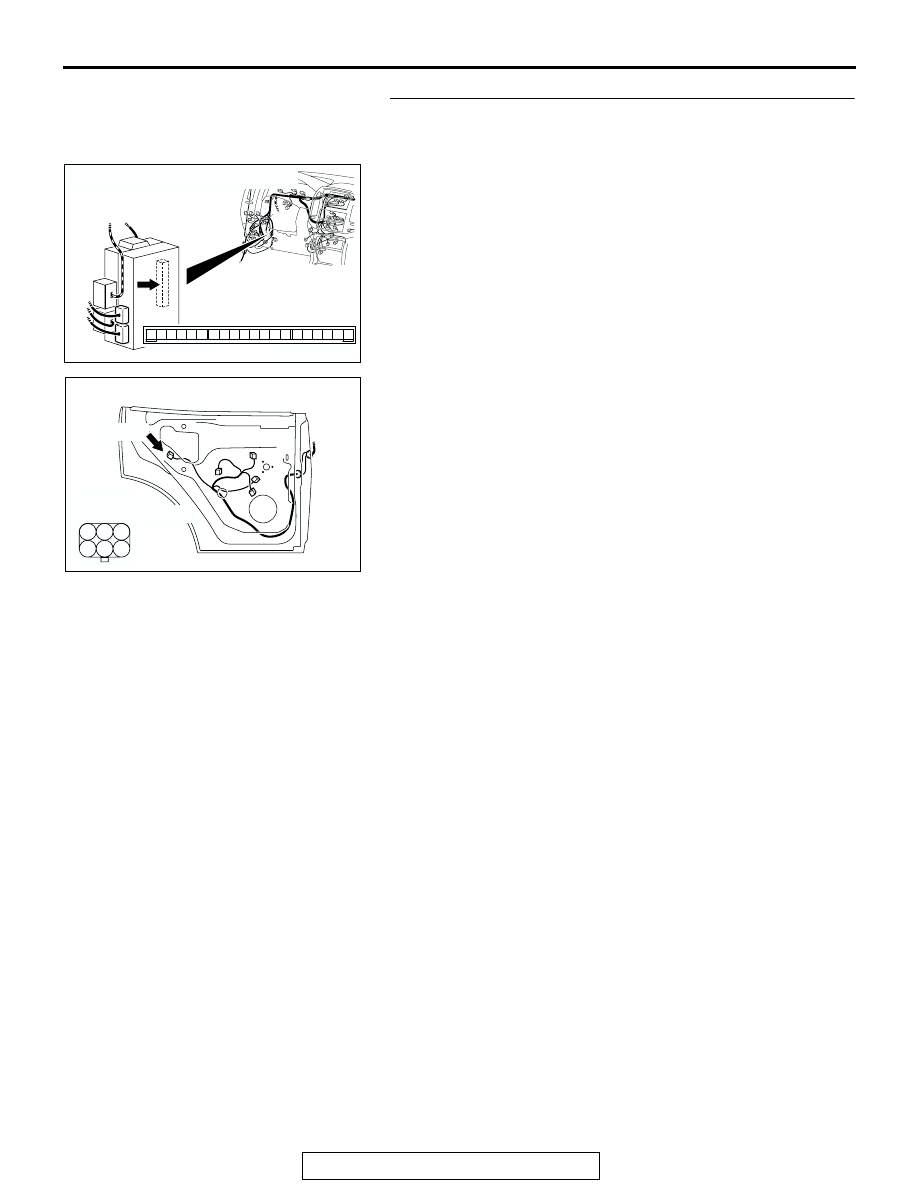

STEP 12. Check the harness wiring from ETACS-ECU
connector D-222 (terminal 4) to rear passenger's door lock
actuator (LH) connector H-13 (terminal 3).

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC000237AK

CONNECTOR: H-13

REAR DOOR <LH>

1

2

3

4

5

6

H-13 (B)

H-13 (B)

(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-108

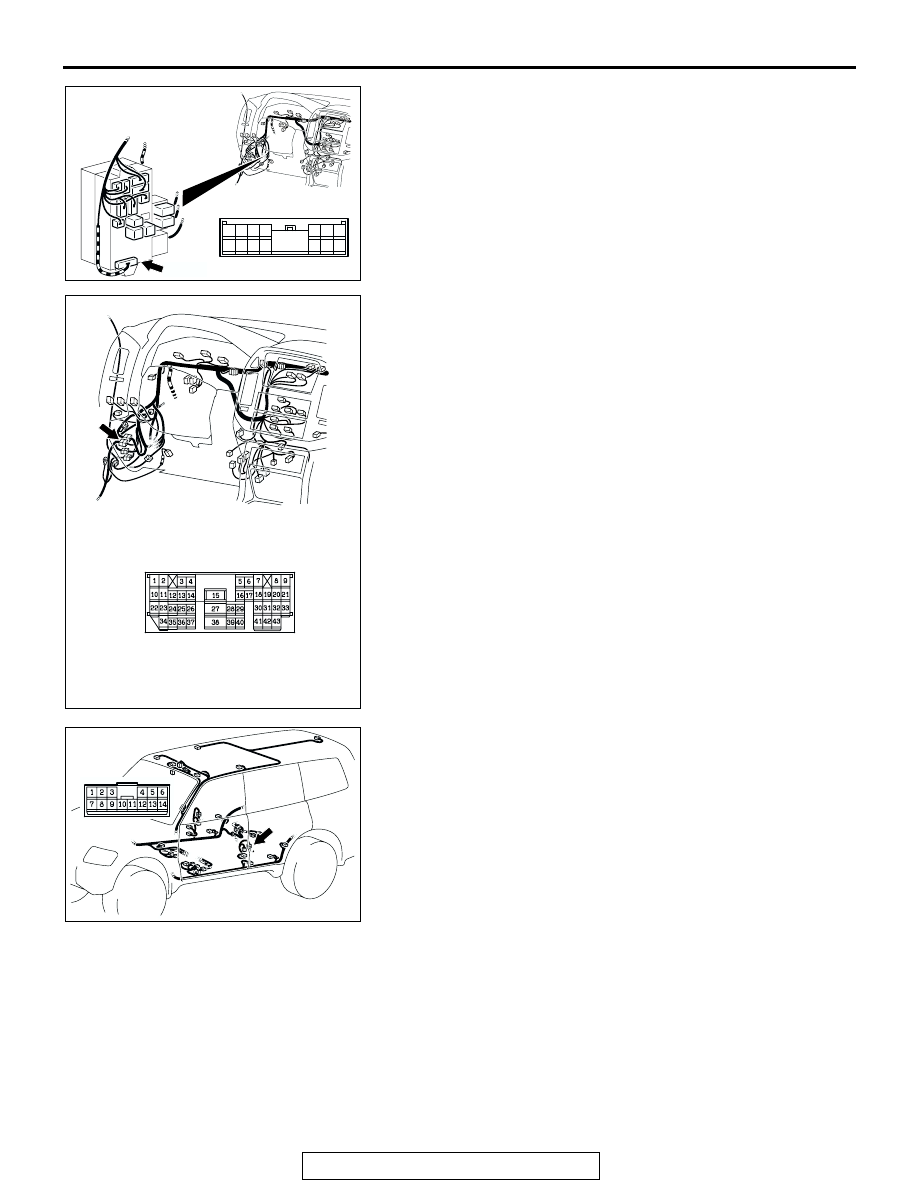

NOTE: Also check junction block connector D-217 and inter-
mediate connector D-125 and F-12 for loose, corroded, or
damaged terminals, or terminals pushed back in the connector.
If junction block connector D-217, intermediate connector D-
125 or F-12 is damaged, repair or replace the damaged com-
ponent(s) as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the harness wiring from ETACS-ECU connectors D-

222 (terminal 4) to rear passenger's door lock actuator
(LH) connector H-13 (terminal 3) in good condition?
YES :
Go to Step 13.
NO :  The harness wiring may be damaged or the

connectors may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the harness wiring as necessary. After repairs
have been made, verify that all the doors can now be
locked and unlocked normally.

AC203850

CONNECTOR: D-217

AH

D-217

JUNCTION BLOCK
(FRONT VIEW)

D-217

1

8 9 10 11

13 14 15

12

2 3 4

5 6 7

AC203859 AD

CONNECTOR: D-125

D-125

D-125

AC204484

AB

CONNECTOR: F-12

F-12

F-12

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-109

STEP 13. Check the harness wiring from ETACS-ECU
connector D-222 (terminal 17) to rear passenger's door
lock actuator (LH) connector H-13 (terminal 2).

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC000237AK

CONNECTOR: H-13

REAR DOOR <LH>

1

2

3

4

5

6

H-13 (B)

H-13 (B)

(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-110

NOTE: Also check junction block connector D-217 and inter-
mediate connectors D-125 and F-12 for loose, corroded, or
damaged terminals, or terminals pushed back in the connector.
If junction block connector D-217 or intermediate connector D-
125 or F-12 is damaged, repair or replace the damaged com-
ponent(s) as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the harness wiring from ETACS-ECU connectors D-

222 (terminal 17) to rear passenger's door lock actuator
(LH) connector H-13 (terminal 2) in good condition?
YES :
Go to Step 14.
NO :  The harness wiring may be damaged or the

connectors may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the harness wiring as necessary. After repairs
have been made, verify that all the doors can now be
locked and unlocked normally.

AC203850

CONNECTOR: D-217

AH

D-217

JUNCTION BLOCK
(FRONT VIEW)

D-217

1

8 9 10 11

13 14 15

12

2 3 4

5 6 7

AC203859 AD

CONNECTOR: D-125

D-125

D-125

AC204484

AB

CONNECTOR: F-12

F-12

F-12
