Mitsubishi Montero (2002-2004). Manual - part 262





SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-95

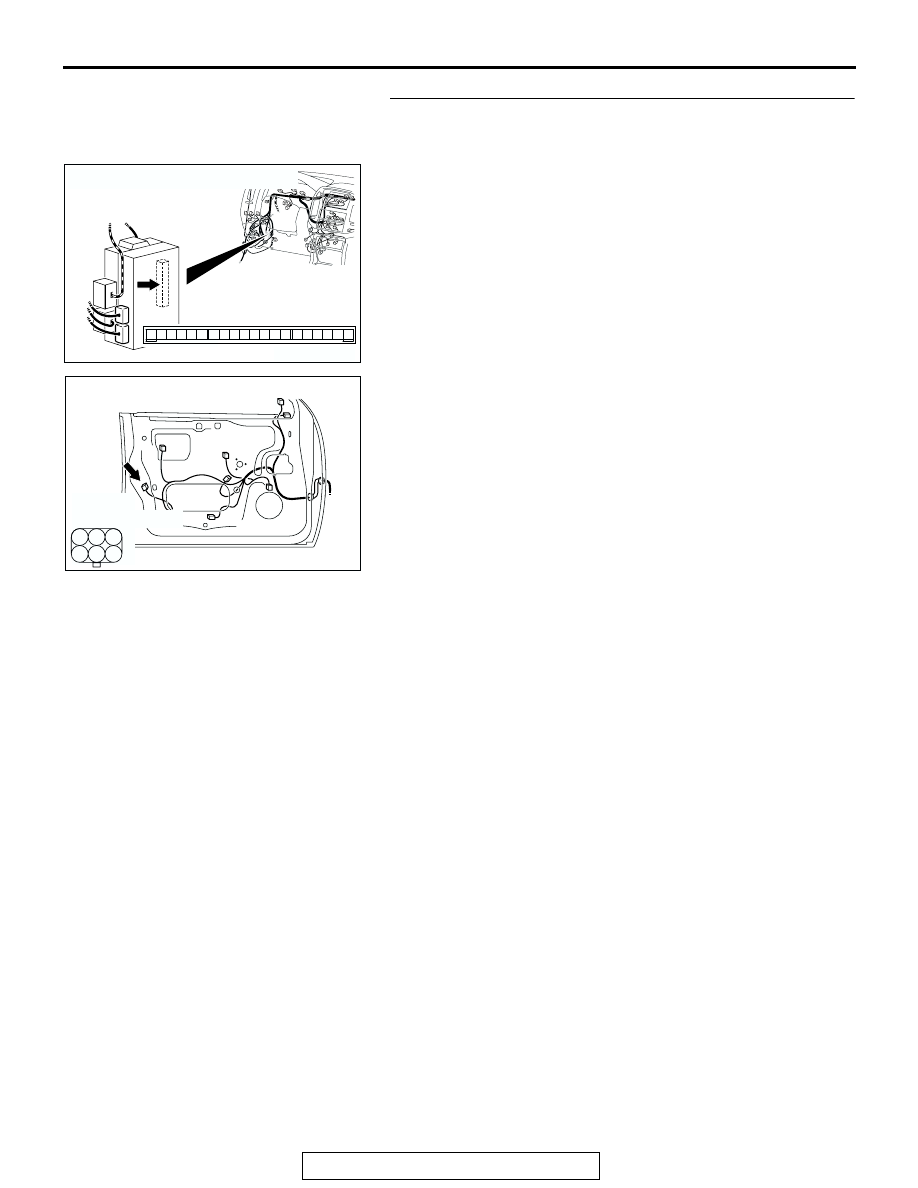

STEP 4. Check the harness wiring from ETACS-ECU
connector D-222 (terminal 19) to driver's door lock
actuator connector H-10 (terminal 4).

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC000235 AE

H-10 (B)

CONNECTOR: H-10

FRONT DOOR <DRIVER'S SIDE>

H-10 (B)

1

2

3

4

5

6

(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-96

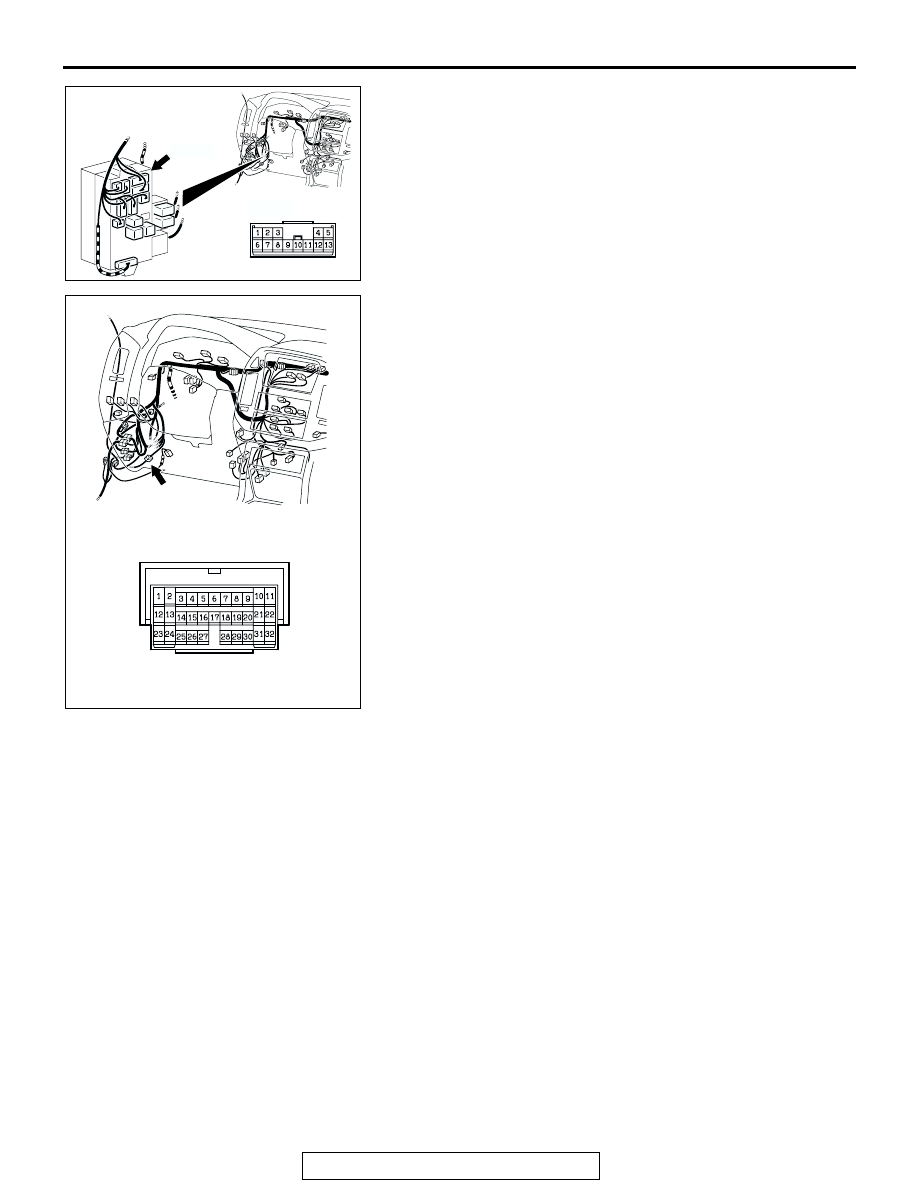

NOTE: Also check junction block connector D-209 and inter-
mediate connector D-25 for loose, corroded, or damaged termi-
nals, or terminals pushed back in the connector. If junction
block connector D-209 or intermediate connector D-25 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspec-
tion

P.00E-2

.

Q: Is the harness wiring from ETACS-ECU connectors D-

222 (terminal 19) to driver's door lock actuator
connector H-10 (terminal 4) in good condition?
YES :
Go to Step 5.
NO :  The harness wiring may be damaged or the

connectors may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the harness wiring as necessary. After repairs
have been made, verify that all the doors can now be
locked and unlocked normally.

AC203850

CONNECTOR: D-209

AE

D-209

D-209

JUNCTION BLOCK
(FRONT VIEW)

AC203859 AC

CONNECTOR: D-25

D-25

D-25

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-97

STEP 5. Check the harness wiring from ETACS-ECU
connector D-222 (terminal 4) to driver's door lock actuator
connector H-10 (terminal 6).

AC204174

CONNECTOR : D-222

AB

1

2

3

5

6

4

9 8

121110

13

15 14

16

17

7

19

20

18

JUNCTION BLOCK SIDE

D-222

AC000235 AE

H-10 (B)

CONNECTOR: H-10

FRONT DOOR <DRIVER'S SIDE>

H-10 (B)

1

2

3

4

5

6

(HARNESS SIDE)

SYMPTOM PROCEDURES

TSB Revision

SWS SYMPTOM PROCEDURES

54Bb-98

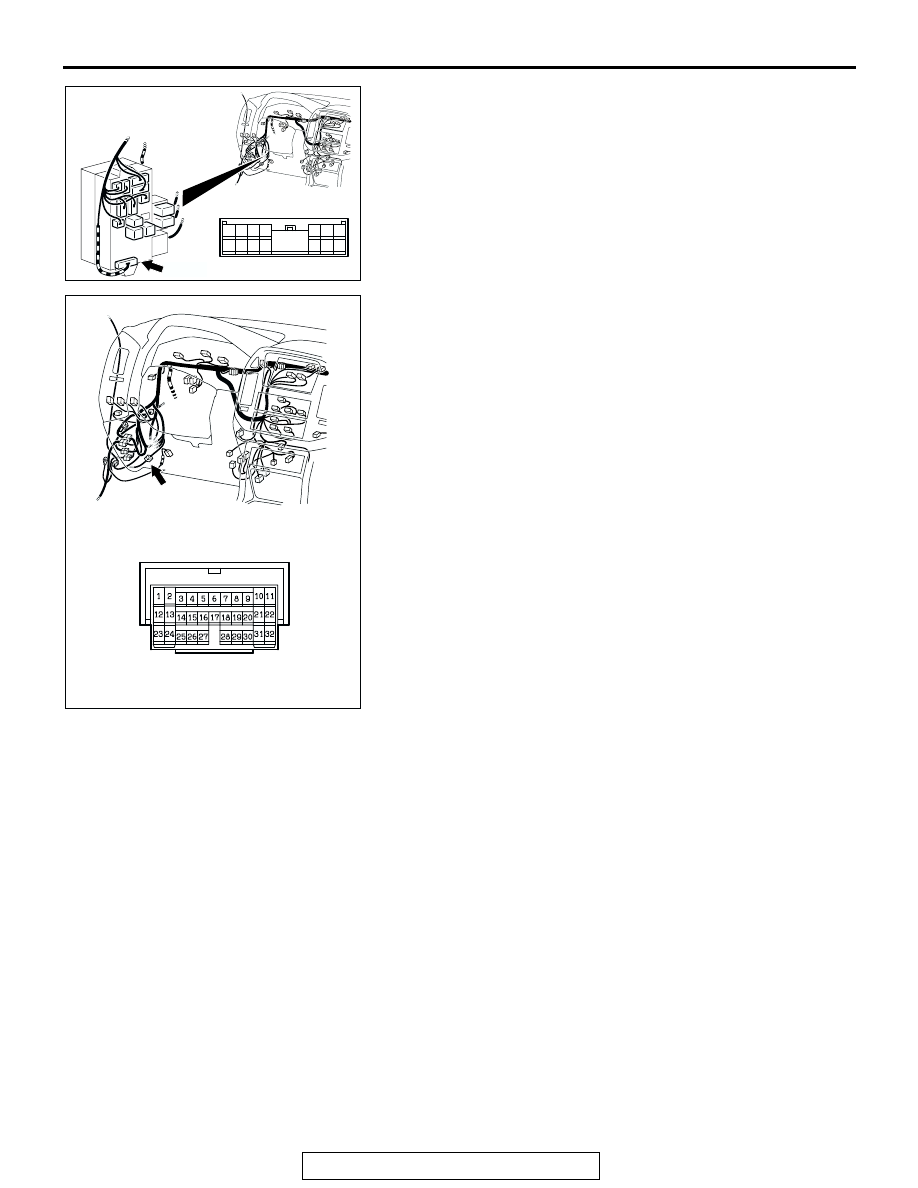

NOTE: Also check junction block connector D-217 and inter-
mediate connector D-25 for loose, corroded, or damaged termi-
nals, or terminals pushed back in the connector. If junction
block connector D-217 or intermediate connector D-25 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspec-
tion

P.00E-2

.

Q: Is the harness wiring from ETACS-ECU connectors D-

222 (terminal 4) to driver's door lock actuator connector
H-10 (terminal 6) in good condition?
YES :
Replace the ETACS-ECU. Verify that all the doors

can be locked and unlocked normally.

NO :  The harness wiring may be damaged or the

connectors may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the harness wiring as necessary. After repairs
have been made, verify that all the doors can now be
locked and unlocked normally.

AC203850

CONNECTOR: D-217

AH

D-217

JUNCTION BLOCK
(FRONT VIEW)

D-217

1

8 9 10 11

13 14 15

12

2 3 4

5 6 7

AC203859 AC

CONNECTOR: D-25

D-25

D-25
