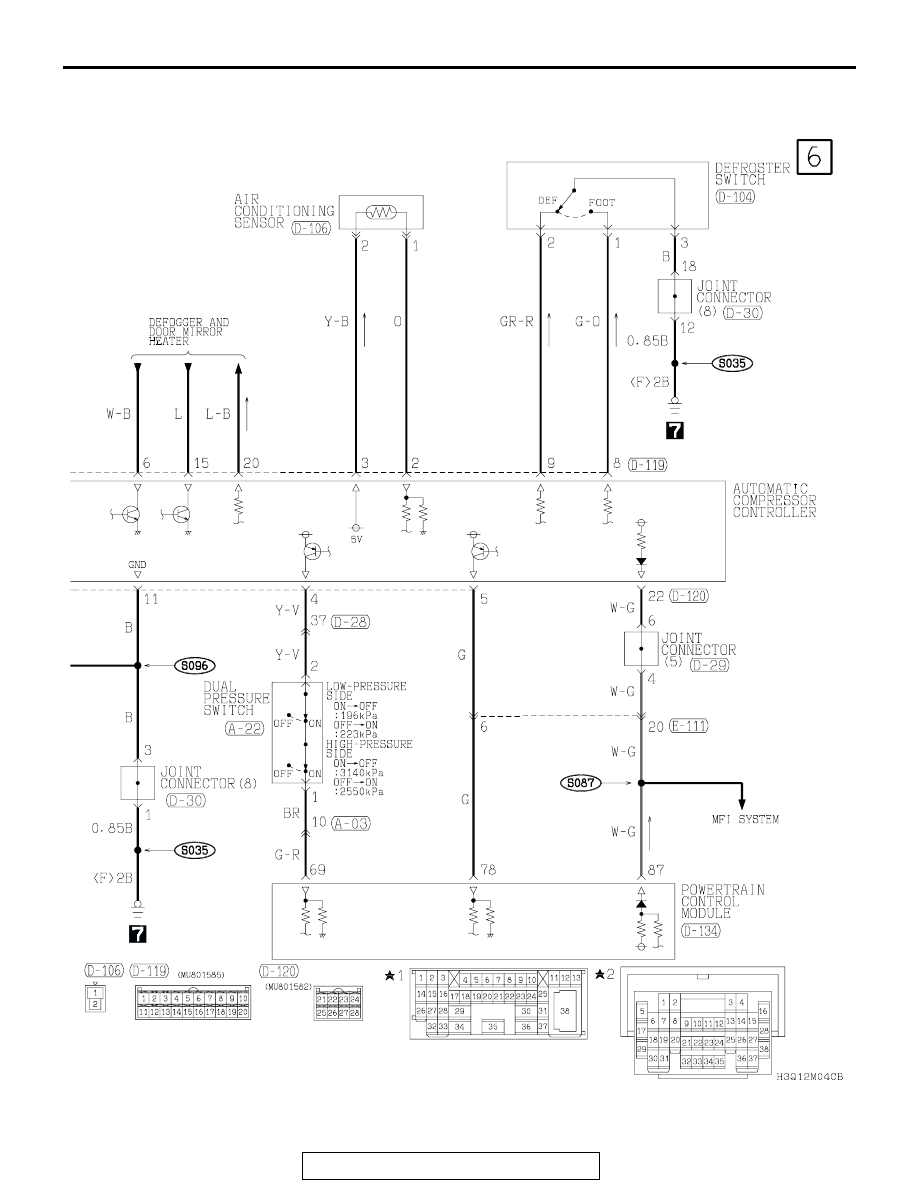

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR COOLER>

TSB Revision

CIRCUIT DIAGRAMS

90-147

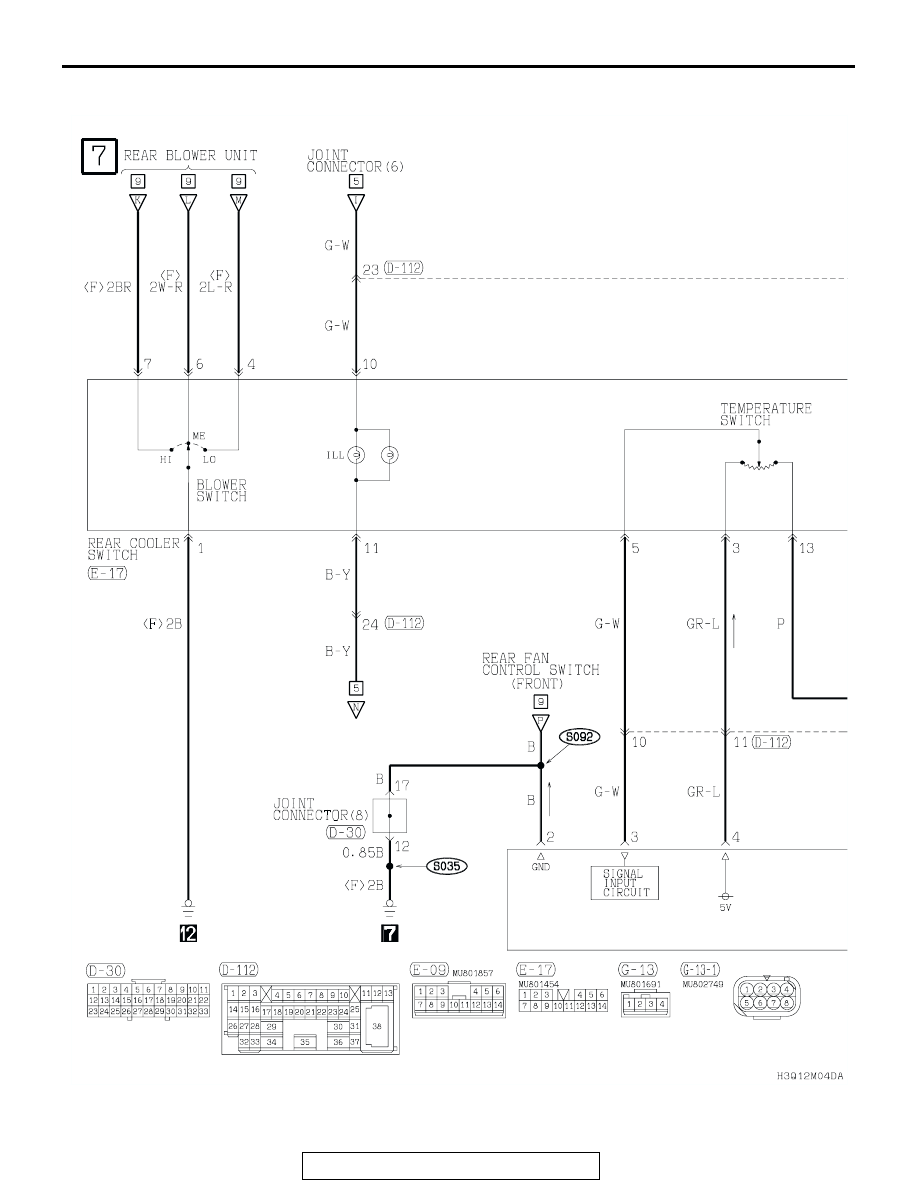

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR COOLER>

TSB Revision

CIRCUIT DIAGRAMS

90-148

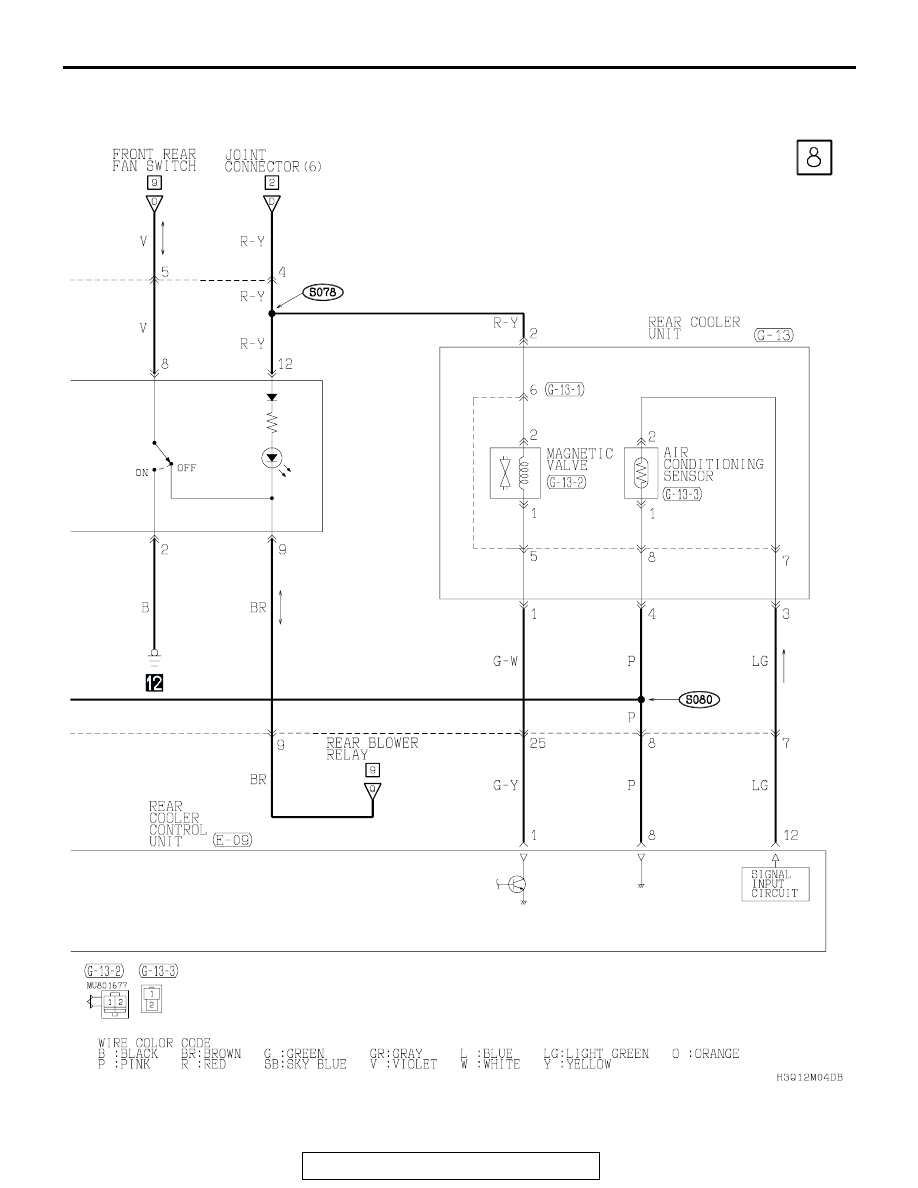

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR COOLER> (CONTINUED)

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR COOLER>

TSB Revision

CIRCUIT DIAGRAMS

90-149

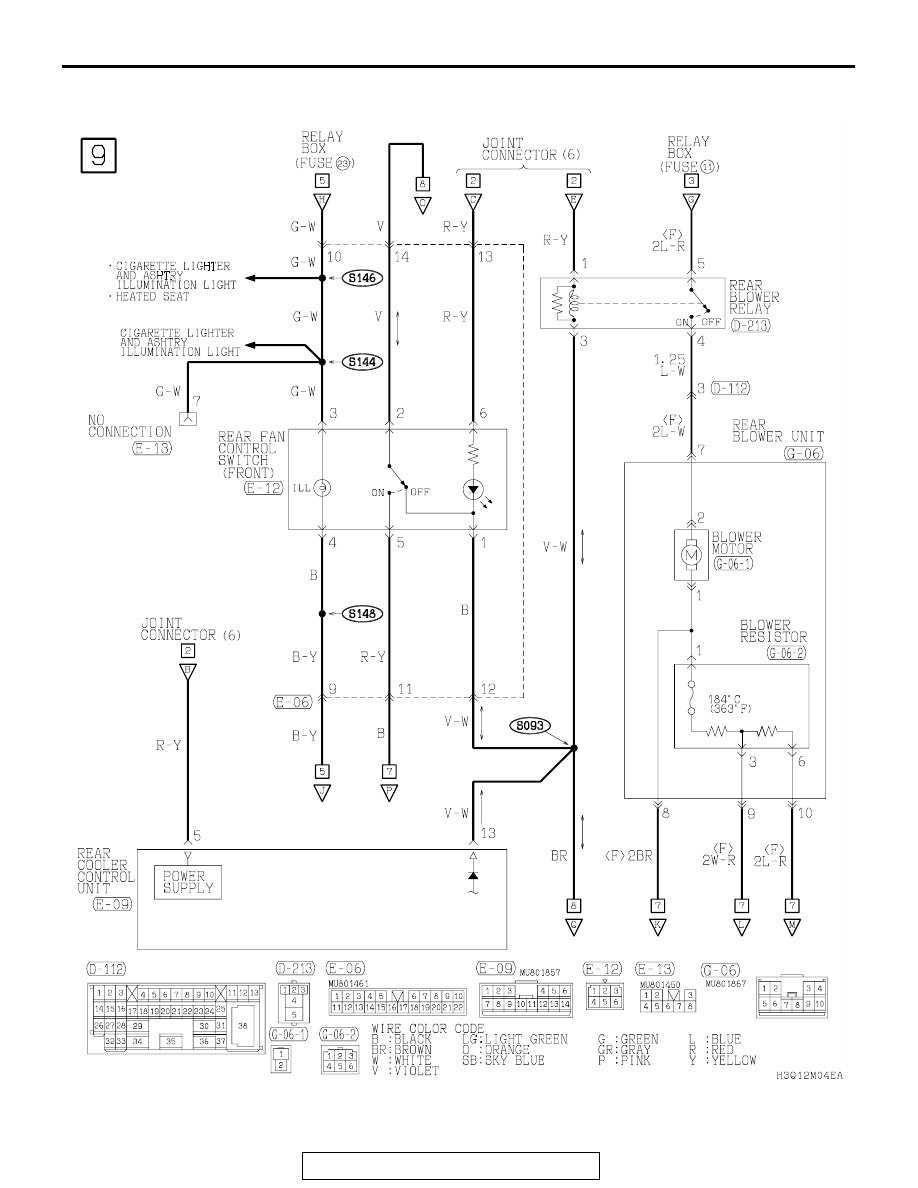

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR COOLER>

TSB Revision

CIRCUIT DIAGRAMS

90-150

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR COOLER> (CONTINUED)
