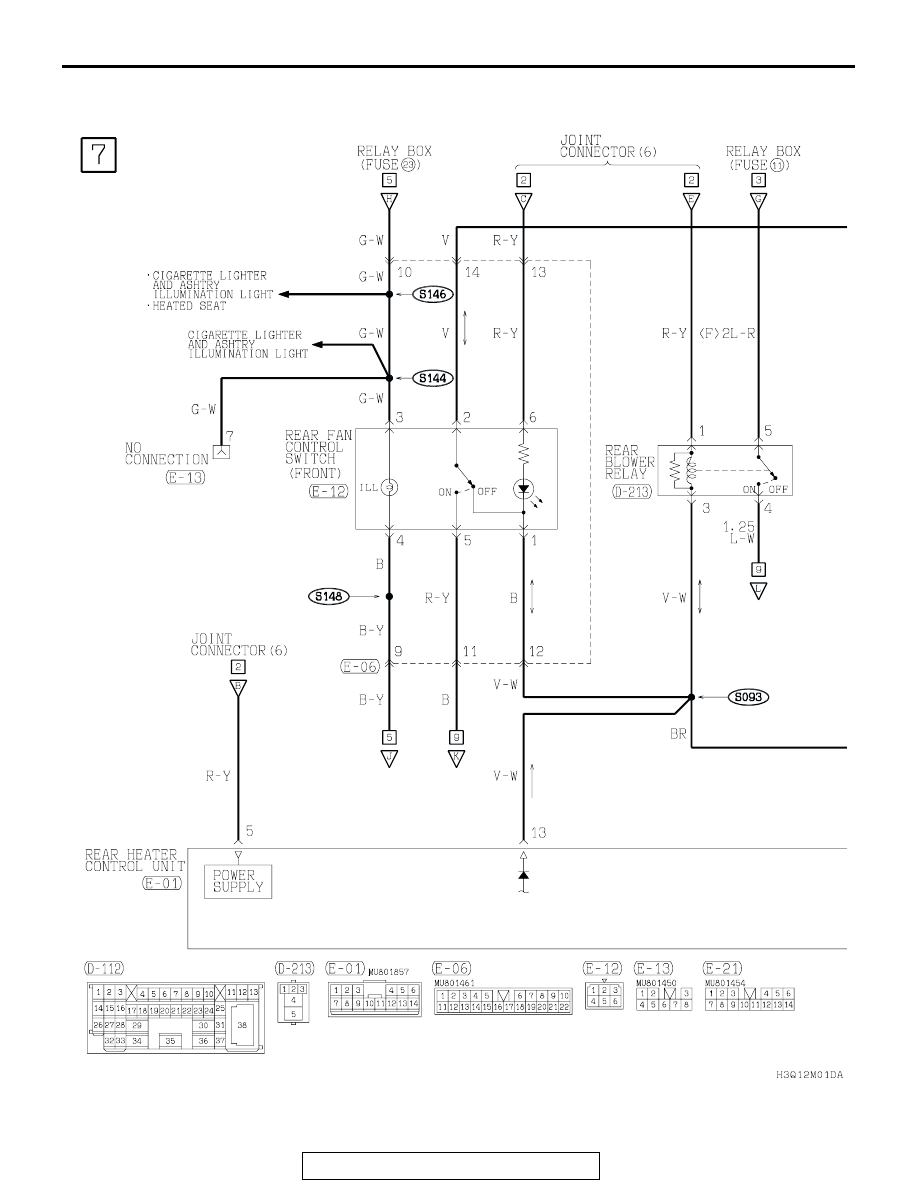

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR HEATER>

TSB Revision

CIRCUIT DIAGRAMS

90-135

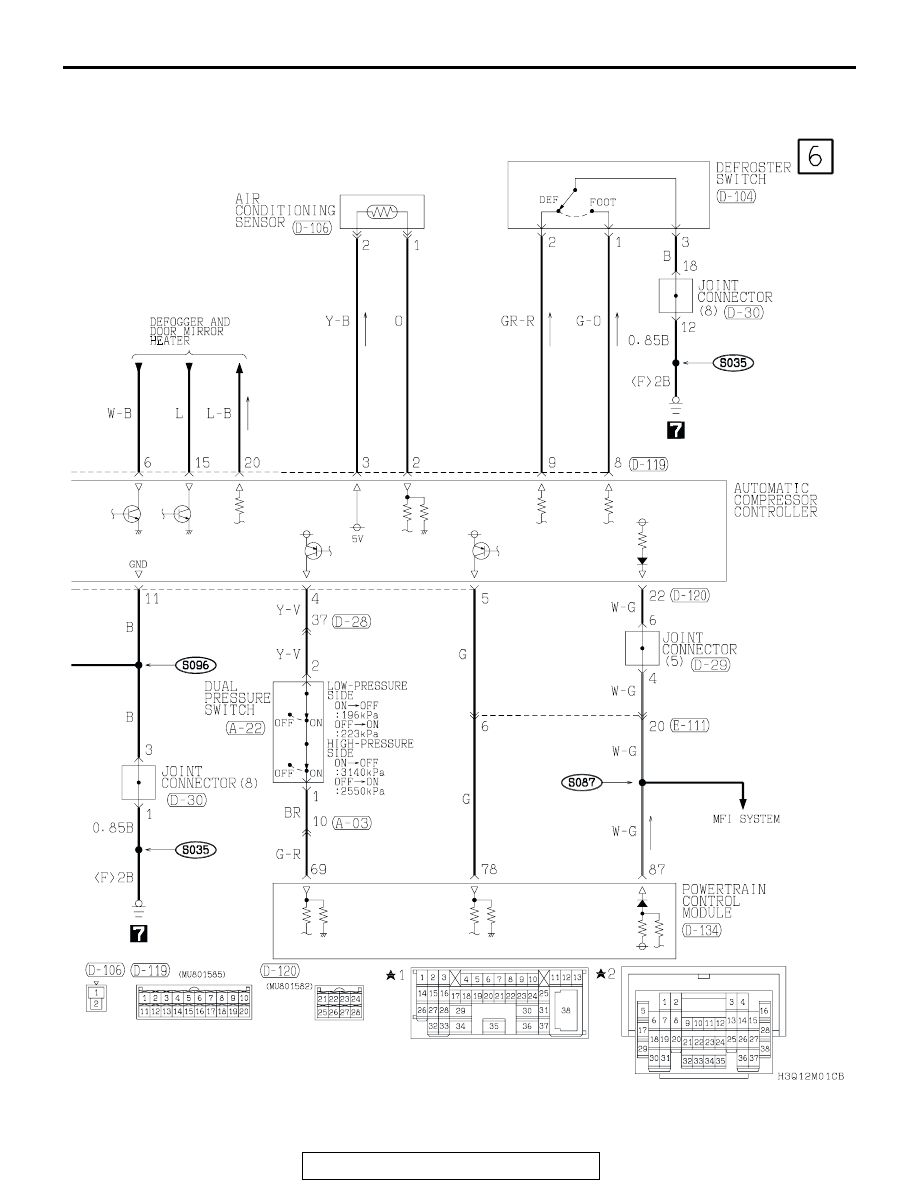

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR HEATER>

TSB Revision

CIRCUIT DIAGRAMS

90-136

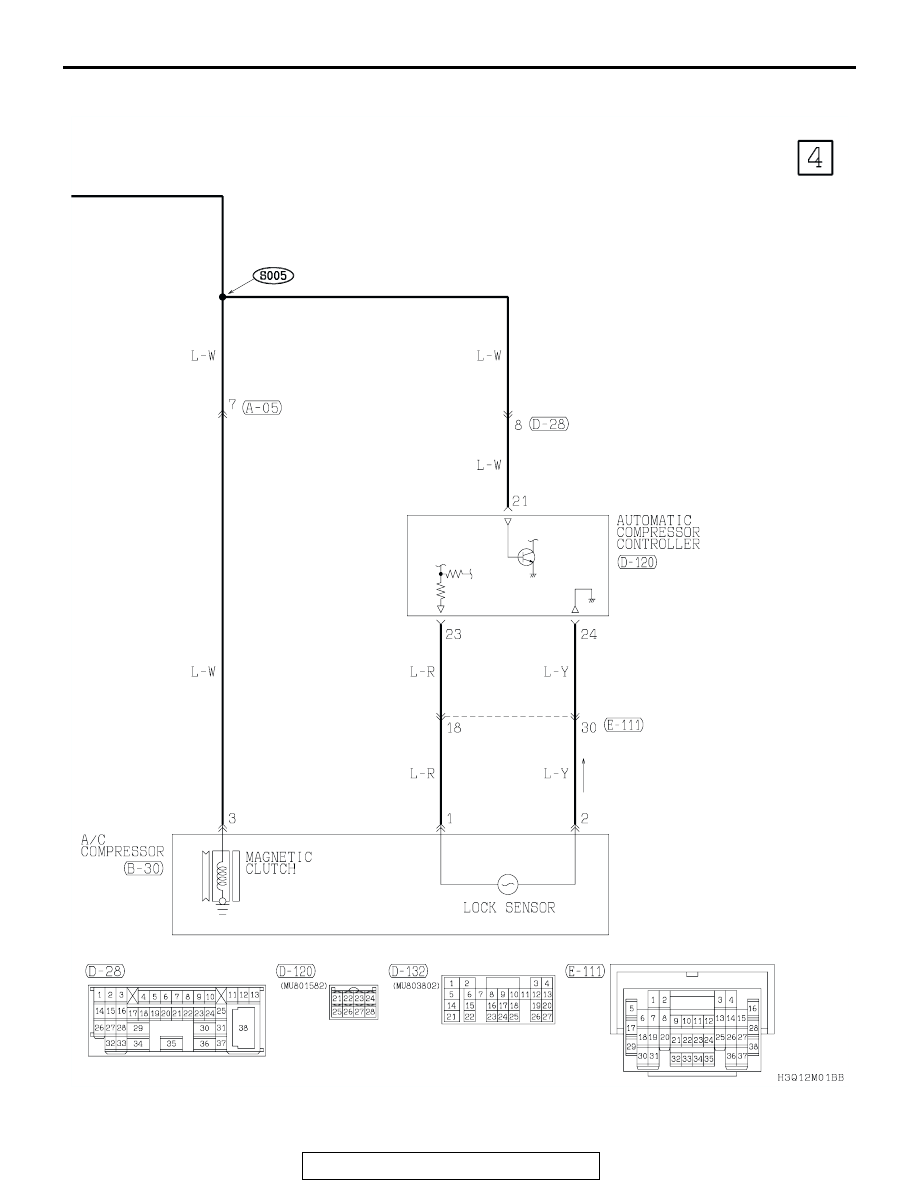

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR HEATER> (CONTINUED)

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR HEATER>

TSB Revision

CIRCUIT DIAGRAMS

90-137

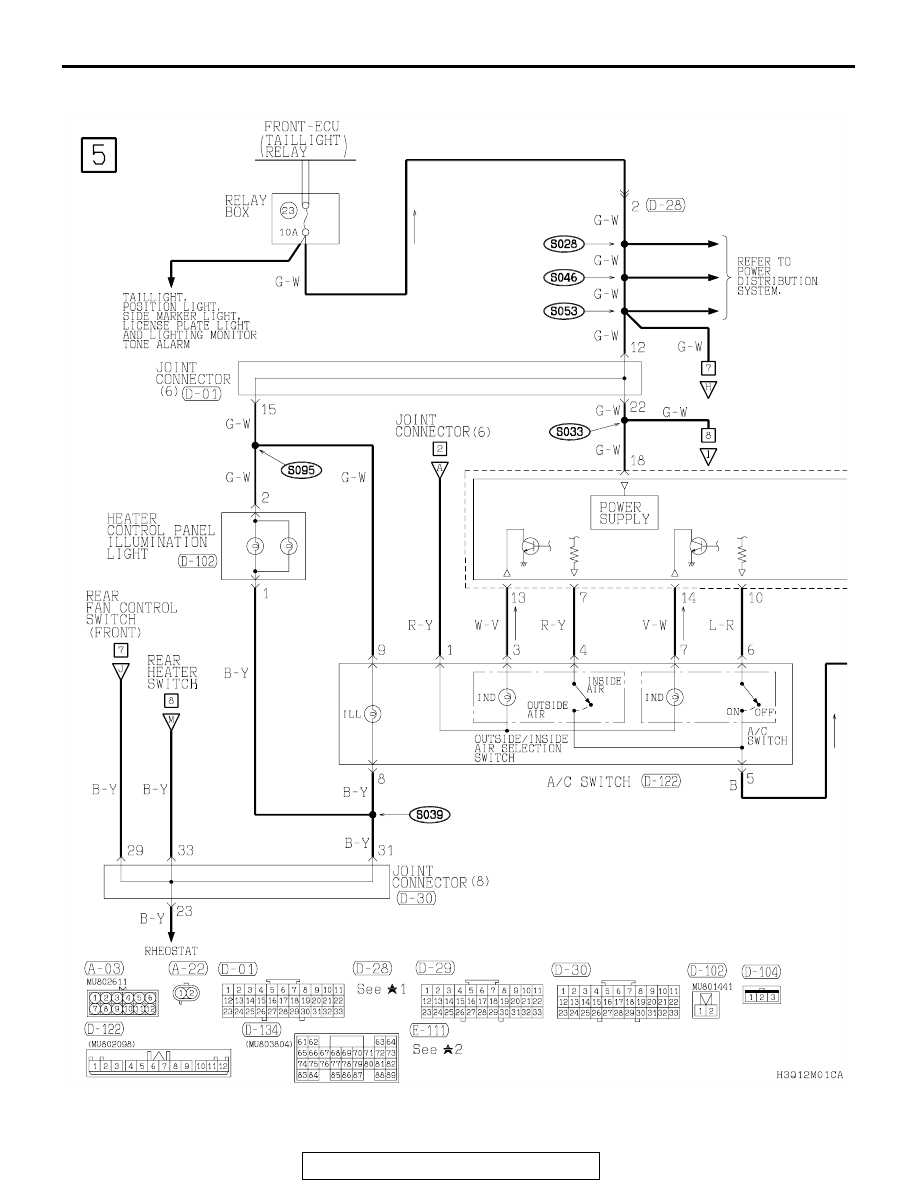

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR HEATER>

TSB Revision

CIRCUIT DIAGRAMS

90-138

DUAL MANUAL AIR CONDITIONING SYSTEM <VEHICLES WITH REAR HEATER> (CONTINUED)
