Mitsubishi Montero (2002-2004). Manual - part 1137





M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-165

.

CIRCUIT OPERATION
The M-ASTC-ECU receives signals through the CAN
bus line from the power control module.

.

TECHNICAL DESCRIPTION (COMMENT)
If the M-ASTC-ECU has set DTC code 35 or 36, the
wiring harness between the CAN main bus line and
the power control module, the power control module
or the M-ASTC-ECU may be defective.

.

TROUBLESHOOTING HINTS

• The CAN bus line between the CAN main bus

line and the power control module is defective.

• Damaged connector(s)

• The power control module is defective

• The M-ASTC-ECU is defective.

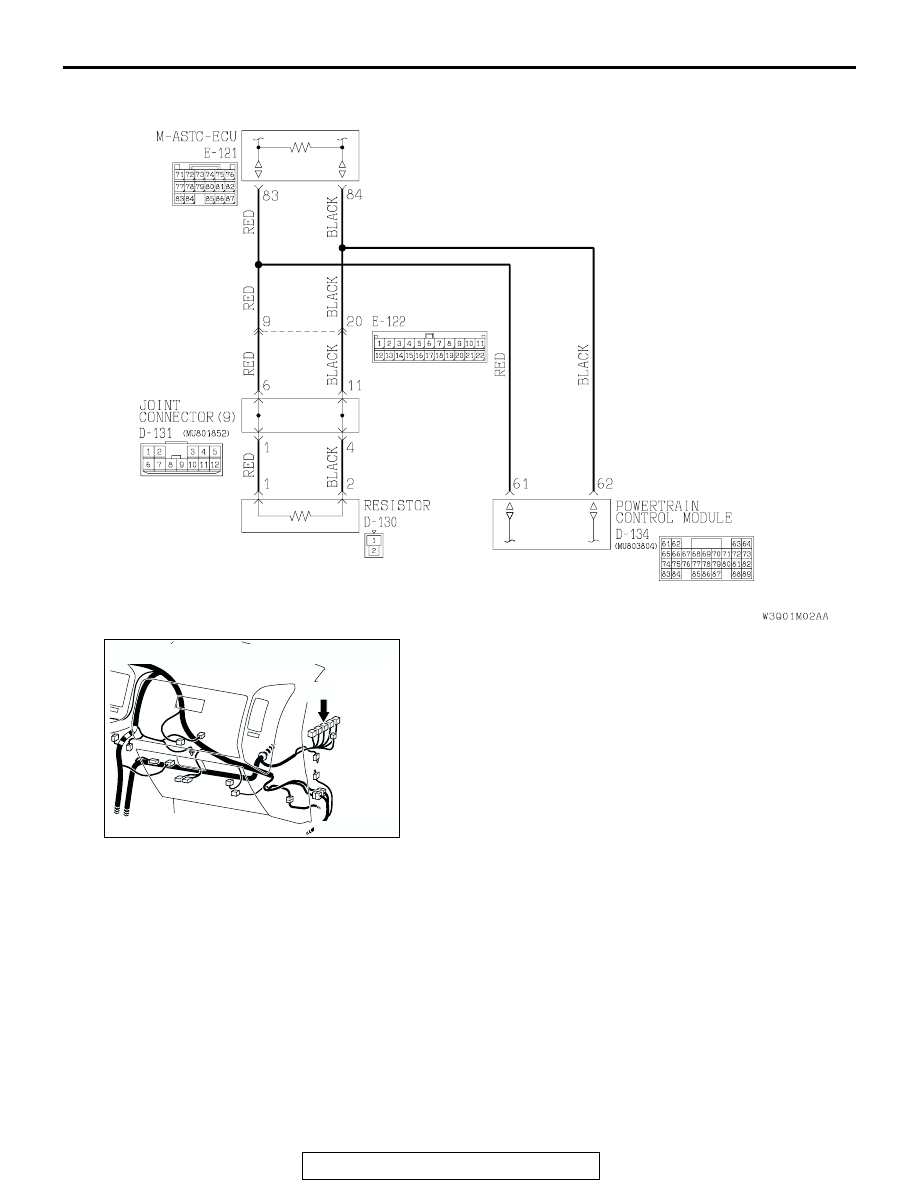

CAN Bus Communication Circuit (powertrain control module)

AC204171

CONNECTOR: D-134

AK

D-134(GR)

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-166

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991502: Scan Tool (MUT-II)

STEP 1. Check for engine and automatic transmission
DTCs.
Check whether an engine and automatic transmission DTCs
are set or not.
Q: Is the DTC set?

YES : Diagnose the power control module. Refer to

P.13Ab-

22

.

NO :  Go to Step 2.

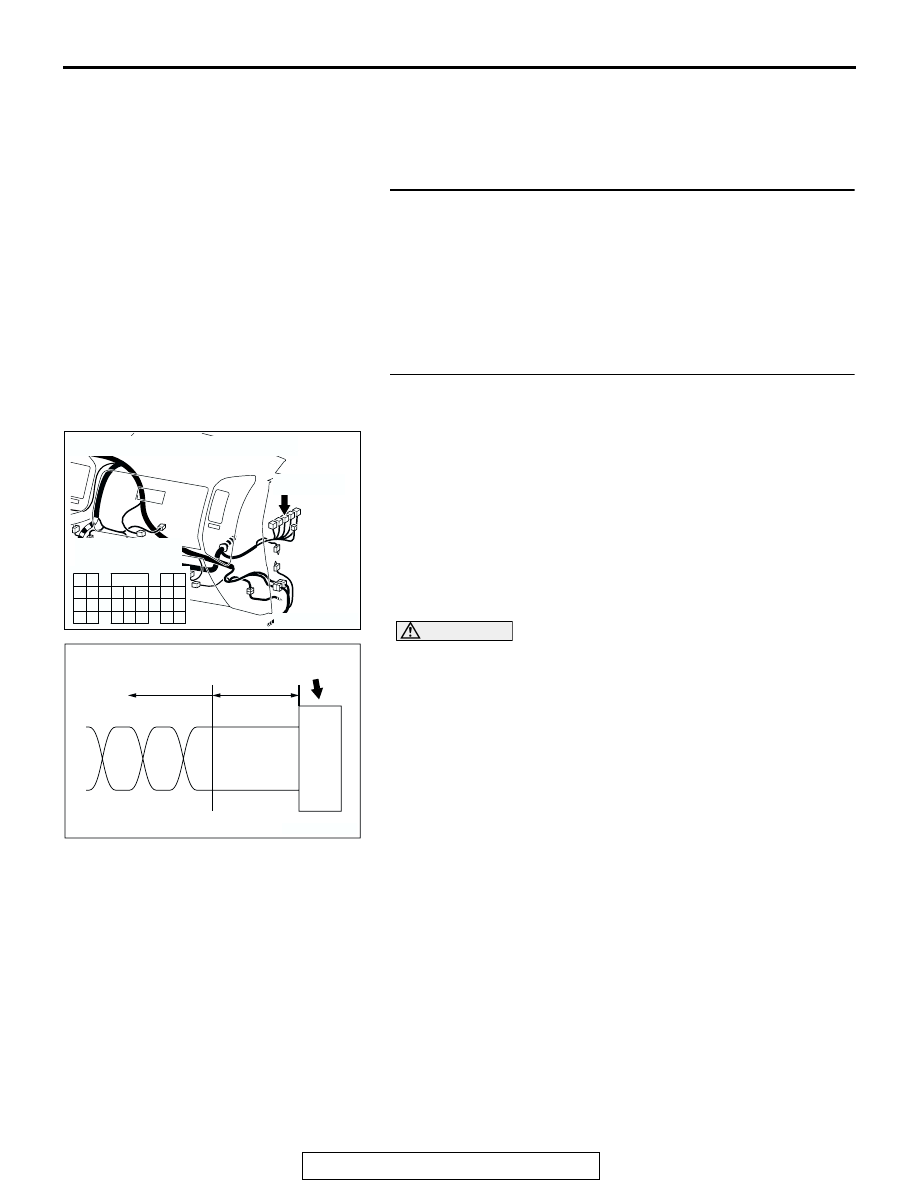

STEP 2. Check power control module connector D-134.

CAUTION

If there is a problem in the CAN bus line or the connectors
on the control wiring harness assembly (the wiring har-
ness connected to the M-ASTC-ECU, the power control
module and intermediate connector E-123), do not attempt
to repair the wiring harness or connector(s), but replace
the wiring harness assembly. If a wire is added or the con-
nector(s) are repaired, an error in the CAN communication
may be caused.
Q: Is power control module connector D-134 in good

condition?
YES :
Go to Step 3.
NO :  Replace the control wiring harness assembly.

AC204171

CONNECTOR: D-134

HARNESS SIDE

D-134(GR)

D-134(GR)

AE

80

87

73

66

67

65
74

81

75

82

6261

72

68

69

70

71

78

85

77

8483

76

79

86

63

64

8988

AC203824

CONNECTOR

TWISTED WIRE

AB

10 cm
 (4.0 inches)

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-167

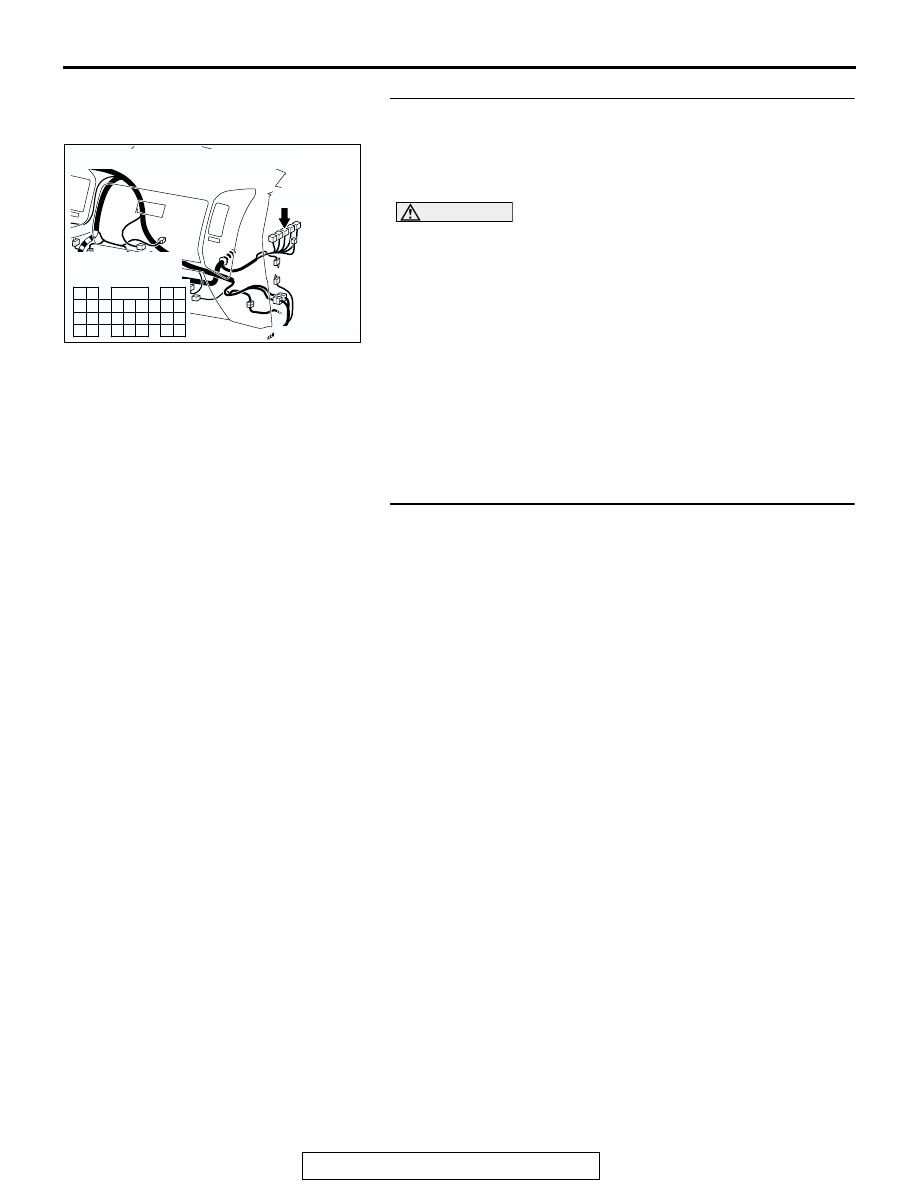

STEP 3. Check the wiring harness between power control
module connector D-134 and the CAN main bus line.
NOTE: Also check the joint between the communication line
(connected to the power control module) and the CAN main
bus line.

CAUTION

If there is a problem in the CAN bus line or the connectors
on the control wiring harness assembly (the wiring har-
ness connected to the M-ASTC-ECU, the power control
module and intermediate connector E-123), do not attempt
to repair the wiring harness or connector(s), but replace
the wiring harness assembly. If a wire is added or the con-
nector(s) are repaired, an error in the CAN communication
may be caused.
Q: Is the wiring harness between power control module

connector D-134 and the CAN main bus line in good
condition?
YES :
Go to Step 4.
NO :  Replace the control wiring harness assembly.

STEP 4. Replace the M-ASTC-ECU.
After the M-ASTC-ECU is replaced, retest the system.
Q: Has the trouble symptom been eliminated?

YES (the trouble symptom has been eliminated) : The

procedure is complete.

NO (the trouble symptom has not been eliminated) :

Replace the power control module.

AC204171

CONNECTOR: D-134

HARNESS SIDE

D-134(GR)

D-134(GR)

AE

80

87

73

66

67

65
74

81

75

82

6261

72

68

69

70

71

78

85

77

8483

76

79

86

63

64

8988

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-168

Diagnostic Item 6:  CAN bus line diagnostics (between the main bus line and the steering wheel
sensor)

CAUTION

Prior to this diagnosis procedure, diagnose the
CAN main bus line.

CAUTION

Before checking CAN bus lines and their inter-
connected components, "ground" yourself, by
touching a metal object such as an unpainted
pipe, this will discharge any potentially damag-
ing static that may have built up.

CAUTION

When measuring resistance value or voltage in
CAN bus lines, use a digital multimeter. If not
using a digital multimeter, the equipments con-
nected through the CAN bus lines may be dam-
aged.

CAUTION

Disconnect the negative battery terminal when
measuring the resistance value in the CAN bus
line. If you fail to do so, the equipments con-
nected through the CAN bus lines may be dam-
aged.

CAUTION

Always use the test harness when measuring the
voltage or resistance value at the female connec-
tor. If you fail to do so, connectors may be dam-
aged.

CAUTION

If there is a problem in the connector(s) (includ-
ing terminals) or wire(s) of the instrument panel
wiring harness assembly (the wiring harness
connected to the steering wheel sensor, the data
link connector and the resistor) and the trans-
mission wiring harness assembly (the wiring har-
ness connected to the G and yaw rate sensor
connector and intermediate connector E-123),
cut and repair the defective wire so that the
frayed end of the twisted wire should be within
10 cm (4.0 inches). If it exceeds 10 cm (4.0

inches), twist the wiring harness just like the
original twisted wire. If the frayed end exceeds 10
cm (4.0 inches), a communication error may be
caused.

CAUTION

If you repair the CAN bus line of the instrument
panel wiring harness assembly (the wiring har-
ness connected to the steering wheel sensor, the
data link connector and the resistor) and the
transmission wiring harness assembly (the wir-
ing harness connected to the G and yaw rate
sensor connector and intermediate connector E-
123), observe the precautions regarding how to
repair wiring harness. If a new wire is added or a
splice point is modified for the CAN_L or CAN_H
line, an error in the CAN communication may be
caused.

AC203824

CONNECTOR

TWISTED WIRE

AB

10 cm
 (4.0 inches)
