M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-137

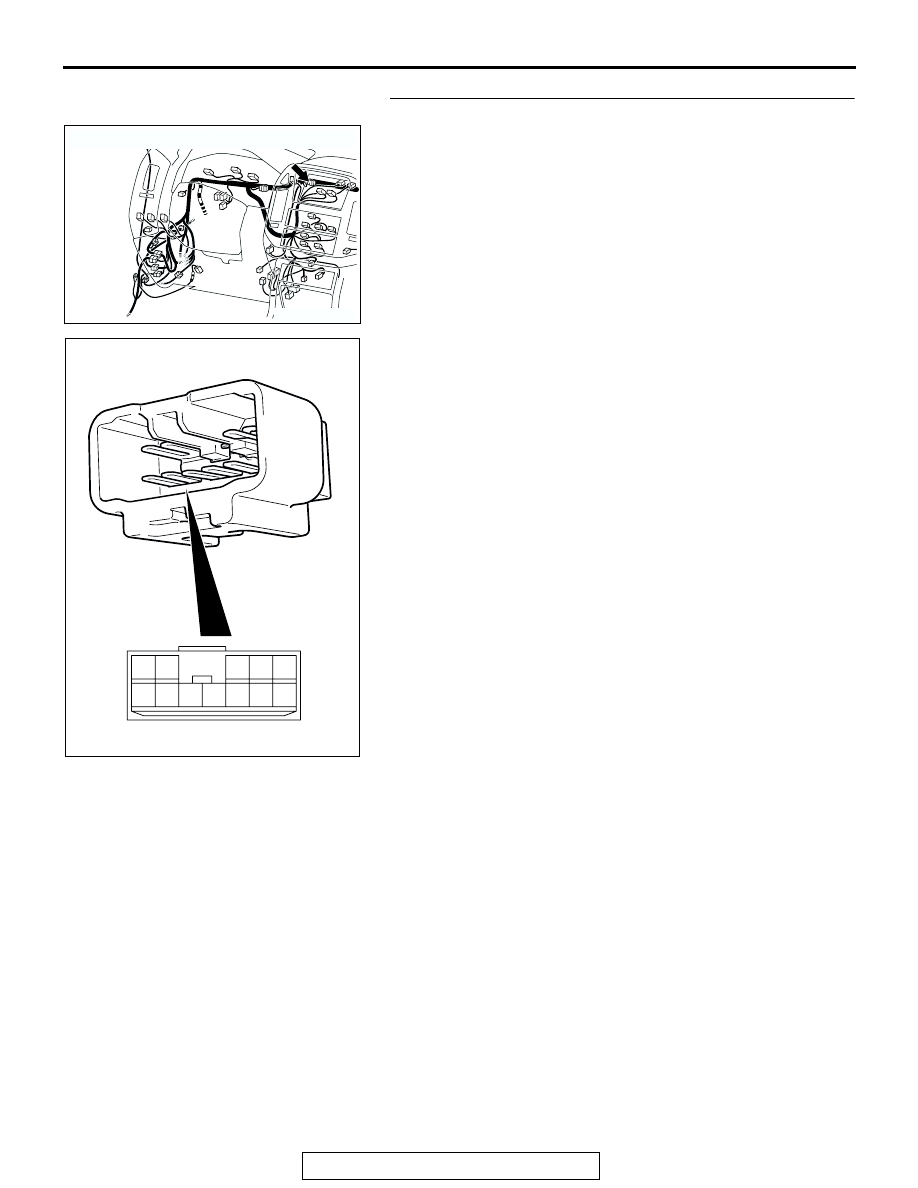

STEP 14. Check the joint connector.
Disconnect joint connector (9), and check the short pin behind
the connector for corrosion, deformation and delamination.
Q: Is joint connector in good condition?

YES : Go to Step 15.
NO :  Replace the joint connector.

AC204170

CONNECTOR: D-131

BV

AC204573

4 5

3

12

10

9

11

1 2

6 7 8

JOINT CONNECTOR (9) D-131

AB

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-138

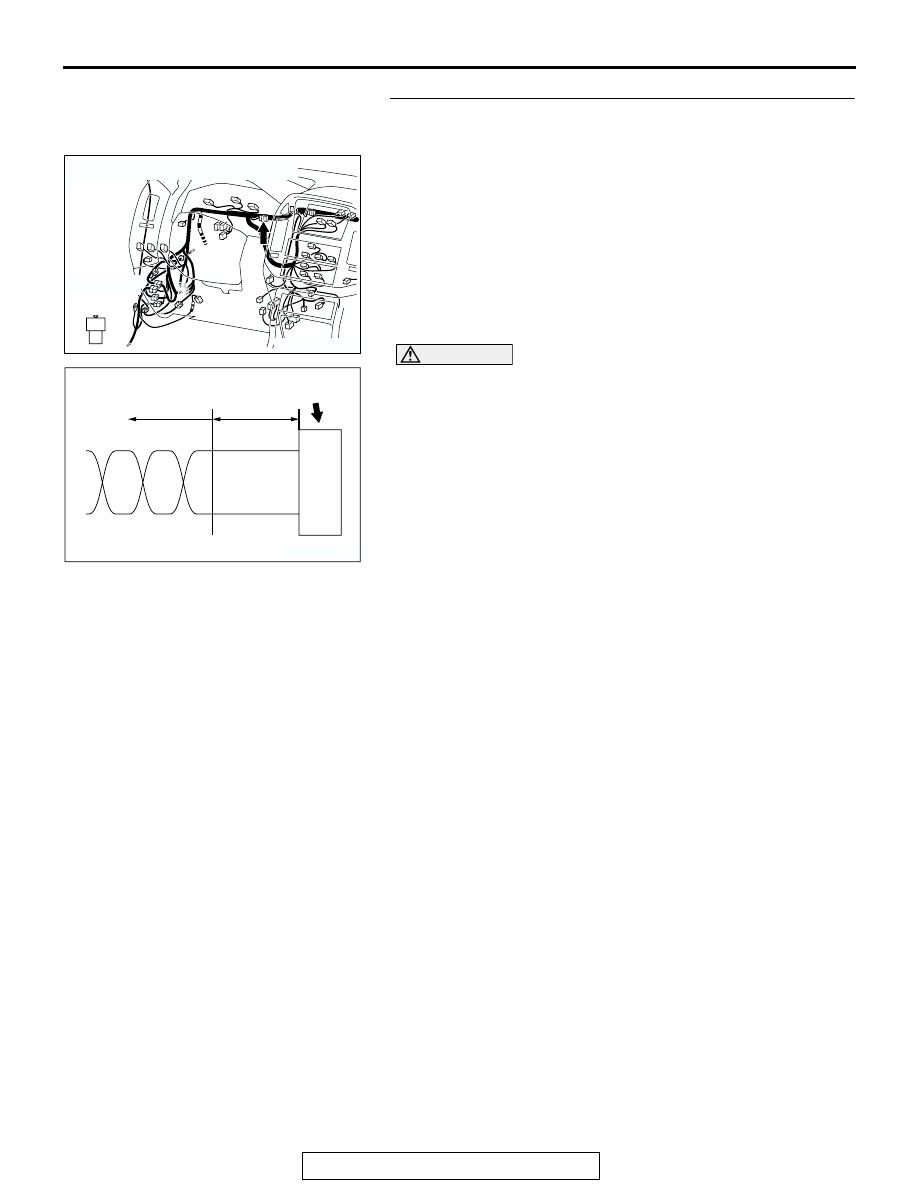

STEP 15. Check resistor connector D-130.

CAUTION

If there is a problem in the connector(s) (including termi-
nals) or wire(s) of the instrument panel wiring harness
assembly (the wiring harness connected to the steering
wheel sensor, the data link connector and the resistor) and
the transmission wiring harness assembly (the wiring har-
ness connected to the G and yaw rate sensor connector
and intermediate connector E-123), cut and repair the
defective wire so that the frayed end of the twisted wire
should be within 10 cm (4.0 inches). If it exceeds 10 cm (4.0
inches), twist the wiring harness just like the original
twisted wire. If the frayed end exceeds 10 cm (4.0 inches),
a communication error may be caused.
Q: Is resistor connector D-130 in good condition?

YES : Go to Step 16.
NO :  Repair or replace the connector(s).

AC204170

CONNECTOR: D-130

HARNESS SIDE

AQ

1
2

AC203824

CONNECTOR

TWISTED WIRE

AB

10 cm
 (4.0 inches)

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-139

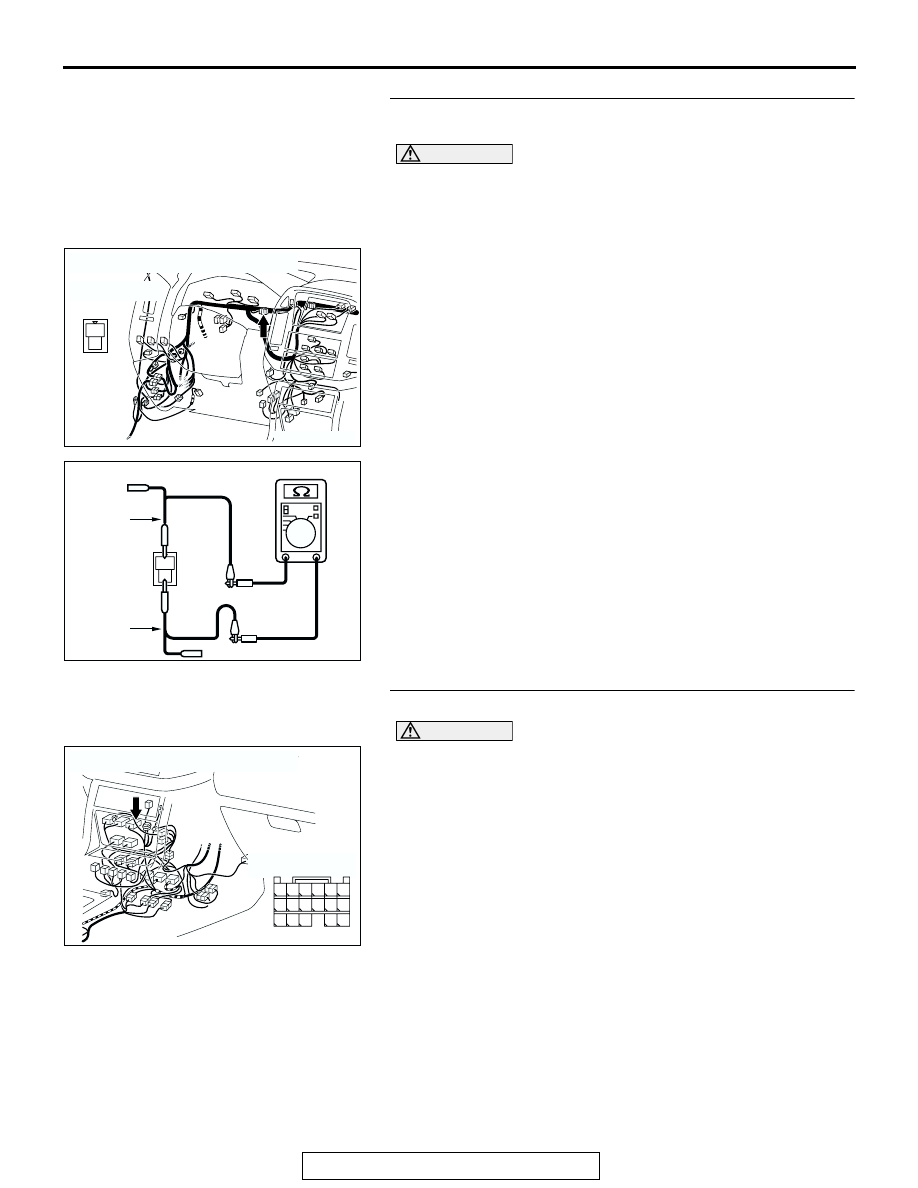

STEP 16. Check the terminator resistor. Measure at
resistor connector D-130.

CAUTION

Before checking CAN bus lines and their interconnected
components, "ground" yourself, by touching a metal
object such as an unpainted pipe, this will discharge any
potentially damaging static that may have built up.
(1) Disconnect resistor connector D-130, and measure the

resistance at the component-side connector.

(2) Measure the resistance between resistor connector D-130

terminals 1 and 2.

• The resistance should measure 120 ± 20 ohms.

Q: Does the resistance measure 120

± 20 ohms?

YES : Go to Step 17.
NO :  Replace the resistor.

STEP 17. Check M-ASTC-ECU connector E-121.

CAUTION

If there is a problem in the CAN bus line or the connectors
on the control wiring harness assembly (the wiring har-
ness connected to the M-ASTC-ECU, the power control
module and intermediate connector E-123), do not attempt
to repair the wiring harness or connector(s), but replace
the wiring harness assembly. If a wire is added or the con-
nector(s) are repaired, an error in the CAN communication
may be caused.
Q: Is M-ASTC-ECU connector E-121 in good condition?

YES : Go to Step 18.
NO :  Replace the control wiring harness assembly.

AC204170

CONNECTOR: D-130

COMPONENT
SIDE

AS

1
2

AC204579

1
2

COMPONENT SIDE: D-130

TEST
HARNESS

AB

TEST
HARNESS

AC204176

CONNECTOR: E-121

HARNESS SIDE

AC

71

77

83

72

78

84

73

79

85

74

80

75

81

86

76

82

87

M-ASTC DIAGNOSIS

TSB Revision

MITSUBISHI ACTIVE SKID AND TRACTION CONTROL SYSTEM

35C-140

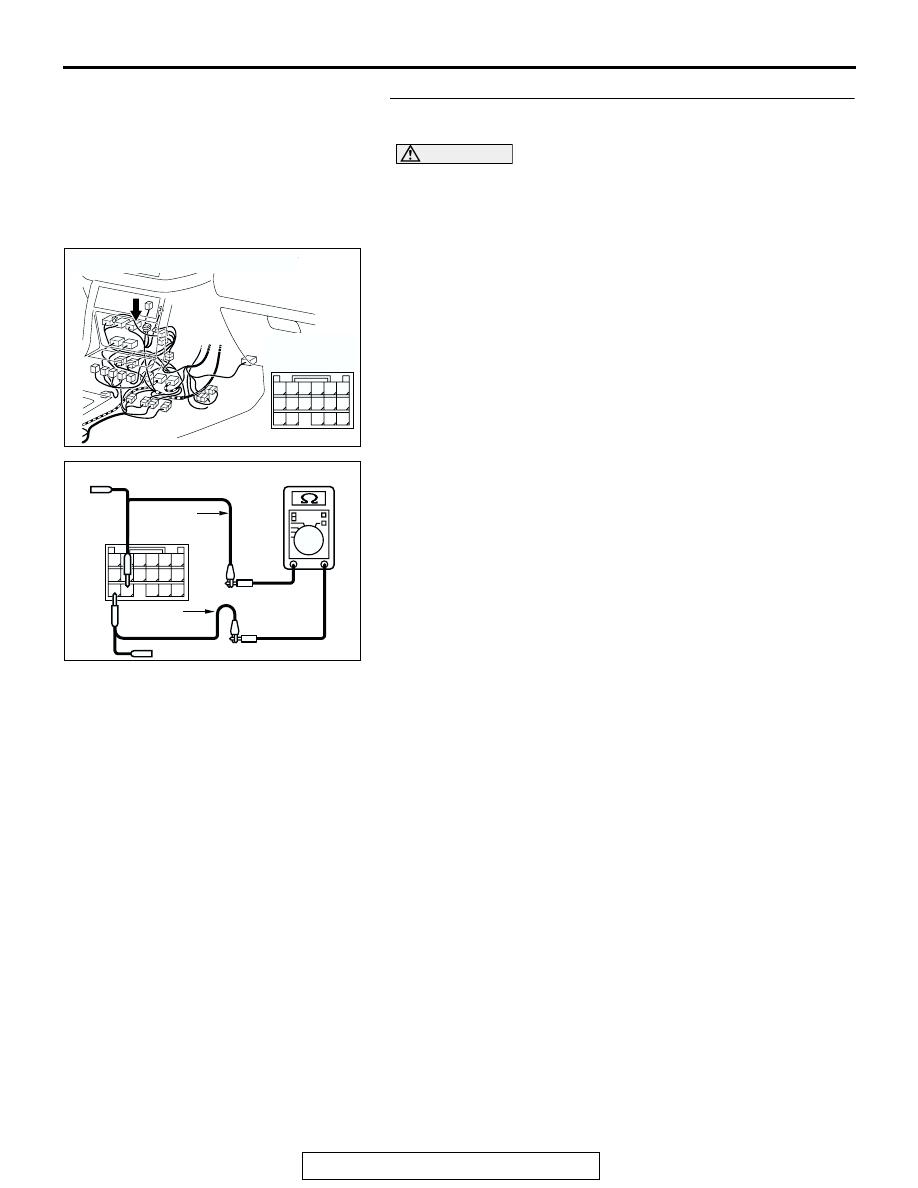

STEP 18. Check the terminator resistor inside the M-ASTC-
ECU. Measure at M-ASTC-ECU connector E-121.

CAUTION

Before checking CAN bus lines and their interconnected
components, "ground" yourself, by touching a metal
object such as an unpainted pipe, this will discharge any
potentially damaging static that may have built up.
(1) Disconnect M-ASTC-ECU connector E-121, and measure

the resistance at the component-side connector.

(2) Measure the resistance between M-ASTC-ECU connector

E-121 terminals 83 and 84.

• The resistance should measure 120 ± 20 ohms.

Q: Does the resistance measure 120

± 20 ohms?

YES : Go to Step 19.
NO :  Replace the M-ASTC-ECU.

AC204176

CONNECTOR: E-121

COMPONENT
SIDE

AE

76

82

87

75

81

86

74

80

85

73

79

72

78

84

71

77

83

AC204581

COMPONENT SIDE: E-121

TEST
HARNESS

AB

TEST
HARNESS

76

82

87

75

81

86

74

80

85

73

79

72

78

84

71

77

83
