IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-41

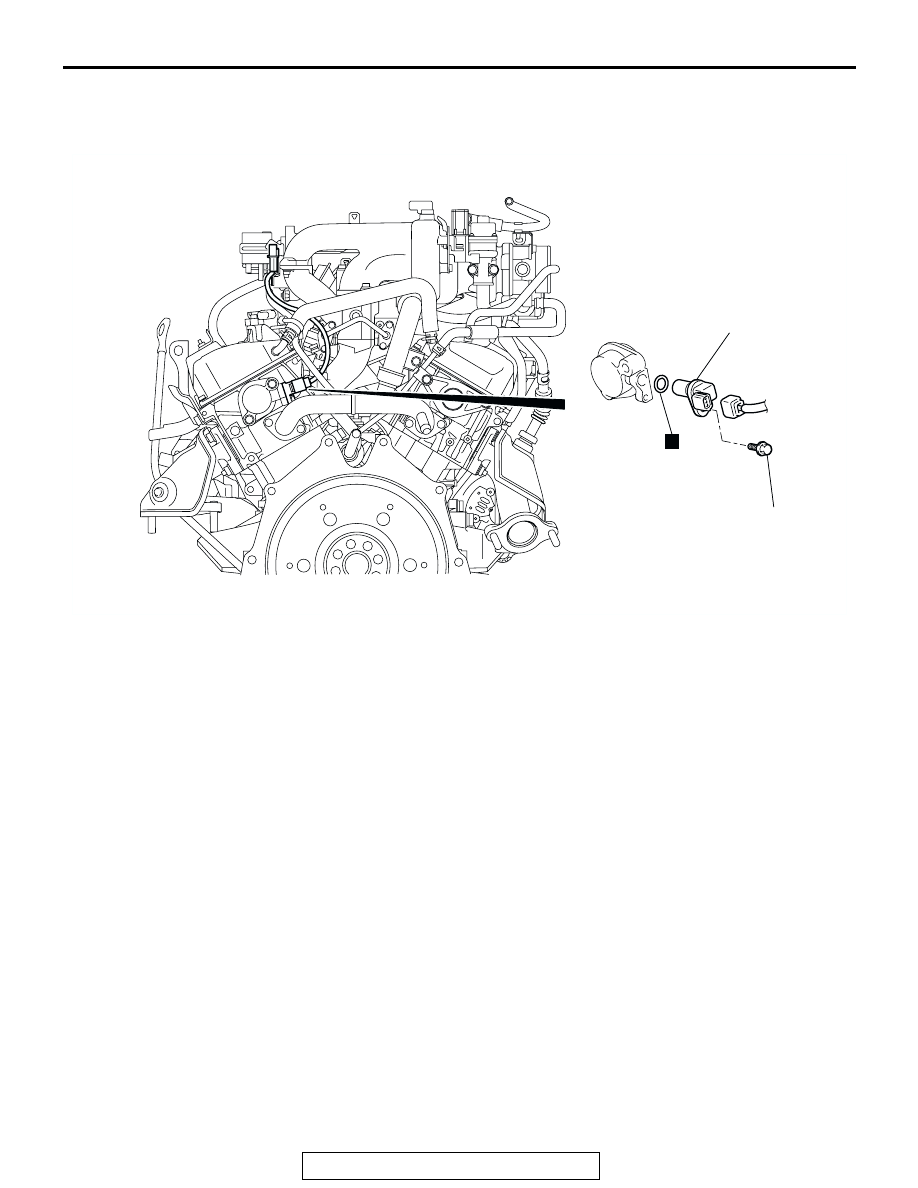

CAMSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION

M1163003400346

AC204096AB

11 ± 1 N·m
98 ± 8 in-lb

CAMSHAFT POSITION
SENSOR

N

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-42

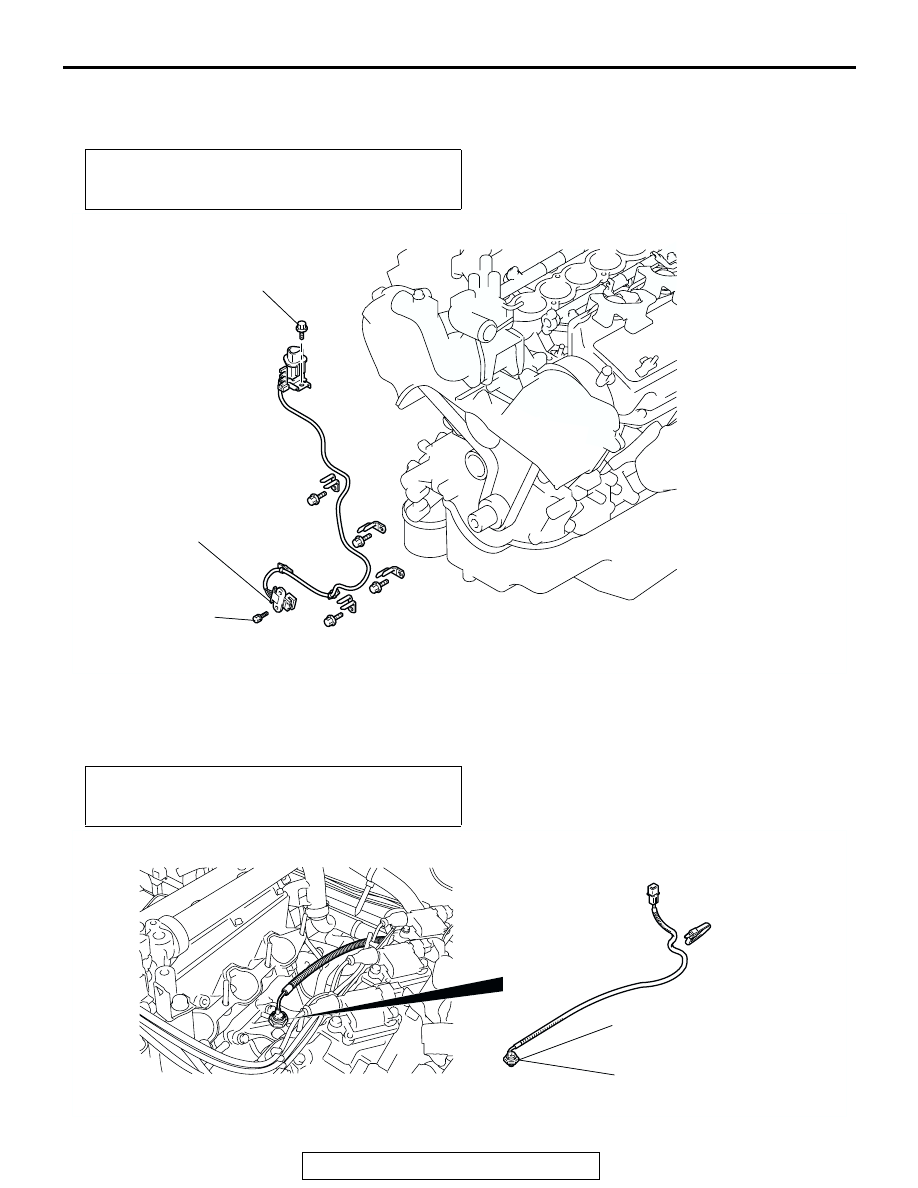

CRANKSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION

M1163003500332

KNOCK SENSOR

REMOVAL AND INSTALLATION

M1163002800341

Pre-removal and Post-installation Operation
• Timing Belt Lower Cover Removal and Installation (Refer

to GROUP 11A, Timing Belt

P.11A-33

.)

AC204073

CRANKSHAFT POSITION
SENSOR

10 ± 2 N·m
89 ± 17 in-lb

8.5 ± 0.5 N·m
76 ± 4 in-lb

AB

Pre-removal and Post-installation Operation
• Intake Manifold Removal and Installation (Refer to

GROUP 15, Intake Manifold

P.15-7

.)

AC204095

1

23 ± 2 N·m
17 ± 1 ft-lb

AB

<<A>>

>>A<< 1. KNOCK SENSOR

SPECIFICATIONS

TSB Revision

ENGINE ELECTRICAL

16-43

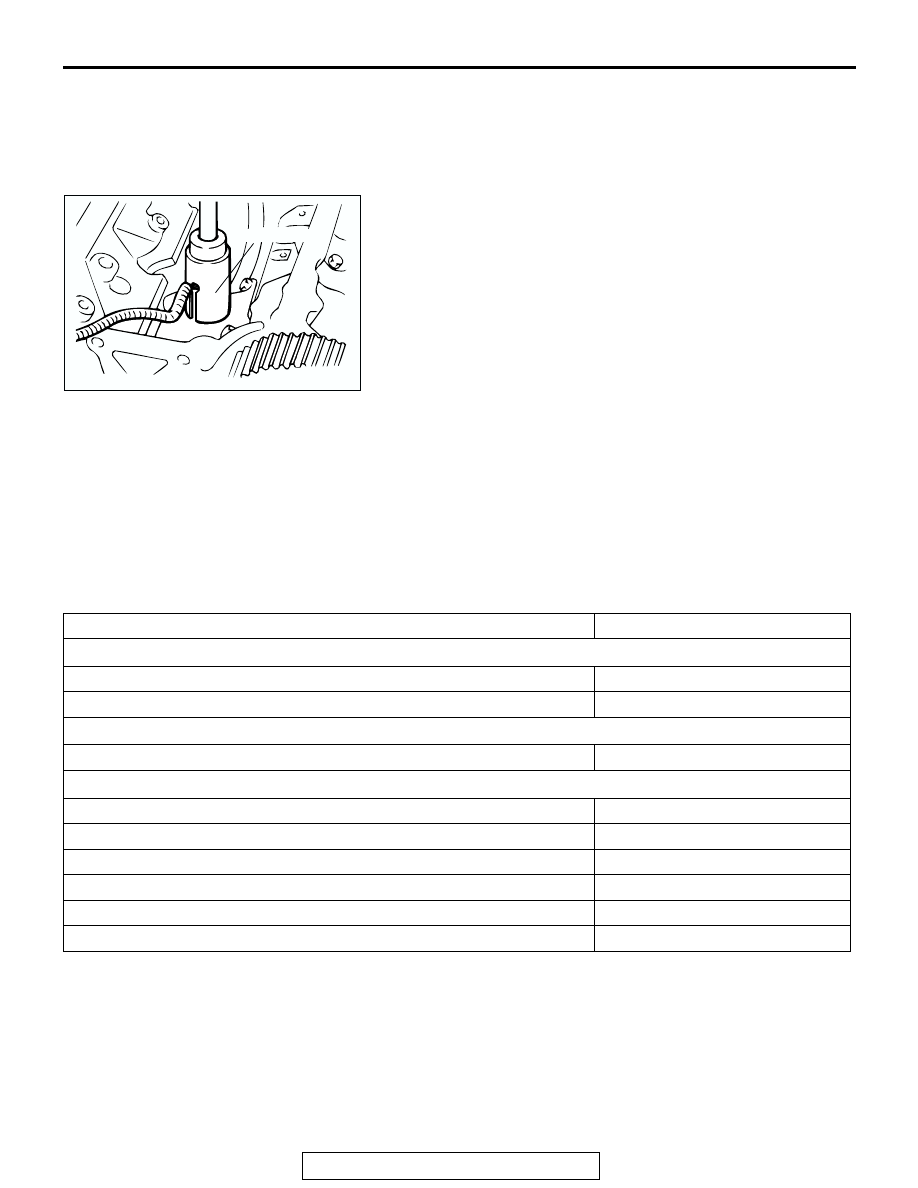

Required Special Tool:
MD998773: Knock Sensor Wrench

REMOVAL SERVICE POINT

.

<<A>> KNOCK SENSOR REMOVAL
Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINT

.

>>A<< KNOCK SENSOR INSTALLATION
Use special tool MD998773 to install the knock sensor.

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1161002100465

ACX02082AB

MD998773

ITEM

SPECIFICATION

Charging system
Generator bolt

22

± 4 N⋅m (16 ± 3 ft-lb)

Generator bolt

44

± 10 N⋅m (33 ± 7 ft-lb)

Starting system
Starter bolt

30

± 3 N⋅m (22 ± 2 ft-lb)

Ignition system
Camshaft position sensor bolt

11

± 1 N⋅m (98 ± 8 in-lb)

Crankshaft position sensor bolt

8.5

± 0.5 N⋅m (76 ± 4 in-lb)

Ignition coil bolt

10

± 2 N⋅m (89 ± 17 in-lb)

Knock sensor

23

± 2 N⋅m (17 ± 1 ft-lb)

Spark plug cable support bolt

10

± 2 N⋅m (89 ± 17 in-lb)

Spark plug

25

± 5 N⋅m (18 ± 4 ft-lb)

SPECIFICATIONS

TSB Revision

ENGINE ELECTRICAL

16-44

GENERAL SPECIFICATIONS

M1161000200217

SERVICE SPECIFICATIONS

M1161000300247

ITEMS

SPECIFICATIONS

Generator
Type

Positive battery positive voltage sensing

Identification number

A3TB2891

Part No.

MD370480

Rated output V/A

12/100

Voltage regulator

Electronic built-in type

Starter motor
Type

Reduction drive with planetary gear

Identification number

M0T20471

Part No.

MD379687

Rated output kW/V

1.3/12

Voltage regulator

8

Ignition coil
Type

Molded 3-coil

Spark plugs
NGK

FR6S

DENSO

SK20PR-A8

CHAMPION

−

ITEMS

STANDARD VALUE

LIMIT

Generator
Regulated voltage
(Ambient temperature at voltage
regulator)

−20°C (−4°F)

14.2

− 15.4

−

20

°C (68°F)

13.9

− 14.9

−

60

°C (140°F)

13.4

− 14.6

−

80

°C (176°F)

13.1

− 14.5

−

Generator output line voltage drop (at 30A) V

−

Maximum 0.3

Output current

−

70% of normal output
current

Field coil resistance

Ω

Approximately 2

− 5

−

Brush protrusion length mm (in)

−

2 (0.08)

Starter motor
Free running characteristics

Terminal voltage
V

11

−

Current A

90

−

Speed r/min

2,500 or more

−

Pinion gap mm (in)

0.5

− 2.0 (0.02 − 0.07) −

Commutator run-out mm (in)

0.05 (0.002)

0.1 (0.004)

Commutator diameter mm (in)

29.4 (1.16)

Minimum 28.8 (1.13)
