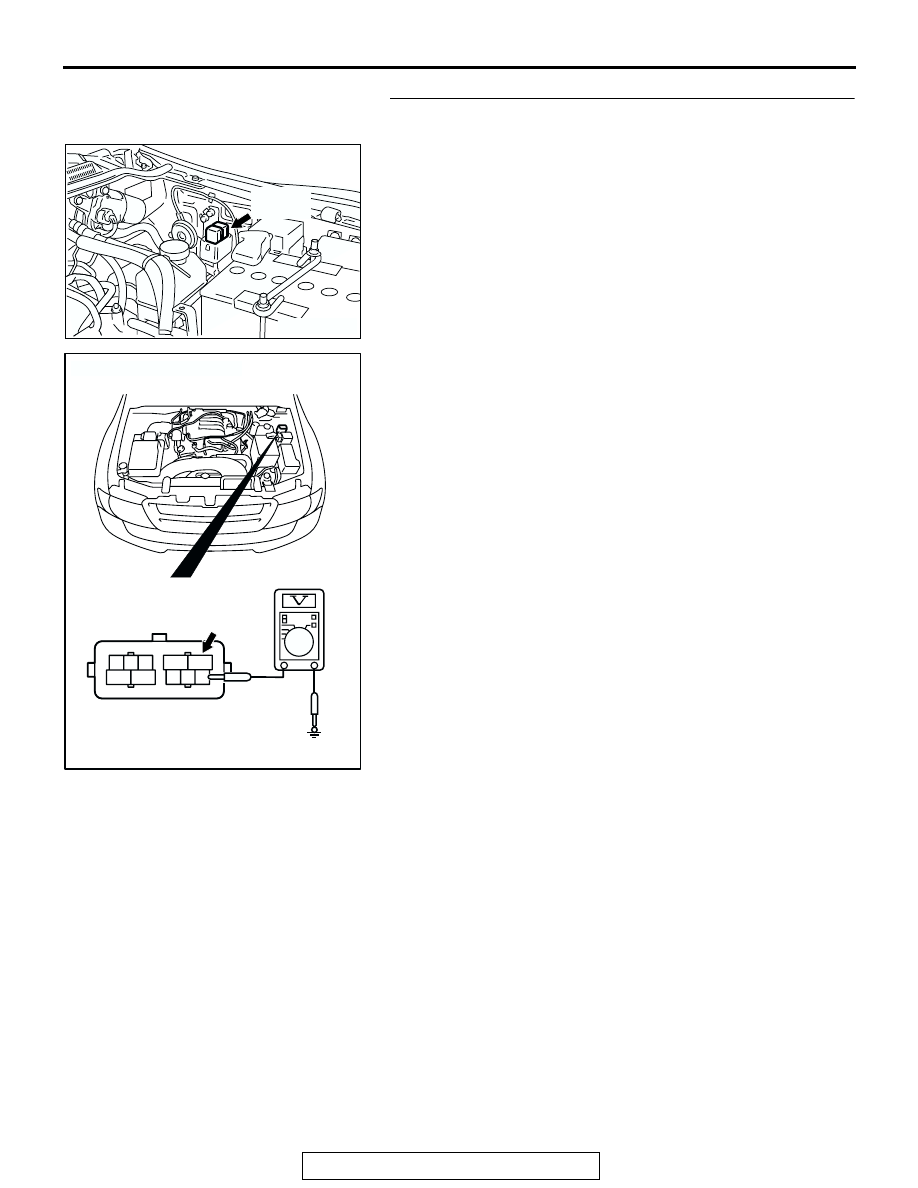

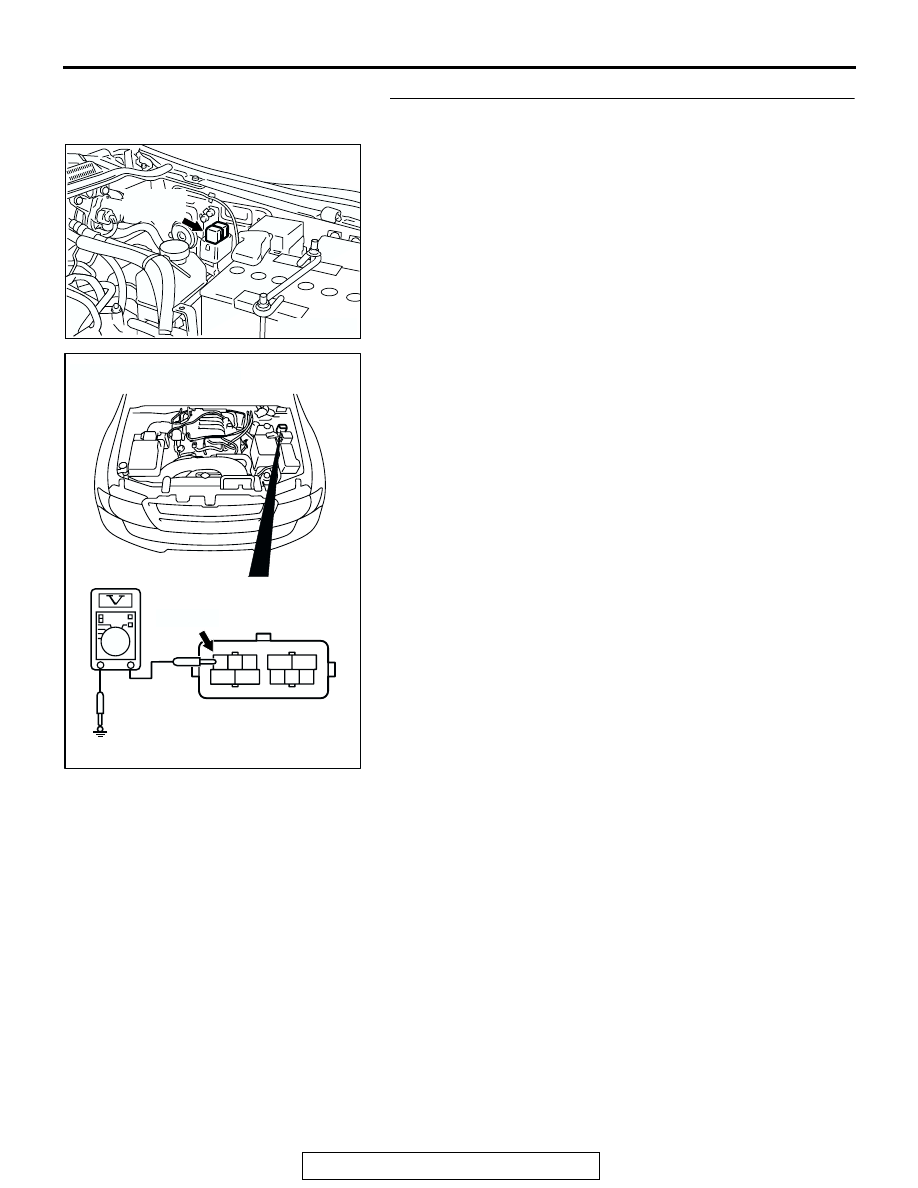

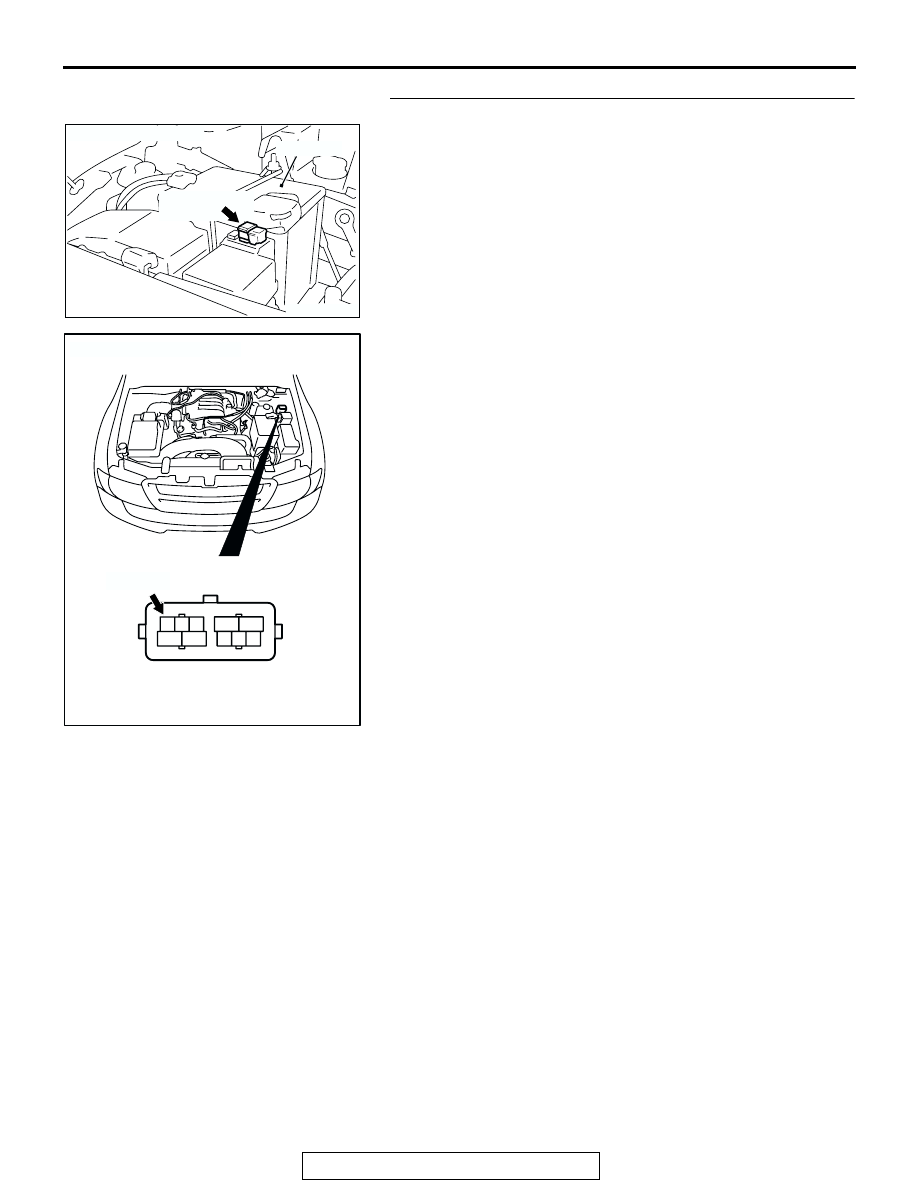

HYDRAULIC BRAKE BOOSTER (HBB) DIAGNOSIS TSB Revision BASIC BRAKE SYSTEM 35A-37 STEP 7. Check the ignition switch (IG2) circuit at motor (3) Measure the voltage between terminal 3 and ground. The voltage should measure approximately 12 volts (battery Q: Is battery positive voltage (approximately 12 volts) present? AC204329 AD MOTOR AC204552 3 2 1 5 4 1 2 3 4 5 RELAY BOX CONNECTOR AC CONNECTOR: B-53X B-53X |
