AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-9

STEP 1. Using scan tool MB991502, check data list item 13:
Ambient air temperature sensor.
Item 13: Ambient air temperature sensor
OK: The outside air temperature and indicated temperature on
scan tool MB991502 are almost equal.
Q: Are the outside air temperature and temperature

displayed on scan tool MB991502 almost equal?
YES :
 It can be assumed that this malfunction is

intermittent. (Refer to GROUP 00 - How to Cope with
Intermittent Malfunction

P.00-6

.)

NO :   Go to Step 2.

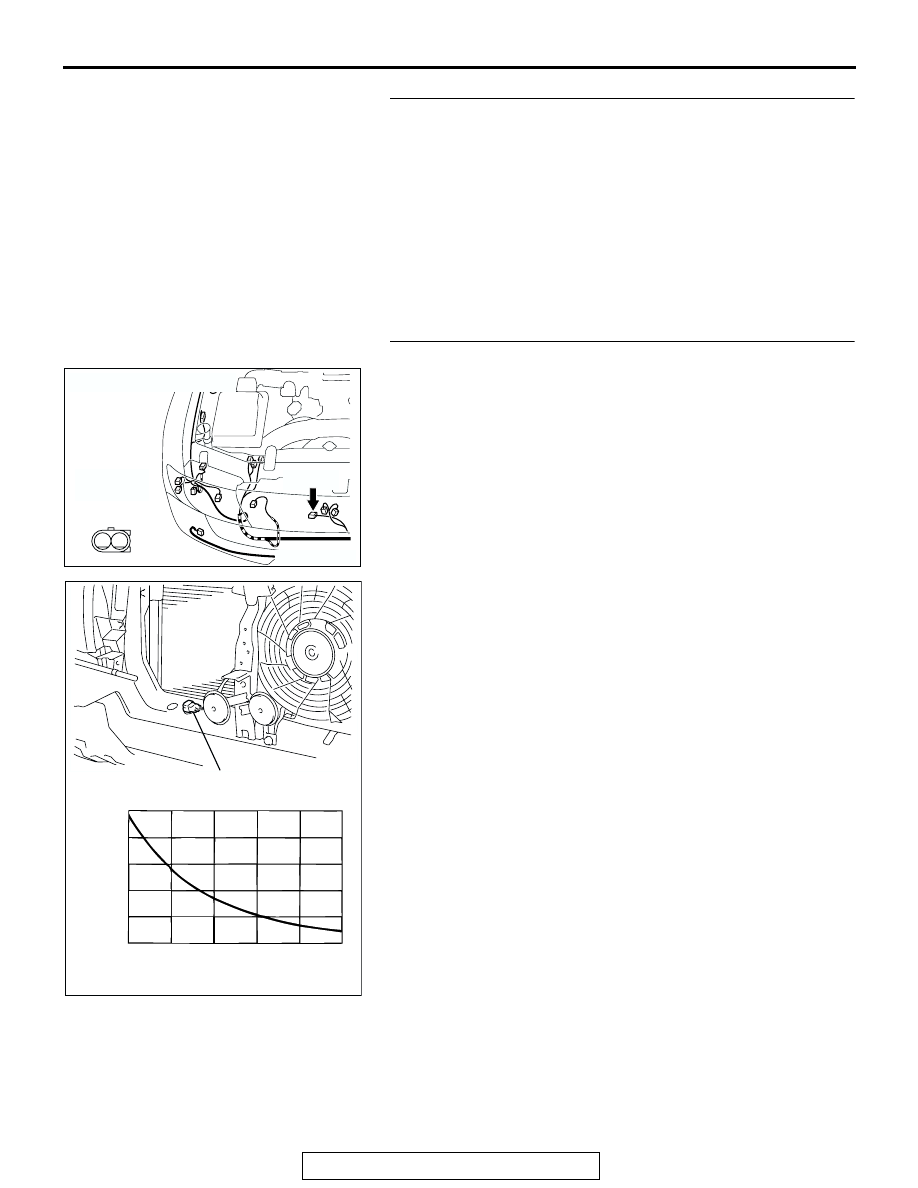

STEP 2. Check the outside air temperature sensor.
Disconnect outside air temperature sensor connector A-29, and
measure the resistance between terminal numbers 1 and 2.
Measure the resistance between the sensor terminals under at
least two temperatures.
NOTE: The temperature conditions at the check should be
within the range shown in the characteristic diagram.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Replace the outside air temperature sensor. Then go

to Step 5.

AC204166

CONNECTOR : A-29

AP

A-29(B)

A-29(B)

1

2

HARNESS
SIDE

AC001680AB

OUTSIDE AIR
TENPERATURE SENSOR

REGISTANCE k

10

8

6

4

2

0

-10

0

10

20

30

40

(14) (32)

(50)

(68)

(86) (104)

TEMPERATURE ˚C (˚F)

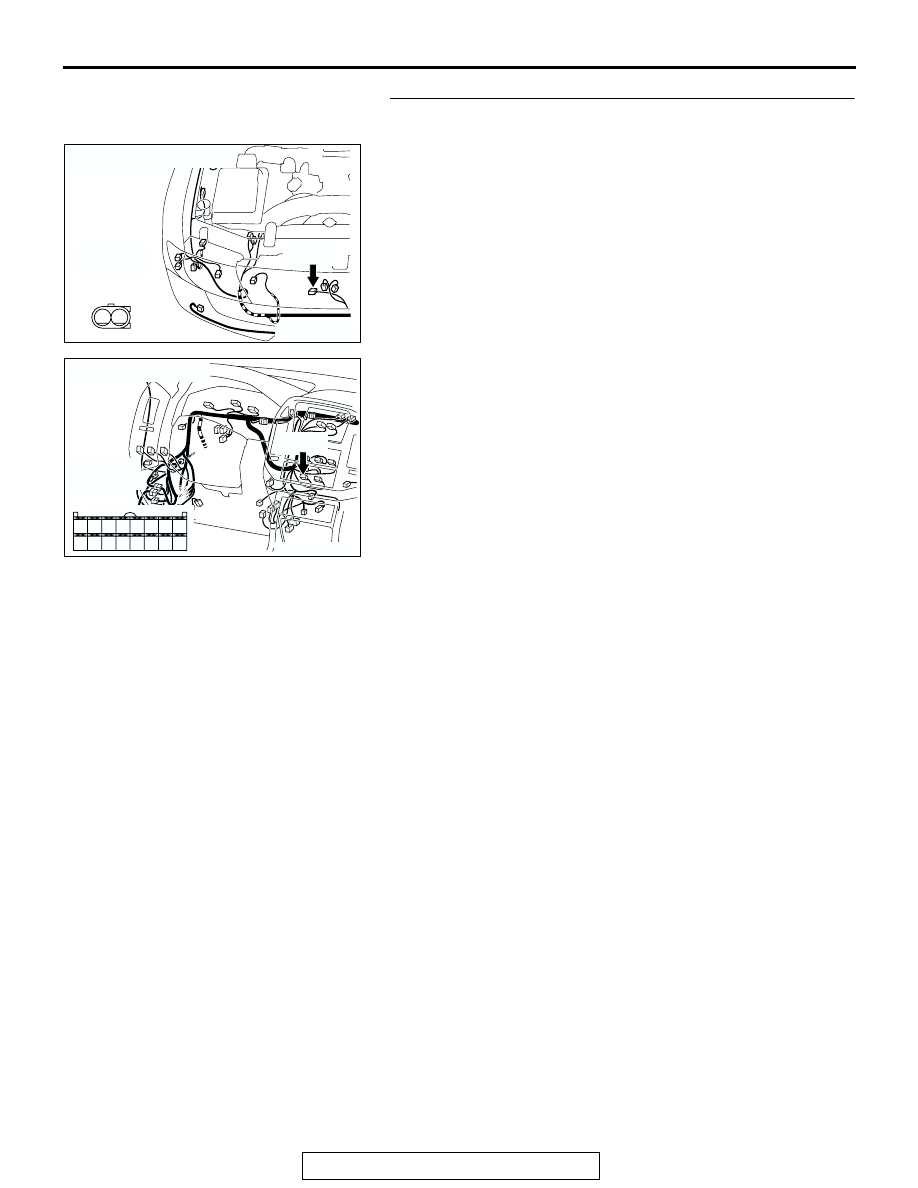

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-10

STEP 3. Check outside air temperature sensor connector
A-29 and A/C-ECU connector D-24 for damage.
Q: Is outside air temperature sensor connector A-29 and A/

C-ECU connector D-24 in good condition?
YES :
Go to Step 4.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Then go

to Step 5.

AC204166

CONNECTOR : A-29

AP

A-29(B)

A-29(B)

1

2

HARNESS
SIDE

AC204170

CONNECTOR : D-24

D-24(B)

D-24(B)

CQ

22

23

30

31

25

26

33

34

32

24

28

3635

27

29

21

HARNESS
SIDE

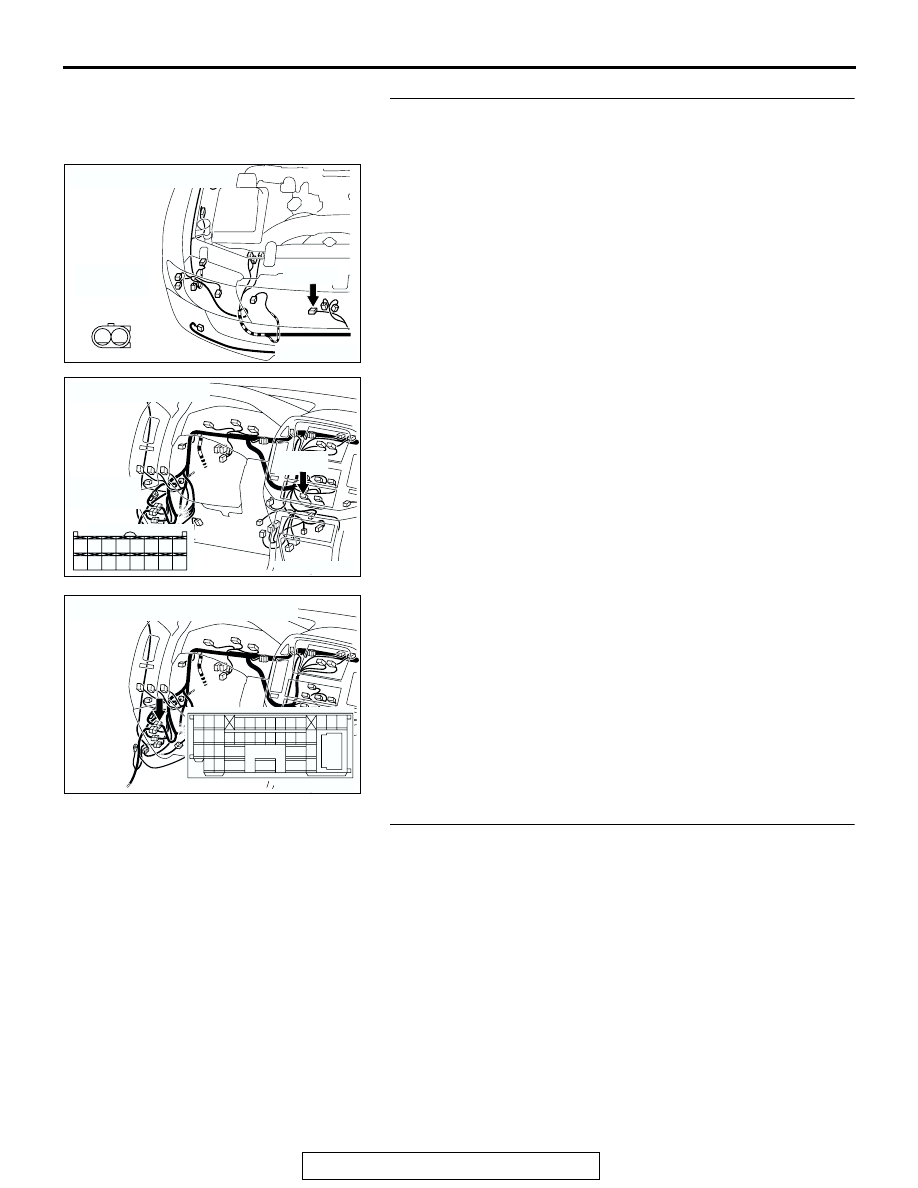

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-11

STEP 4. Check the wiring harness between outside air
temperature sensor connector A-29 (terminals 1 and 2) and
A/C-ECU D-24 (terminals 22 and 29).

NOTE: Also check intermediate connector D-28. If intermediate
connector D-28 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between outside air temperature

sensor connector A-29 (terminals 1 and 2) and A/C-ECU
D-24 (terminals 22 and 29) in good condition?
YES :
Replace the A/C-ECU. (Refer to

P.55B-136

.) Then go

to Step 5.

NO :  Repair the wiring harness. Then go to Step 5.

STEP 5. Recheck for diagnostic trouble code.
Q: Is DTC 13 or 14 set?

YES :  Return to Step 1.
NO :  The procedure is complete.

AC204166

CONNECTOR : A-29

AP

A-29(B)

A-29(B)

1

2

HARNESS
SIDE

AC204170

CONNECTOR : D-24

D-24(B)

D-24(B)

CQ

22

23

30

31

25

26

33

34

32

24

28

3635

27

29

21

HARNESS
SIDE

AC204170

CONNECTOR : D-28

AI

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

AUTO A/C DIAGNOSIS

TSB Revision

AUTOMATIC AIR CONDITIONING

55B-12

DTC 15, 16: Heater Water Temperature Sensor System

DTC SET CONDITION

• DTC 15 is output if there is a defective connector

connection, or if there is an open circuit in the
harness.

• DTC 16 is output if there is a short circuit in the

heater water temperature sensor input circuit.

TROUBLESHOOTING HINT

• Malfunction of connector.

• Malfunction of the harness.

• Malfunction of the heater water temperature sen-

sor.

• Malfunction of the A/C-ECU.

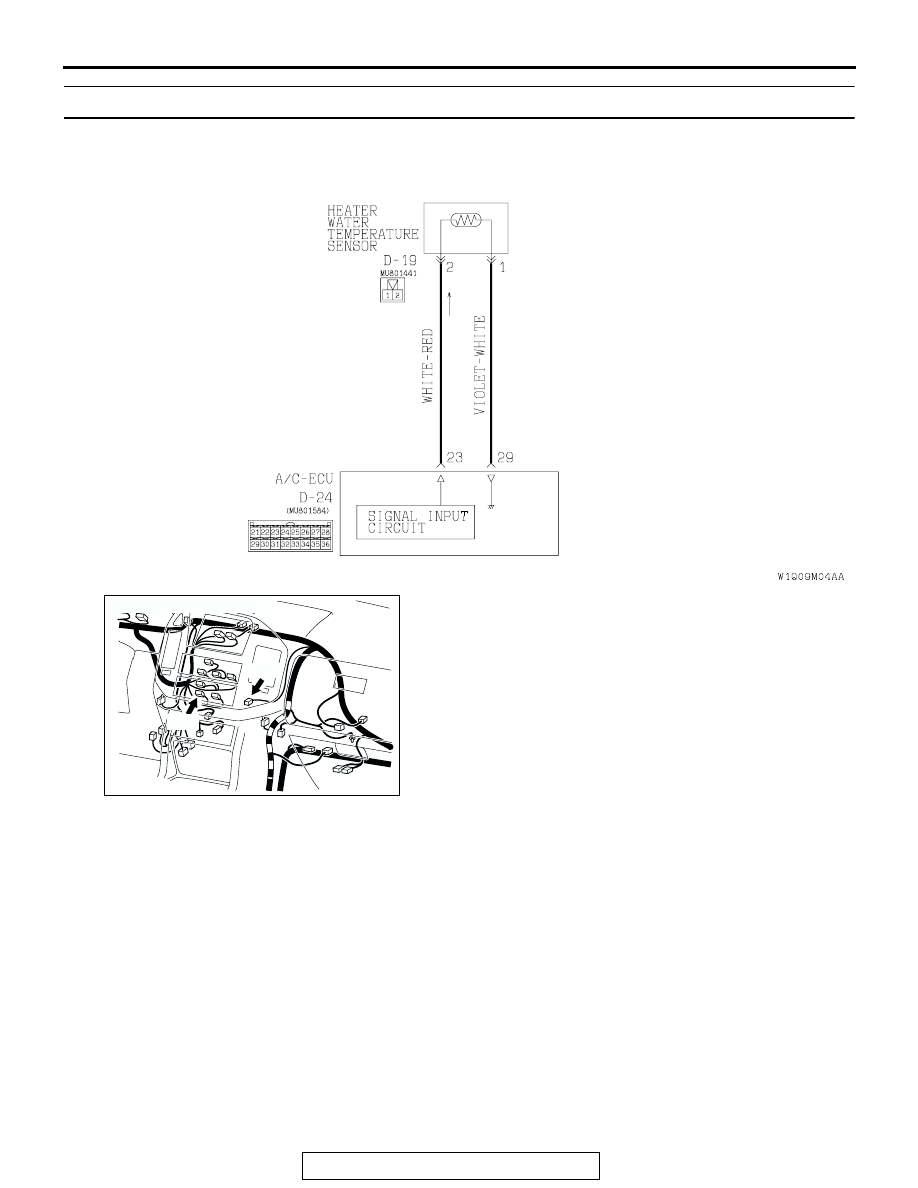

Heater Water Temperature Sensor Circuit

AC001535AD

CONNECTORS: D-19, D-24

D-19

D-24
