VENTILATORS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-155

VENTILATORS

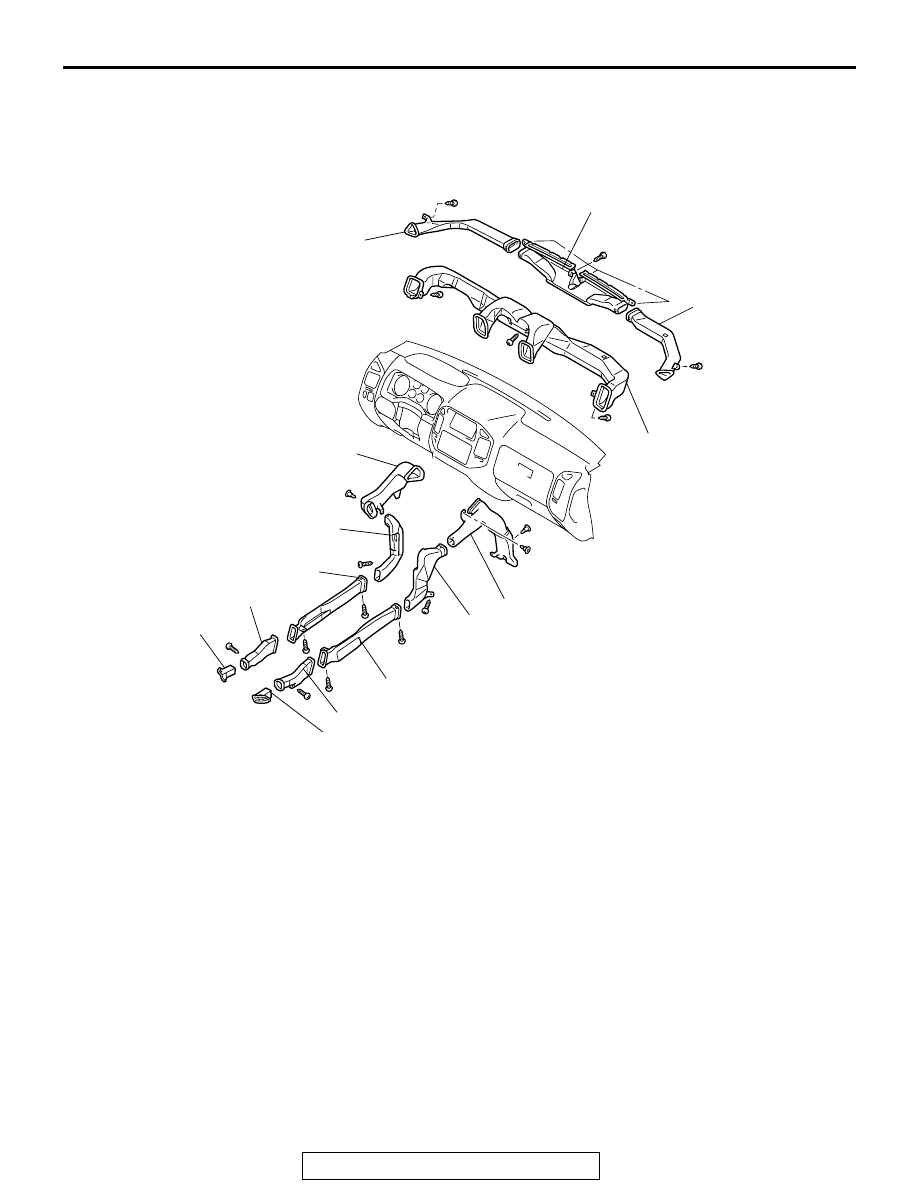

REMOVAL AND INSTALLATION <INSTRUMENT PANEL AND FLOOR>

M1553001600255

ACX01410

1

1

2

2

3

3

4

5

6

7

8

9

9

10

AB

REAR HEATER DUCT REMOVAL STEPS

•

FRONT FLOOR CONSOLE AND REAR
FLOOR CONSOLE (REFER TO GROUP
52A, FLOOR CONSOLE

P.52A-7

.)

1.

FOOT GRILLE

2.

REAR HEATER DUCT B

3.

REAR HEATER DUCT A

DEFROSTER NOZZLE, DISTRIBUTION
DUCT AND FOOT DUCT REMOVAL
STEPS

•

INSTRUMENT PANEL (REFER TO
GROUP 52A, INSTRUMENT PANEL

P.52A-2

.)

4.

FOOT DUCT B

5.

FOOT DUCT D

6.

FOOT DUCT A

7.

FOOT DUCT C

8.

DISTRIBUTION DUCT

9.

SIDE DEFROSTER DUCT

10. DEFROSTER NOZZLE

VENTILATORS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-156

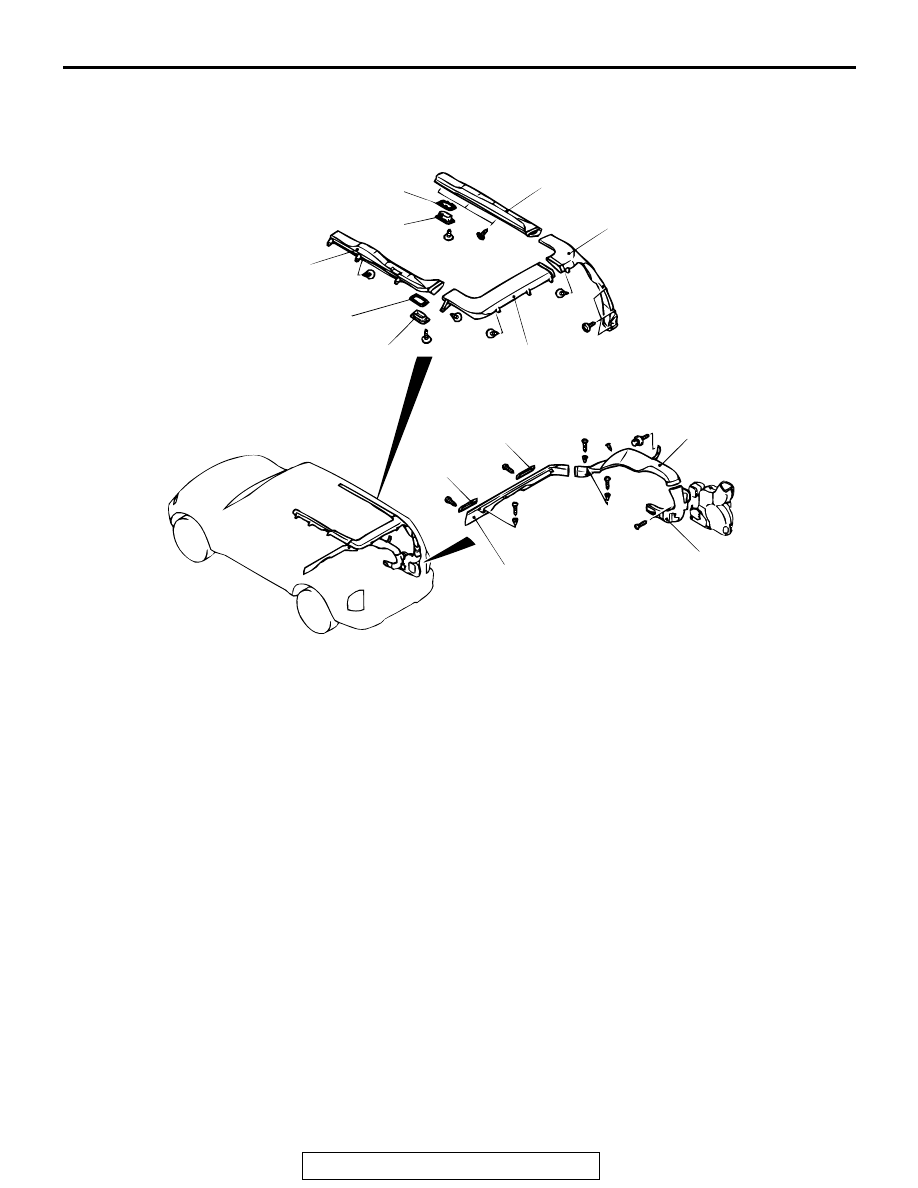

REMOVAL AND INSTALLATION <REAR AIR CONDIONER>

M1553003200037

ACX00848 AB

7

8

9

9

10

5

1

2

3

1

2

6

4

REAR ROOF DUCT REMOVAL STEPS

•

UPPER QUARTER TRIM (RH) (REFER
TO GROUP 52A, TRIMS

P.52A-8

.)

1.

AIR OUTLET ASSEMBLY

2.

RETAINER

•

HEADLINING

3.

ROOF DUCT (LH)

4.

ROOF DUCT (RH)

5.

REAR ROOF DUCT

6.

PILLAR DUCT

REAR FLOOR DUCT REMOVAL STEPS

•

UPPER QUARTER TRIM (RH) AND
LOWER QUARTER TRIM (REFER TO
GROUP 52A, TRIMS

P.52A-8

.)

7.

REAR QUARTER DUCT

8.

REAR FLOOR DUCT A

9.

REAR HEATER GRILLE

•

FLOOR CARPET

10. REAR FLOOR DUCT B

SPECIFICATIONS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-157

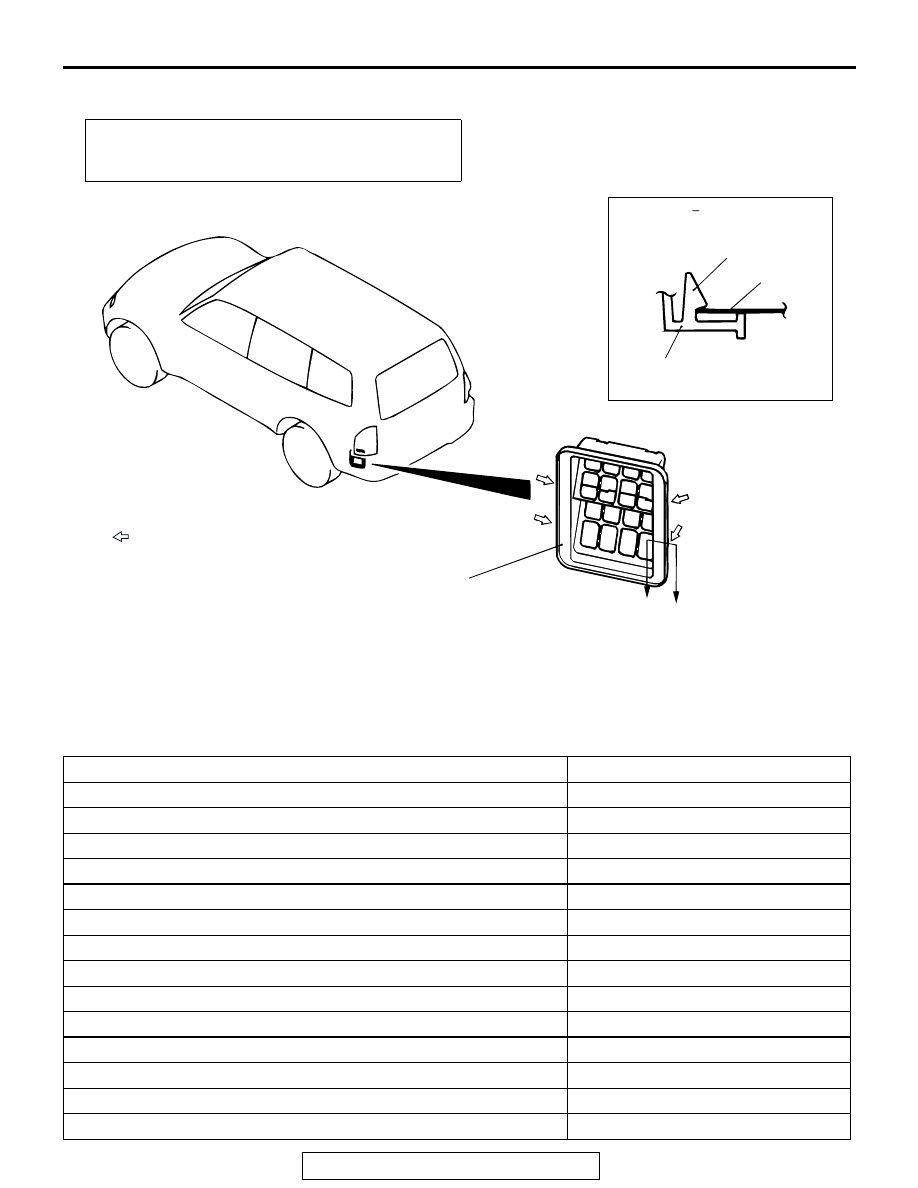

REMOVAL AND INSTALLATION <REAR QUARTER>

M1553002500046

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1552012100217

Pre-removal and Post-installation Operation
Rear Bumper Removal and Installation (Refer to GROUP 51,
Rear Bumper

P.51-5

.)

ACX00849 AB

A

A

REAR VENTILATION DUCT

NOTE
      : CLAW POSITION

REAR VENTILATION DUCT

CLAW

BODY PANEL

SECTION A  A

ITEM

SPECIFICATION

Armature plate mounting bolt

14

± 3 N⋅m (120 ± 24 in-lb)

Discharge hose mounting bolt (compressor side)

9.8

± 2 N⋅m (87 ± 17 in-lb)

Discharge hose mounting nut (condenser side)

9.8

± 2 N⋅m (87 ± 17 in-lb)

Front deck crossmember mounting bolt (LH)

12

± 2 N⋅m (106 ± 17 in-lb)

Front deck crossmember mounting bolt (RH)

22

± 4 N⋅m (16 ± 5 ft-lb)

Liquid pipe A mounting nut (condenser side)

9.8

± 2 N⋅m (87 ± 17 in-lb)

Liquid pipe B and liquid pipe A joint nut

14

± 0.5 N⋅m (124 ± 4 in-lb)

Liquid pipe B mounting bolt (heater unit side)

9.8

± 2 N⋅m (87 ± 17 in-lb)

Liquid pipe C and Liquid pipe B joint nut

14

± 0.5 N⋅m (124 ± 4 in-lb)

Liquid pipe D and Liquid pipe C joint nut

14

± 0.5 N⋅m (124 ± 4 in-lb)

Liquid pipe D mounting nut (rear heater unit side)

14

± 0.5 N⋅m (124 ± 4 in-lb)

Suction hose mounting bolt (compressor side)

9.8

± 2 N⋅m (87 ± 17 in-lb)

Suction hose mounting bolt (heater unit side)

9.8

± 2 N⋅m (87 ± 17 in-lb)

Suction pipe A and suction hose joint nut

33

± 1.0 N⋅m (24 ± 1 ft-lb)

SPECIFICATIONS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-158

SERVICE SPECIFICATIONS

M1552000300225

LUBRICANTS

M1552000400233

Suction pipe B and suction pipe A joint nut

33

± 1.0 N⋅m (24 ± 1 ft-lb)

Suction pipe C and suction pipe B joint nut

33

± 1.0 N⋅m (24 ± 1 ft-lb)

Suction pipe C mounting nut (rear heater unit side)

33

± 1.0 N⋅m (24 ± 1 ft-lb)

ITEM

SPECIFICATION

ITEM

STANDARD VALUE

Air gap (magnetic clutch) mm (in)

0.35

− 0.65 (0.014 − 0.026)

Idle speed r/min

700

± 50

Idle-up speed r/min

Low load

700

± 50

Middle load

800

± 50

High load

1,000

± 50

Rear heater switch temperature adjusting switch resistance k

Ω 0 − 3

Rear heater unit air mix damper potentiometer resistance k

Ω

1.2

− 4.8

Resistor (for front blower motor)

Ω

LO

2.79

ML

1.49

MH

0.36

Resistor (for rear blower motor)

Ω

LO

4.9

MI

1.25

ITEM

SPECIFIED
LUBRICANT

QUANTITY

Compressor refrigerant unit lubricant cm

3

 (floz) Vehicles without rear A/C

SUN PAG 56

120 (4.1)

Compressor refrigerant unit lubricant cm

3

 (floz) Vehicles with rear A/C

SUN PAG 56

140 (4.9)

Each connection of refrigerant line

SUN PAG 56

As required
