INSIDE/OUTSIDE AIR CHANGEOVER DAMPER MOTOR ASSEMBLY

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-135

INSPECTION

M1551003500054

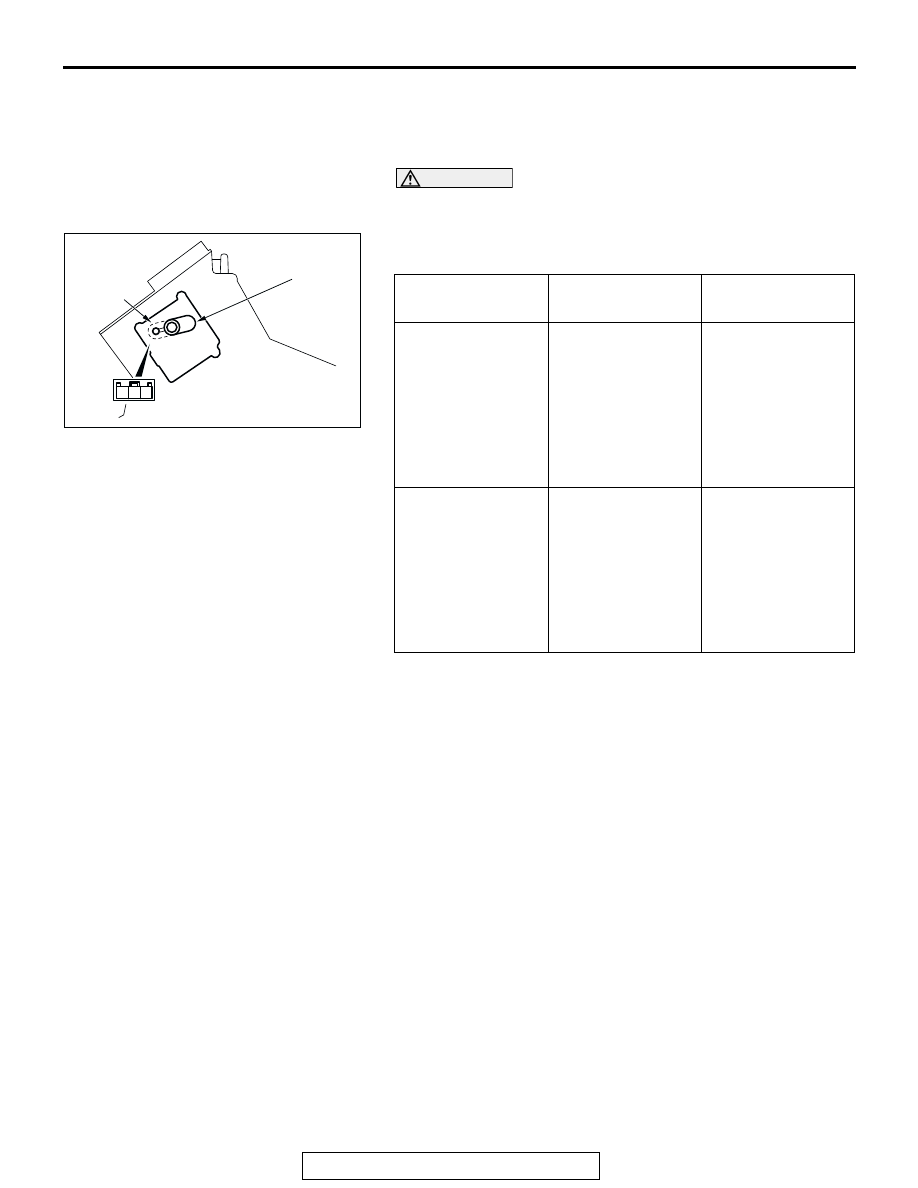

INSIDE/OUTSIDE AIR CHANGEOVER DAMPER
MOTOR CHECK

CAUTION

Disconnect the battery negative terminal when the damper
is in the inside/outside air position.
Check the outside/inside air selection damper control motor by
the following procedures.

LEVER POSITION BATTERY

CONNECTION

LEVER
OPERATION

At the inside air
position

• Connect

terminal 1 to the
positive battery
terminal

• Connect

terminal 2 to the
negative battery
terminal

The lever moves
from the inside air
position to the
outside air position

At the outside air
position

• Connect

terminal 1 to the
positive battery
terminal

• Connect

terminal 3 to the
negative battery
terminal

The lever moves
from the outside air
position to the
inside air position

2 3

1

AC001041AB

OUTSIDE
AIR

INSIDE AIR

SENSORS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-136

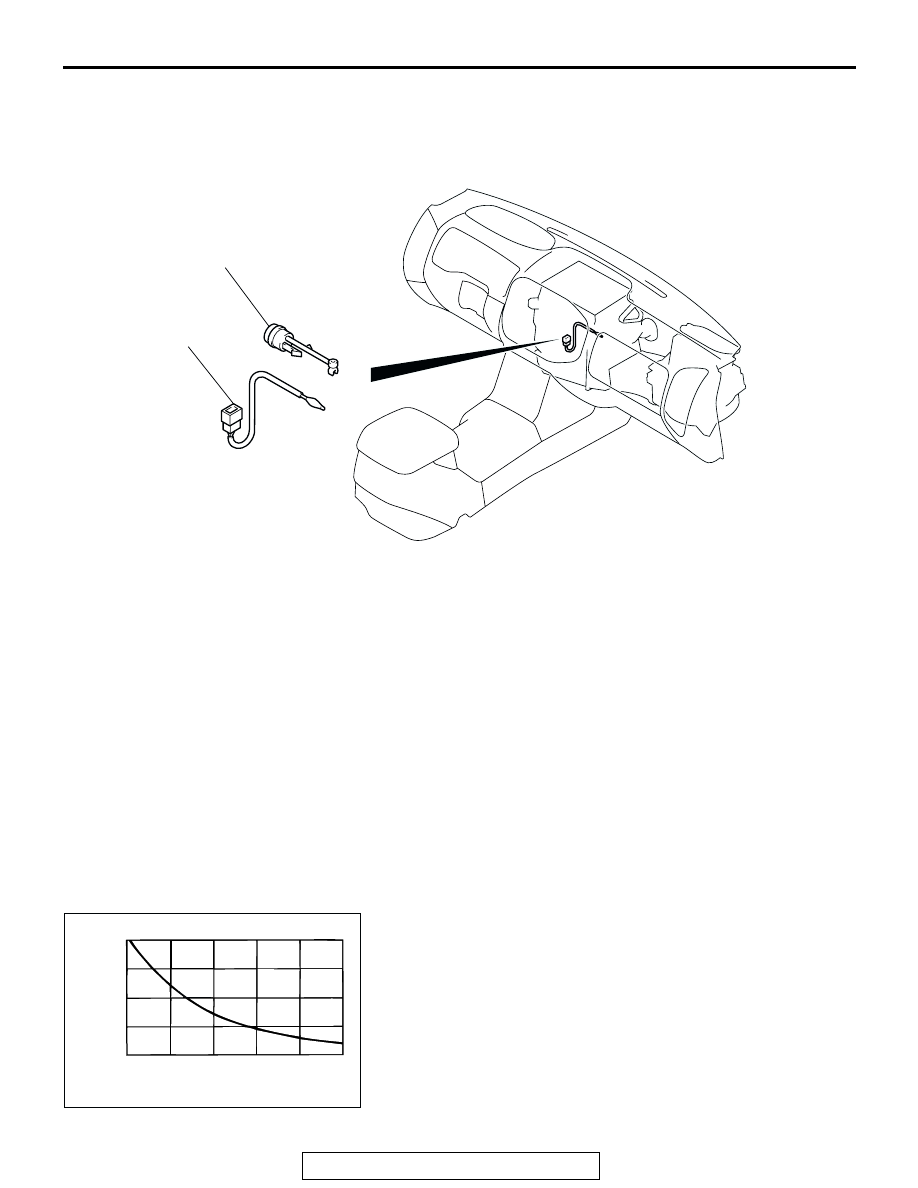

SENSORS

REMOVAL AND INSTALLATION

M1552007600056

INSPECTION

M1552007700042

AIR THERMO SENSOR CHECK

NOTE: The temperature conditions when checking should not
exceed the range shown in the diagram.
When the resistance between the sensor terminals is mea-
sured under two or more temperature conditions, the resis-
tance should approximately satisfy the illustrated values.

AC205083AB

1

2

REMOVAL STEPS

•

LOWER PANEL (REFER TO GROUP
52A, INSTRUMENT PANEL

P.52A-

2

.)

1.

AIR THERMO SENSOR CLIP

2.

AUTOMATIC COMPRESSOR
CONTROLLER AND AIR THERMO
SENSOR

REMOVAL STEPS (Continued)

AC001043

RESISTANCE k

Ω

8

6

4

2

0

-10

0

 10

 20

 30

   40

TEMPERATURE ˚C(˚F)

AB

(14)

(32)

(50)

(86)

(104)

(68)

REAR HEATER SWITCH AND FRONT REAR FAN SWITCH

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-137

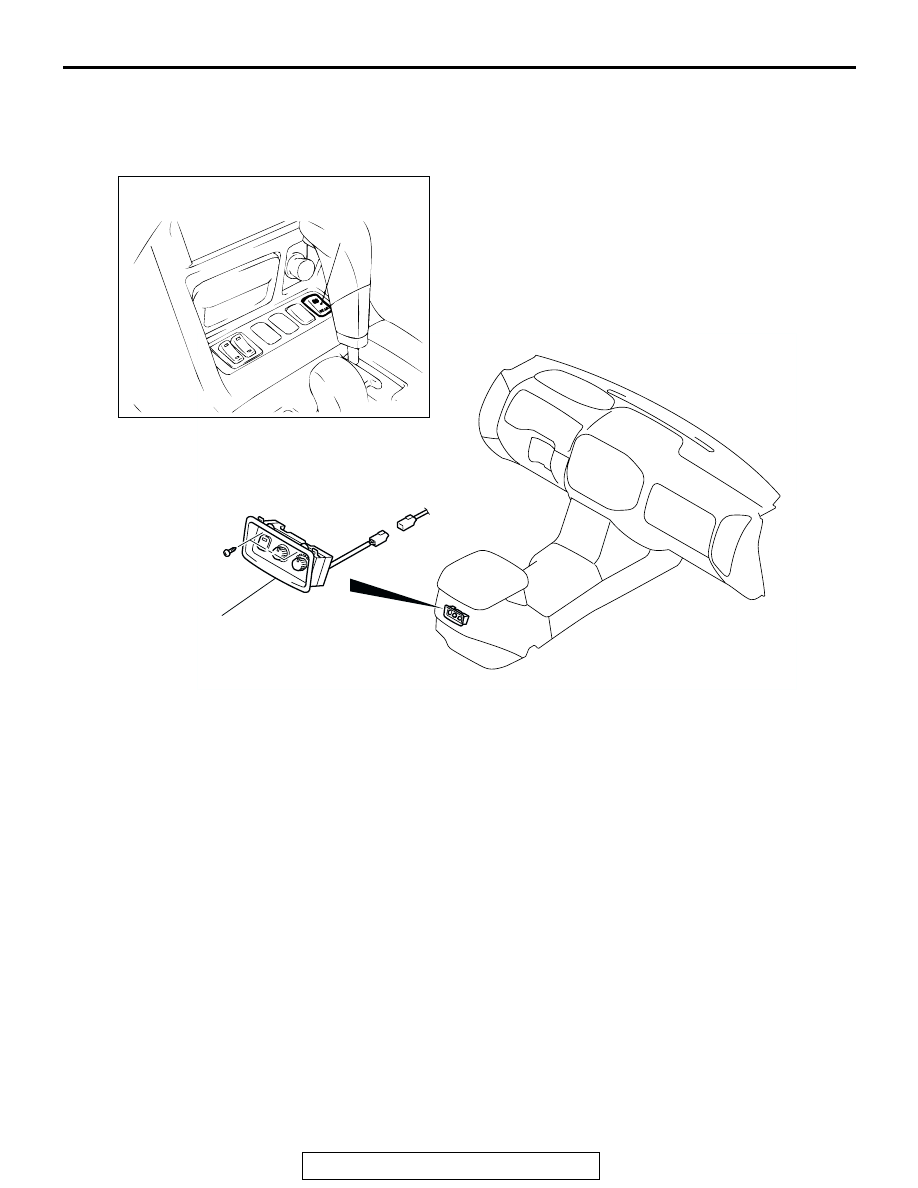

REAR HEATER SWITCH AND FRONT REAR FAN SWITCH

REMOVAL AND INSTALLATION

M1551005700032

AC001044

AC000724

1

2, 3, 4

AC

REMOVAL STEPS

1.

REAR FAN CONTROL SWITCH

2.

REAR HEATER SWITCH
<VEHICLES WITH REAR HEATER>

3.

 REAR COOLER SWITCH
<VEHICLES WITH REAR COOLER>

4.

 REAR A/C SWITCH <VEHICLES
WITH REAR A/C>

REMOVAL STEPS (Continued)

REAR HEATER SWITCH AND FRONT REAR FAN SWITCH

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-138

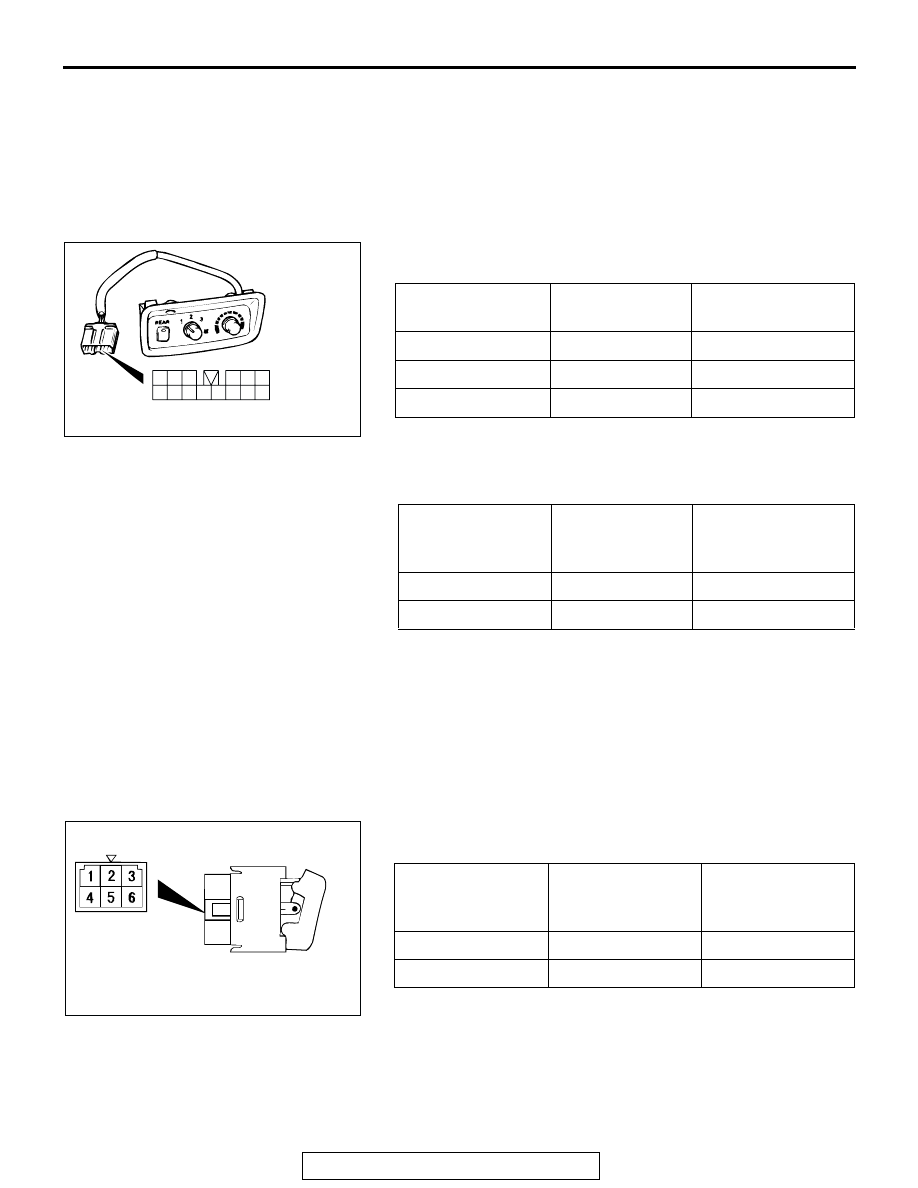

INSPECTION

M1551005800039

REAR HEATER SWITCH <VEHICLES WITH REAR
HEATER>, REAR COOLER SWITCH <VEHICLES
WITH REAR COOLER> OR REAR A/C SWITCH
<VEHICLES WITH REAR A/C> CHECK

.

BLOWER SWITCH CHECK
Follow the table below to check the rear blower switch for conti-
nuity.

.

REAR FAN SWITCH CHECK
Follow the table below to check the rear fan switch for continu-
ity.

.

TEMPERATURE SWITCH CHECK
Connect the tester between the connector terminal number 3
and number 5, between the terminal number 5 and number 13
and make sure that the resistance value changes slowly within
the standard value.

Standard value: 0

− 3 kΩ

REAR FAN CONTROL SWITCH

Follow the table below to check the front rear fan switch for
continuity.

BLOWER SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

1 (LO)

1

− 4

Less than 2 ohms

2 (ME)

1

− 6

Less than 2 ohms

3 (HI)

1

− 7

Less than 2 ohms

REAR FAN
SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

OFF

8

− 9

Less than 2 ohms

ON (while pushing) 2

− 8

Less than 2 ohms

AC205161

1
7

2
8

10 11

5

13

6

14

12

4

9

3

FRONT REAR
FAN SWITCH
POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

OFF

1

− 2

Less than 2 ohms

ON

2

− 5

Less than 2 ohms

AC001045 AB
