REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-103

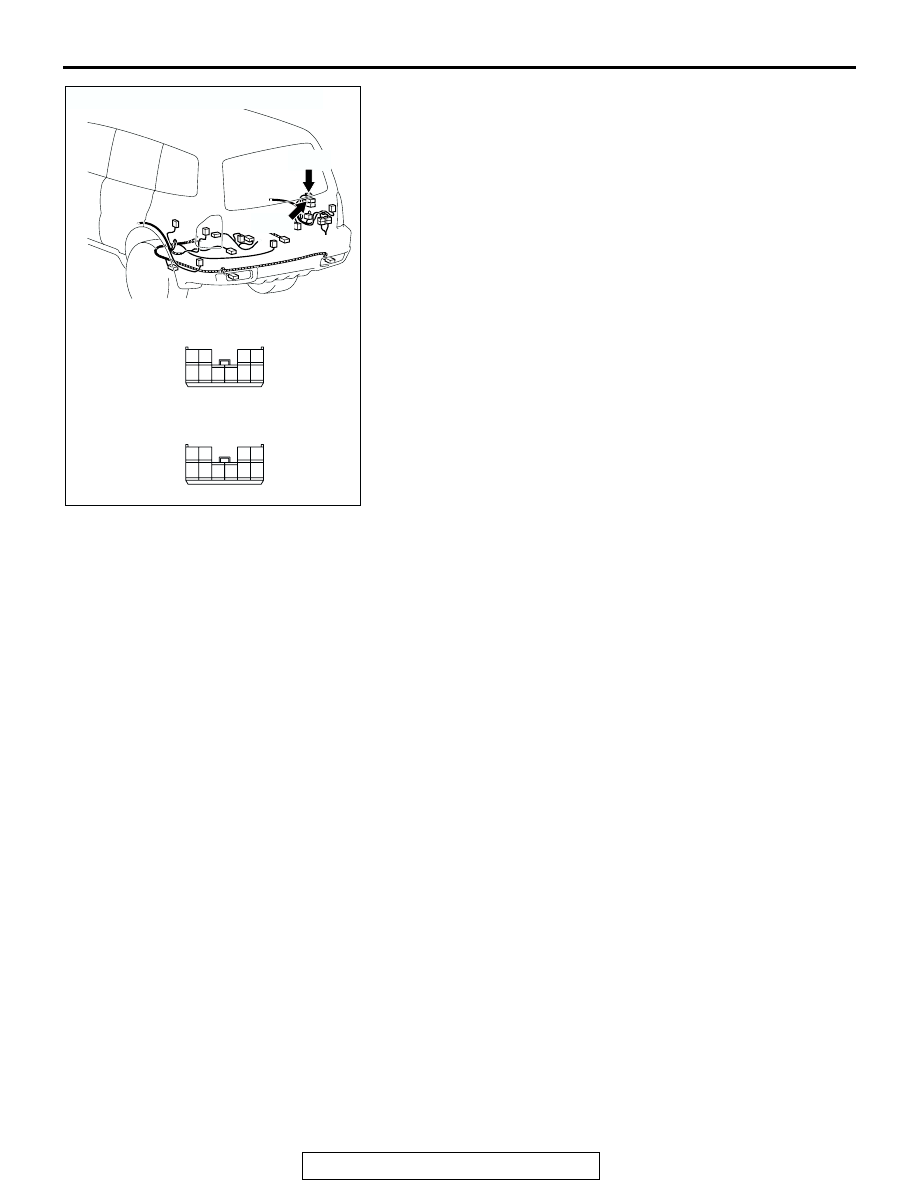

STEP 6. Check the wiring harness between rear blower
motor connector G-06-1 (terminal 1) <vehicles with rear
heater or rear cooler> or G-22-1 (terminal 1) <vehicles with
rear A/C> and blower resistor G-06-2 (terminal 1) <vehicles
with rear heater or rear cooler> or G-22-2 (terminal 1)
<vehicles with rear A/C>.
Q: Is the wiring harness between rear blower motor

connector G-06-1 (terminal 1) <vehicles with rear heater
or rear cooler> or G-22-1 (terminal 1) <vehicles with rear
A/C> and blower resistor G-06-2 (terminal 1) <vehicles
with rear heater or rear cooler> or G-22-2 (terminal 1)
<vehicles with rear A/C> in good condition?
YES : Go to Step 7.
NO :  Repair the wiring harness. The rear blower motor

should operate normally.

AC204699 AB

G-06-1
G-22-1

G-06-2
G-22-2

G-06-1

HARNESS SIDE

G-22-1

HARNESS SIDE

<VEHICLES WITH A/C>

G-06-2

HARNESS SIDE

G-22-2

HARNESS SIDE

1
2

1
4

3
6 5

2

1
2

1
4

3
6 5

2

<VEHICLES WITHOUT A/C>

CONNECTORS : G-06-1, G-06-2, G-22-1,
G-22-2

REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-104

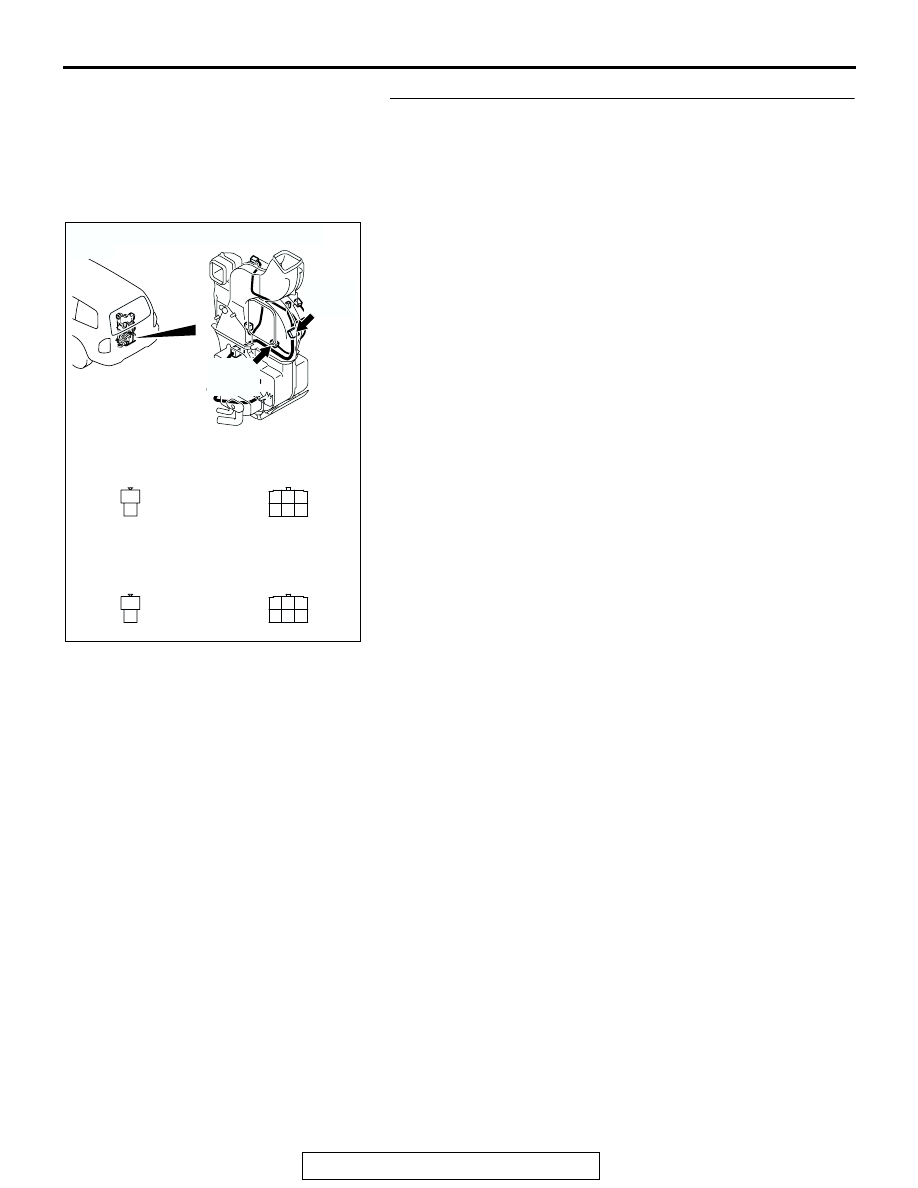

STEP 7. Check blower resistor connector G-06-2 <vehicles
with rear heater or rear cooler> or G-22-2 <vehicles with
rear A/C> and rear heater switch connector E-21 <vehicles
with rear heater> or rear cooler switch connector E-17
<vehicles with rear cooler> or rear A/C switch connector E-
22 <vehicles with rear A/C> for damage.
Q: Is blower resistor connector G-06-2 <vehicles with rear

heater or rear cooler> or G-22-2 <vehicles with rear A/C>
and rear heater switch connector E-21 <vehicles with
rear heater> or rear cooler switch connector E-17
<vehicles with rear cooler> or rear A/C switch connector
E-22 <vehicles with rear A/C> in good condition?
YES : Go to Step 8.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

blower motor should operate normally.

AC204193

CONNECTORS : E-17, E-21, E-22

AC

E-17, E-21, E-22

E-17 <VEHICLES WITH REAR COOLER>
E-21 <VEHICLES WITH REAR HEATER>
E-22 <VEHICLES WITH REAR A/C>

HARNESS SIDE

1
7

2
8

10

11

5

13

6

14

12

4

9

3

AC204699

CONNECTORS : G-06-2, G-22-2

AD

G-06-2
G-22-2

<VEHICLES WITH AIR
  CONDITIONING SYSTEM>

G-06-2

HARNESS SIDE

G-22-2

HARNESS SIDE

1
4

3
6 5

2

1
4

3
6 5

2

<VEHICLES WITHOUT
  AIR CONDITIONING SYSTEM>

REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-105

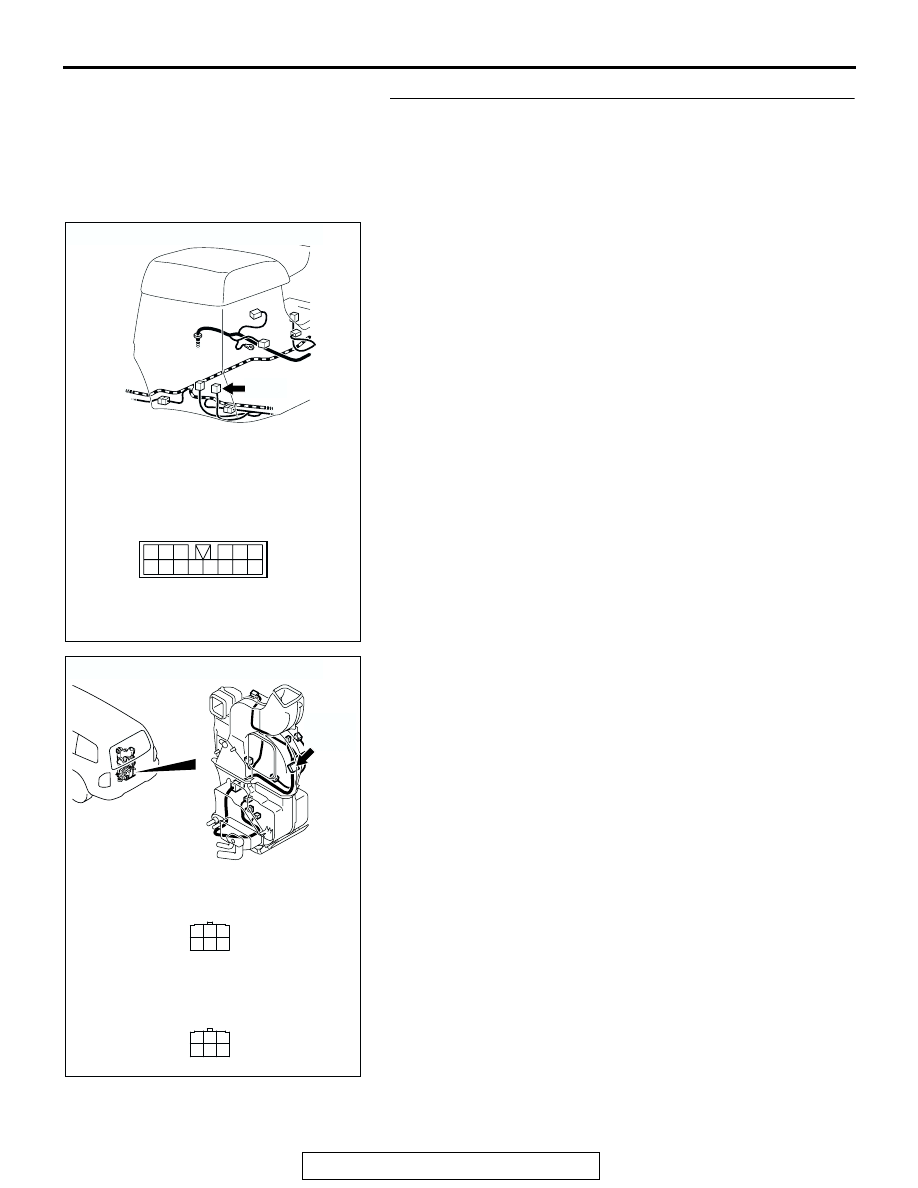

STEP 8. Check the wiring harness between blower resistor
connector G-06-2 (terminal 3 and 6) <vehicles with rear
heater or rear cooler> or G-22-2 (terminal 3 and 6)
<vehicles with rear A/C> and rear heater switch connector
E-21 (terminal 6 and 4) <vehicles with rear heater> or rear
cooler switch connector E-17 (terminal 6 and 4) <vehicles
with rear cooler> or rear A/C switch connector E-22
(terminal 6 and 4) <vehicles with rear A/C>.

AC204193

CONNECTORS : E-17, E-21, E-22

AC

E-17, E-21, E-22

E-17 <VEHICLES WITH REAR COOLER>
E-21 <VEHICLES WITH REAR HEATER>
E-22 <VEHICLES WITH REAR A/C>

HARNESS SIDE

1
7

2
8

10

11

5

13

6

14

12

4

9

3

AC204699

CONNECTORS : G-06-2, G-22-2

AD

G-06-2
G-22-2

<VEHICLES WITH AIR
  CONDITIONING SYSTEM>

G-06-2

HARNESS SIDE

G-22-2

HARNESS SIDE

1
4

3
6 5

2

1
4

3
6 5

2

<VEHICLES WITHOUT
  AIR CONDITIONING SYSTEM>

REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-106

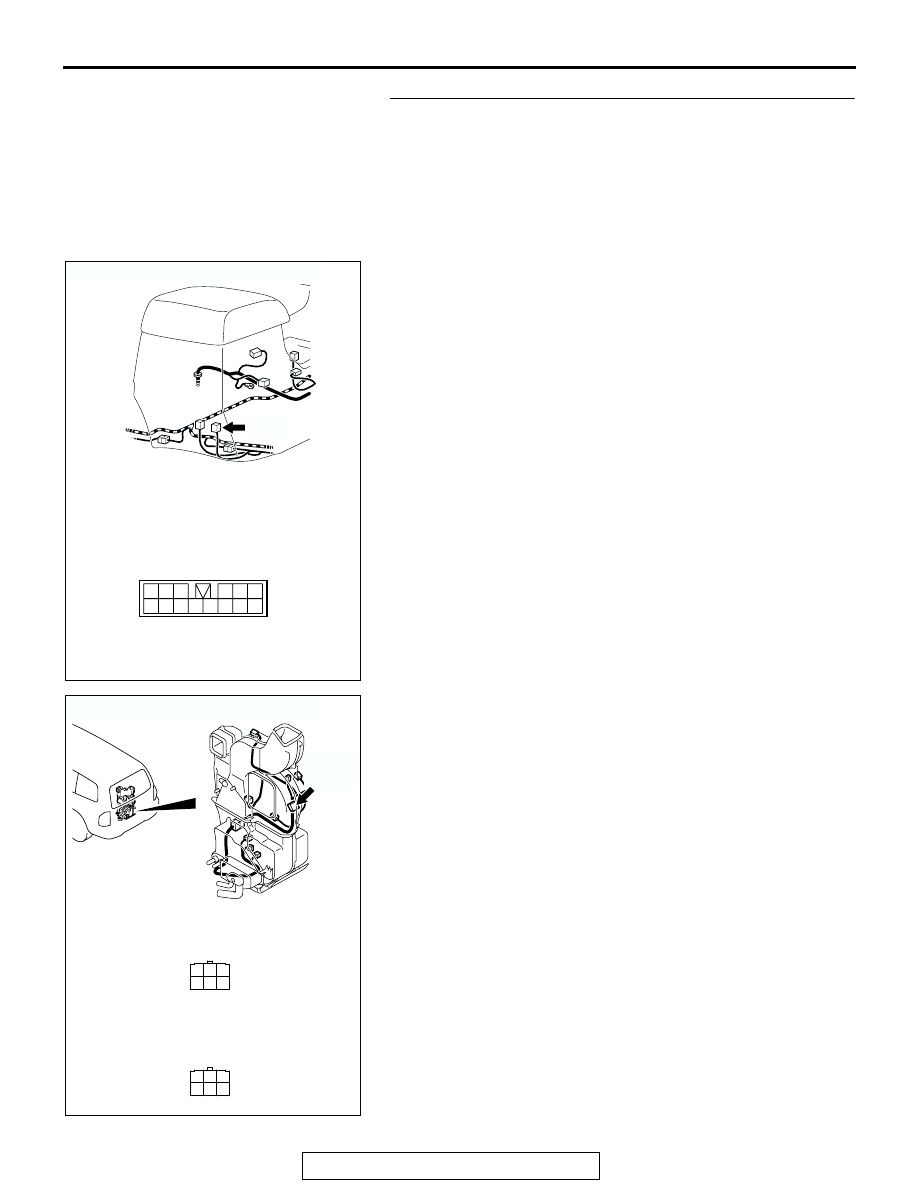

NOTE: Also check rear blower unit connector G-06 <vehicles
with rear heater or rear cooler> or G-22 <vehicles with rear A/
C>. If rear blower unit connector G-06 <vehicles with rear
heater or rear cooler> or G-22 <vehicles with rear A/C> is dam-
aged, repair or replace the connector as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between blower resistor

connector G-06-2 (terminal 3 and 6) <vehicles with rear
heater or rear cooler> or G-22-2 (terminal 3 and 6)
<vehicles with rear A/C> and rear heater switch
connector E-21 (terminal 6 and 4) <vehicles with rear
heater> or rear cooler switch connector E-17 (terminal 6
and 4) <vehicles with rear cooler> or rear A/C switch
connector E-22 (terminal 6 and 4) <vehicles with rear A/
C> in good condition?
YES : The rear blower motor should operate normally.
NO :  Repair the wiring harness. The rear blower motor

should operate normally.

AC204197

CONNECTORS : G-06, G-22

AB

G-06

G-22

G-06

HARNESS SIDE

G-22

HARNESS SIDE

1

5

7

8

2

6

10

4

9

3

1

5

7

8

2

6

10

4

9

3
