REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-79

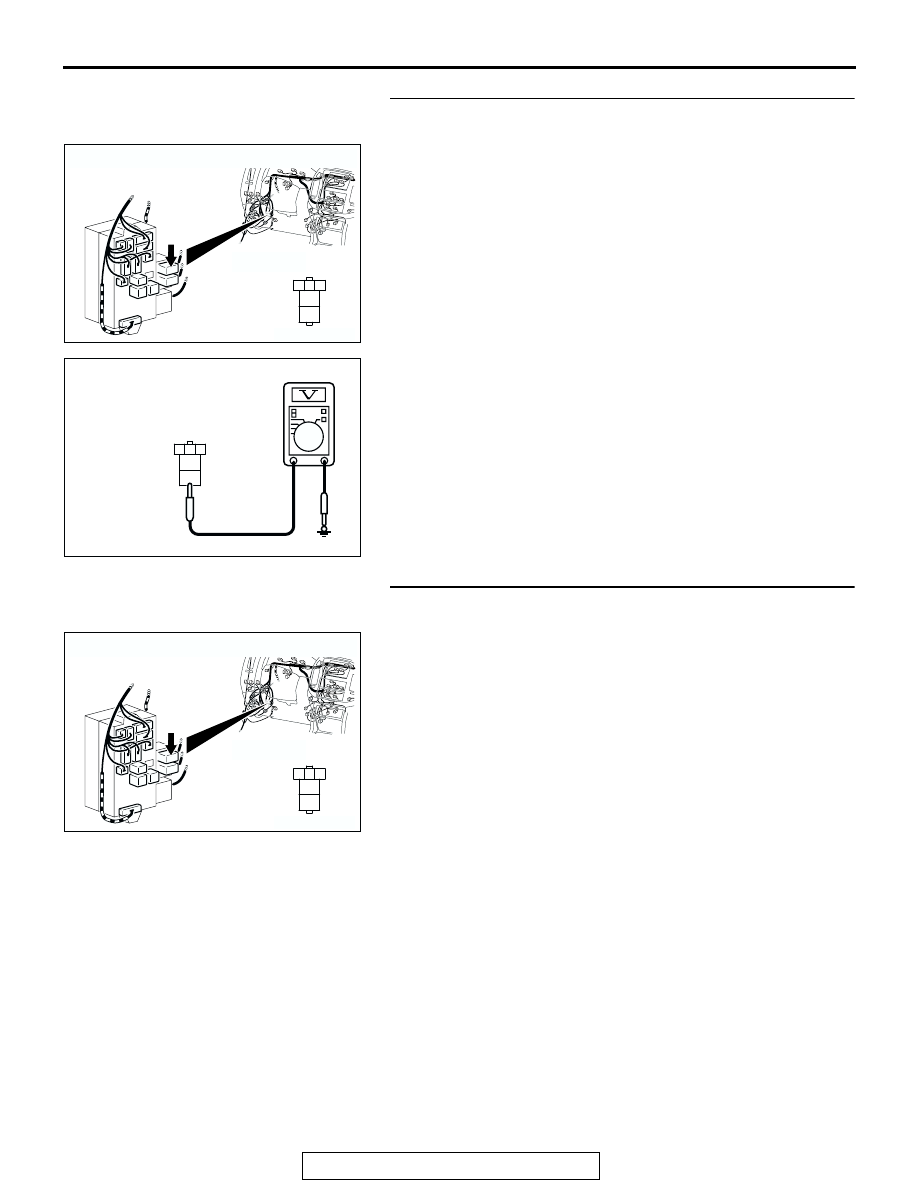

STEP 8. Measure the voltage at rear blower relay
connector D-213.
(1) Disconnect rear blower relay connector D-213, and

measure the voltage at the junction block side.

(2) Measure the voltage between terminal 5 and ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Does the measured voltage correspond with this range?

YES :  Go to Step 11.
NO :   Go to Step 9.

STEP 9. Check rear blower relay connector D-213 for
damage.
Q: Is rear blower relay connector D-213 in good condition?

YES : Go to Step 10.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

blower motor should operate normally.

AC204173

CONNECTOR : D-213

AY

JUNCTION
BLOCK SIDE

2 1

5

4

3

AC204738

HARNESS SIDE : D-213

CS

2 1

5

4

3

AC204173

CONNECTOR : D-213

AY

JUNCTION
BLOCK SIDE

2 1

5

4

3

REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-80

STEP 10. Check the wiring harness between rear blower
relay connector D-213 (terminal 5) and the fusible link (2).

NOTE: Also check intermediate connector D-28. If intermediate
connector D-28 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between rear blower relay

connector D-213 (terminal 5) and the fusible link (2) in
good condition?
YES : The rear blower motor should operate normally.
NO :  Repair the wiring harness. The rear blower motor

should operate normally.

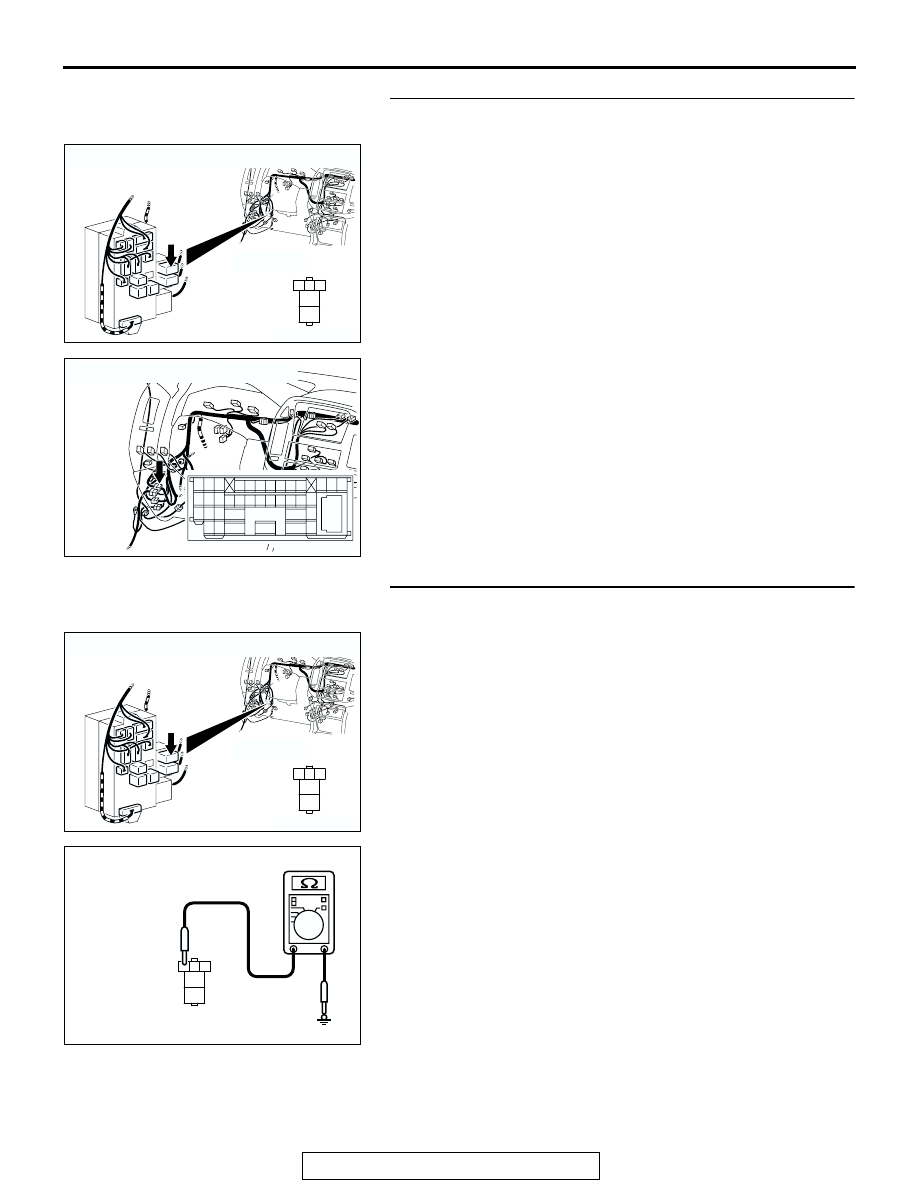

STEP 11. Measure the resistance at rear blower relay
connector D-213.
(1) Disconnect connector D-213, and measure the resistance

at the junction block side.

(2) Turn the rear fan switch to the "ON" position.
(3) Turn the rear fan control switch to the "OFF" position.

(4) Measure the resistance value between terminal 3 and

ground.

• Less than 2 ohms

Q: Does the measured resistance value correspond with

this range?
YES :  Go to Step 20.
NO :   Go to Step 12.

AC204173

CONNECTOR : D-213

AY

JUNCTION
BLOCK SIDE

2 1

5

4

3

AC204170

CONNECTOR : D-28

AI

2 3

27

32

28

33

16

15

4 5

19

18

29

17

34

7 8

35

22

21

9 10

30

36

31

37

25

24

23

6

20

1

14

26

11

13

12

38

AC204173

CONNECTOR : D-213

AY

JUNCTION
BLOCK SIDE

2 1

5

4

3

AC204738 CI

JUNCTION BLOCK SIDE : D-213

2 1

5

4

3

REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-81

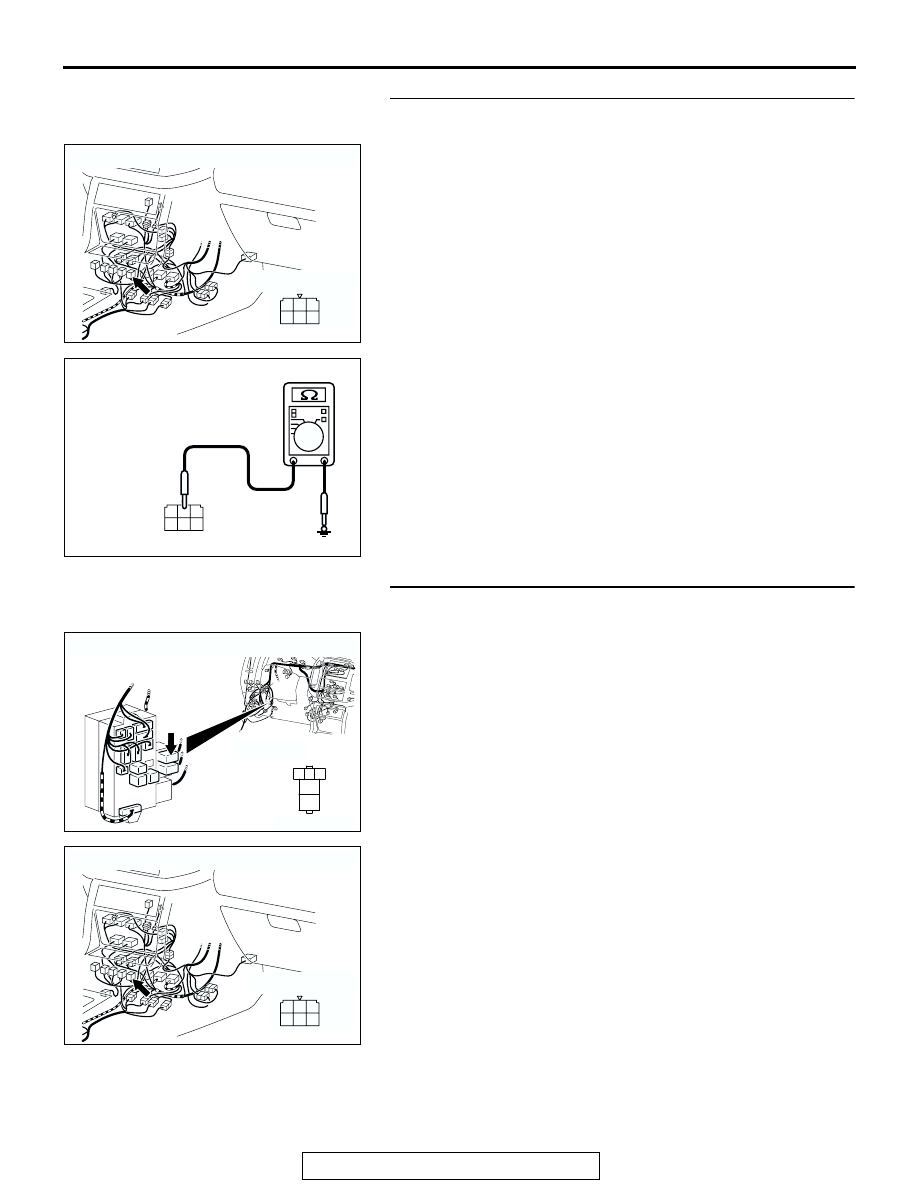

STEP 12. Measure the resistance at rear fan control switch
connector E-12.
(1) Disconnect connector E-12, and measure the resistance at

the wiring harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the resistance value between terminal 2 and

ground.

• Less than 2 ohms

Q: Does the measured resistance value correspond with

this range?
YES :  Go to Step 13.
NO :   Go to Step 15.

STEP 13. Check rear fan switch connector E-12 and rear
blower relay connector D-213 for damage.
Q: Is rear fan switch connector E-12 and rear blower relay

connector D-213 in good condition?
YES : Go to Step 14.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

blower motor should operate normally.

AC204176

CONNECTOR : E-12

AX

HARNESS SIDE

1
4

2

3

5

6

AC204738 CJ

HARNESS SIDE : E-12

1
4

2

3

5

6

AC204173

CONNECTOR : D-213

AY

JUNCTION
BLOCK SIDE

2 1

5

4

3

AC204176

CONNECTOR : E-12

AX

HARNESS SIDE

1
4

2

3

5

6

REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-82

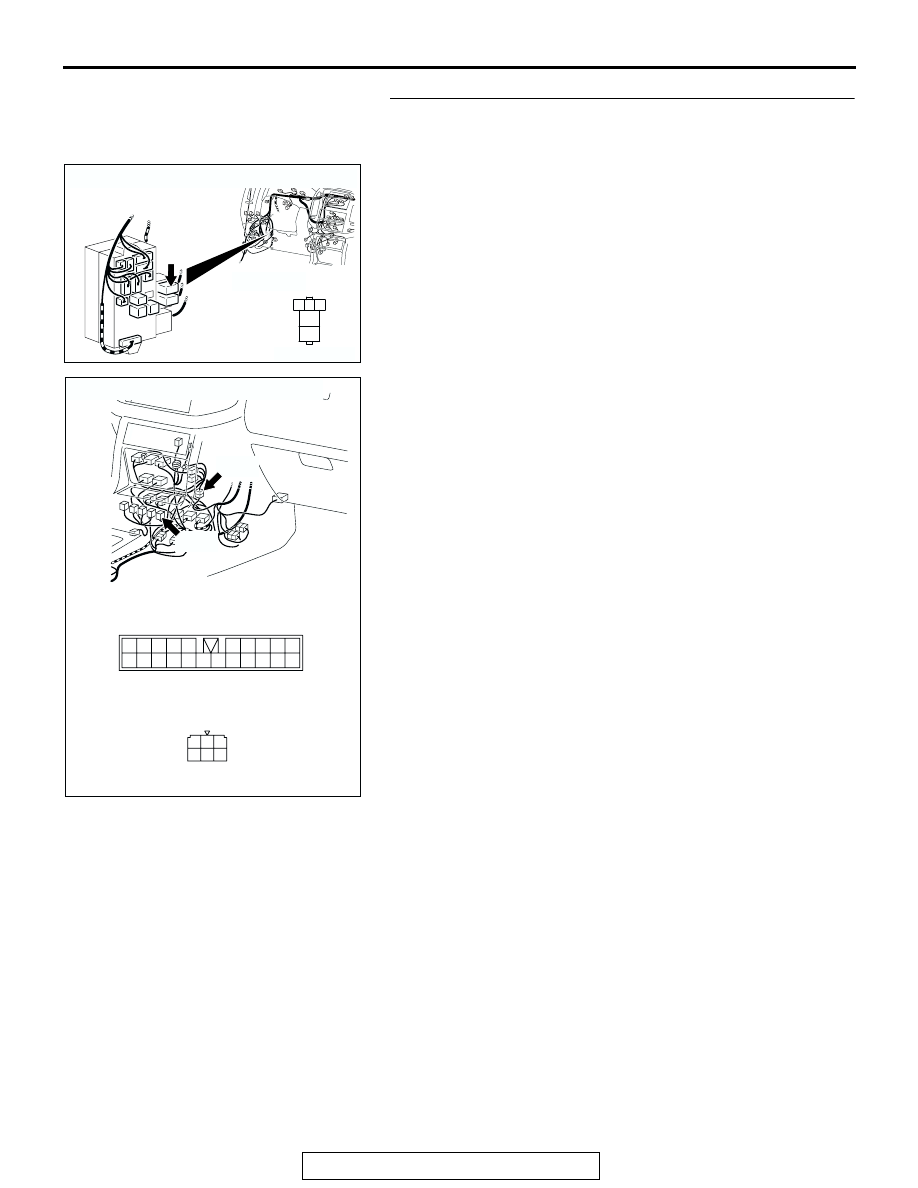

STEP 14. Check the wiring harness between rear blower
relay connector D-213 (terminal 3) and rear fan control
switch connector E-12 ((terminal 1).
NOTE: Also check intermediate connector E-06. If intermediate
connector E-06 is damaged, repair or replace the connector as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between rear blower relay

connector D-213 (terminal 3) and rear fan control switch
connector E-12 ((terminal 1) in good condition?
YES : The rear blower motor should operate normally.
NO :  Repair the wiring harness. The rear blower motor

should operate normally.
