Mitsubishi Montero (2002-2004). Manual - part 41

REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-27

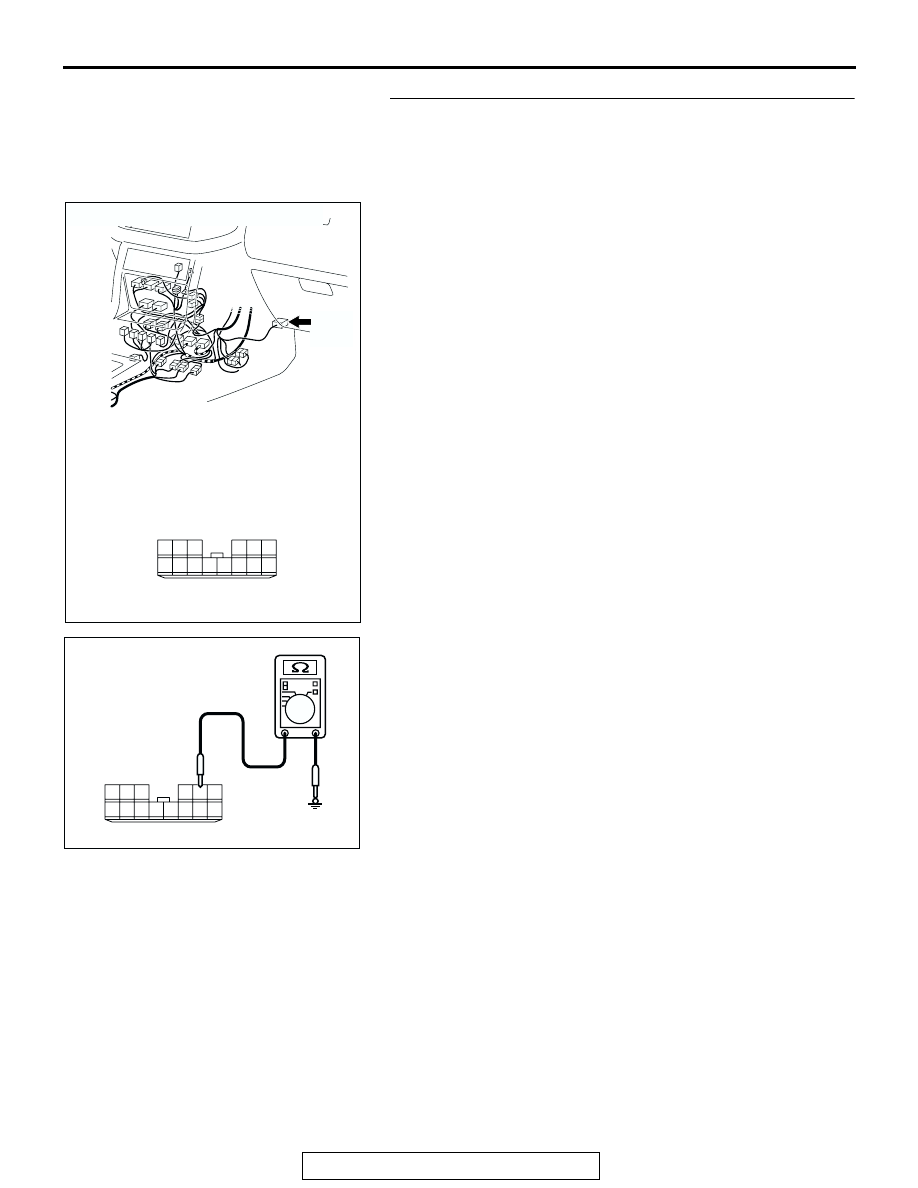

STEP 6. Measure the resistance at rear heater control unit
connector E-01 <vehicles with rear heater>, rear cooler
control unit connector E-09 <vehicles with rear cooler> or
rear A/C control unit connector E-20 <vehicles with rear
A/C>.
(1) Disconnect rear heater control unit connector E-01

<vehicles with rear heater> or rear cooler control unit
connector E-09 <vehicles with rear cooler> or rear A/C
control unit connector E-20 <vehicles with rear A/C>, and
measure at the wiring harness side.

(2) Measure the resistance between terminal 2 and ground.

• The measured value should be 2 ohms or less.

Q: Does the measured resistance value correspond with

this range?
YES : Replace the rear heater control unit <vehicles with

rear heater> or rear cooler control unit <vehicles with
rear cooler> or rear A/C control unit <vehicles with
rear A/C>, and check that the rear air conditioning
works normally.

NO :   Go to Step 7.

AC204194

CONNECTORS : E-01, E-09, E-20

AN

E-01,
E-09,
E-20

E-01 <VEHICLES WITH REAR HEATER>
E-09 <VEHICLES WITH REAR COOLER>
E-20 <VEHICLES WITH REAR A/C>

HARNESS SIDE

7

8

3

10 9

2

4

11

1312

5

14

6

1

AC205150

7

8

3

10 9

2

4

11

1312

5

14

6

1

AB

CONNECTOR E-01, E-09, E-20
(HARNESS SIDE)

REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-28

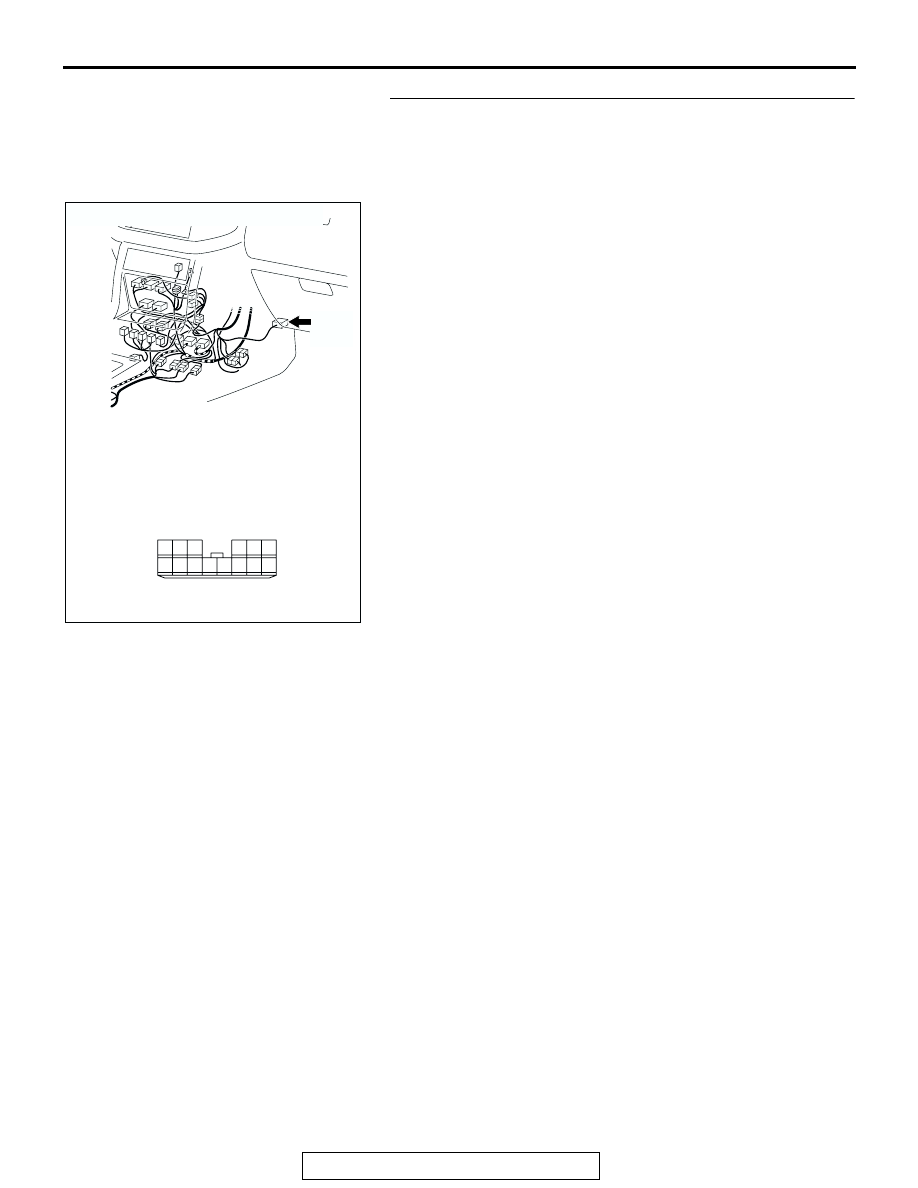

STEP 7. Check rear heater control unit connector E-01
<vehicles with rear heater>, rear cooler control unit
connector E-09 <vehicles with rear cooler> or rear A/C
control unit connector E-20 <vehicles with rear A/C> for
damage.
Q: Is rear heater control unit connector E-01 <vehicles with

rear heater>, rear cooler control unit connector E-09
<vehicles with rear cooler> or rear A/C control unit
connector E-20 <vehicles with rear A/C> in good
condition?
YES : Go to Step 8.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that the rear air conditioning works normally.

AC204194

CONNECTORS : E-01, E-09, E-20

AN

E-01,
E-09,
E-20

E-01 <VEHICLES WITH REAR HEATER>
E-09 <VEHICLES WITH REAR COOLER>
E-20 <VEHICLES WITH REAR A/C>

HARNESS SIDE

7

8

3

10 9

2

4

11

1312

5

14

6

1

REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-29

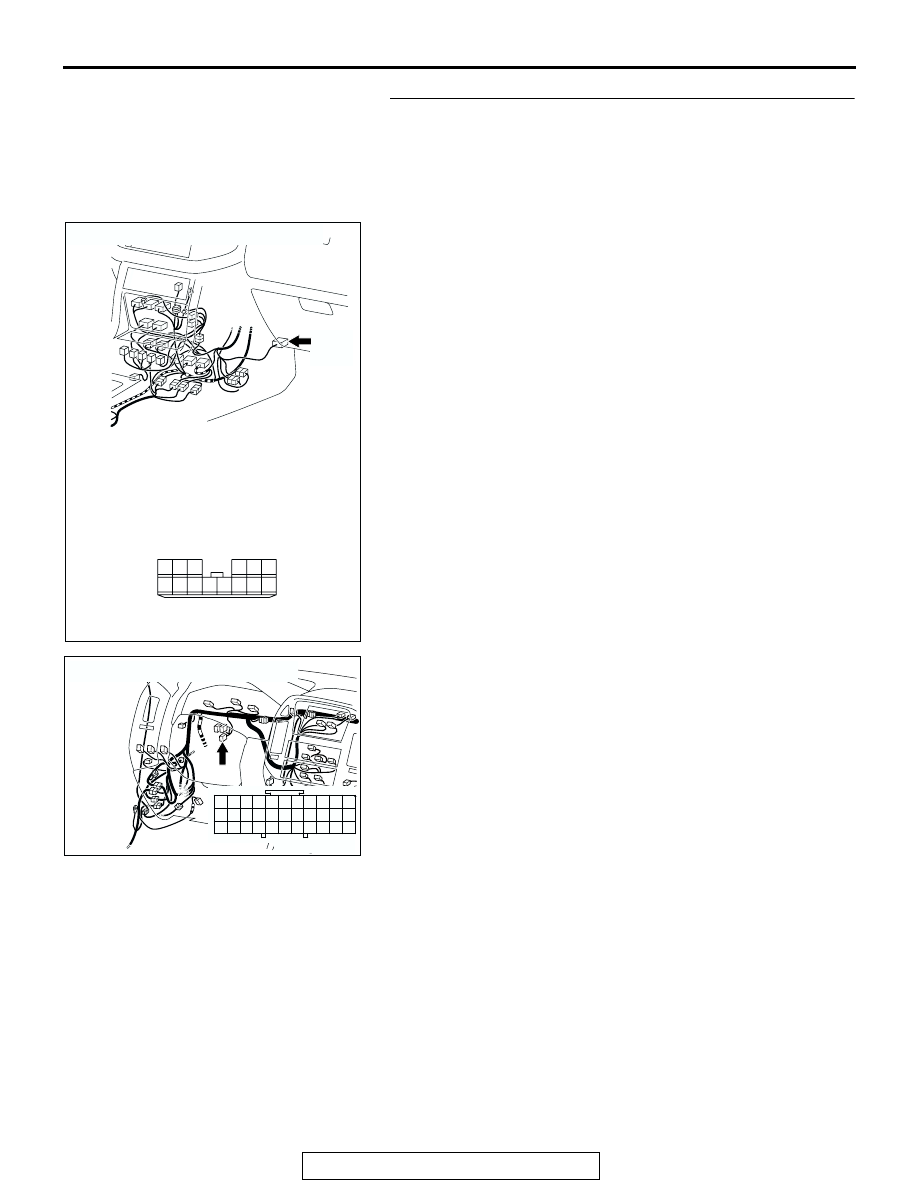

STEP 8. Check the wiring harness between rear heater
control unit connector E-01 (terminal 2) <vehicles with rear
heater> or rear cooler control unit connector E-09
(terminal 2) <vehicles with rear cooler> or rear A/C control
unit connector E-20 (terminal 2) <vehicles with rear A/C>
and the ground.

NOTE: Also check joint connector (8) connectors D-30. If joint
connector (8) connectors D-30 is damaged, repair or replace
the connector as described in GROUP 00E, Harness Connec-
tor Inspection

P.00E-2

.

Q: Is the wiring harness between rear heater control unit

connector E-01 (terminal 2) <vehicles with rear heater>
or rear cooler control unit connector E-09 (terminal 2)
<vehicles with rear cooler> or rear A/C control unit
connector E-20 (terminal 2) <vehicles with rear A/C> and
the ground in good condition?
YES : Replace the rear heater control unit connector E-01

<vehicles with rear heater> or rear cooler control unit
connector E-09 <vehicles with rear cooler> or rear A/
C control unit connector E-20 <vehicles with rear A/
C>, and check that the rear air conditioning works
normally.

NO :  Repair the wiring harness. Check that the rear air

conditioning works normally.

AC204194

CONNECTORS : E-01, E-09, E-20

AN

E-01,
E-09,
E-20

E-01 <VEHICLES WITH REAR HEATER>
E-09 <VEHICLES WITH REAR COOLER>
E-20 <VEHICLES WITH REAR A/C>

HARNESS SIDE

7

8

3

10 9

2

4

11

1312

5

14

6

1

AC204170

CONNECTOR : D-30

AJ

9 10

8

6 7

31 32

30

29

18 19 20 21

5

4

2

1

3

27

26

24

23

25

12 13 14 15 16 17

28

11
22
33

REAR AIR CONDITIONING DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-30

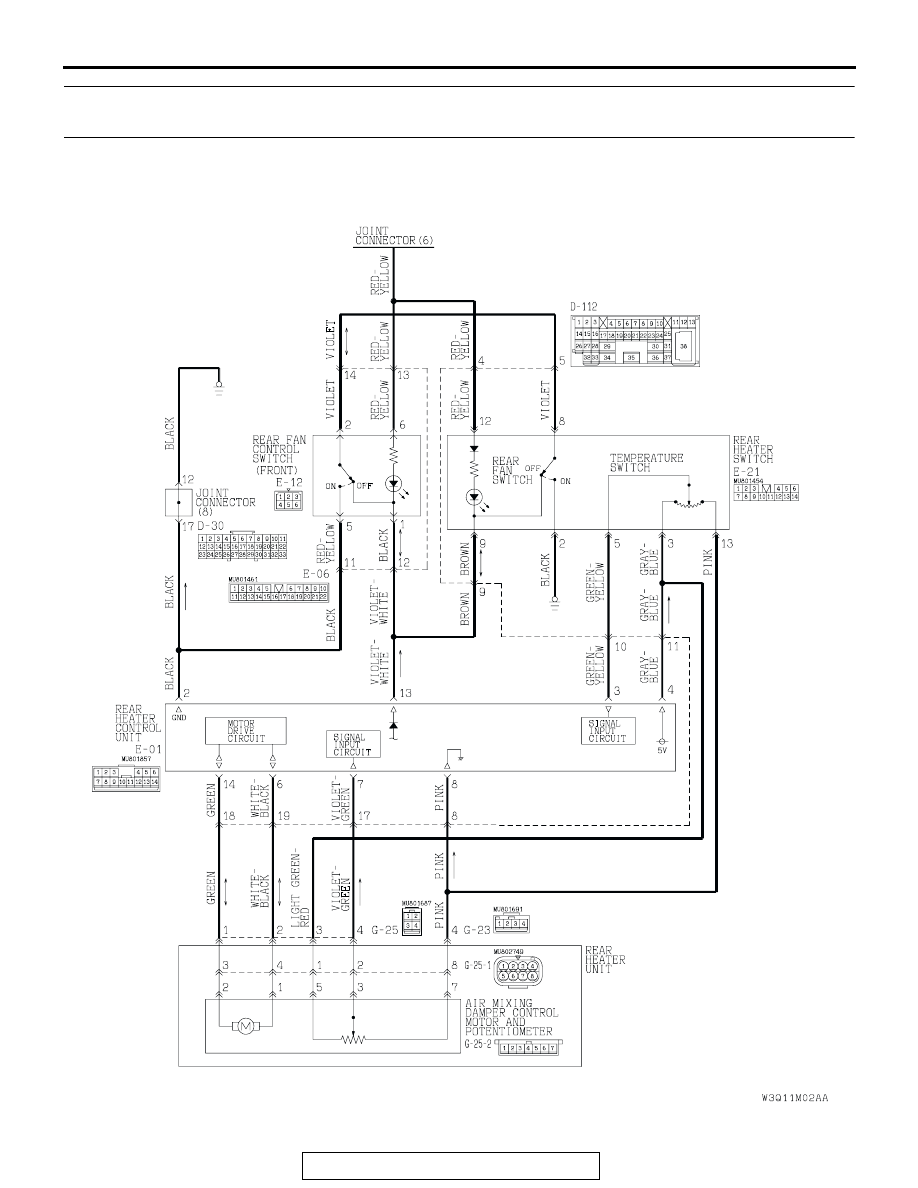

INSPECTION PROCEDURE 2: Rear Air Conditioning Outlet Air Temperature does not Increase
<Vehicles with Rear Heater>

Air Mixing Damper Control Motor and Potentiometer Circuit
